TWS master chip battle, balance of delay, noise reduction and stability

Release date:2021-12-28Author source:KinghelmViews:209

 Electronic enthusiast network reported (Wen / Zhou Kaiyang) among many wireless connection technologies, Bluetooth has once again triggered a wave of market boom with the help of true wireless headset (TWS). Bluetooth headset is no longer a new technology, but the emergence of TWS has solved most people's pain points about this product. Today, major mobile phone and headset manufacturers have begun to launch new TWS headphones, and realize additional functions such as noise reduction and voice control through powerful main control chips. All this also benefits from the low-power protocol ble added from Bluetooth 4.0.

 According to ABI research, the number of ble devices will reach 1.6 billion in 2023 and achieve a compound annual growth rate of 27% from 2018 to 2023. For the continuous popularization of ble technology in smart home, Internet of things and other applications, this technology has been growing steadily since its inception in 2010, and has become the hot Bluetooth market explosion point with the rapid increase of ble audio applications. With the launch of Bluetooth 5.2, ble has developed Le audio high-quality audio transmission.

 As the core of TWS, its main control chip fundamentally determines the performance and characteristic functions of different Bluetooth headsets. According to the analysis of strategy analytics, in 2019, apple occupied 50% of the TWS market with the help of the airplads series. Besides apple, what are the competitive TWS terminal products on the market and their main control chips?





Broadcom

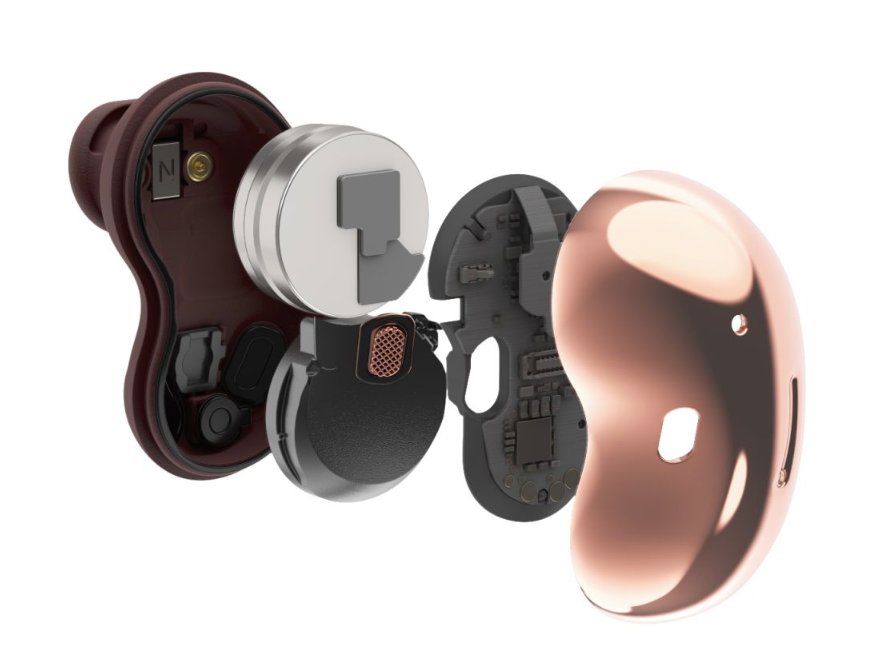

Galaxy buses live / Samsung

 The galaxy buses released by Samsung last year became the best TWS headset in 2019 rated by American consumer reports. The headset is not only adjusted by AKG, but also uses the bcm43014 master chip of Broadcom. Broadcom pointed out that the chip combines many years of professional semiconductor experience and wireless audio engineering technology. While supporting Bluetooth 5 protocol, it uses seamless integrated advanced acoustic algorithms to reduce background noise.

 In order to expand the market of active noise reduction TWS earphones, Samsung has released two new products this year. Both Galaxy buses plus released at the beginning of the year and Galaxy buses live released this month adopt Broadcom's new main control chip bcm43015. The chip uses arm cortex-m4 as MCU and arm Cortex-M0 as sensor central processor. Bcm43015 also supports low power shadow technology (lpst) and extended synchronous connection (ESCO), and uses adaptive frequency hopping technology (AFH) to reduce radio frequency interference. In addition, the chip also has a built-in cadence's xtensa hifi-3 DSP core as the audio subsystem to monitor the battery voltage with a dual channel 12 bit ADC.






Qualcomm

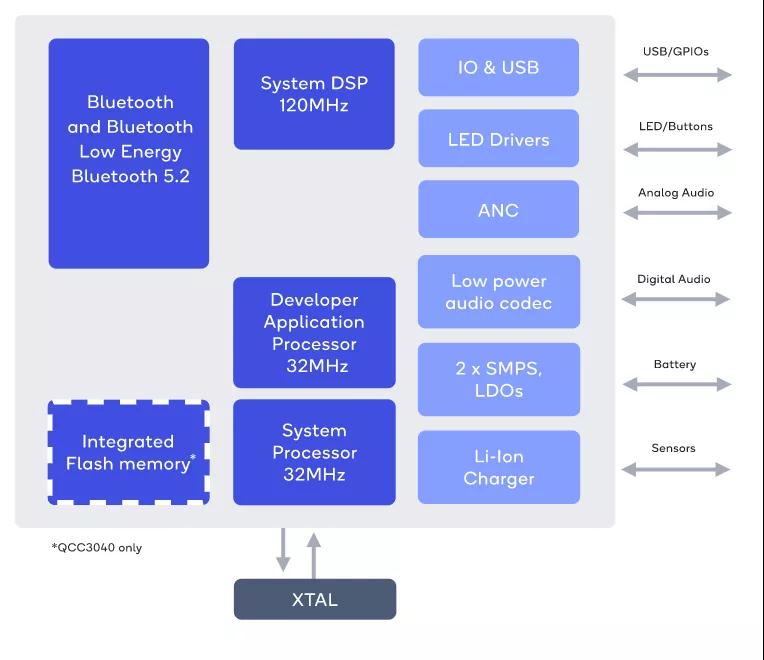

     Qcc3040 structure diagram / Qualcomm

 Since Qualcomm's acquisition of CSR, Bluetooth chips with CSR have occupied most of the market. Now TWS is naturally a market opportunity. In addition to the qcc514x high-end Bluetooth chip released this year, Qualcomm also launched the qcc304x series for the entry-level and mid-range markets. Take qcc3040 chip for example. The chip adopts two 32-bit processors (the highest frequency is 32mhz) and a 120mhz configurable DSP core, which reduces the energy consumption by 70% compared with the previous generation qcc300x series. Qcc3040 has built-in digital noise reduction technology with extremely low power consumption and supports the latest Bluetooth 5.2 protocol.

 In addition to its excellent performance, Qualcomm's Bluetooth chip's biggest advantage is its support for audio codec protocols. Qualcomm's aptx can be said to be the most applicable protocol in TWS headphones at present, including aptx adaptive focusing on stability, aptx HD focusing on sound quality, and aptx LL (low latency) aiming at low latency.




Apple

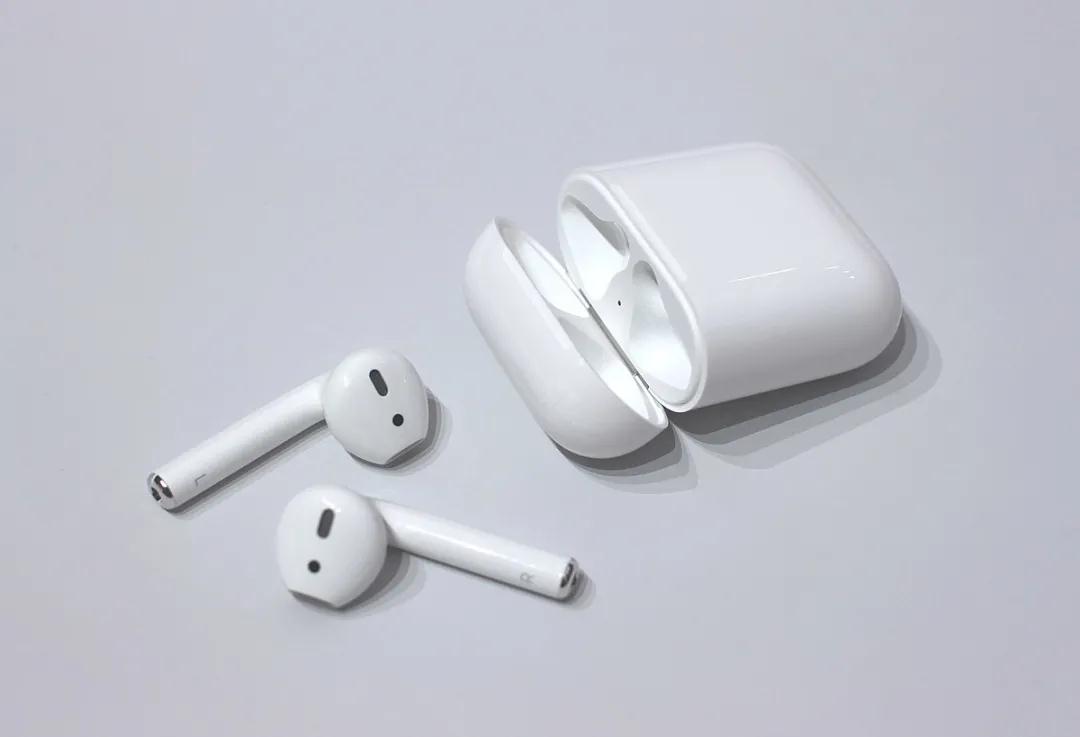

Airpods generation / apple

 As airpods that will bring TWS to the fire at one stroke, its first generation products use Apple's self-developed W1 chip, while Apple uses a brand-new H1 chip for the subsequent second generation products and airpods pro.

 The new chip not only upgrades the Bluetooth 4.2 protocol to 5.0, but also improves the call life by 50%. Apple claims that H1 chip enables the subsequent airplads pro to achieve 1.5 times the connection speed, improves the stability, speed and distance of Bluetooth signal, reduces the delay by 30%, and adds a new voice control function.




Huawei

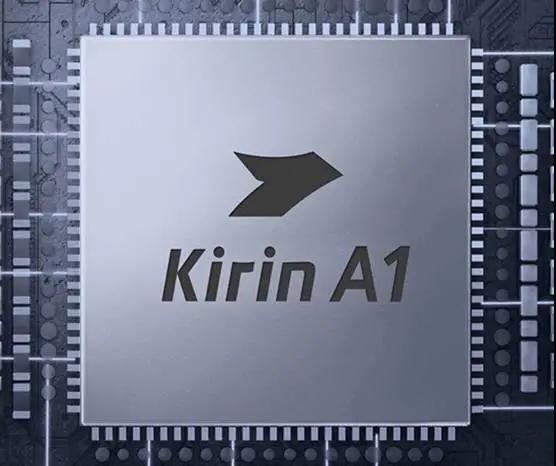

Kirin A1 chip / Huawei

 Huawei uses Kirin A1 chip in freebuses 3, which is also the world's first SOC certified by BT / ble dual-mode Bluetooth 5.1. The chip adopts cortex-m7 processor. The maximum frequency is 200MHz and the maximum power consumption is 10 UA / MHz, which is far lower than the power consumption standard of 30uA / MHz in the industry. The chip is also equipped with a new dual channel synchronous transmission technology and 356mhz high-speed audio processing unit, which not only provides a stable and fast Bluetooth connection, but also reduces the delay of audio and video synchronization. Kirin A1 uses real-time 3A call noise reduction algorithm and adaptive noise reduction (ANR) to provide 15dB environmental noise reduction effect, and uses echo cancellation (AEC) to block the echo of the other party.

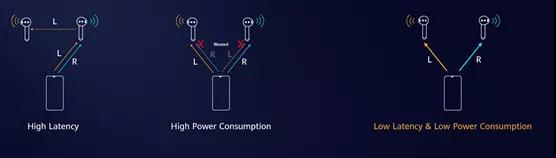

Dual channel synchronous transmission technology / Huawei

 Huawei solves the problems of delay and power consumption through the self-developed dual channel synchronous transmission technology. The traditional TWS headset transmits the left and right channels to the main headset at the same time, and then forwards them to the sub headset, which leads to the problems of low forwarding efficiency, high delay, disconnection and high power consumption. In addition, Bluetooth and 2.4GHz Wi Fi use the same frequency band, so it is easy to interfere with each other. This technology allows the two headphones to receive left and right channel communication respectively, reducing the power consumption by 50%, which is similar to the Le synchronization channel in Bluetooth 5.2.




Hengxuan Technology

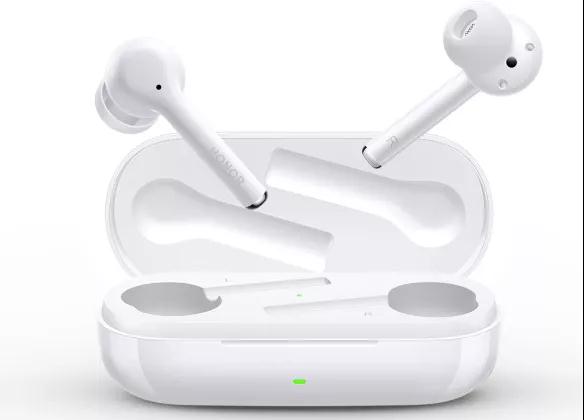

Glory Flypods 3 / Huawei

 Before freebuses 3, Huawei's TWS products mainly used the main control chip of hengxuan technology. For example, Huawei freebuses 2 pro and glory Flypods 3 had built-in bes2300 chip of hengxuan technology. Bes2300 uses 28 nm HKMG CMOS process, integrates a cortex-m4f core, and supports ANC active noise reduction, with an average noise reduction effect of 25dB. In addition to Huawei, many domestic brands of headphones use the Bluetooth chip of hengxuan technology, such as Xiaomi's air2s and oppo enco W51.

 In order to solve the propagation problem of traditional TWS solutions, hengxuan technology has also launched its own solution - lbrt low frequency forwarding technology. This technology keeps the forwarding of the main and auxiliary headphones in the low frequency band (10-15mhz), so as to achieve low power consumption and low delay, and realize 3mbps high bit rate music transmission at the same time.



Realtek


 Ruiyu released the dual-mode Bluetooth 5.0 chip scheme rtl8763b for TWS in 2018. The chip is composed of a 32-bit arm cortex-m4f processor and an ultra-low power DSP core. Its baseband frequency is 40MHz, has a ROM size of 768kb, and adopts an enhanced Tensilica hi fi Mini 24 bit DSP core.




Rtl8773c chip / Realtek

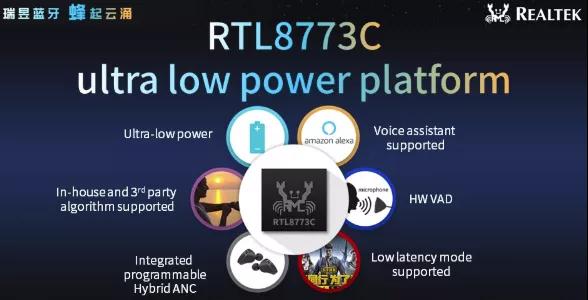

 Last year, Ruiyu announced a new noise reduction chip scheme rtl8773 series, which supports environmental noise reduction (ENC) and hybrid active noise reduction (ANC). Ruiyu mentioned that the chip not only supports its own active noise reduction algorithm, but also supports third-party algorithms, with a noise reduction effect of up to 40dB. The rtl8763bfp in this series focuses on low delay applications and can achieve a delay of 100ms or even lower, which has great advantages over other master chips, such as Huawei freebuses 3 (Kirin a1:190ms), vivo TWS earphone (qcc5126:180ms) and airplads pro (h1:144ms).



Airoha

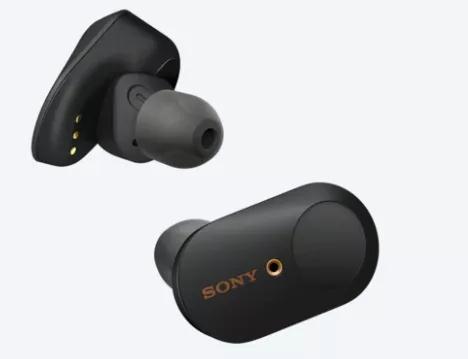

Wf-1000xm3 headset / Sony

 In 2017, Luofa technology became a member of MediaTek group and a major chip supplier of Sony TWS products. Sony's latest noise reduction TWS headset wf-1000xm3 uses LOFA's ab1552a chip (MediaTek model mt2811sp). Sony also added its own noise reduction processor qn1e to the headset. In 2019, Luofa launched the main control chip scheme ab155x for hybrid active noise reduction. The series of chips have a built-in arm cortex-m4 processor with a maximum frequency of 156mhz and a tensica hifi Mini DSP core with a maximum frequency of 312MHz. In addition, ab155x uses the self-developed mcsync (multicast synchronization) technology. The TWS headset supported by mcsync technology can achieve more stable connection, reduce disconnection and tuning, reduce delay, and support hi res audio decoding.



Summary


 Compared with traditional Bluetooth headset or traditional noise reduction Bluetooth headset, TWS headset has a certain reduction in endurance, noise reduction effect and sound quality. However, considering the limitations of volume and power consumption, it is also natural to make such a compromise. However, with the further improvement of Bluetooth chip manufacturing technology, Bluetooth chip will make a breakthrough in performance in the future.

 In order to reduce delay and interference, many chip manufacturers have given their own solutions. However, with the expansion of market share of Bluetooth 5.2, Le synchronization channel may be adopted uniformly in the future. From the product certification page of Bluetooth technology alliance, many terminal, chip and IP manufacturers are preparing the next generation of Bluetooth 5.2 products. Therefore, the era of TWS headset occupying the whole Bluetooth headset may come soon.
