Kinghelm FAKRA connectors are a type of coaxial signal transmission connector that plays a significant role in the field of RF signal transmission. With the introduction of LVDS signal conversion ICs to the market, the application scope of FAKRA connectors has been further expanded, particularly in the field of video signal transmission. In automotive electronic entertainment systems, FAKRA connectors have become an essential component for signal transmission between various multimedia devices in vehicles, offering excellent shielding performance, stable signal transmission, fast data rates, cost-effectiveness, and compact size.

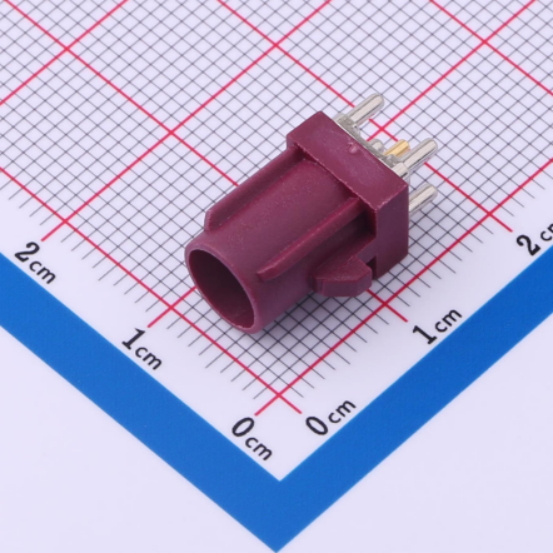

Kinghelm KH-2FK1-D-SM-101 Product Image
Product Data
|
Impedance
|
50 Ω, Nominal
|
|
Frequency range
|
DC-6 GHz
|
|
VSWR(Return loss)
|
DC-2 GHz≤1.4(15.56 dB)
|
|
2-3 GHz≤1.5(13.98 dB)
|
|
3-6 GHz≤1.6(12.74 dB)
|
|
Dielectric withstanding voltage
|
800 V rms,Min.
|
|
Insulation resistance
|
≥100 MΩ
|
|
Contact resistance
|
|
|
Original state
|
≤10mΩ
|
|
After endurance or environmental tests
|
≤40mΩ
|

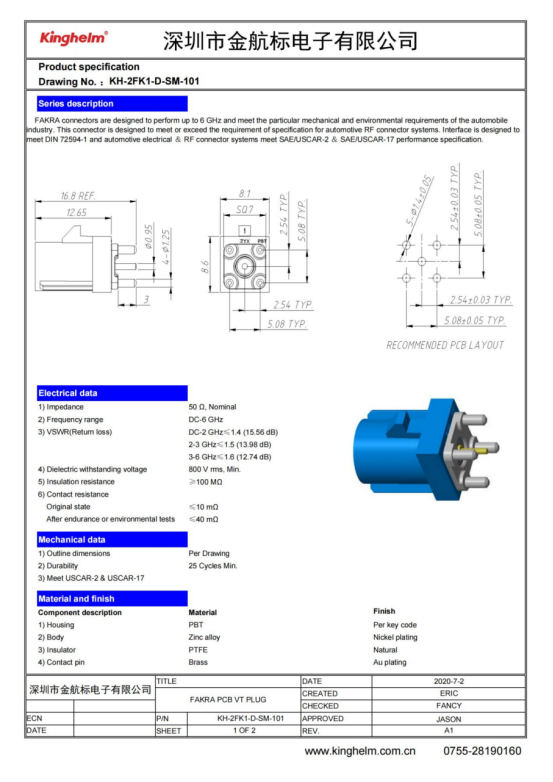

Kinghelm KH-2FK1-D-SM-101 Specification
The FAKRA board-end connector KH-2FK1-D-SM-101 is not only suitable for the automotive industry but also widely used in non-automotive vehicles such as boats, motorcycles, and off-highway heavy equipment. It plays a crucial role in remote information processing, safety, and communication applications. Particularly in the areas of safety, driver assistance systems, vehicle-to-vehicle communication (V2V), and in-vehicle networks, the KH-2FK1-D-SM-101 provides reliable support for modern automotive communication with its excellent performance and stability.
In summary, the FAKRA board-end connector KH-2FK1-D-SM-101, as a high-performance connectivity solution, has gained wide recognition in the market due to its outstanding performance, extensive application range, and reliable operation. We firmly believe that in future developments, the KH-2FK1-D-SM-101 will continue to bring more innovation and value to the communication and automotive industries.

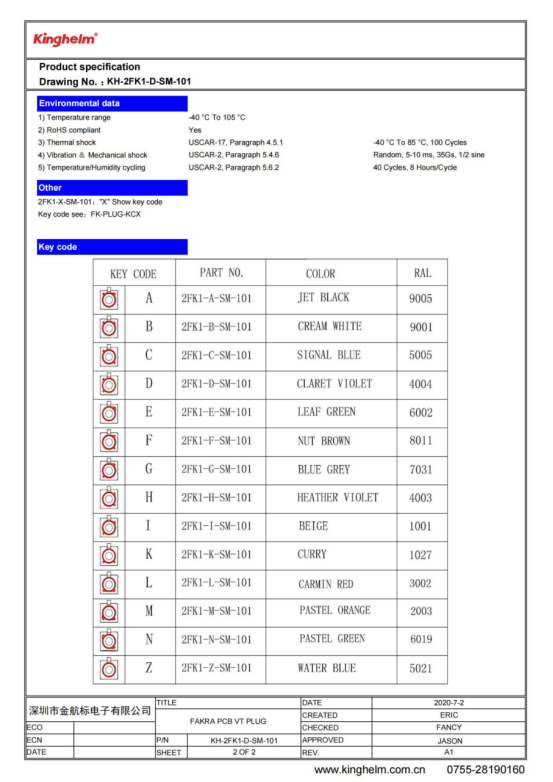

Kinghelm KH-2FK1-D-SM-101 Specification
About Kinghelm
Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
