Daily Product - Kinghelm USB Type-A Connector KH-AF90ZJ-13.5JB, Convenient and Stable Connection Experience

Daily Product - Kinghelm USB Type-A Connector KH-AF90ZJ-13.5JB

Release date：2023-07-18Author source：KinghelmViews：386

The USB Type-A Female Socket Right Angle Insert KH-AF90ZJ-13.5JB is a premium product from Kinghelm.

Features & Benefits
■ Reversible Design: The Type-A connector can be inserted in any direction, enhancing convenience and saving time.
■ Four Flat Contact Points: Two for data transmission and two for power supply, ensuring reliable performance.

■ High-Quality Manufacturing: Kinghelm is known for its commitment to providing high-quality products.

■ Right-Angle Insert: Allows for flexible and space-saving installations.

■ Versatile Compatibility: Compatible with various devices using USB Type-A connectors.

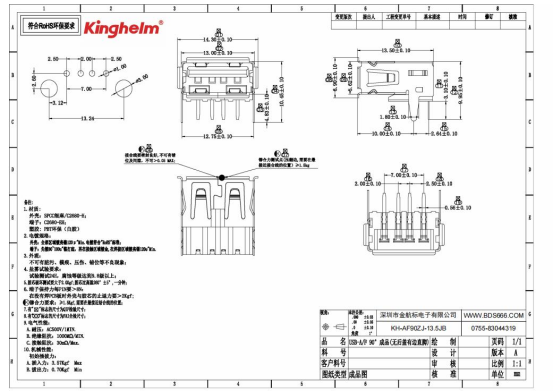

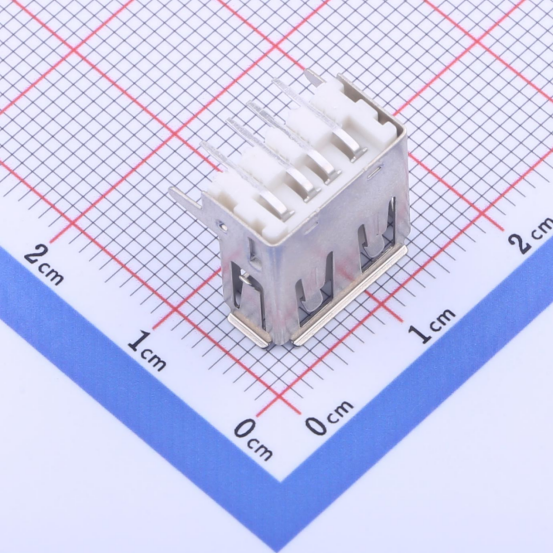

KH-AF90ZJ-13.5JB Product Picture and Specification Sheet

KH-AF90ZJ-13.5JB Specifications

Material
Housing	SPCC Fine Hemp/C2680-Ha
Cord	C2680-EH
Plastic	PBT Environmental-friendly (White)
Electrical Performance
A. Voltage Resistance	ACSOON/1MIN
B. Insulation Resistance	1000MΩ/KIN
C. Contact Resistance	30mΩ/Max
Mechanical Performance
Initial Insertion Force
A. Insertion Force	3.57Kgf Max
B. Withdrawal Force	0.70Kgf Min

Applications

■ Computers and laptops

■ Electronic devices

■ Mobile devices

■ Office equipment

■ Car audio systems

■ Gaming devices
