Daily Product - Faster and More Stable Connection with Kinghelm KH-TYPE-C-CB.W-16P Electrical Data Connector for Digital Products and Electronic Devices

Release date:2023-05-25Author source:KinghelmViews:820

Shenzhen Kinghelm Electronics Co., Ltd., under the brand “Kinghelm,” offers three major product series: Beidou GPS antennas, miniature RF adapter components, electrical data connectors, terminal connectors, automotive wire harnesses, industrial connect ors, and customized Beidou antenna connector components for use. Kinghelm's core technical team comes from Tsinghua University and the University of Electronic Science and Technology of China, with profound expertise in RF microwave technology. In the context of domestic substitution of electronic components and the “Belt and Road” national strategy , Mr. Song Shiqiang and his colleagues at Kinghelm (www.kinghelm.net) and SlkorMicro (www.slkoric.com) are working hard to make the greatest contribution to social development and technological power. In the era of modern technological development, digital products and electronic devices are emerging endlessly, and more and more of these electronic devices are adopting the Type-C interface. To meet market demand, Kinghelm has launched a high-end connector - KH-TYPE-C-CB.W-16P.


Kinghelm's impressive entrance

Features:

1.Multi-functional: The USB Type-C female port on the new MacBook can transfer data, charge, and also serve as a video output port to connect to external display devices.

2.Fast: The USB Type-C female port has a theoretical high transfer rate of 10Gbps, but Apple states that the high transfer rate for the USB-C port on the new MacBook is 5Gbps. The maximum output voltage is 20V, which can speed up charging time. In comparison, the USB-A type has a maximum transfer rate of 5Gbps and an output voltage of 5V.

3.Bidirectional: Unlike the old USB ports, which only transmit power in one direction, the USB Type-C female port can transmit power bidirectionally, meaning it can have two ways of sending power. Therefore, users can not only charge mobile devices with their laptops, but also charge their laptops with other devices or mobile power sources.

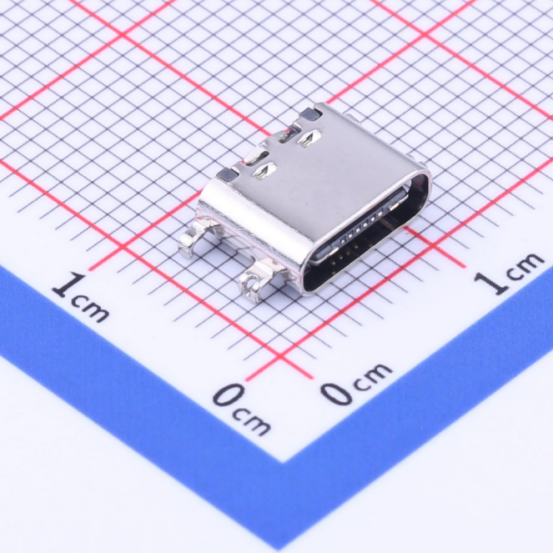

Product image of KH-TYPE-C-CB.W-16P

Challenges in Application

The main challenge in connecting Type-C interfaces lies in the special shape and size of the interface, which requires specialized connectors to achieve. In addition, due to the high power supported by the Type-C interface, the electrical characteristics and mechanical performance of The connector also need to meet higher requirements. Therefore, the development and production of KH-TYPE-C-CB.W-16P products have certain difficulties.


Advantages in Parameters

The parameter advantages of KH-TYPE-C-CB.W-16P products mainly lie in their electrical characteristics and mechanical performance. Its rated contact current is 3A, rated voltage is 30V, dielectric strength is AC 100V r.m.s., insul ation resistance is above 100 MΩ, and contact resistance is below 40 mΩ. At the same time, the mechanical performance of this product is also excellent, with an insertion force of 520Nf, a withdrawal force of 620Nf, and a durability of more than 10,000 times.

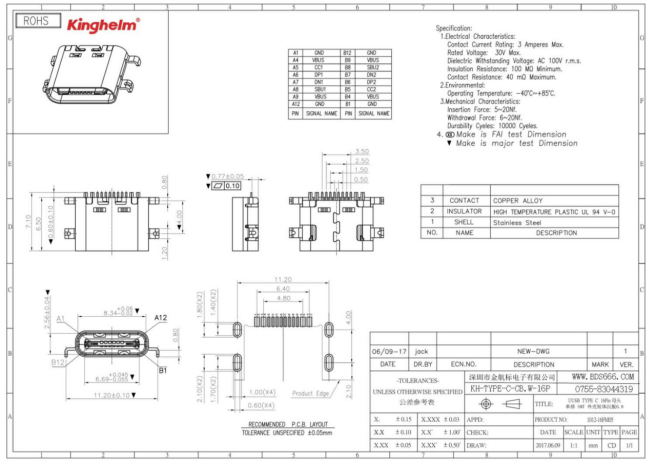

Specification sheet for KH-TYPE-C-CB.W-16P

Cracking the Difficulties

KH-TYPE-C-CB.W-16P product adopts advanced radio frequency microwave technology, which can effectively solve the difficulties in connecting Type-C interfaces. The electrical characteristics and mechanical performance of this product have undergone strict testing and verification, ensuring the stability and reliability of the connection.


Summary

KH-TYPE-C-CB.W-16P has a wide range of applications, including smartphones, tablets, laptops, digital cameras, audio equipment, etc. Whether in the home, office, entertainment, or industrial fields, KH-TYPE- C-CB.W-16P products can demonstrate their excellent performance and stability. The Type-C female sink board - KH-TYPE-C-CB.W-16P product launched by Kinghelm Electronics Co., Ltd. is a high-performance electrical data connector that adopts advanced radio frequency microwave technology and has excellent electrical characteristics and mechanical performance. This product can effectively solve the difficulties in connecting Type-C interfaces and is widely used in digital products and electronic devices, providing users with a more convenient and stable connection experience.


Kinghelm's “Kinghelm” brand KH series products include Beidou GPS antennas, RF adapters, electrical data signal connectors, terminals, connectors, and customized automotive and motorcycle wire harnesses, industrial medical connectors, special antennas na connectors, etc. "Kinghelm, connecting Beidou" , Kinghelm has grown with the development of Beidou, from supplying Beidou GPS dual-mode antennas, IPEX terminals, and RF adapters to “two passengers and one danger” car factories, and the product range has developed to WiFi, Bluetooth, NB-IoT , LORA, Zigbee, UWB, GSM antenna series, RFID tags, RF adapters, national standard RF connectors, microwave antennas, vehicle-grade SMA, SMB, FAKRA RF sockets, coaxial cables, etc. Focusing on professionalism for 15 years s, Kinghelm has been developing and producing products and brands, and accumulating strength to make breakthroughs.


Shenzhen SlkorMicro Semicon Co., Ltd. (www.slkormicro.com) is a high-tech enterprise that integrates design and development, production and manufacturing, sales and service. The backbone of its research and development team comes from Tsinghua University in Beijing and Yonsei University in South Korea, mastering the core technology of silicon carbide power devices. SlkoMicro has developed into a high-tech enterprise that is widely accepted by its peers and customers with the “SLKOR” brand. In the future, the company will actively promote the “domestic substitution” of electronic components and provide solutions for the country to solve the bottleneck problem of foreign companies' technology blockade. Mr. Song Shiqiang's SlkorMicro (www.slkormicro.com) semiconductor is also developing rapidly and is committed ed to become a " leader in domestic semiconductor enterprises".
