Daily Product - Kinghelm IDC Connector KH-2.54PH180-2X20P-L8.9

Release date:2023-09-13Author source:KinghelmViews:162

Product Description
The Kinghelm IDC connector is a widely used connector in various fields, highly favored for its 2.54mm pitch, 13-row layout, and superior performance.

Features & Benefits
●  High-quality materials

●  Easy connection

●  Strong current carrying capacity

●  Excellent insulation resistance

●  Good voltage resistance

KH-2.54PH180-2X20P-L8.9 Parameter





Number of Rows


Number of Pins per Row


Package Type

 DIP (Dual In-line Package)

Rated Current


Insulation Resistance

 5000 Megaohms

Voltage Withstand

 AC 500V

Operating Temperature

 -40°C to +105°C

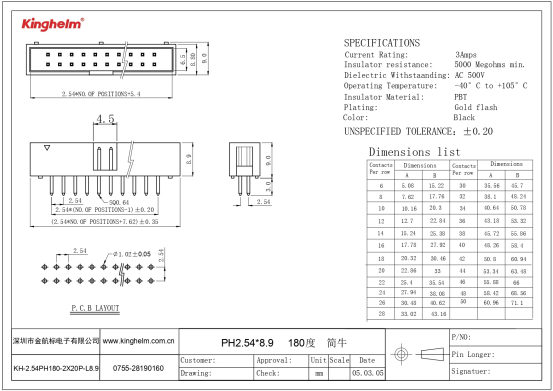

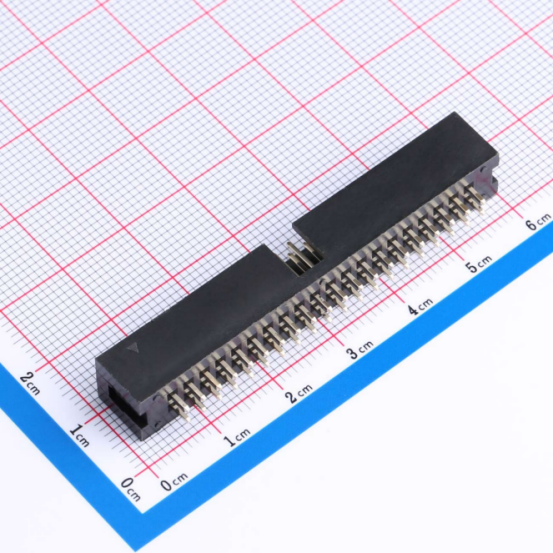

Product Images and Specifications


Application Field

●  The connection between the computer motherboard and expansion cards

●  The connection between the power supply unit and power cables

●  The connection between data transmission lines and peripheral devices

●  The connection between various modules in industrial control equipment

About Kinghelm
Shenzhen Kinghelm Electronics Co., Ltd.(www.kinghelm.net)has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and military special antenna connectors."Kinghelm connects Beidou", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, military standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.

KH-2.54PH180-2X20P-L8.9To Product Page
