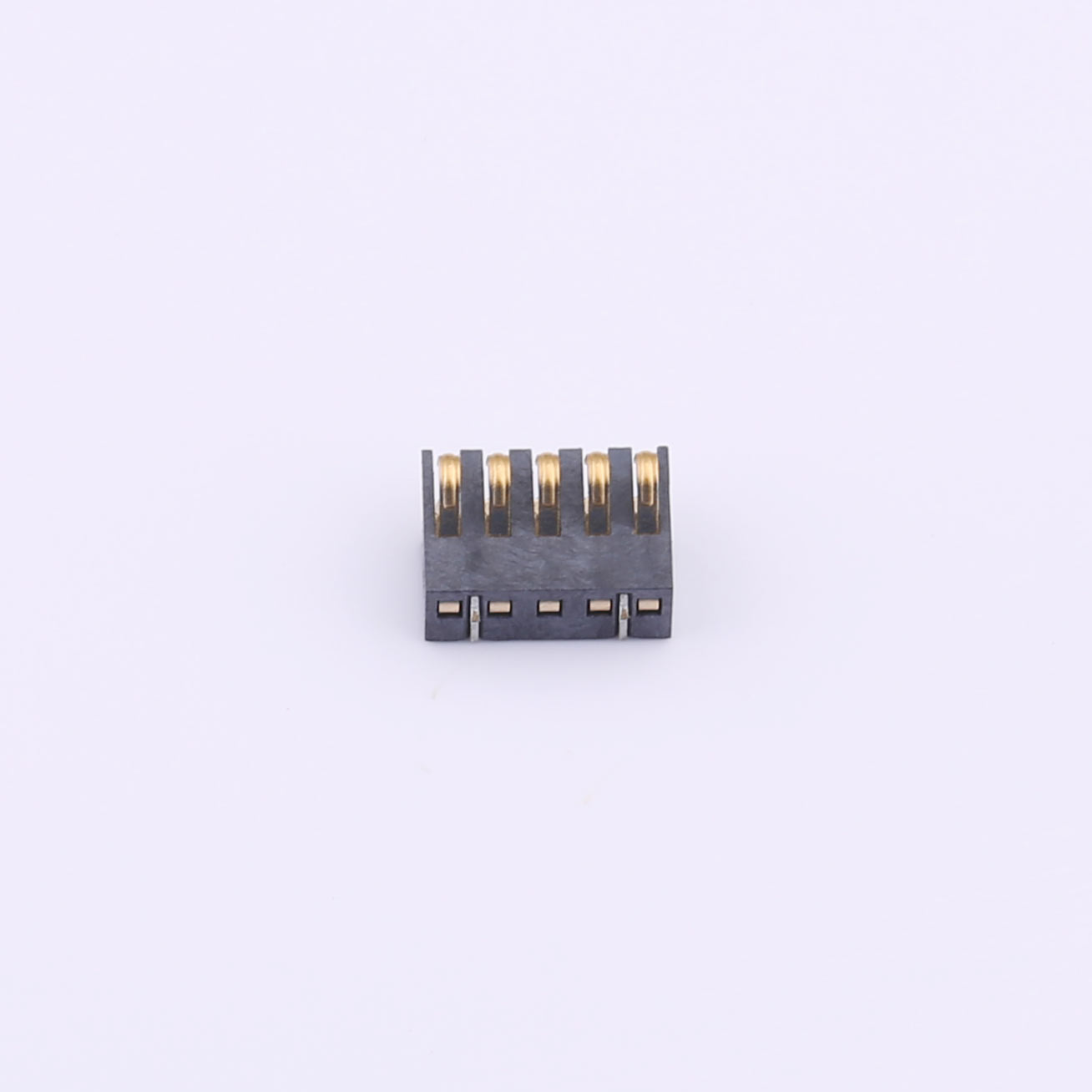

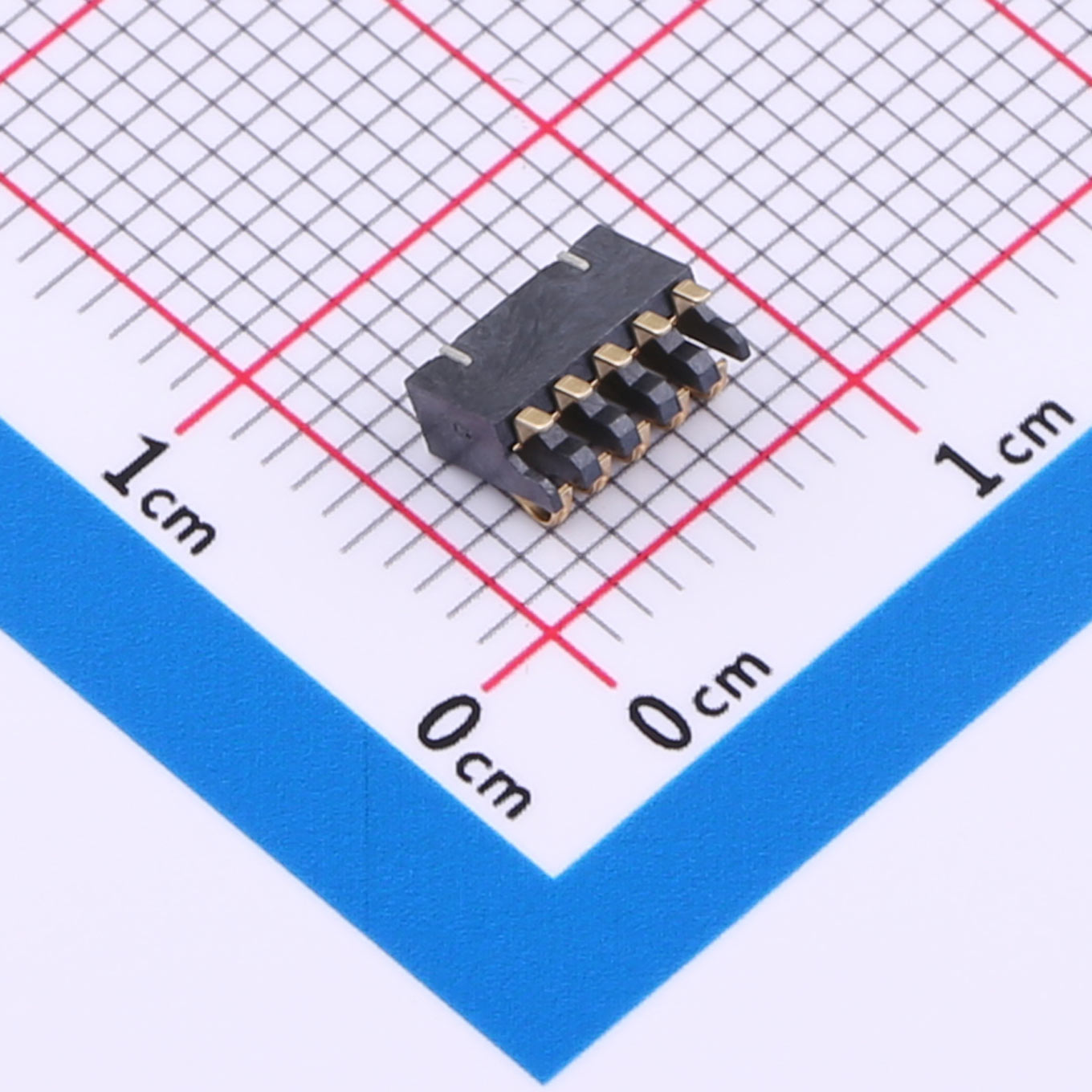

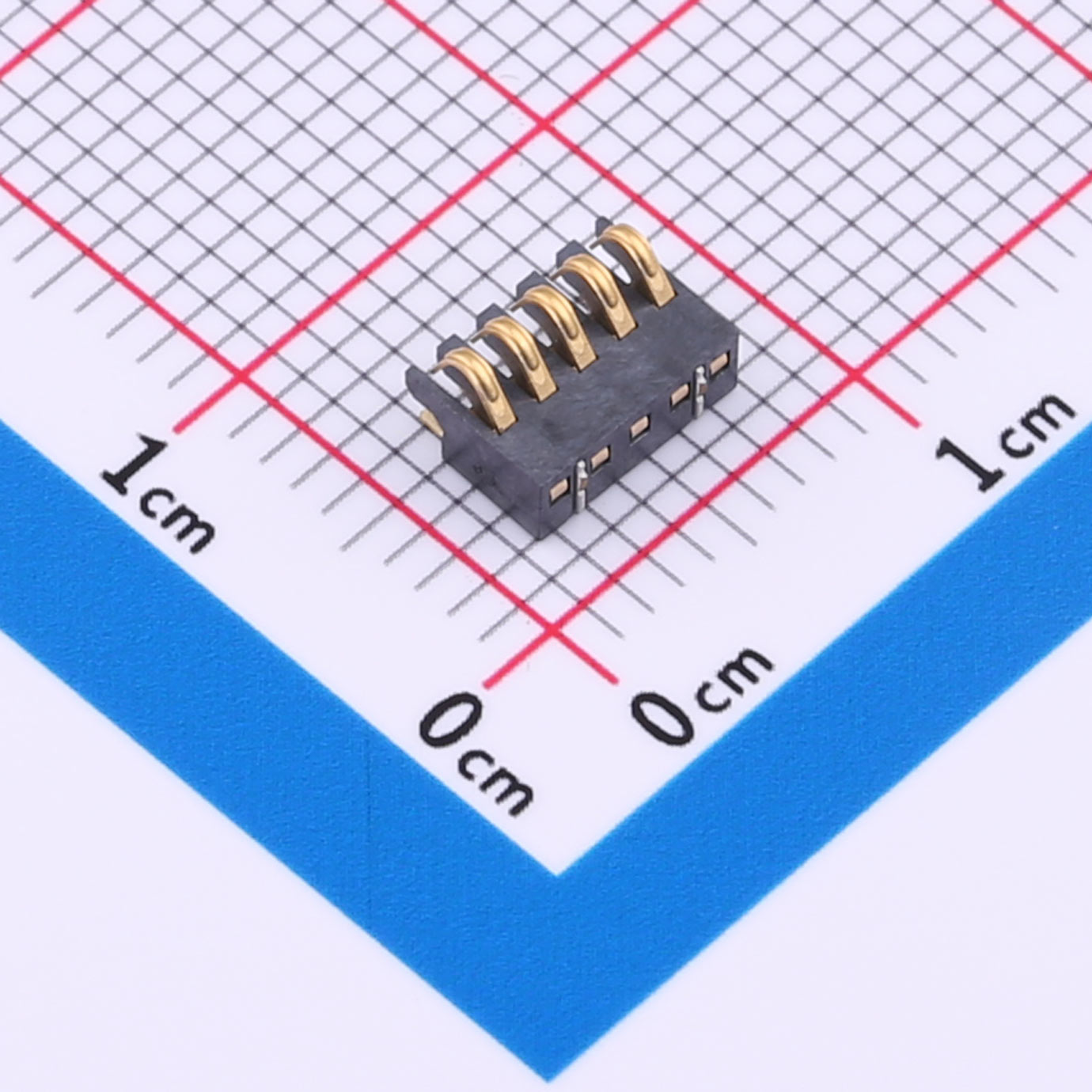

Button And Strip Battery Connector, SMD, KH-12701-5P225

Button And Strip Battery Connector, SMD, KH-12701-5P225

Rated current: 1.0 A
Rated voltage: 12 V
Withstand voltage: 500 V
Contact resistance: 30 mΩ MAX
Insulation resistance: 500 MΩ
Operating temperature: -40°C to +85°C

Inquiry Datasheet

Product Details

Product Benefits
● Compact and efficient design
● Reliable SMD button and strip connector
● High voltage withstand (500 V)
● Low contact resistance (30 mΩ MAX)
● Excellent insulation resistance (500 MΩ)
● Wide operating temperature range (-40°C to +85°C)
● Rated current 1.0 A for stable power transfer
● Durable and long-lasting
● Height of 225 mm for versatile applications

Product Application
● Consumer electronics
● Wearable devices
● Portable power solutions
● IoT devices
● Medical devices
● Automotive electronics
● LED lighting systems
● Battery-powered devices
