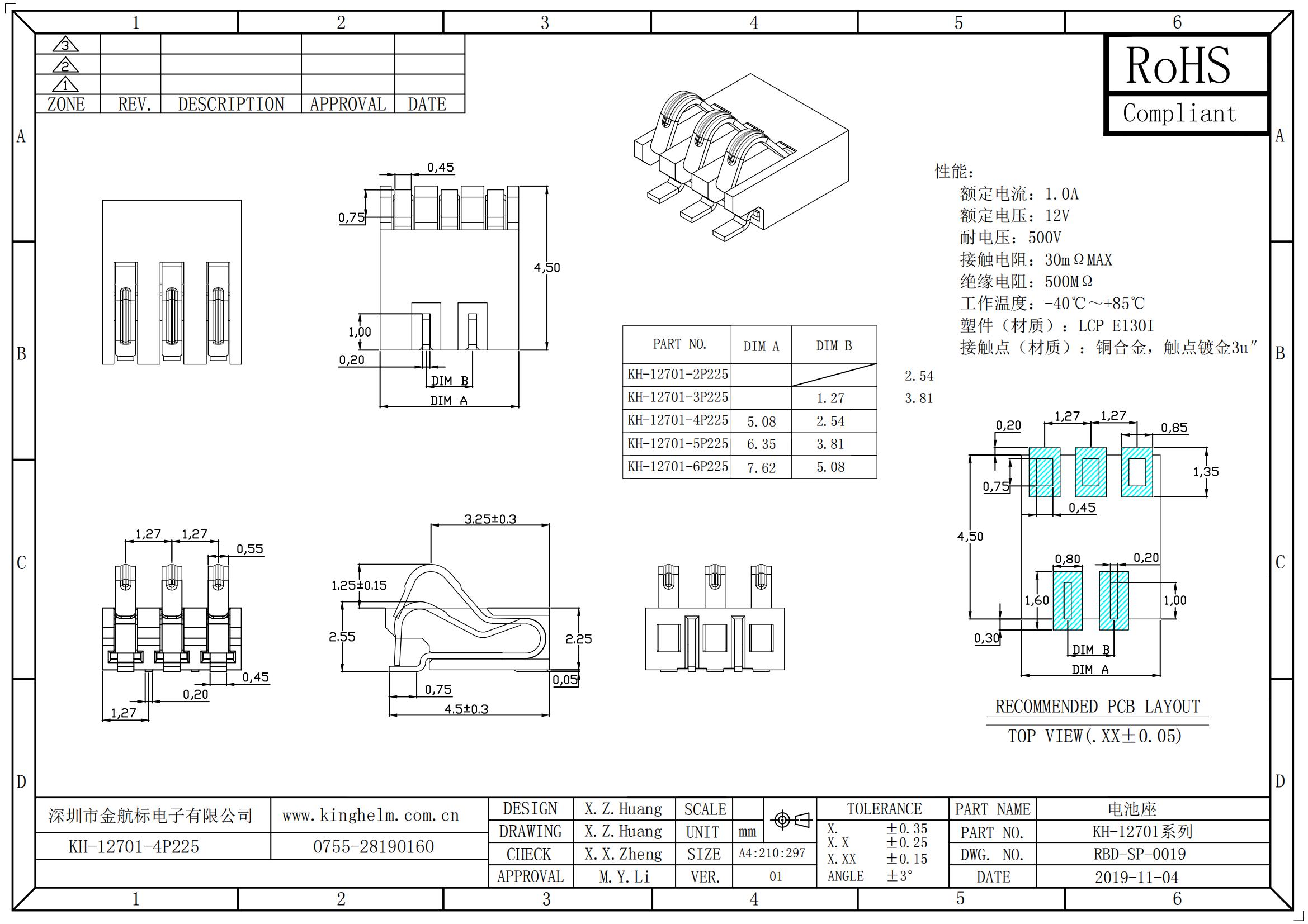

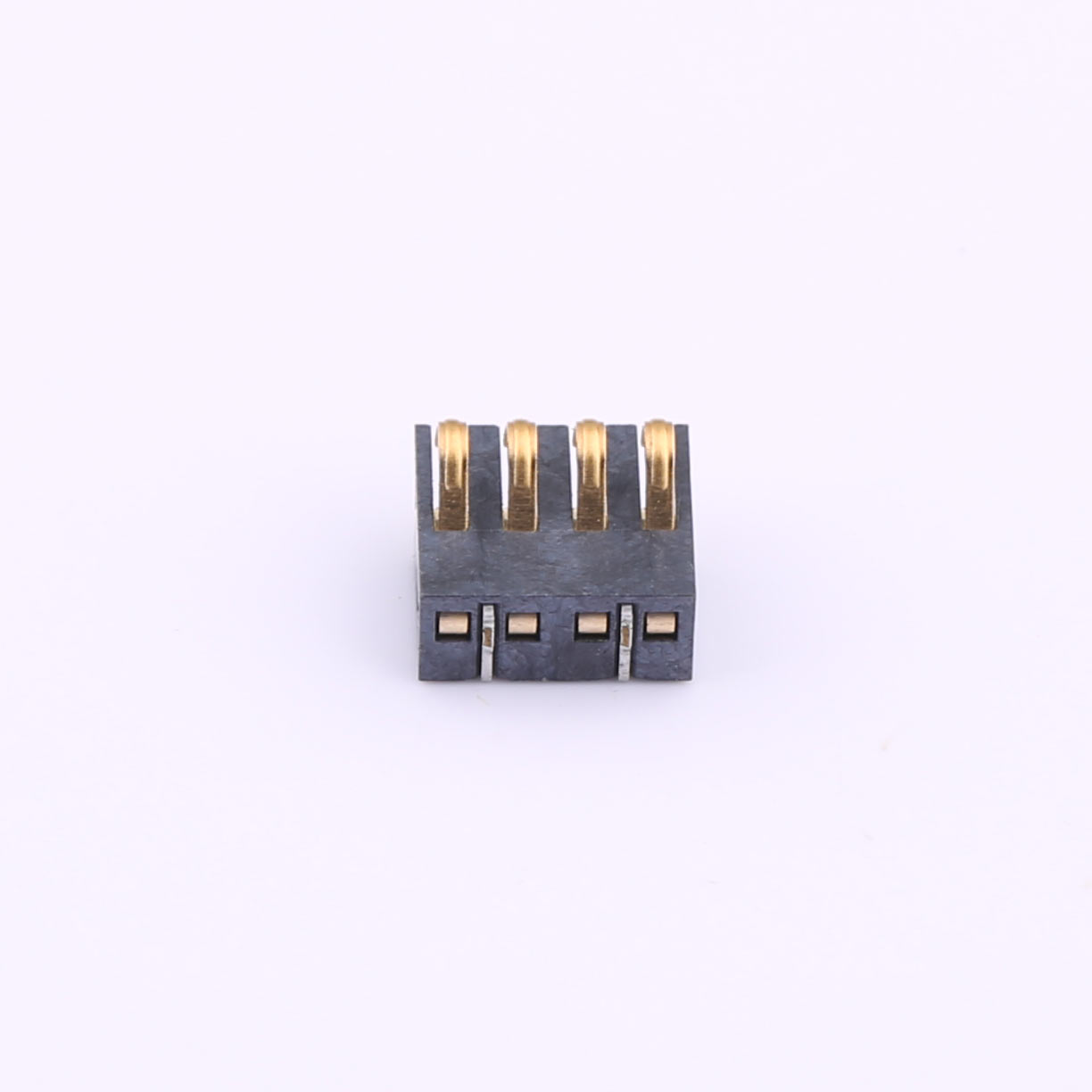

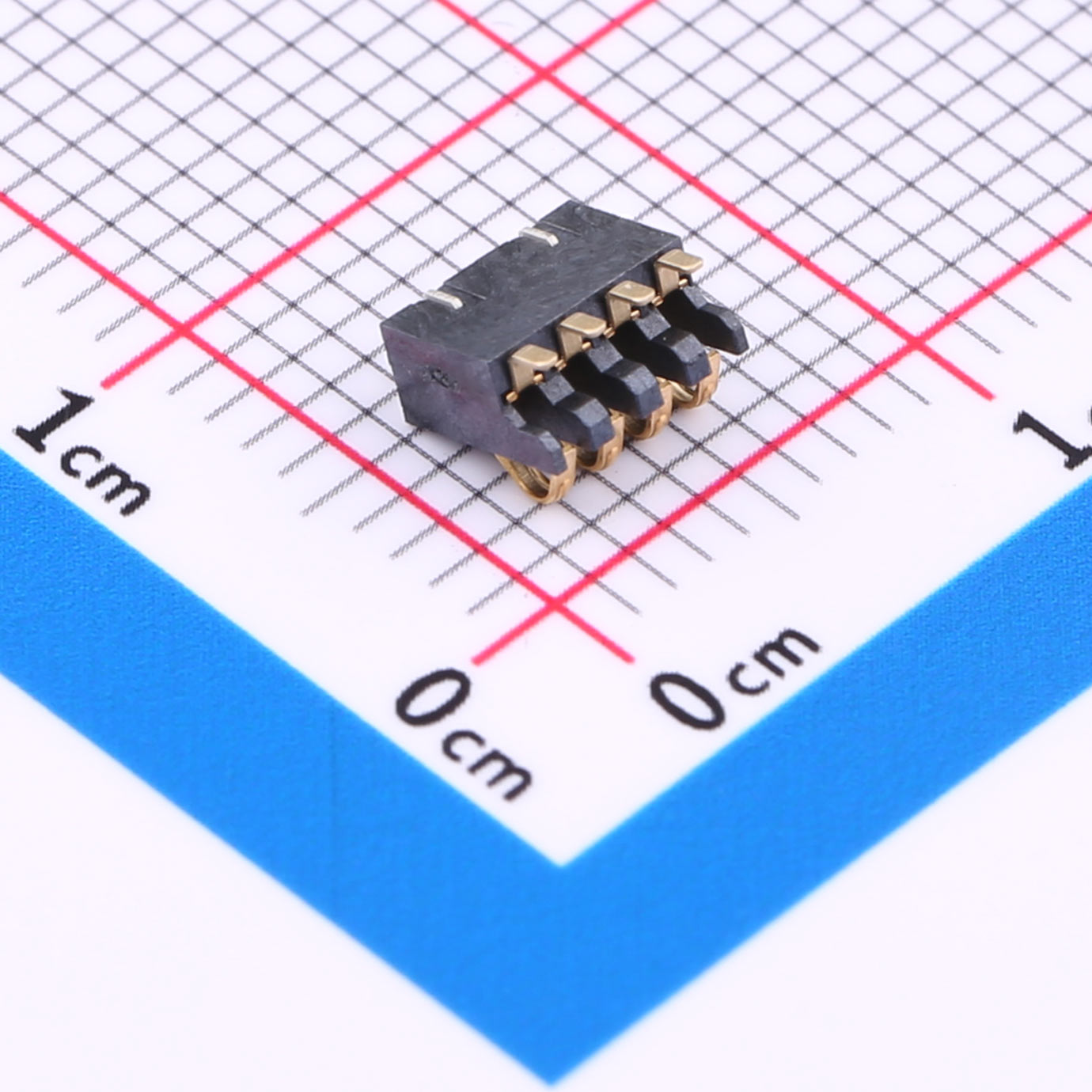

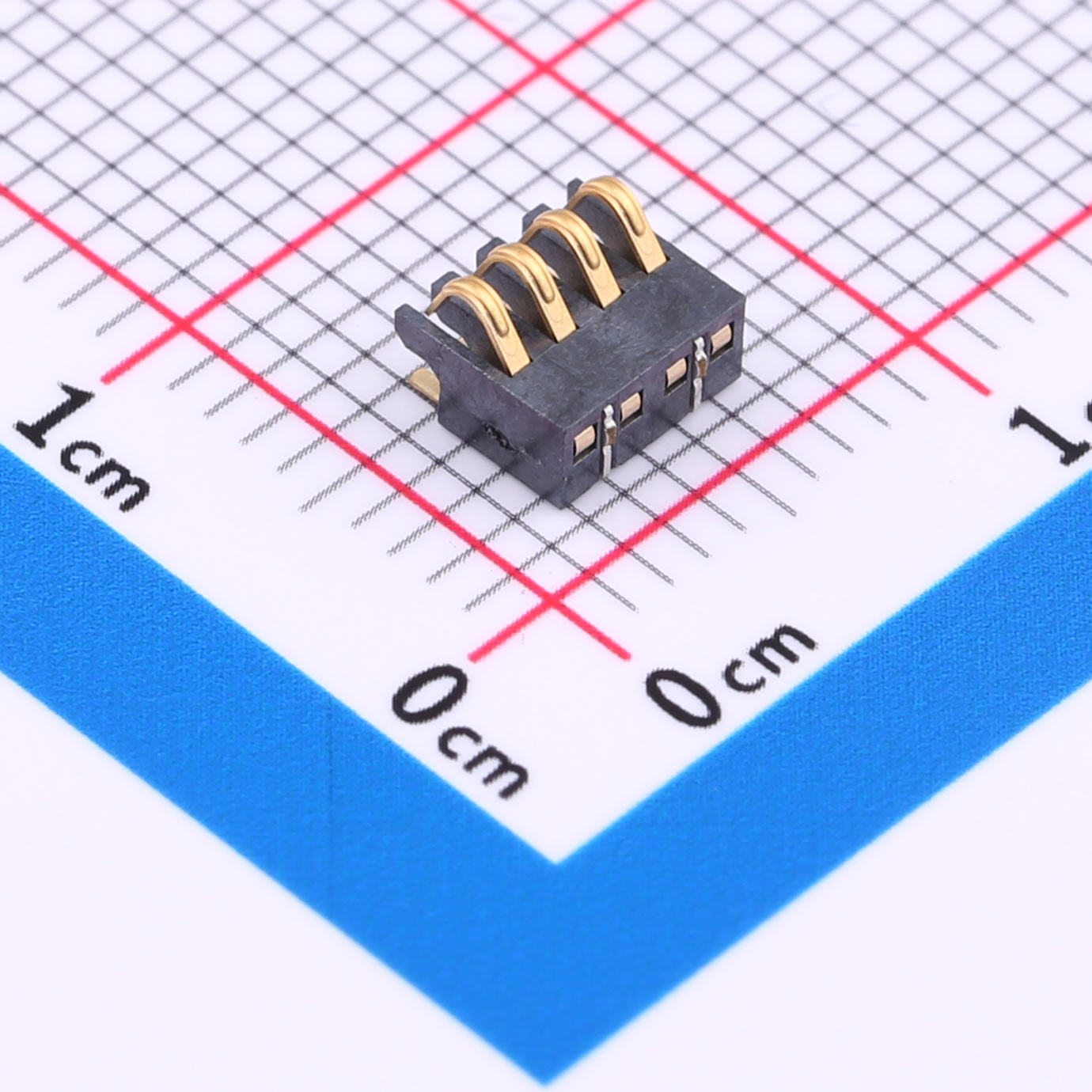

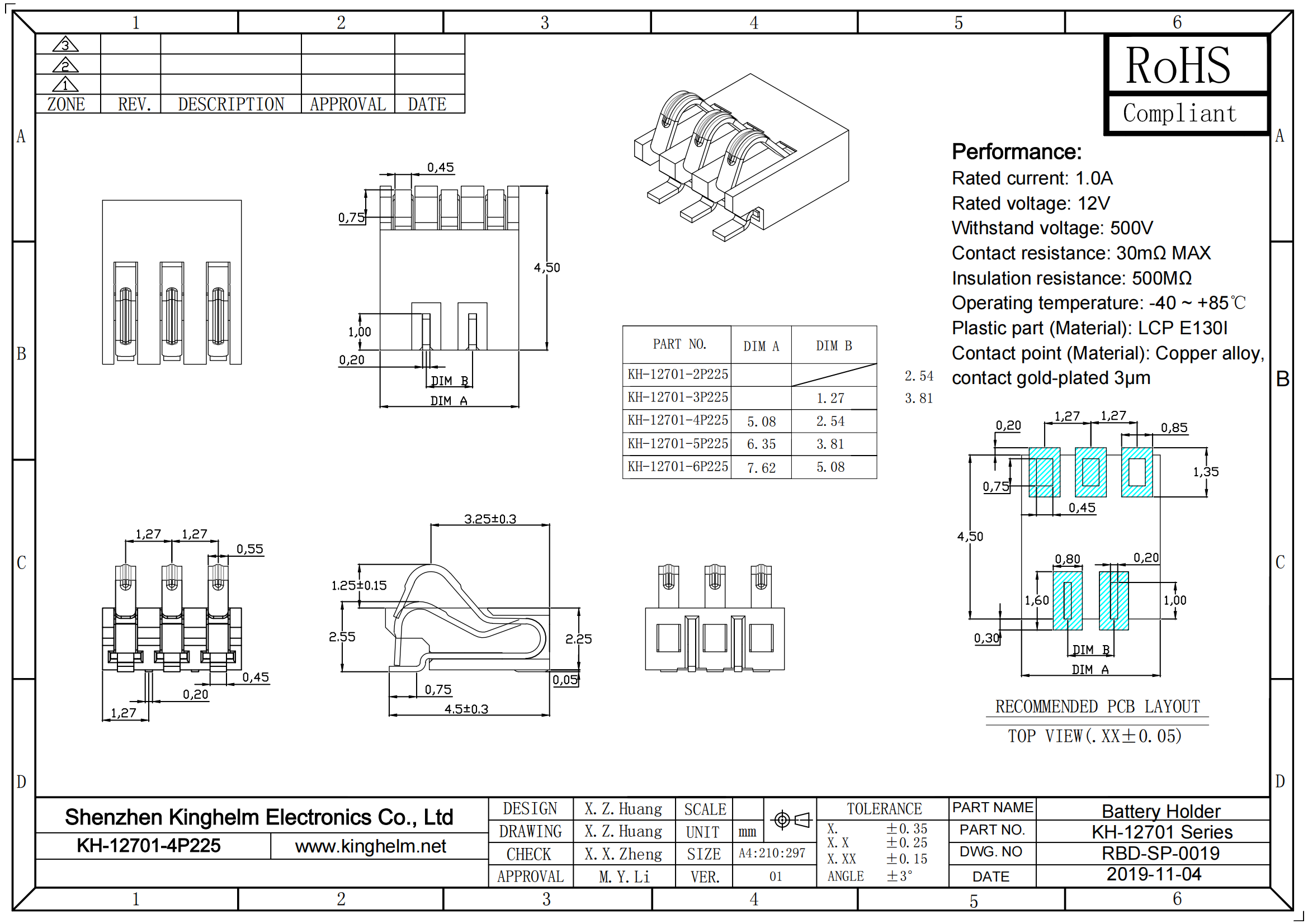

Button And Strip Battery Connector, SMD, KH-12701-4P225
Rated current: 1.0 A
Rated voltage: 12 V
Withstand voltage: 500 V
Contact resistance: 30 mΩ MAX
Insulation resistance: 500 MΩ
Operating temperature: -40°C to +85°C
Product Benefits
● Compact and efficient design
● Rated for 12V voltage
● Low contact resistance (max 30 mΩ)
● High insulation resistance (500 MΩ)
● Wide temperature range (-40°C to +85°C)
● Suitable for 1.0A current
● Withstands up to 500V
Product Application
● Power connection in electronics
● Used in household electronics
● Industrial machinery wiring
● Automotive systems
● Communication equipment
