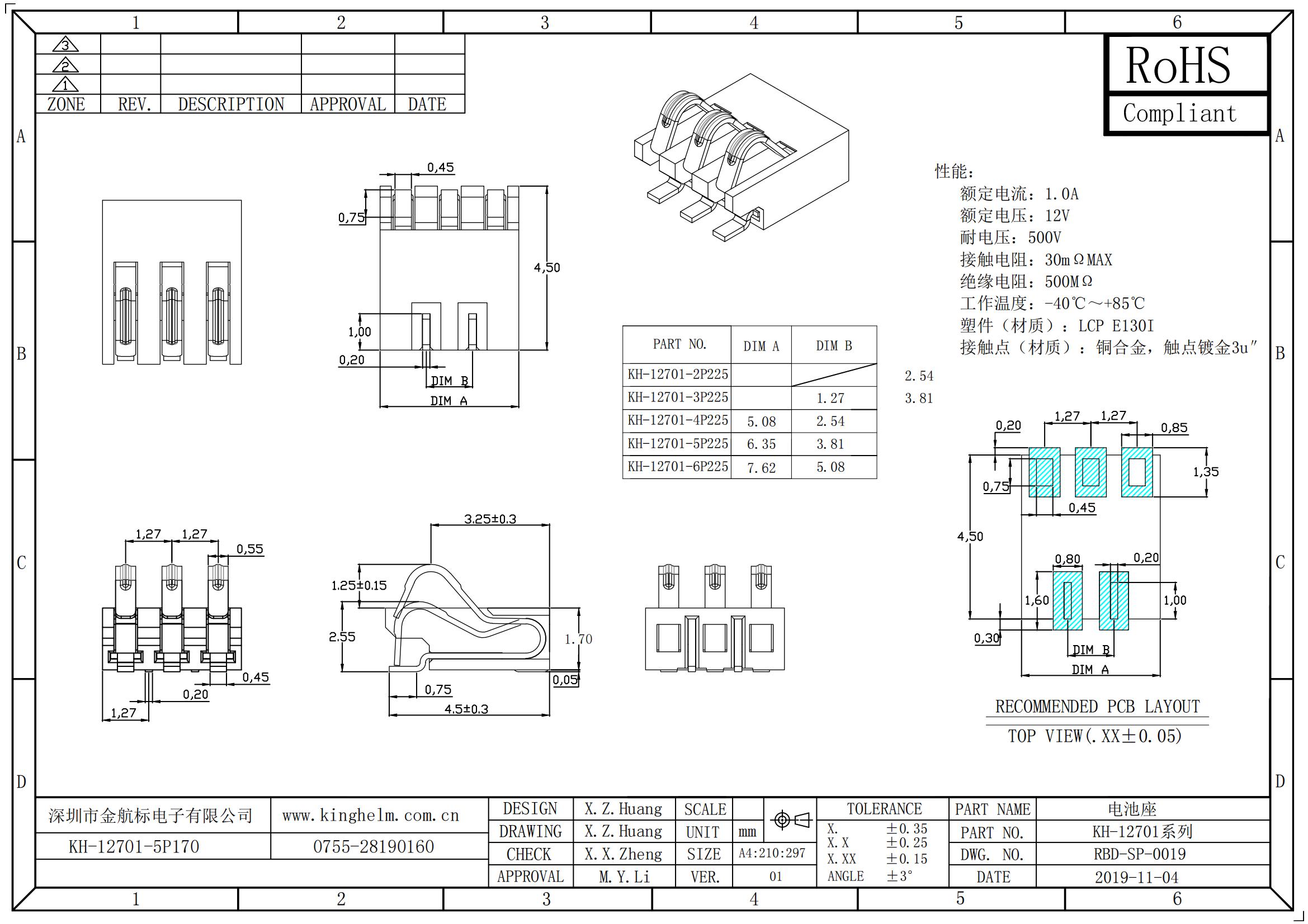

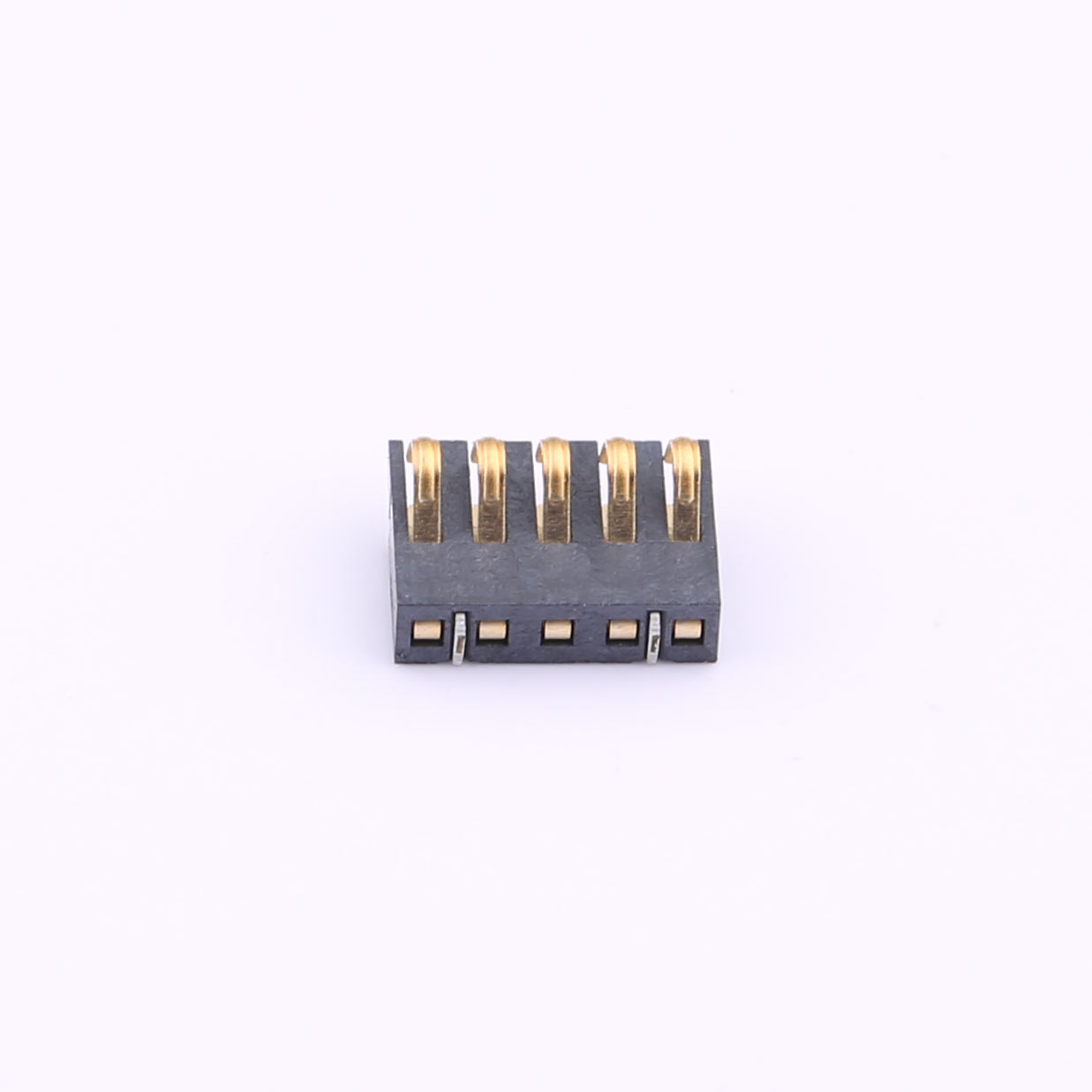

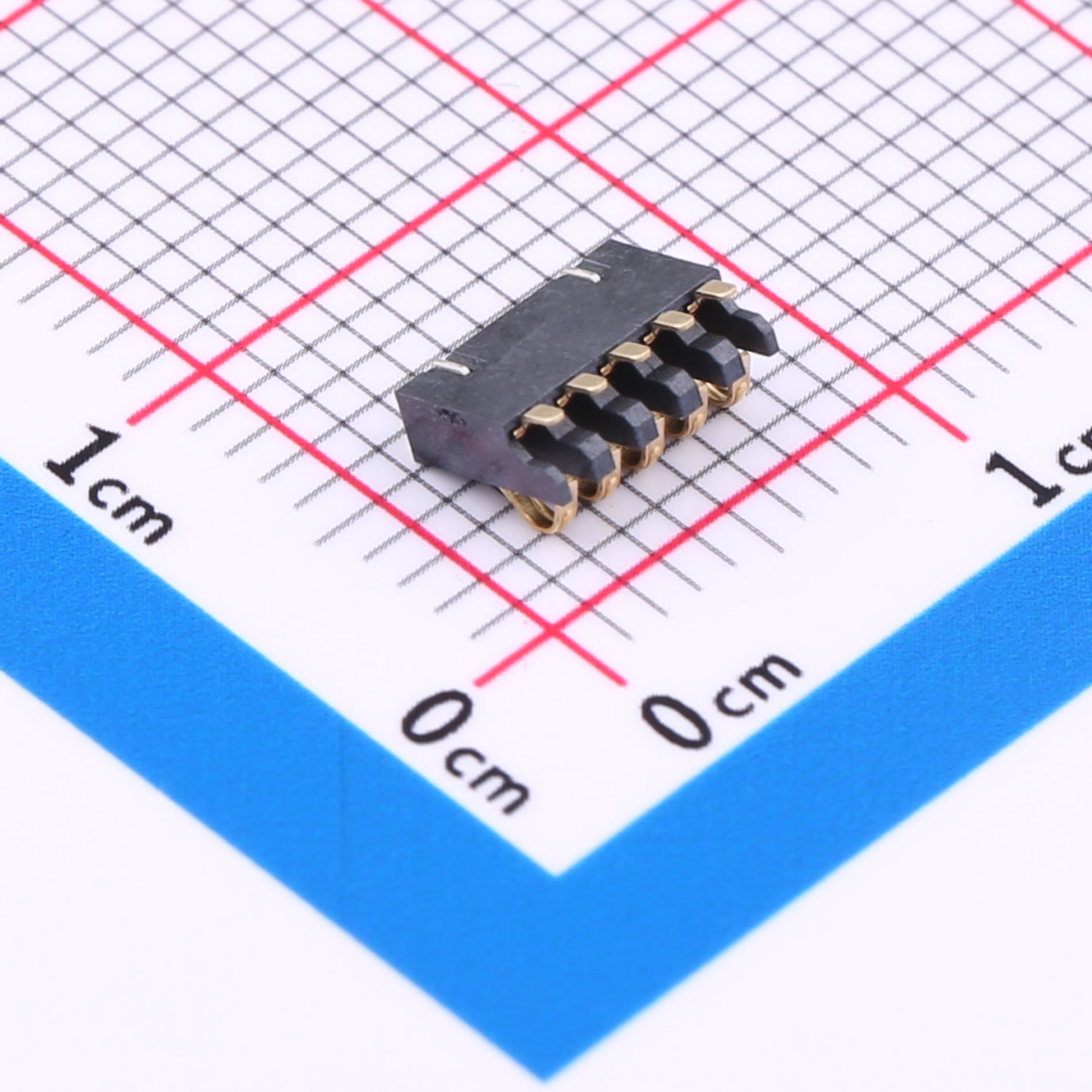

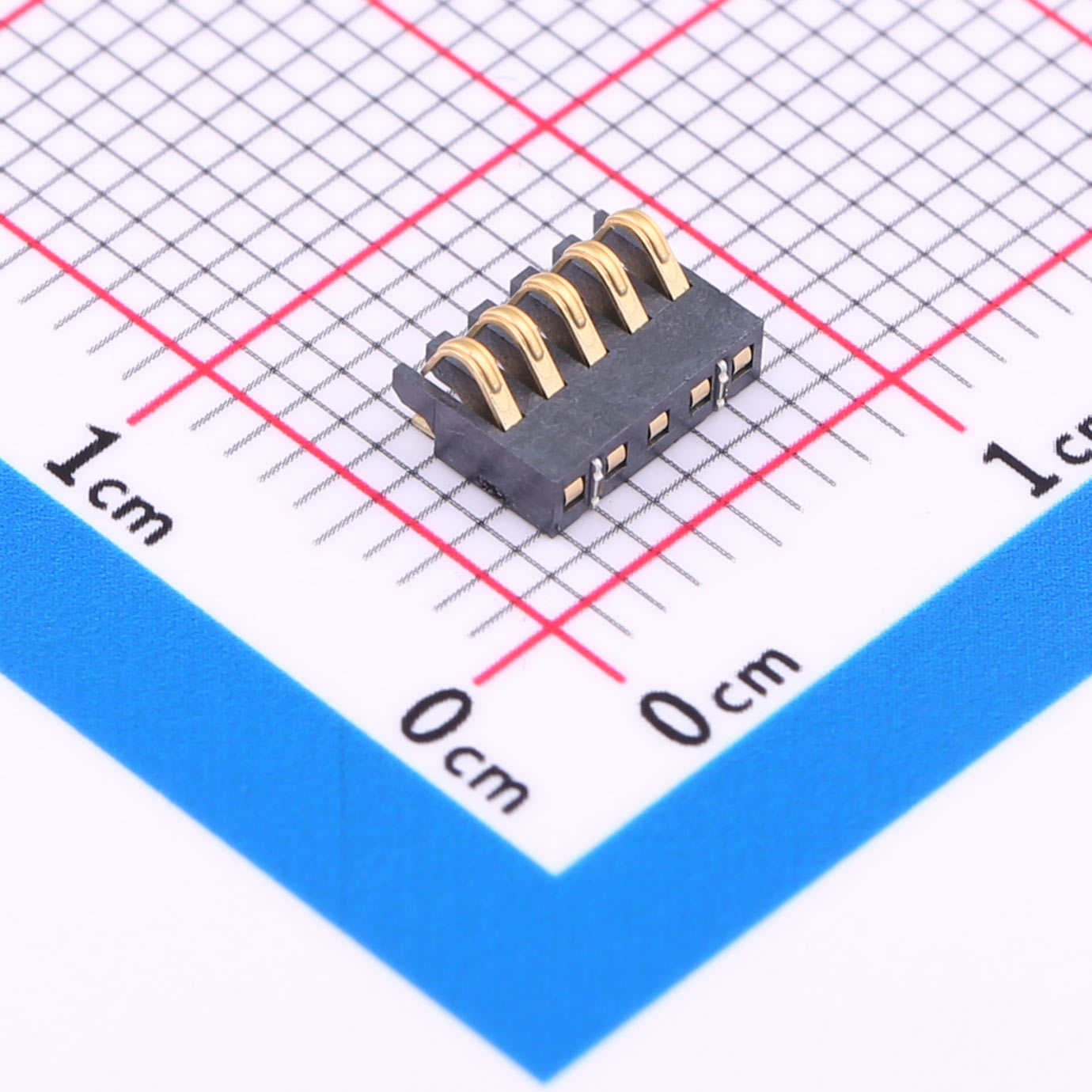

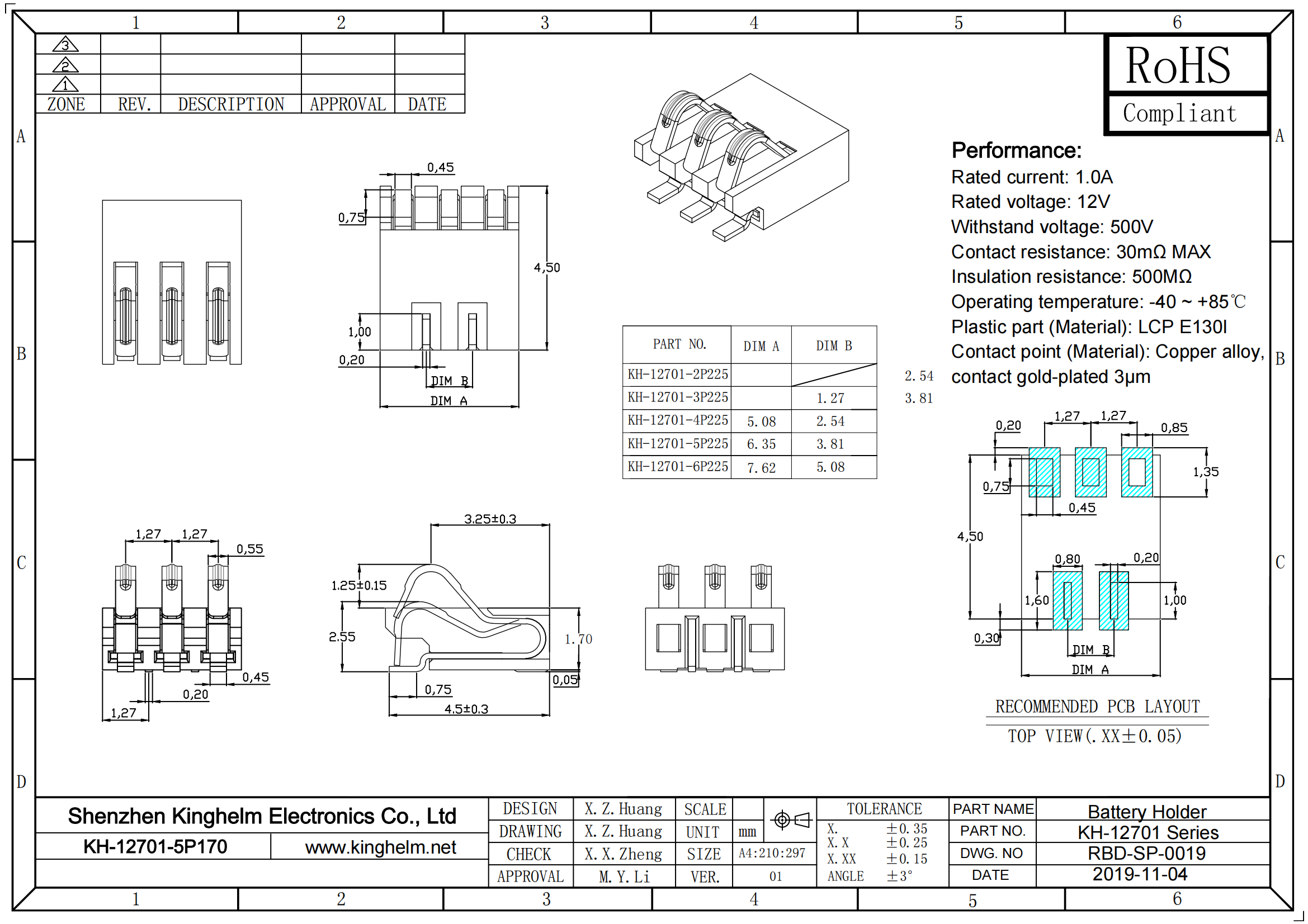

Button And Strip Battery Connector, SMD, KH-12701-5P170
Rated current: 1.0 A
Rated voltage: 12 V
Withstand voltage: 500 V
Contact resistance: 30 mΩ MAX
Insulation resistance: 500 MΩ
Operating temperature: -40°C to +85°C
Product Benefits
● Compact design
● High rated voltage 12V
● Low contact resistance 30 mΩ MAX
● Excellent insulation resistance 500 MΩ
● Wide operating temperature range -40°C to +85°C
● Reliable performance at 1.0A rated current
● Durable withstand voltage 500V
Product Application
● Power supply connections
● Consumer electronics
● Home appliances
● Industrial equipment
● Communication devices
