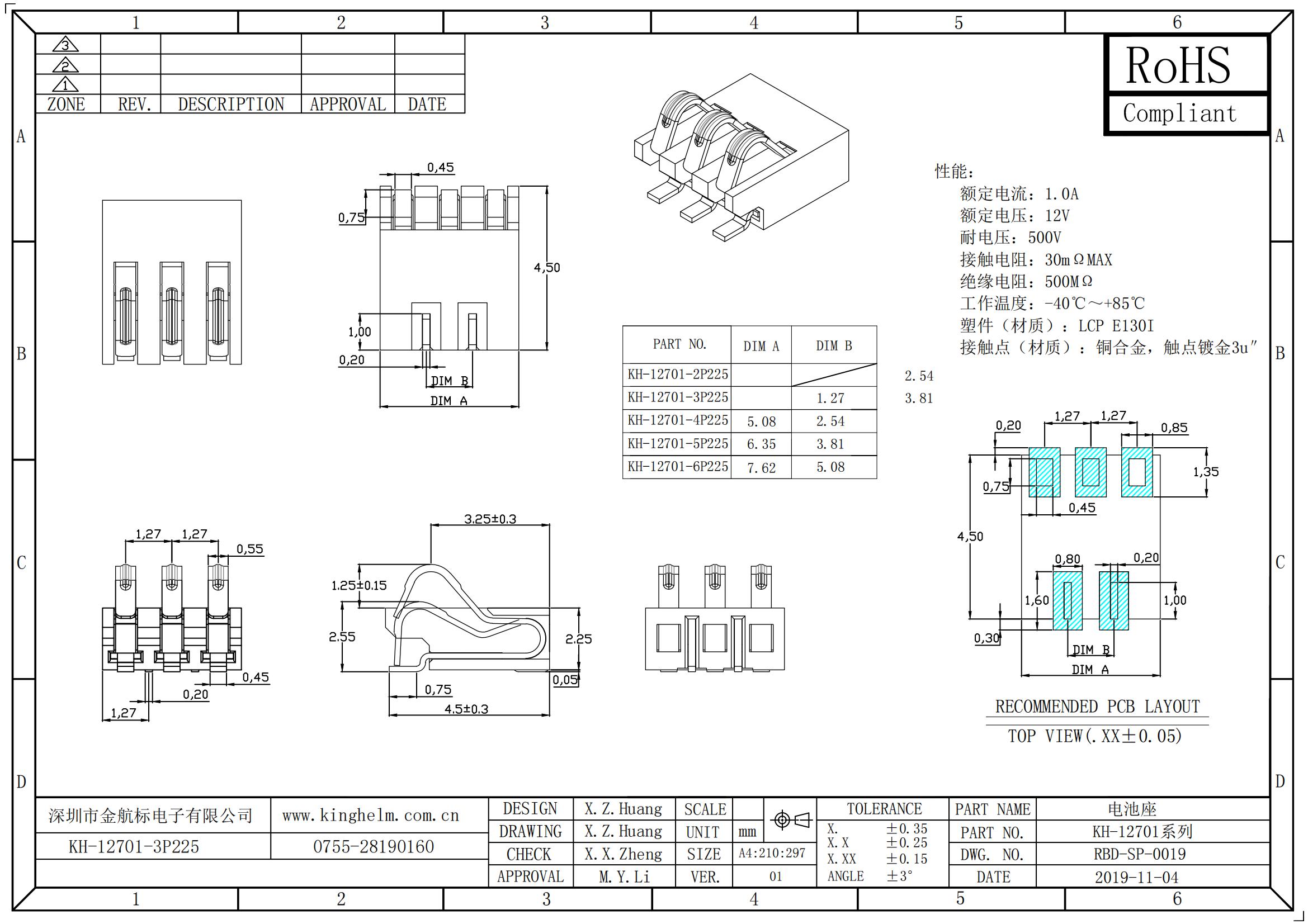

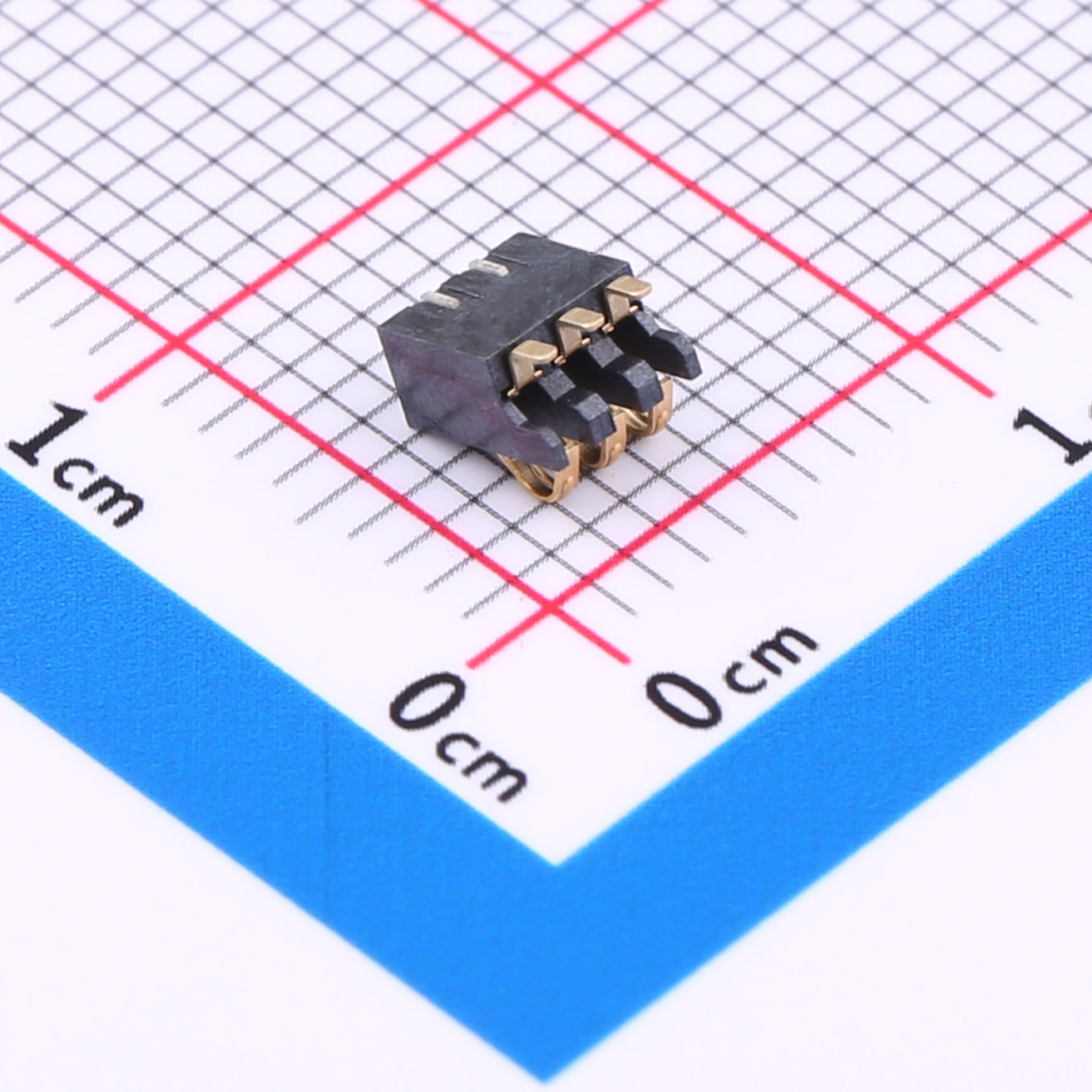

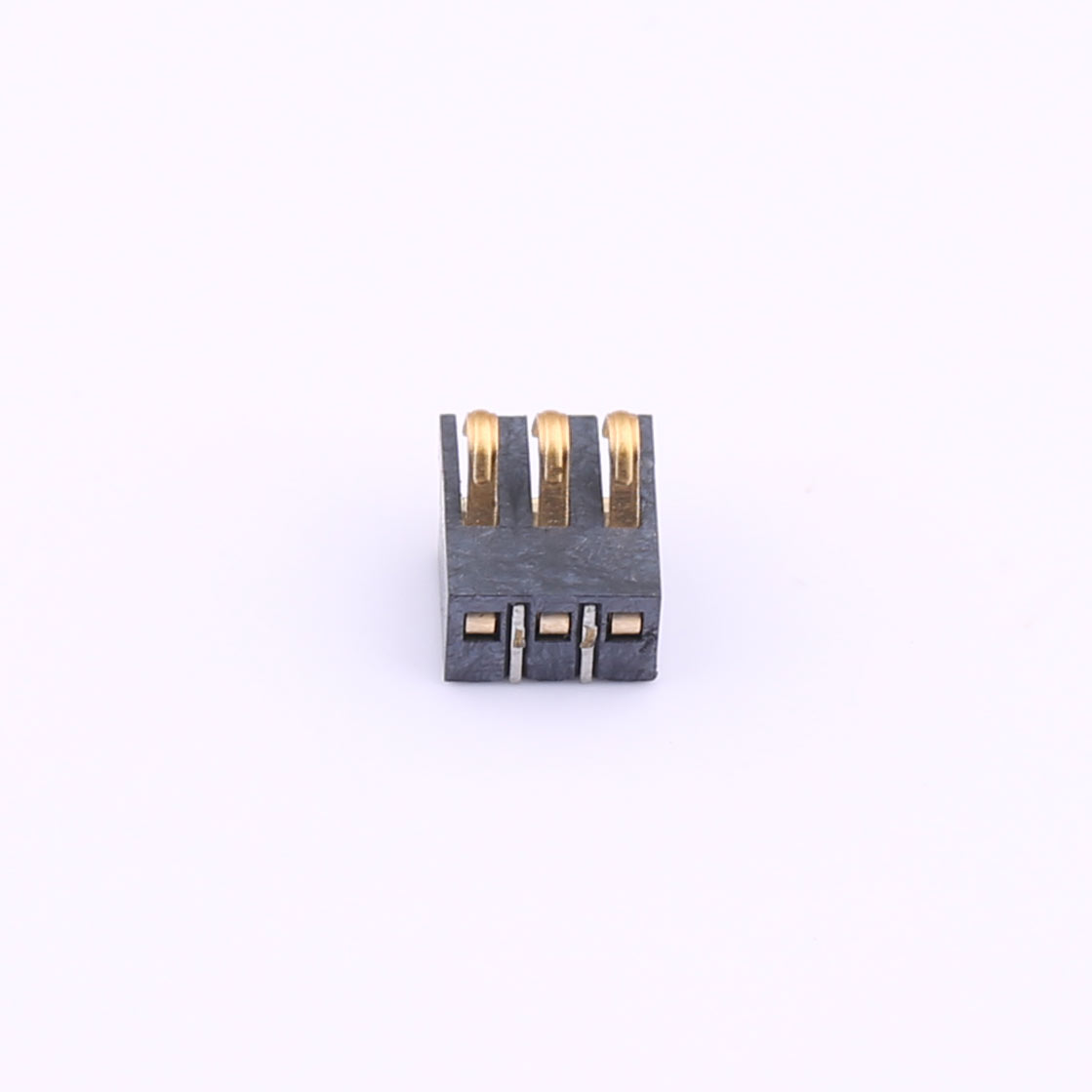

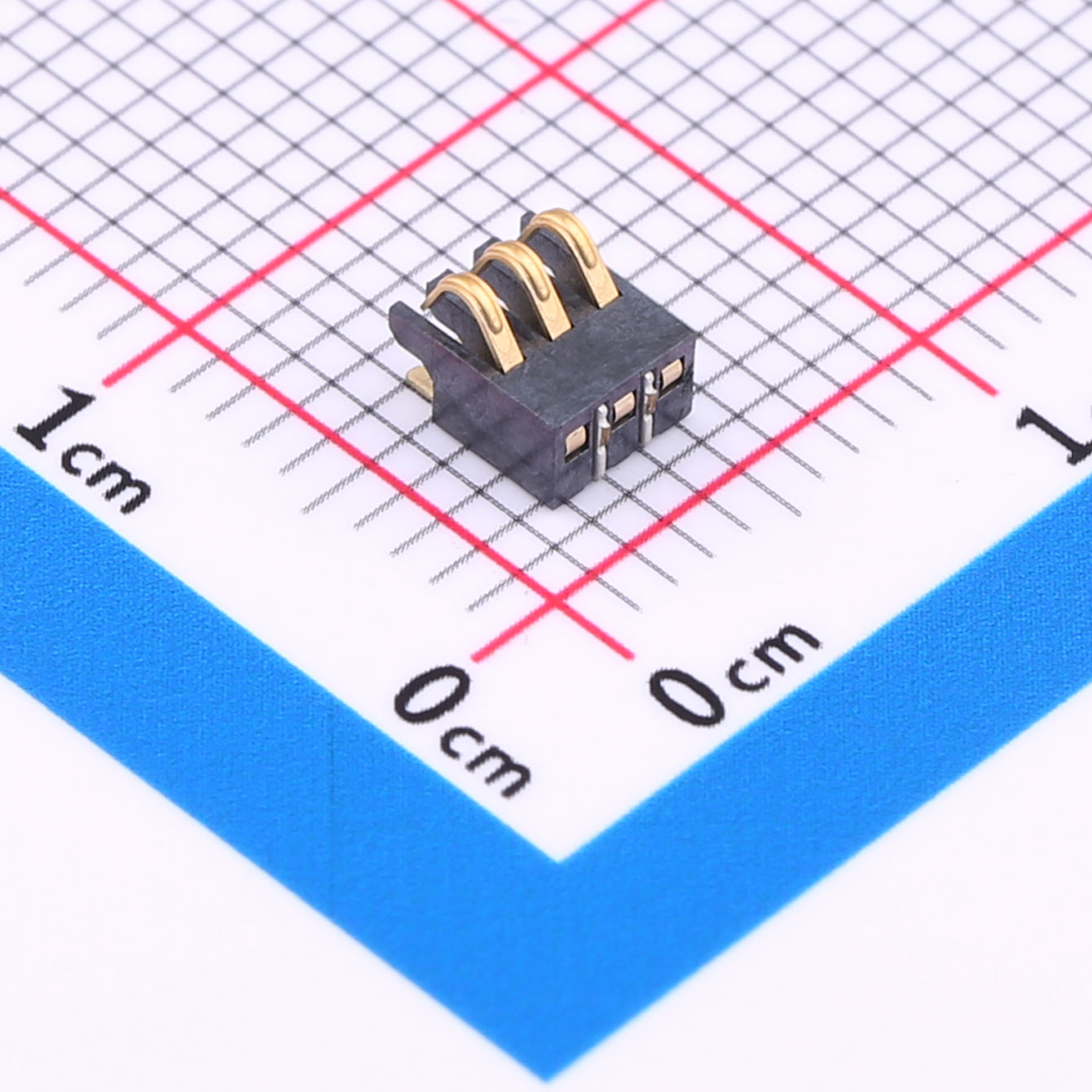

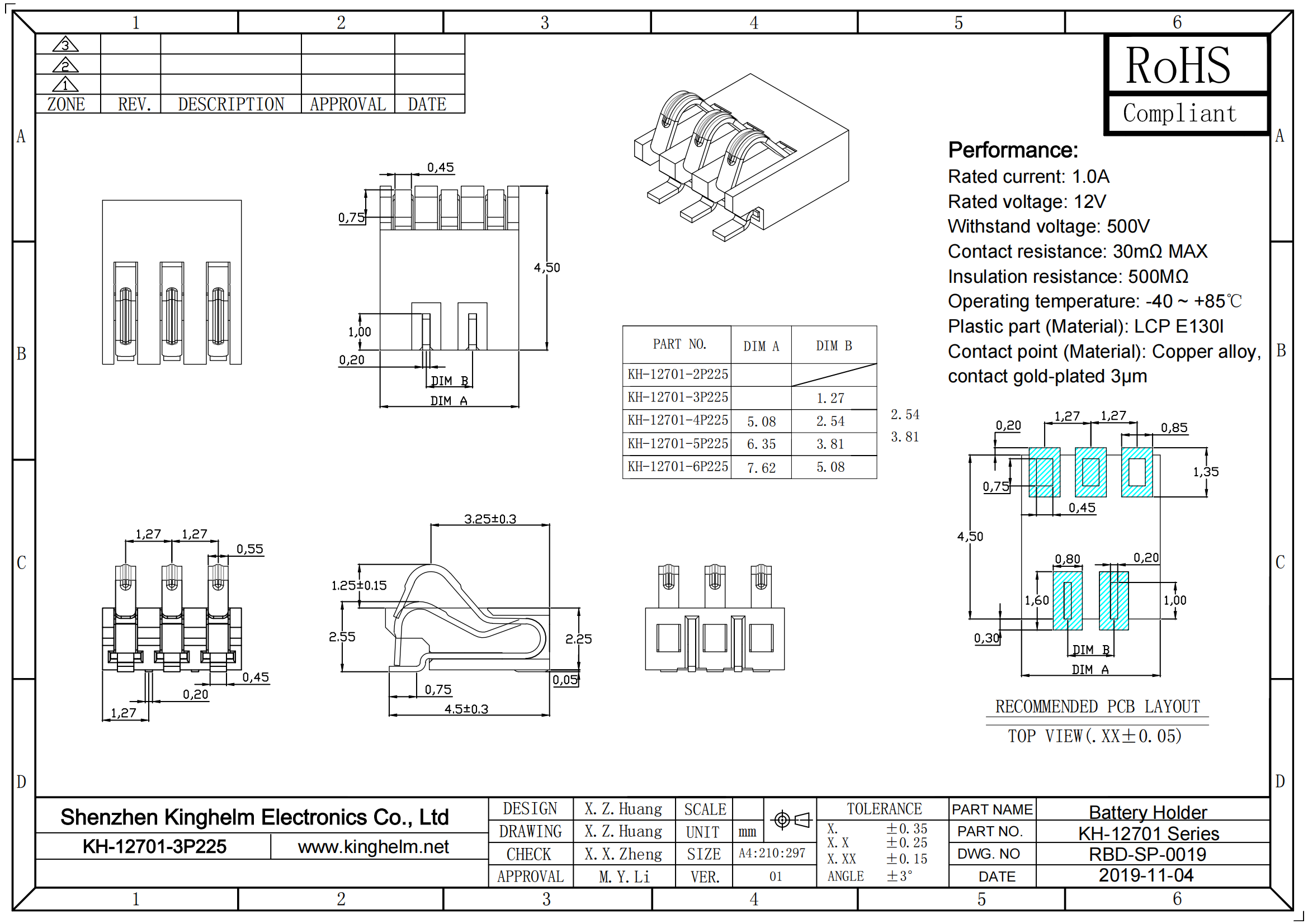

Button And Strip Battery Connector, SMD, KH-12701-3P225
Rated current: 1.0 A
Rated voltage: 12 V
Withstand voltage: 500 V
Contact resistance: 30 mΩ MAX
Insulation resistance: 500 MΩ
Operating temperature: -40°C to +85°C
Product Benefits
● Compact surface-mount design
● Rated voltage 12V
● Low contact resistance (up to 30 mΩ)
● High insulation resistance (500 MΩ)
● Wide operating temperature range -40°C to +85°C
● Reliable at 1.0A rated current
● Withstands up to 500V
Product Application
● Power supply connections
● Consumer electronics
● Home appliance wiring
● Industrial machinery
● Communication systems
