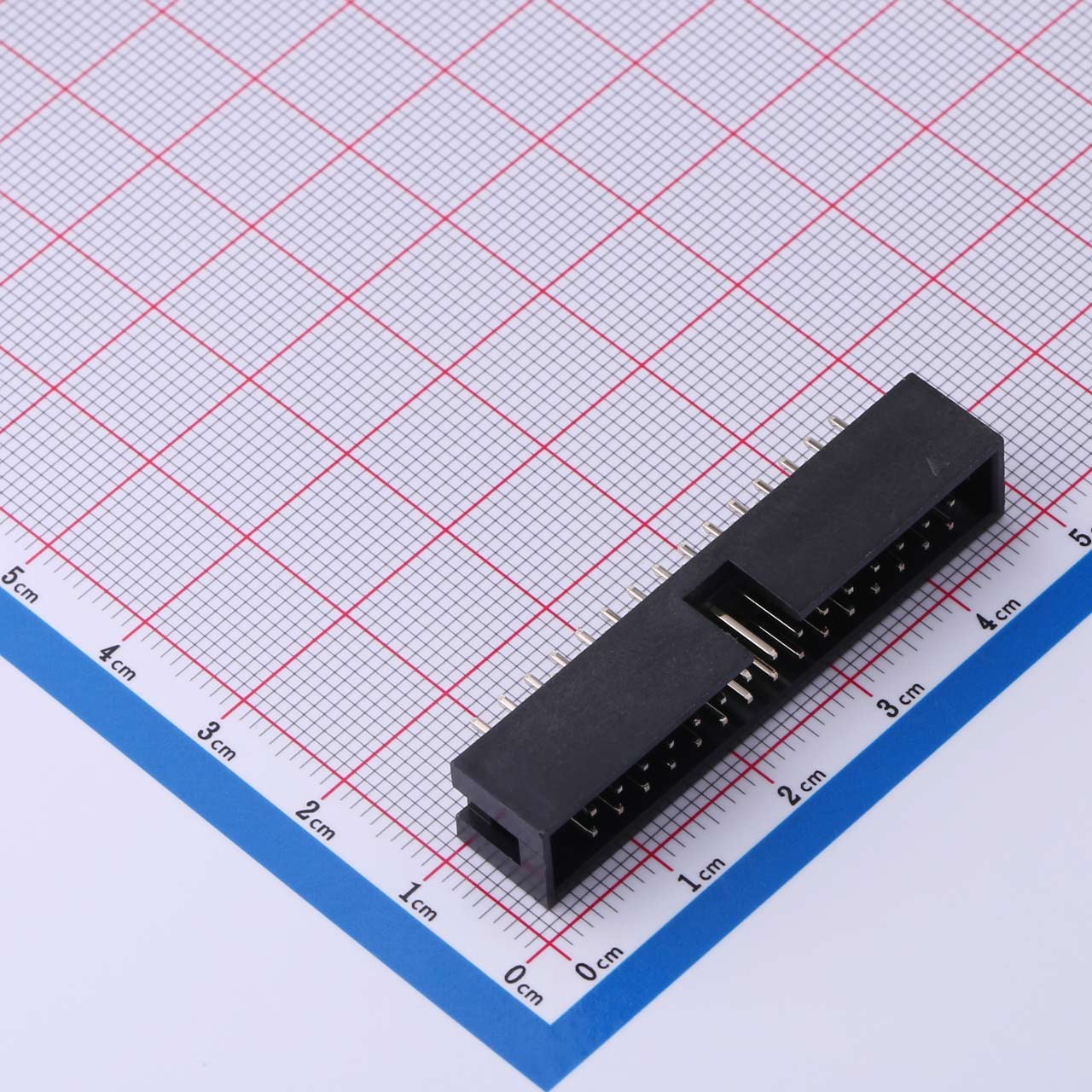

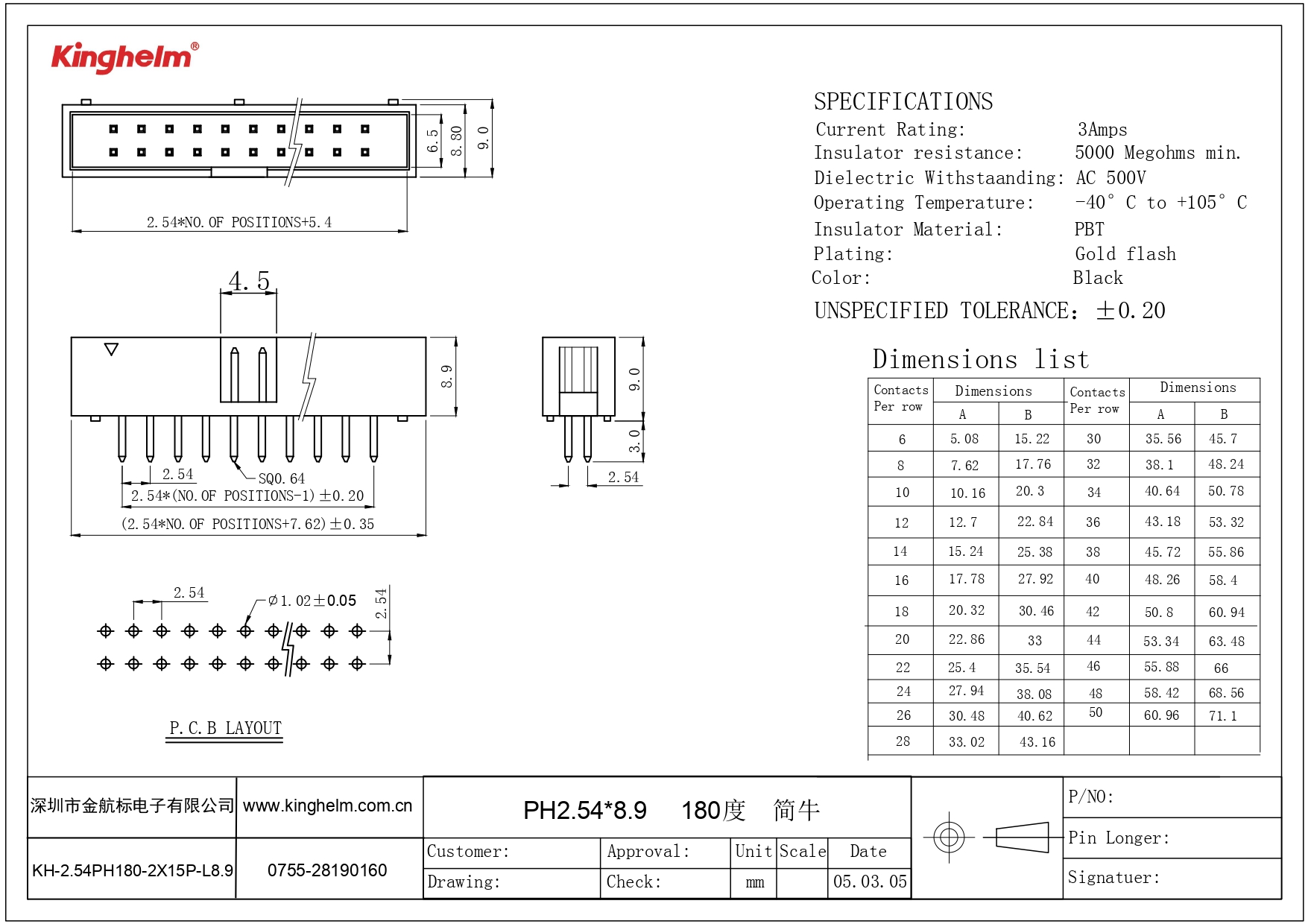

IDC Connector, 2.54mm Pitch, 15-Pin, 2-Row, KH-2.54PH180-2X15P-L8.9
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch, 2-row, 15-pin layout
● Gold flash plating for long-lasting conductivity
● PBT insulator for heat and wear resistance
● 180° straight insertion for easy installation
● Wide temperature range (-40℃ to +105℃)
Product Application
● IDC cable connections
● Embedded systems
● Industrial control systems
● Signal and power transmission
● Consumer electronics
