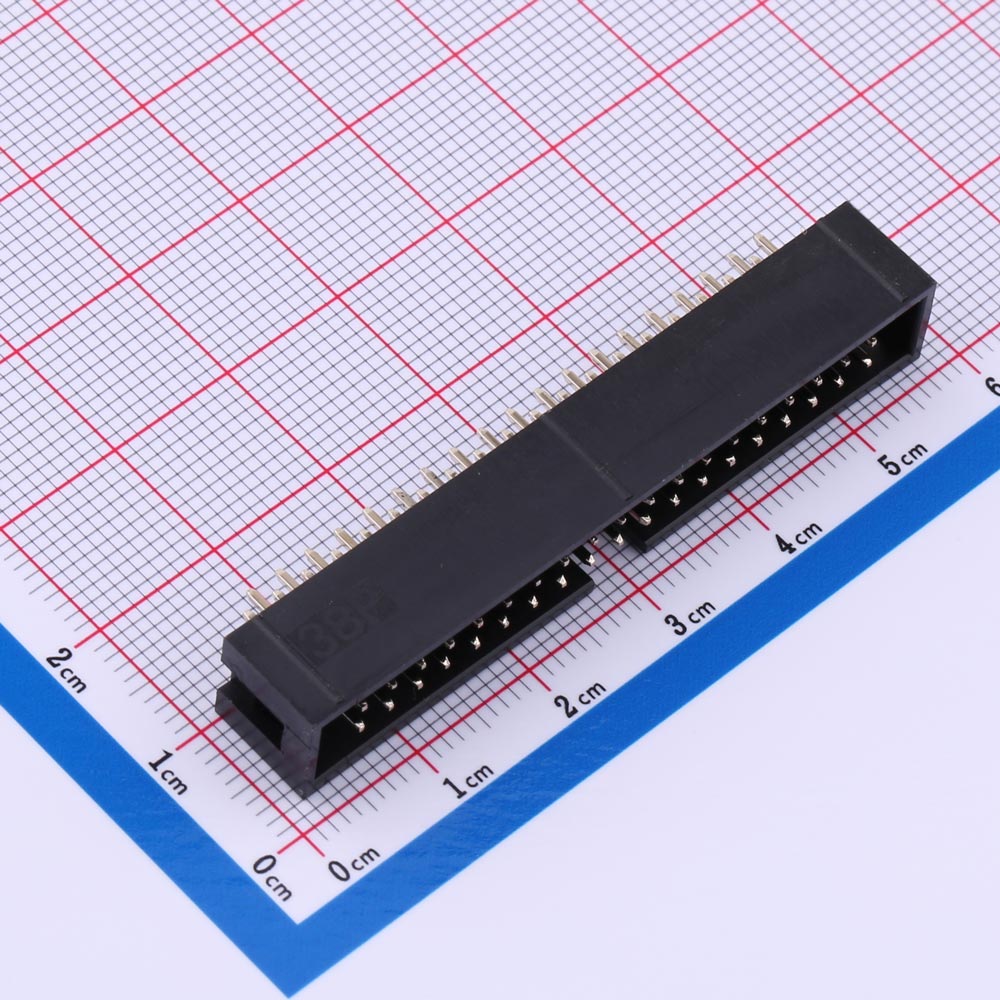

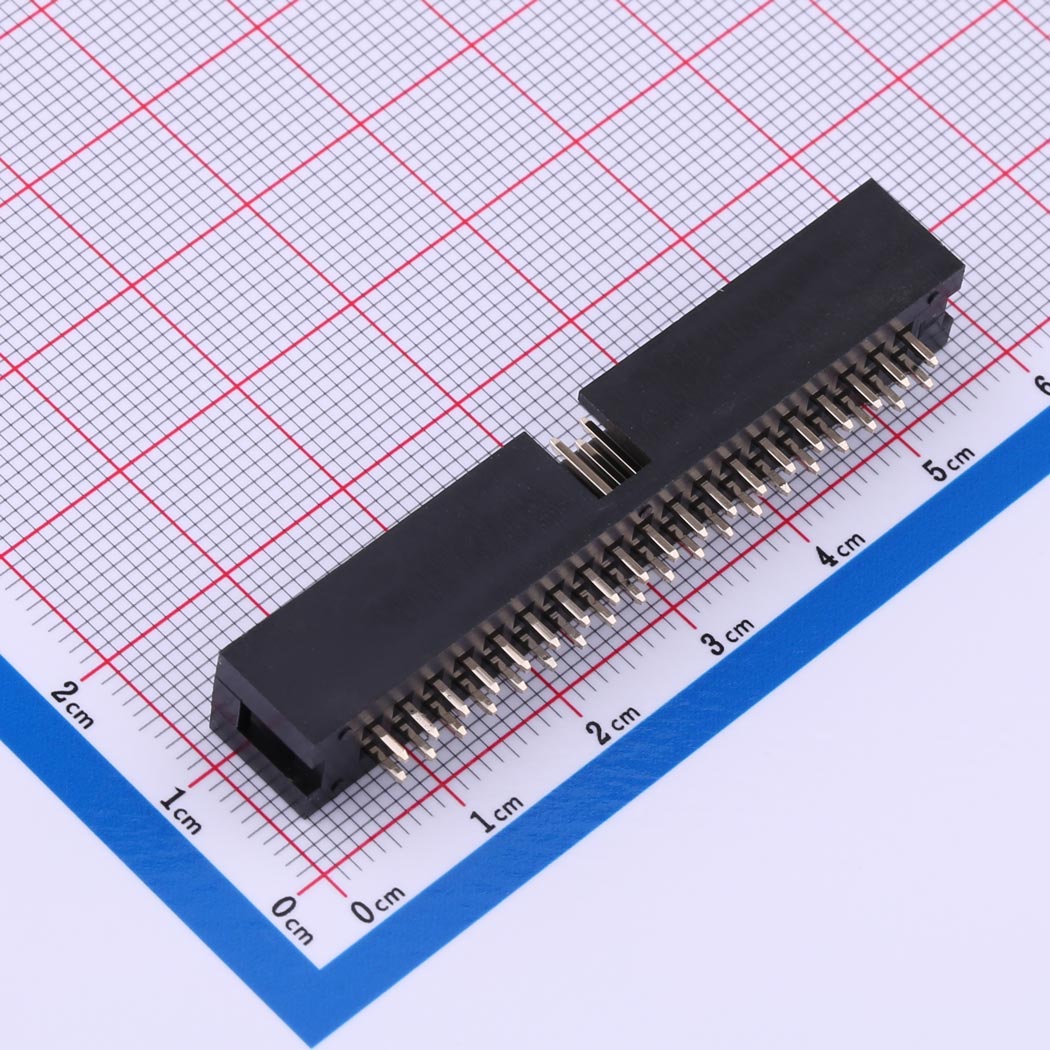

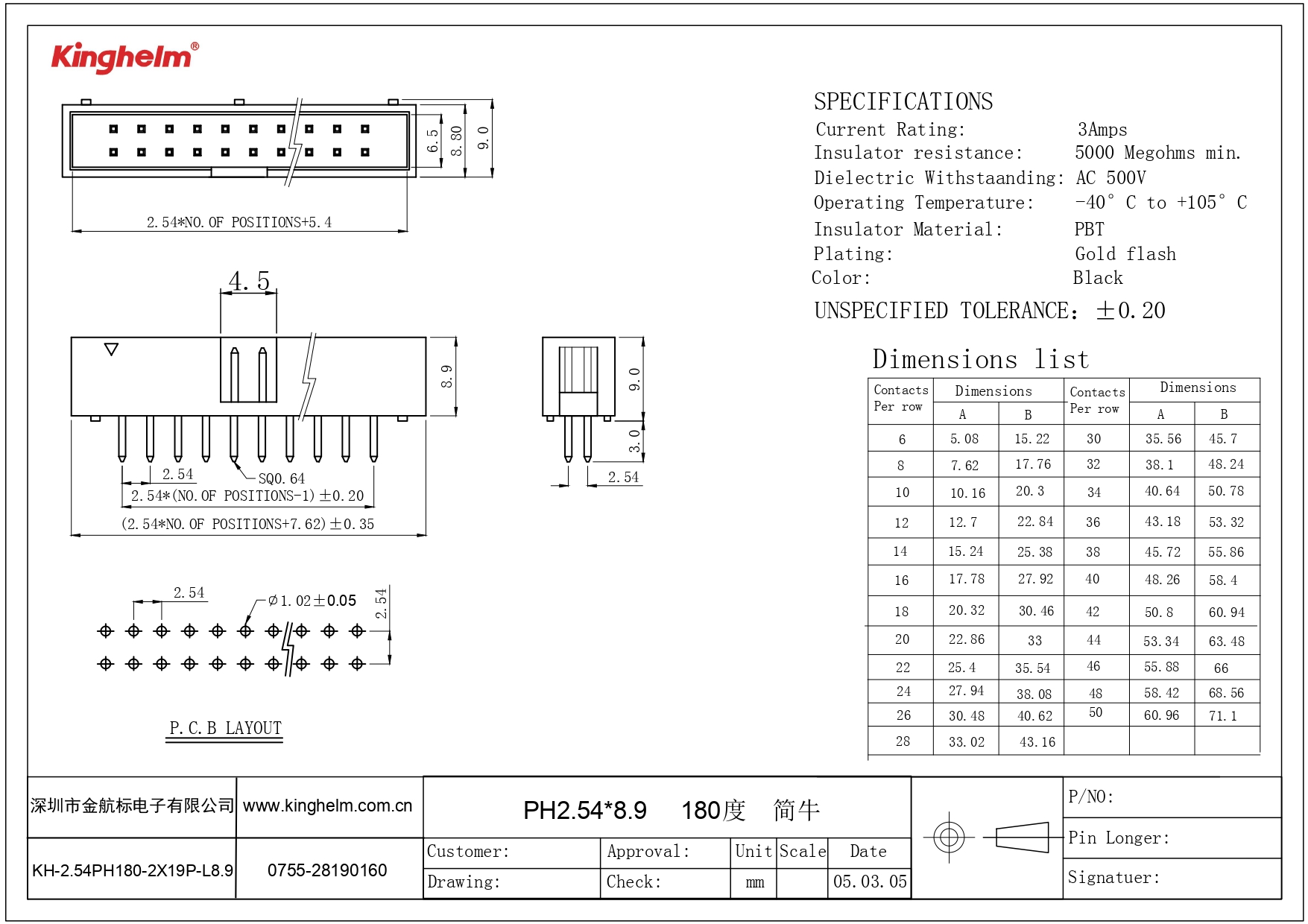

IDC Connector, 2.54mm Pitch, 19-Pin, 2-Row, KH-2.54PH180-2X19P-L8.9
Current Rating: 3A
Insulation Resistance: 5000 MΩ Min
Dielectric Withstanding Voltage: AC 500V
Operating Temperature: -40℃ to +105℃
Insulator Material: PBT
Contact Plating: Gold Flash
Product Benefits
● 2.54mm pitch, 2-row, 19-pin layout
● Gold flash plating for durable, reliable conductivity
● PBT insulator for excellent thermal and mechanical properties
● 180° straight insertion for easy PCB mounting
● Wide operating temperature range (-40℃ to +105℃)
Product Application
● IDC cable-to-board connections
● Industrial control systems
● Data and signal transmission
● Embedded devices
● Communication equipment
