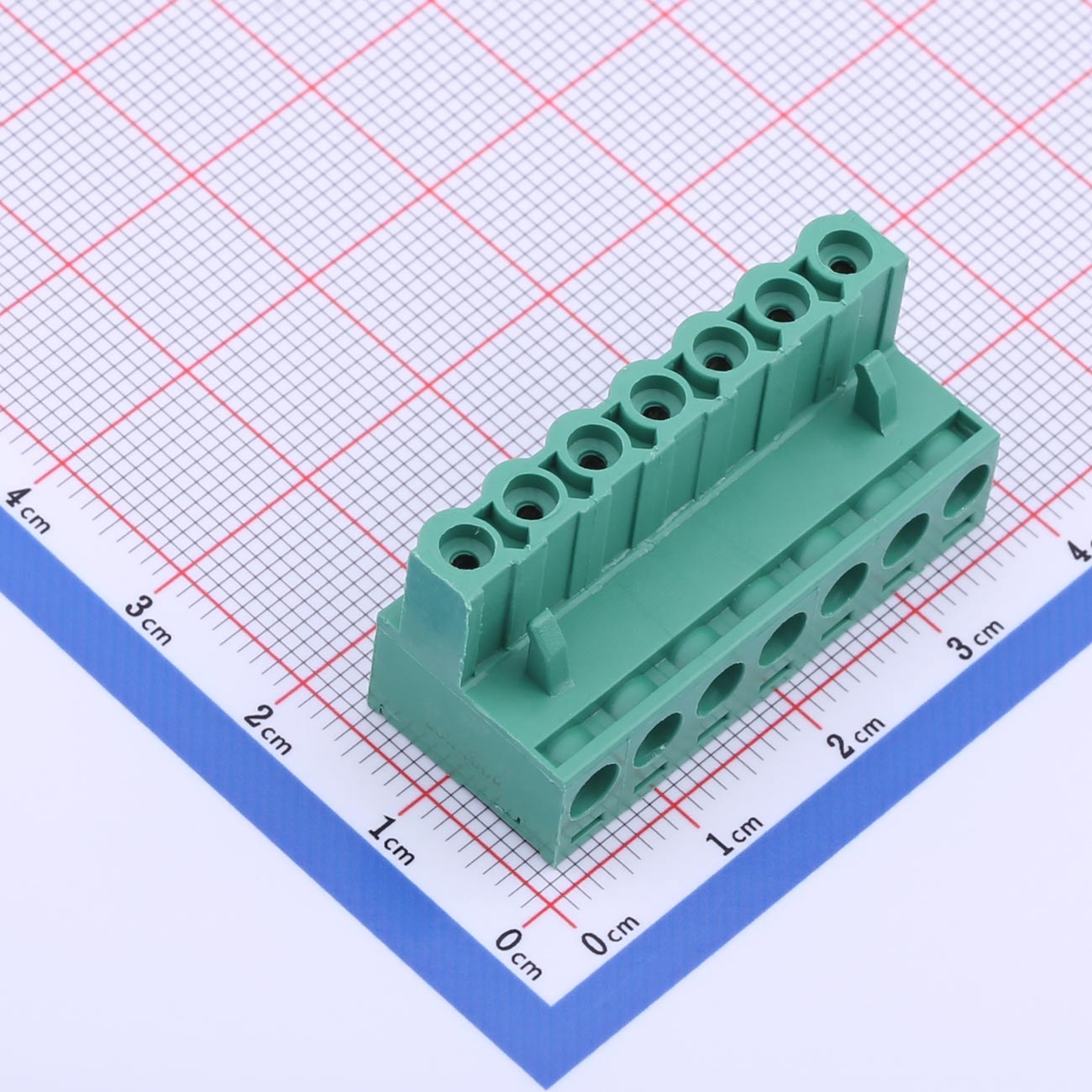

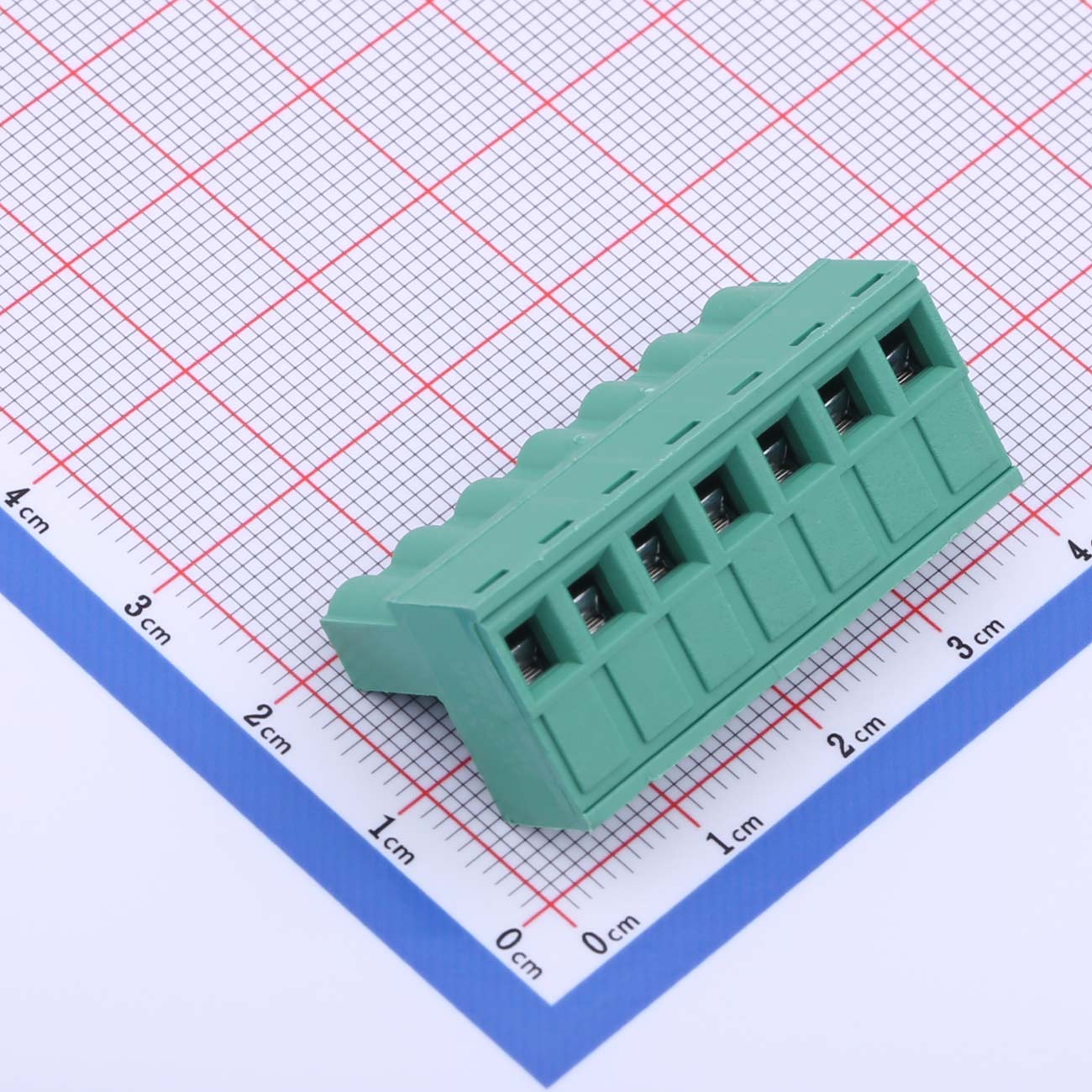

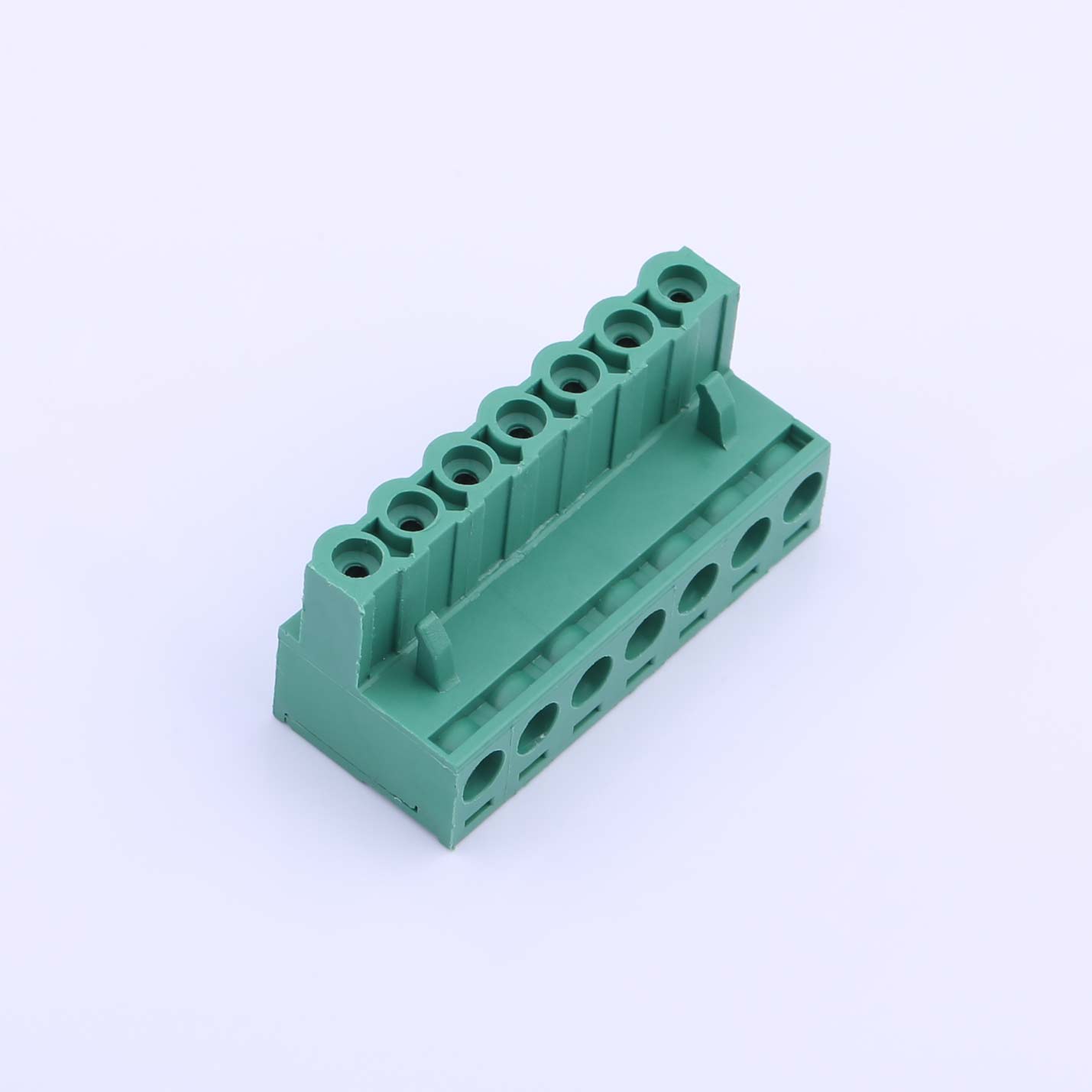

Pluggable Terminal Block, 5.08mm pitch, 7 pin, 15A 300V, KH-ZBK400R-7P-5.08GS

Pluggable Terminal Block, 5.08mm pitch, 7 pin, 15A 300V, KH-ZBK400R-7P-5.08GS

Rated Voltage & Current: 300V, 15A (CE)
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Screw Torque Value: 0.4 N·m

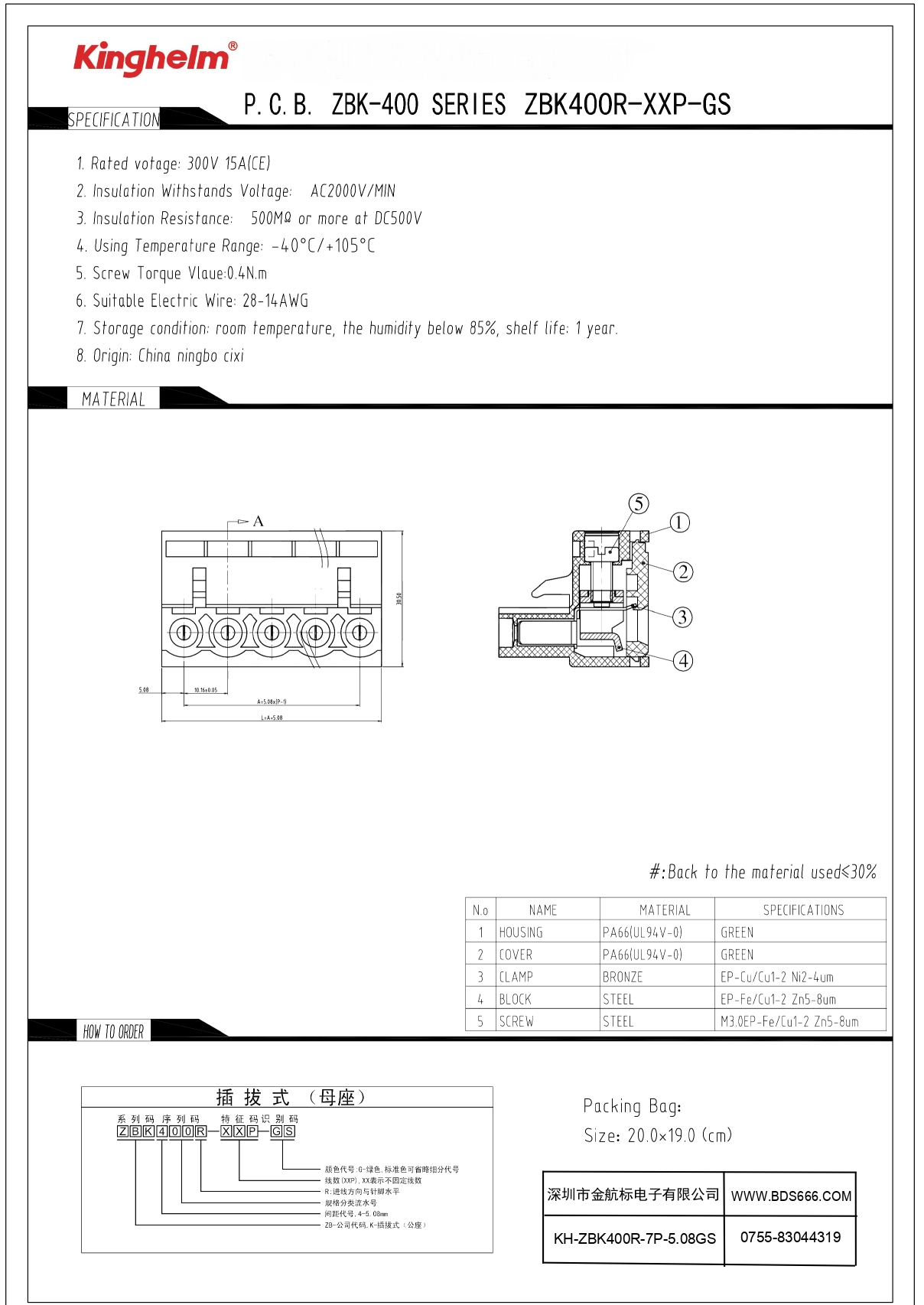

Inquiry Datasheet

Product Details

Product Features
● Standard 5.08mm pitch spacing
● 7-pin single-row configuration
● High-current support up to 15A
● Wide voltage tolerance up to 300V
● Compatible with 14–28 AWG wires
● Heat-resistant material up to 105°C
● Low temperature operation down to -40°C
● Durable green plastic housing
● Secure pluggable connection design

Product Benefits
● Quick and easy wire connection
● Reliable electrical performance
● Supports wide range of wire sizes
● Ideal for high-current applications
● Space-saving single-row layout
● Enhanced heat and cold resistance
● Reduces maintenance with strong locking mechanism

Product Application
● Industrial automation systems
● Power distribution units
● Control panels and switchgear
● HVAC systems
● Lighting control equipment
● Communication base stations
● Smart home devices
● Electrical testing instruments
