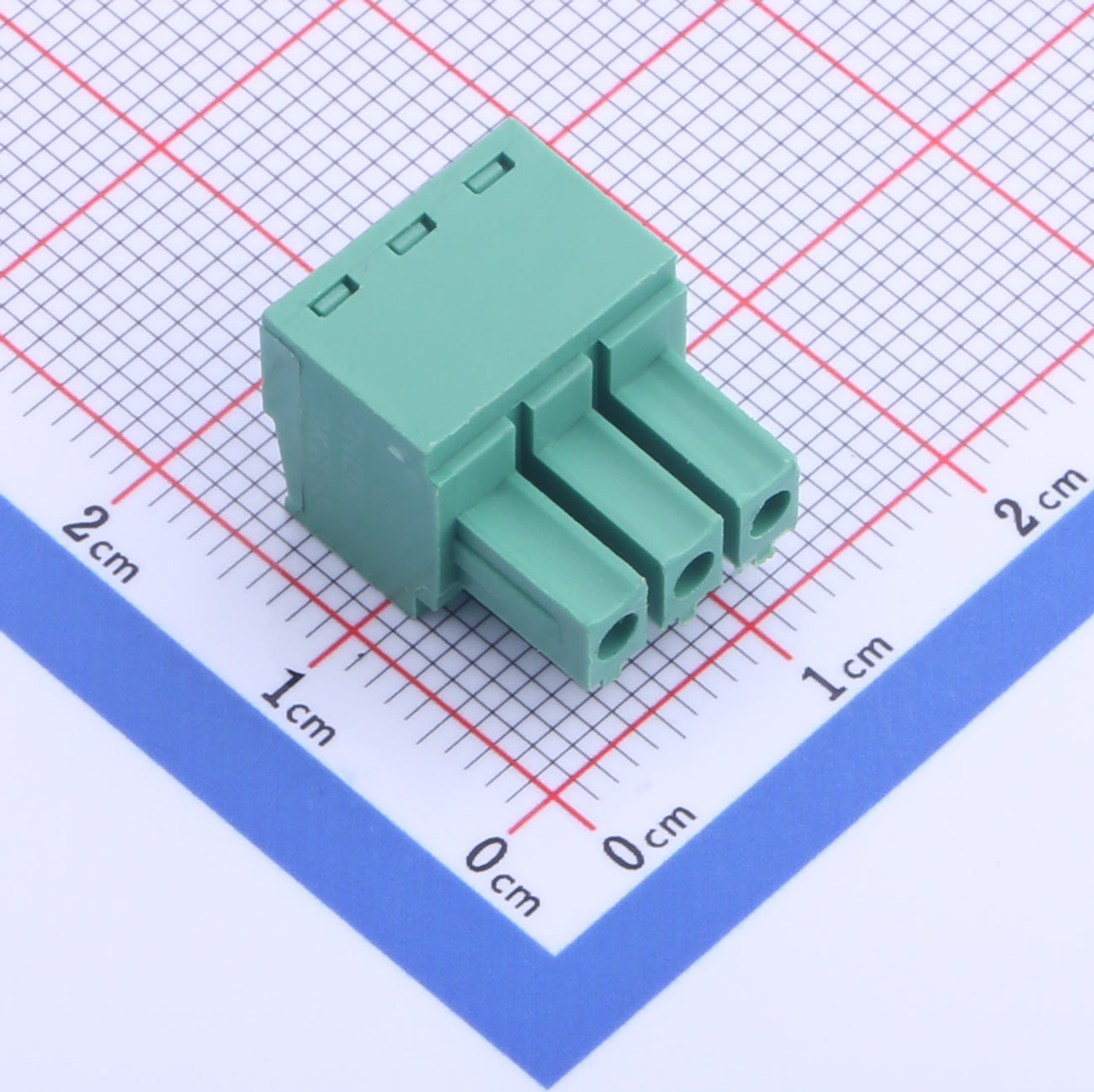

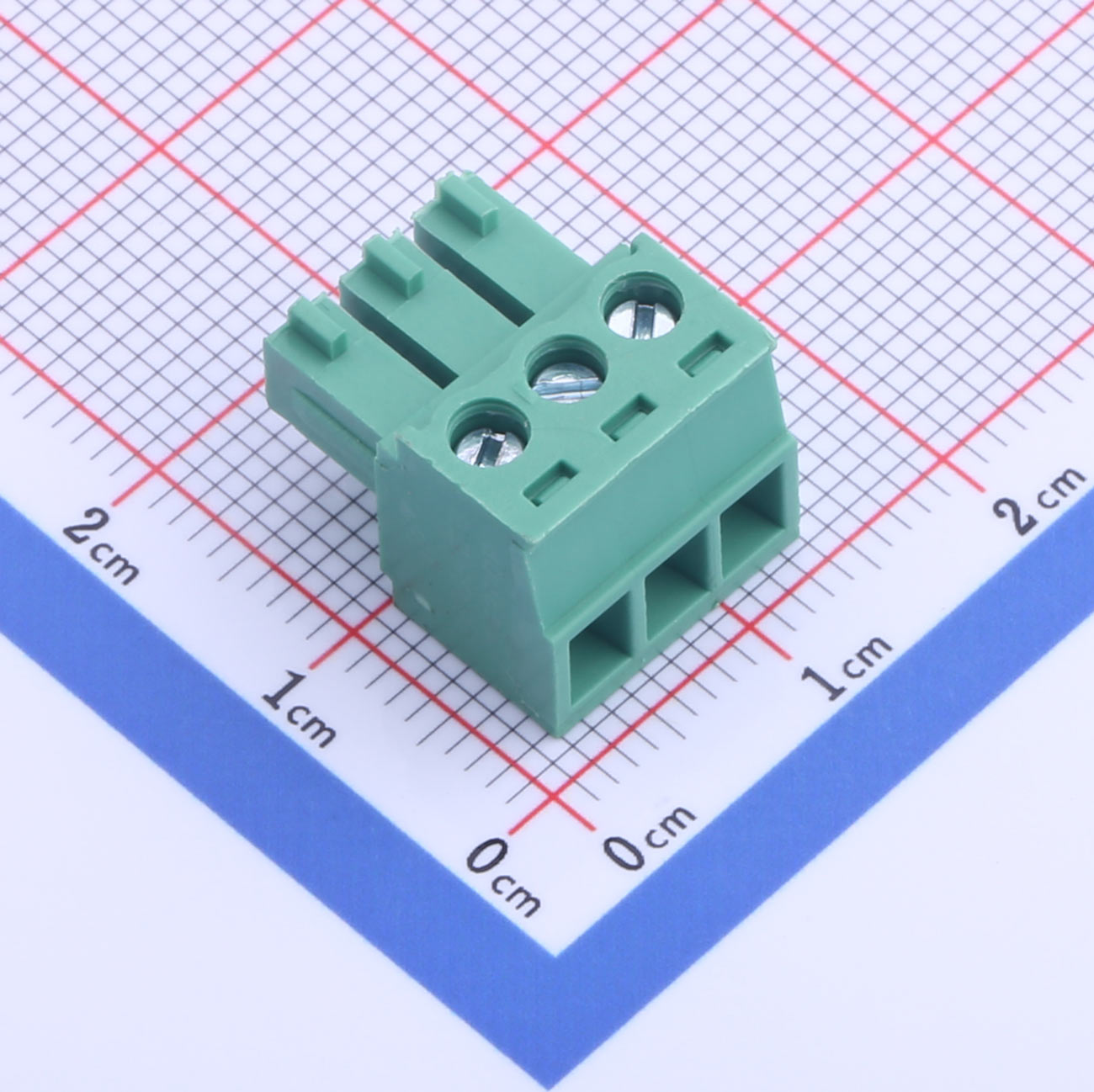

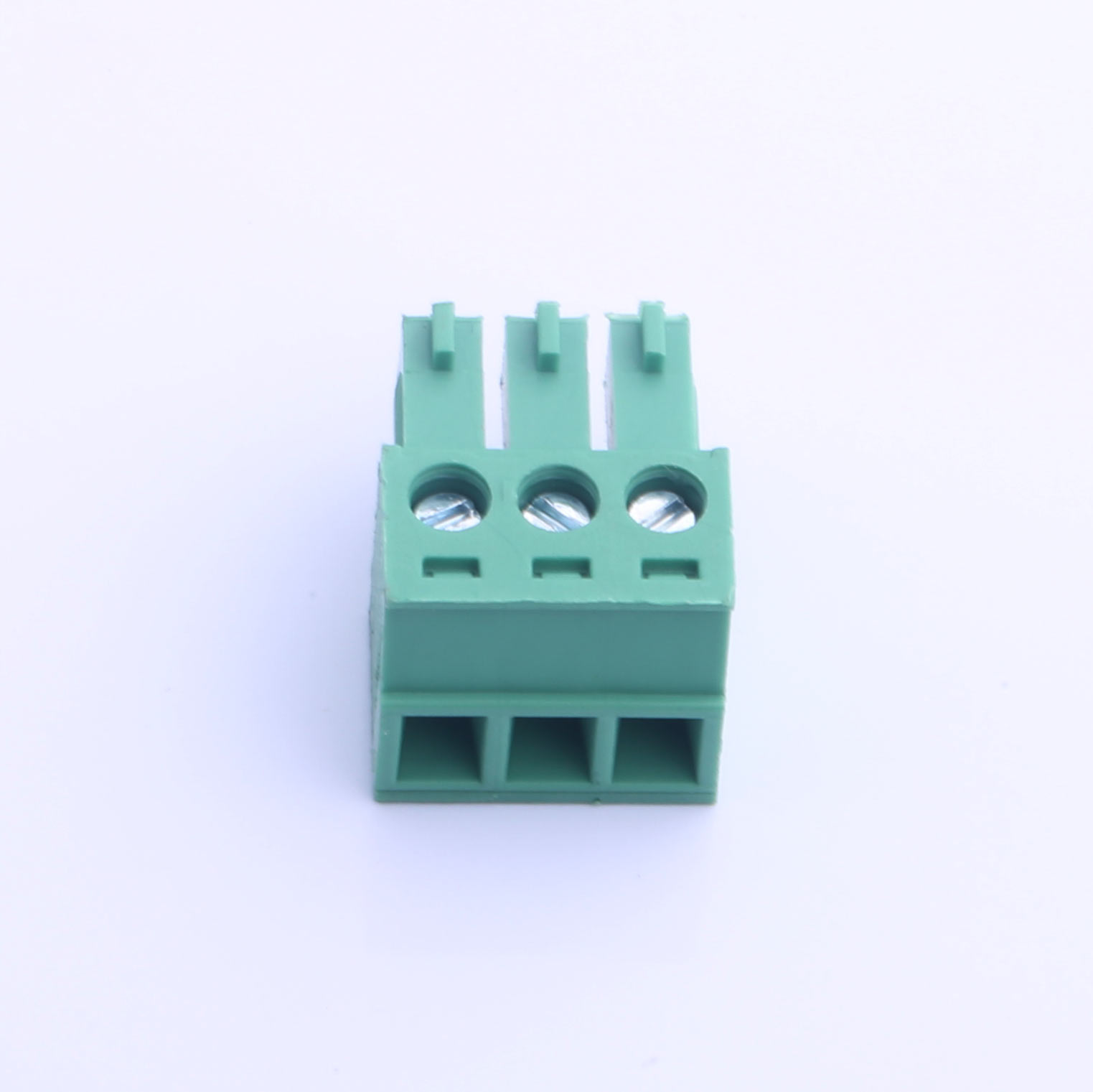

Pluggable Terminal Block, 3.81mm pitch, 3 pin, 8A 300V, KH-ZBK200R-3P-GS

Pluggable Terminal Block, 3.81mm pitch, 3 pin, 8A 300V, KH-ZBK200R-3P-GS

Rated Voltage & Current: 300V, 8A
Insulation Strength: AC 1500V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Twisting force: 0.2N.m/Max

Inquiry Datasheet

Product Details

Product Features

● 3-pin pluggable terminal block
● 3.81mm pitch design
● Rated current 8A
● Rated voltage 300V
● Wire gauge 14–24 AWG
● Operating temp -40°C to +105°C

Product Benefits

● Simple and secure connections
● Space-saving compact size
● Wide temperature range
● High current and voltage capacity
● Flexible wire gauge support
● Easy to install and replace

Product Applications

● Industrial machinery
● Automotive systems
● Control panels
● Power units
● Electrical wiring
● Automation systems

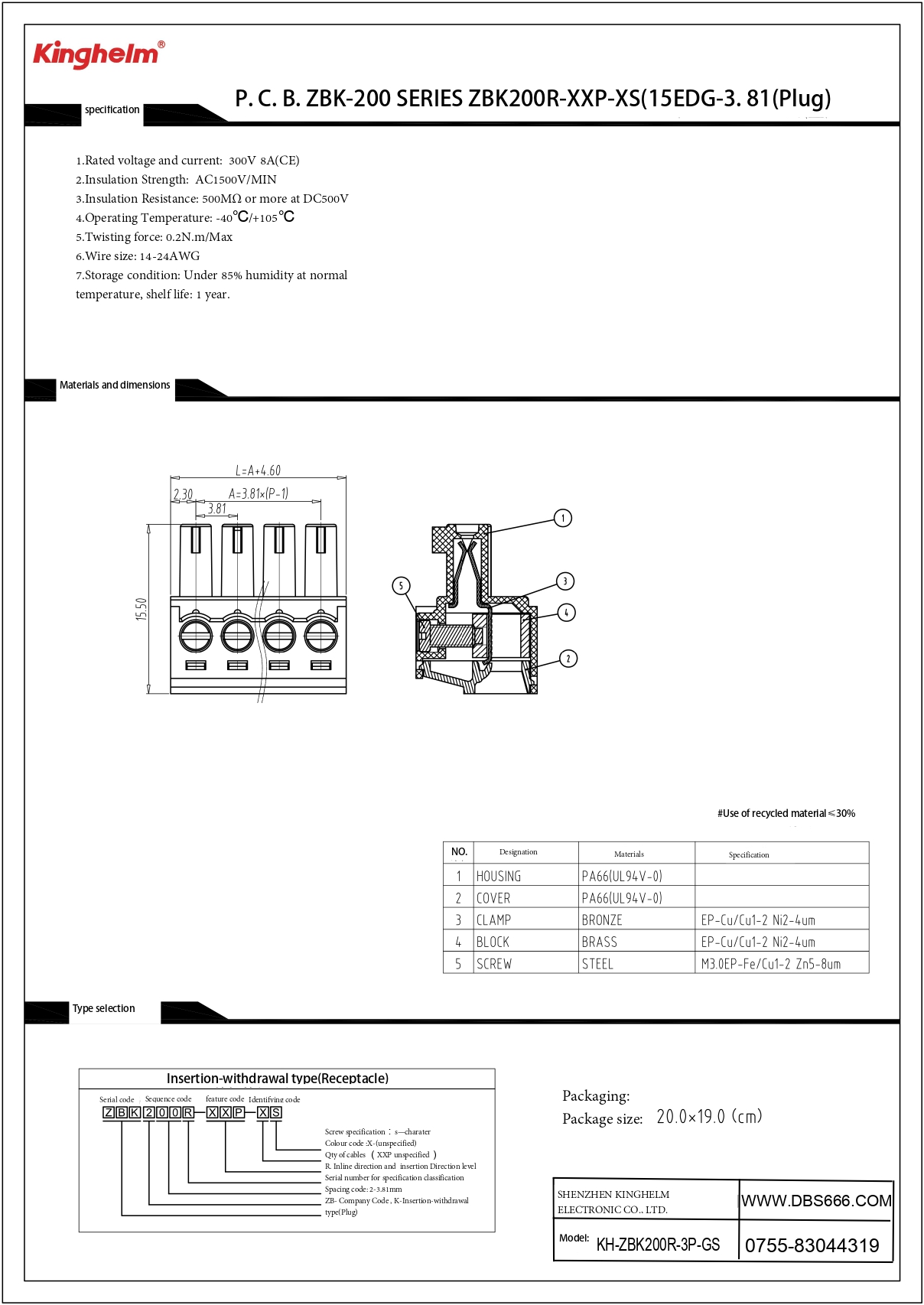

KH-ZBK200R-3P-GS_page-0001 (1).jpg
