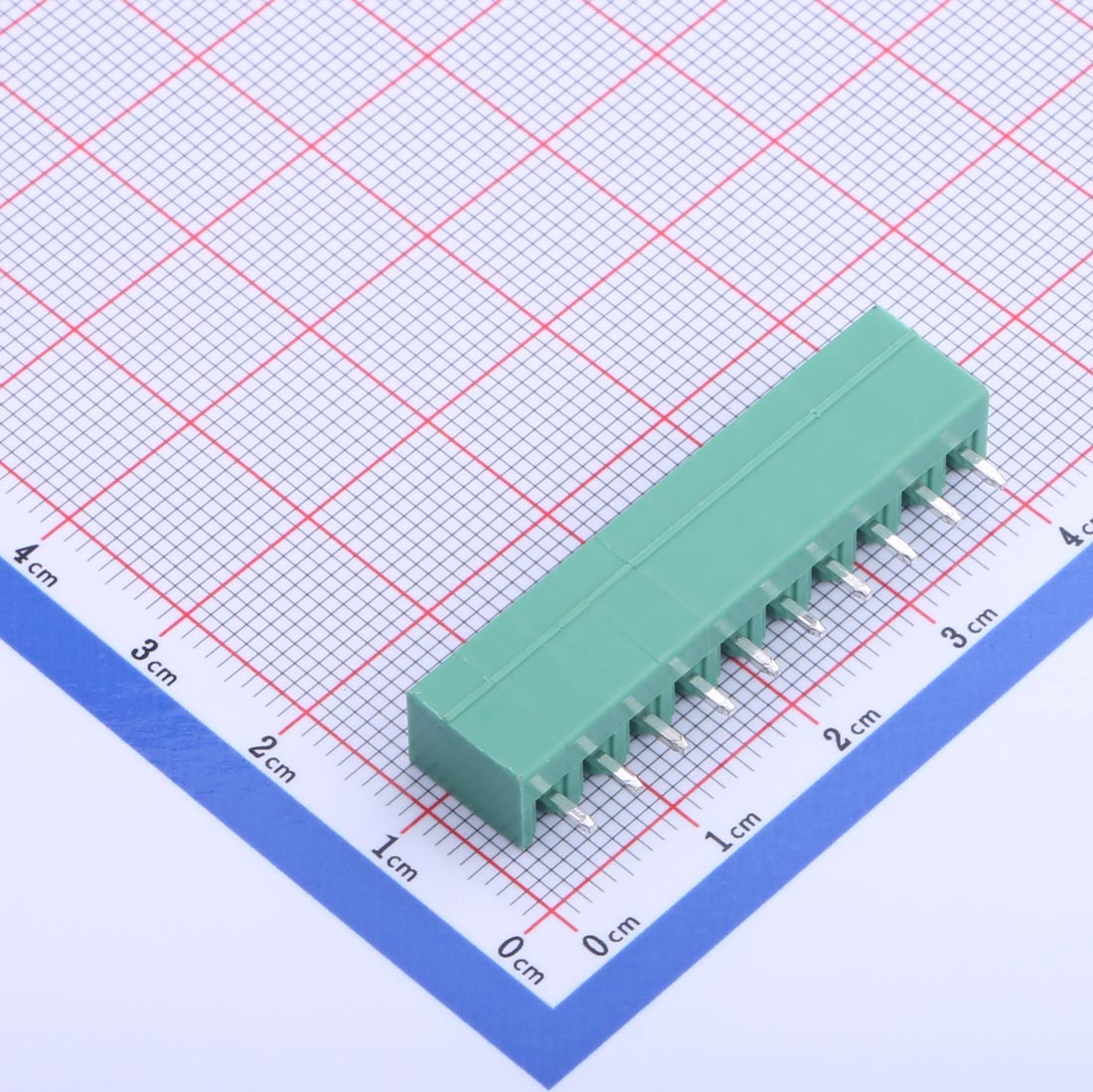

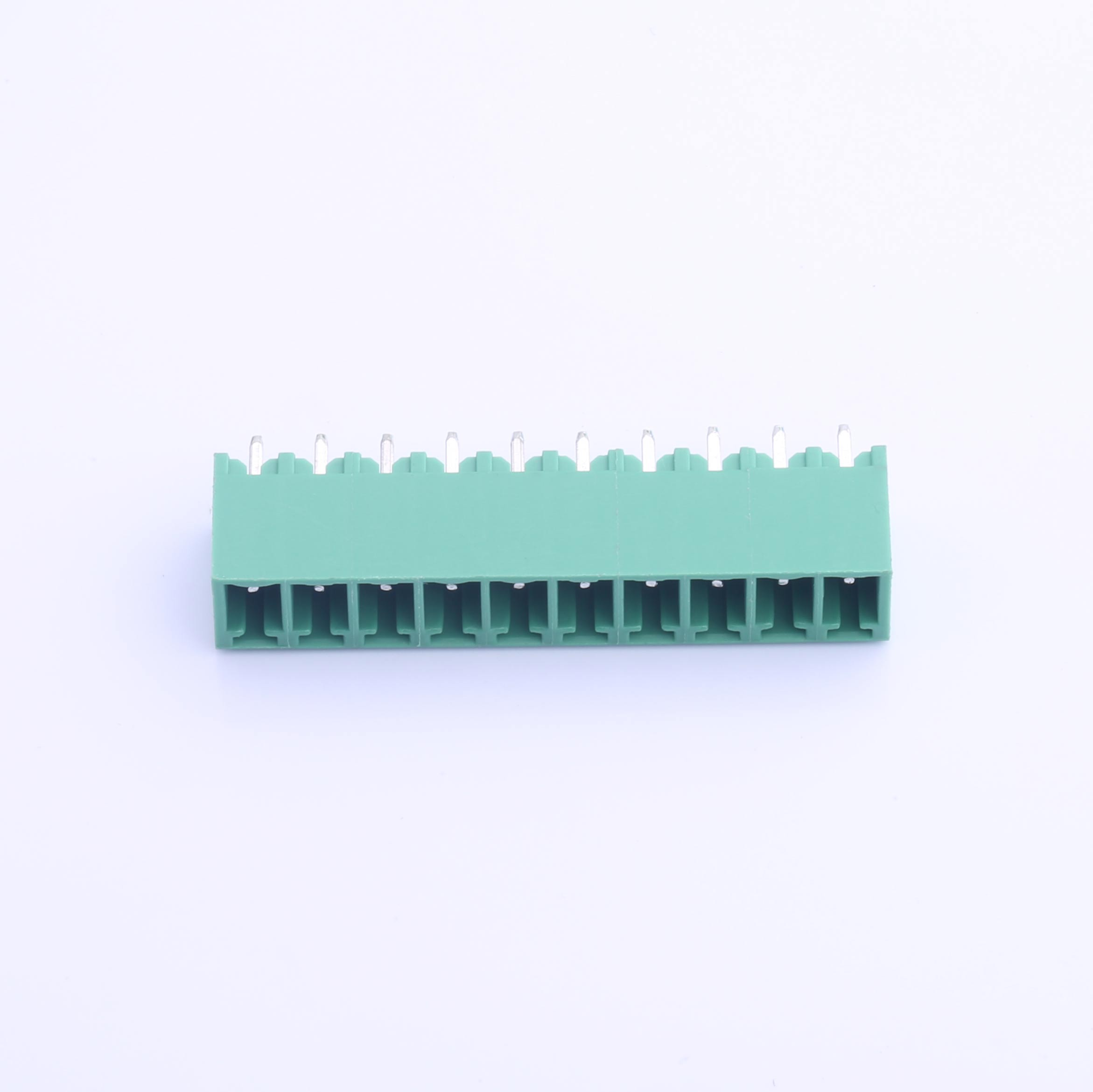

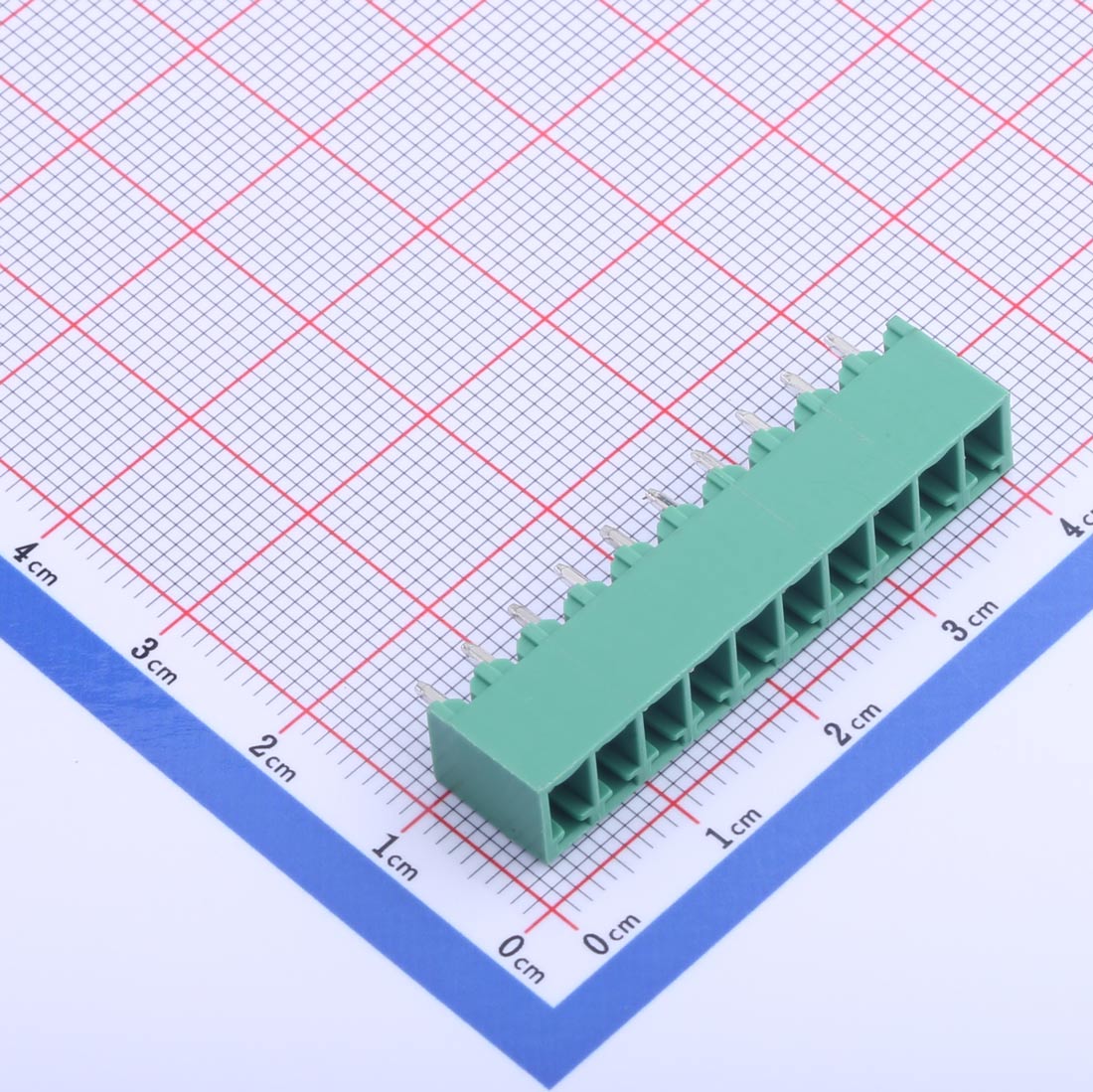

Pluggable Terminal Block, 3.81mm pitch, 10 pin, 8A 300V, KH-ZBF200V-10P-G

Pluggable Terminal Block, 3.81mm pitch, 10 pin, 8A 300V, KH-ZBF200V-10P-G

Rated Voltage & Current: 300V, 8A (CE)
Insulation Strength: AC 1500V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Twisting Force: 0.2 N·m/Max

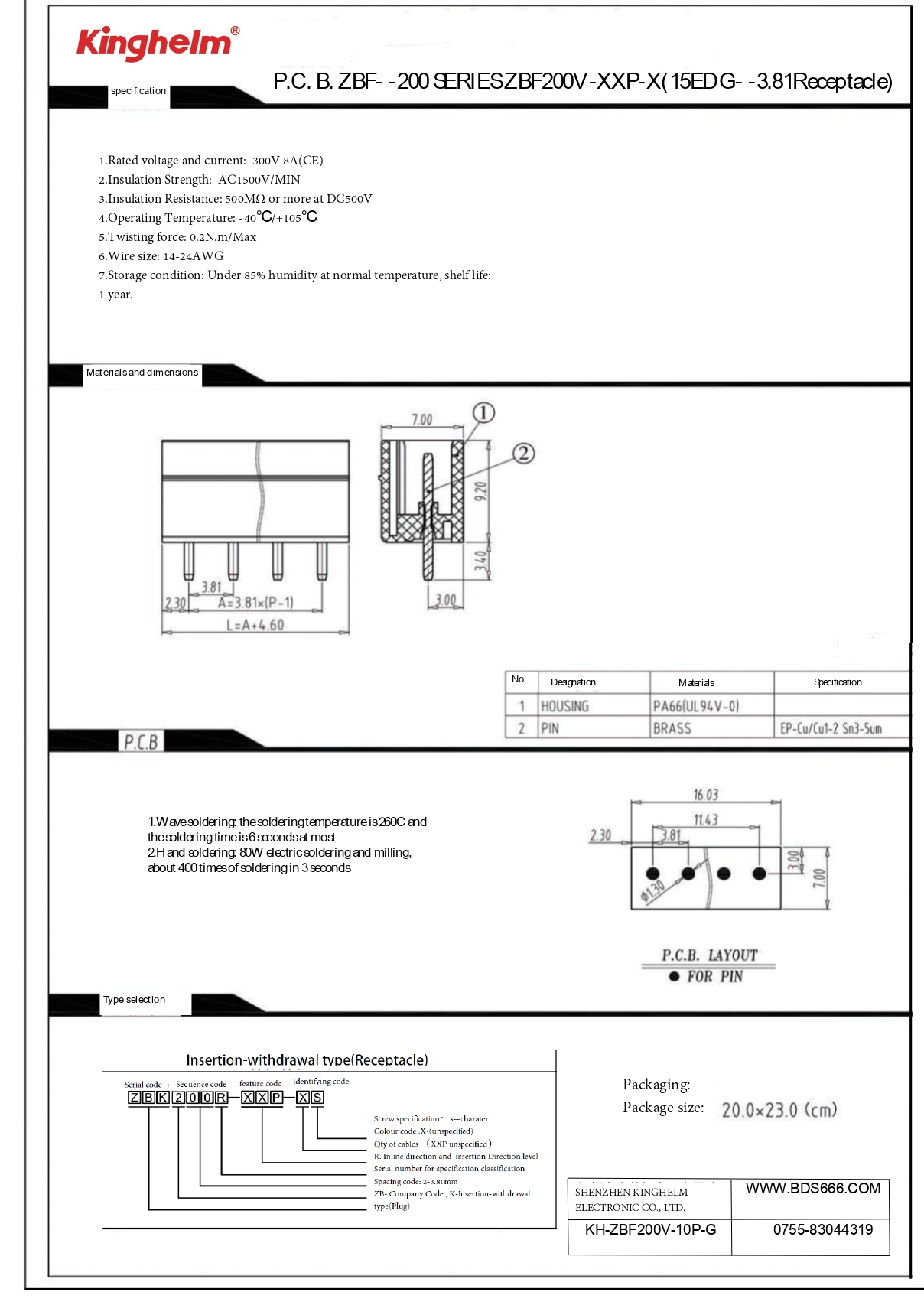

Inquiry Datasheet

Product Details

Product Features
● Connector Type Board Mount / Socket - Closed End
● Pitch 3.81 mm
● Color Green
● Mounting Type Straight Pin
● Total Pin Count 10P
● Number of Rows 1

Product Benefits
● 10-pin design for high connection density
● Reliable 8A current rating for stable performance
● Wide voltage range up to 300V for diverse applications
● High-temperature tolerance from -40℃ to +105℃
● Durable and robust construction for long-term reliability
● Easy installation with secure pluggable design

Product Applications
● Power distribution systems
● Industrial control systems
● Automation and robotics
● Electrical switchgear
● Communication infrastructure
● Automotive electronics
