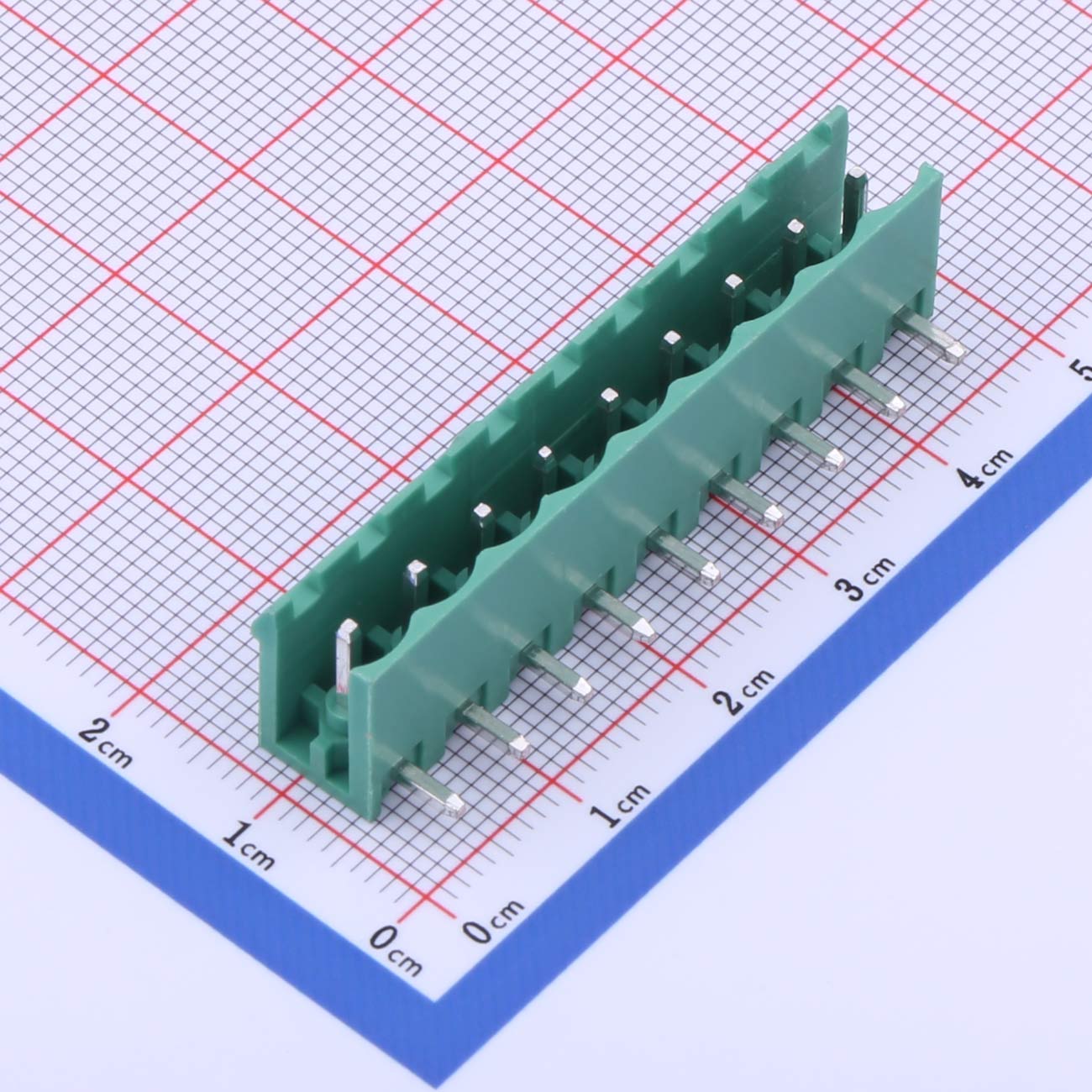

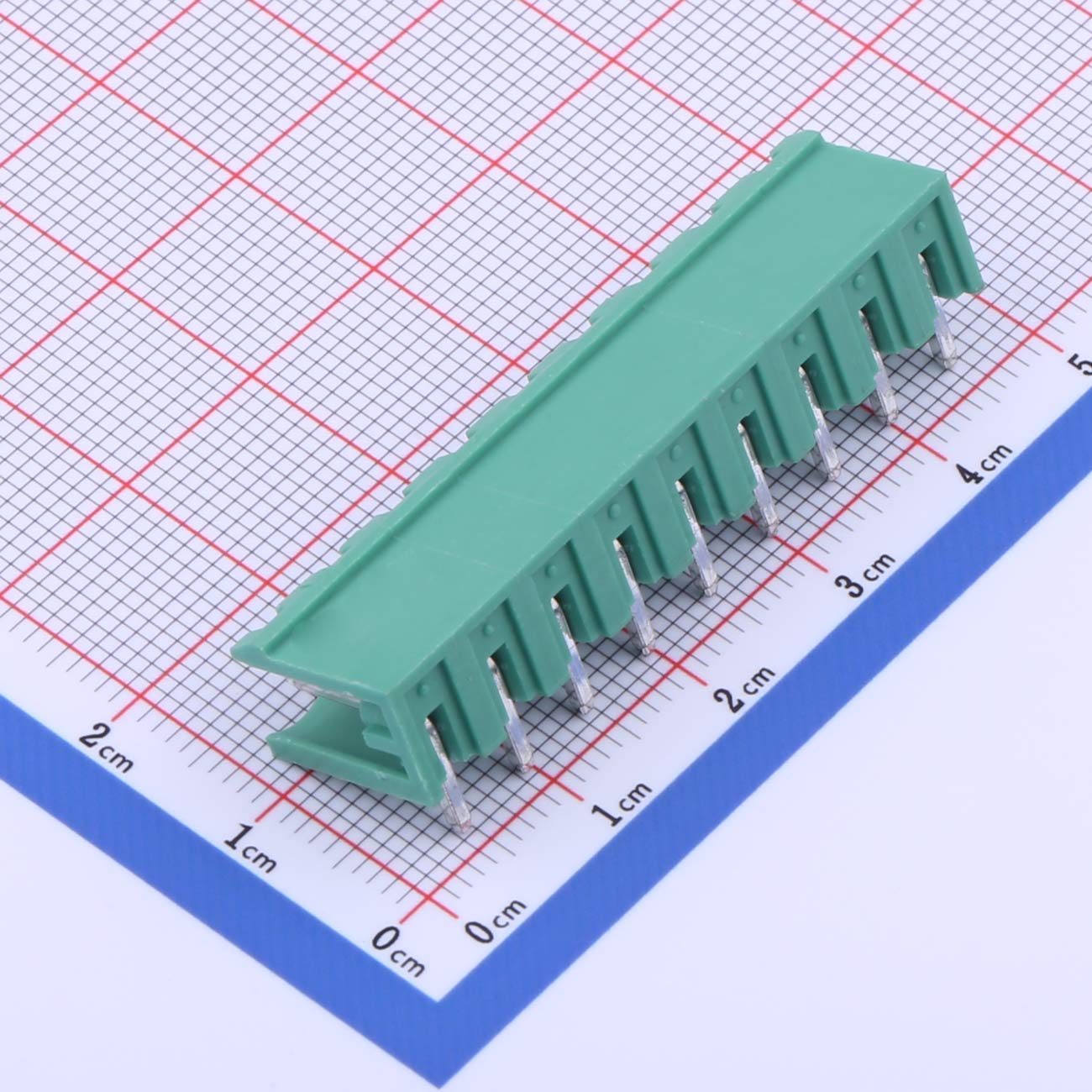

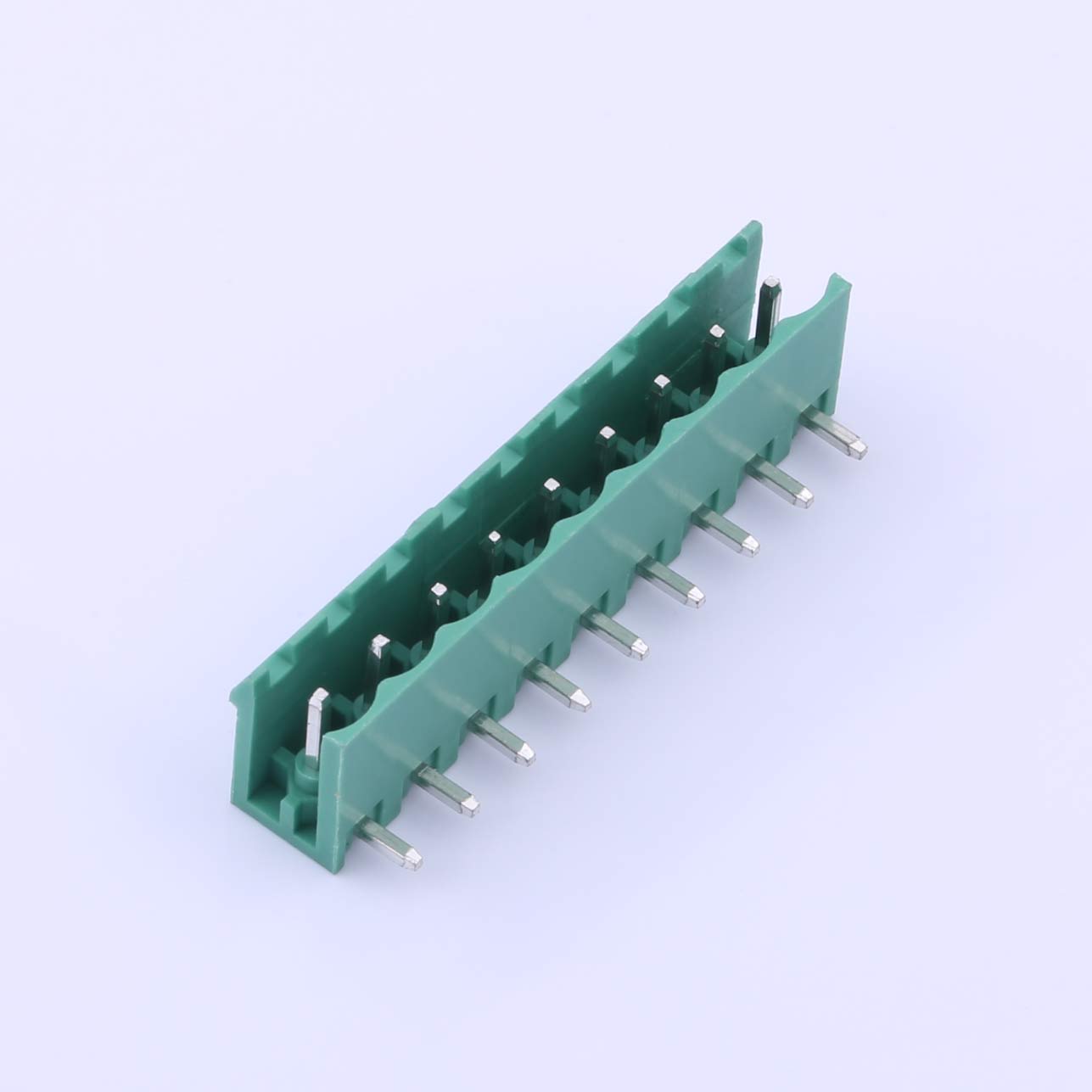

Pluggable Terminal Block, 5.08mm pitch, 9 pin, 12A 300V, KH-ZBF4000R-9P-5.08G

Pluggable Terminal Block, 5.08mm pitch, 9 pin, 12A 300V, KH-ZBF4000R-9P-5.08G

Rated Voltage & Current: 300V, 12A (CE)
Insulation Strength: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant

Inquiry Datasheet

Product Details

Product Features
● Right-angle pin mounting
● 5.08 mm pitch spacing
● 9-pin single row configuration
● Board mount socket open end
● Green thermoplastic housing
● High current capacity up to 12A
● Rated voltage up to 300V
● Operating temperature range -40℃ to +105℃

Product Benefits
● Compact and efficient board connection
● Easy installation and maintenance
● Strong and reliable electrical contact
● Heat and vibration resistant design
● Enhances wiring flexibility
● Suitable for long-term operation

Product Applications
● Industrial automation systems
● Electrical power units
● Control panels and PLCs
● HVAC and building systems
● LED lighting and signage
● Communication and security devices
