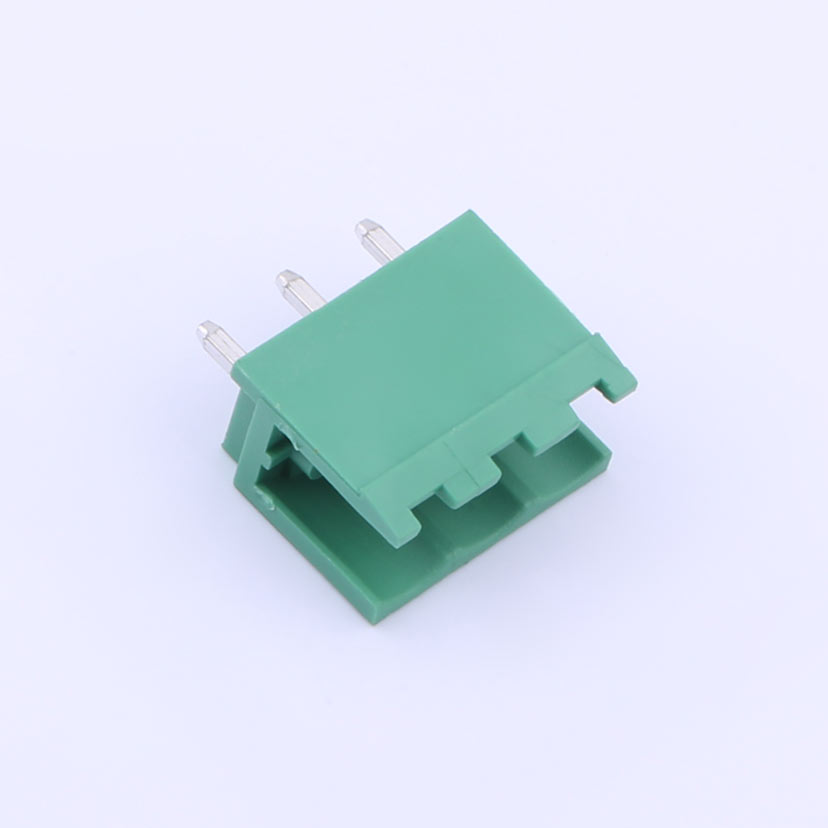

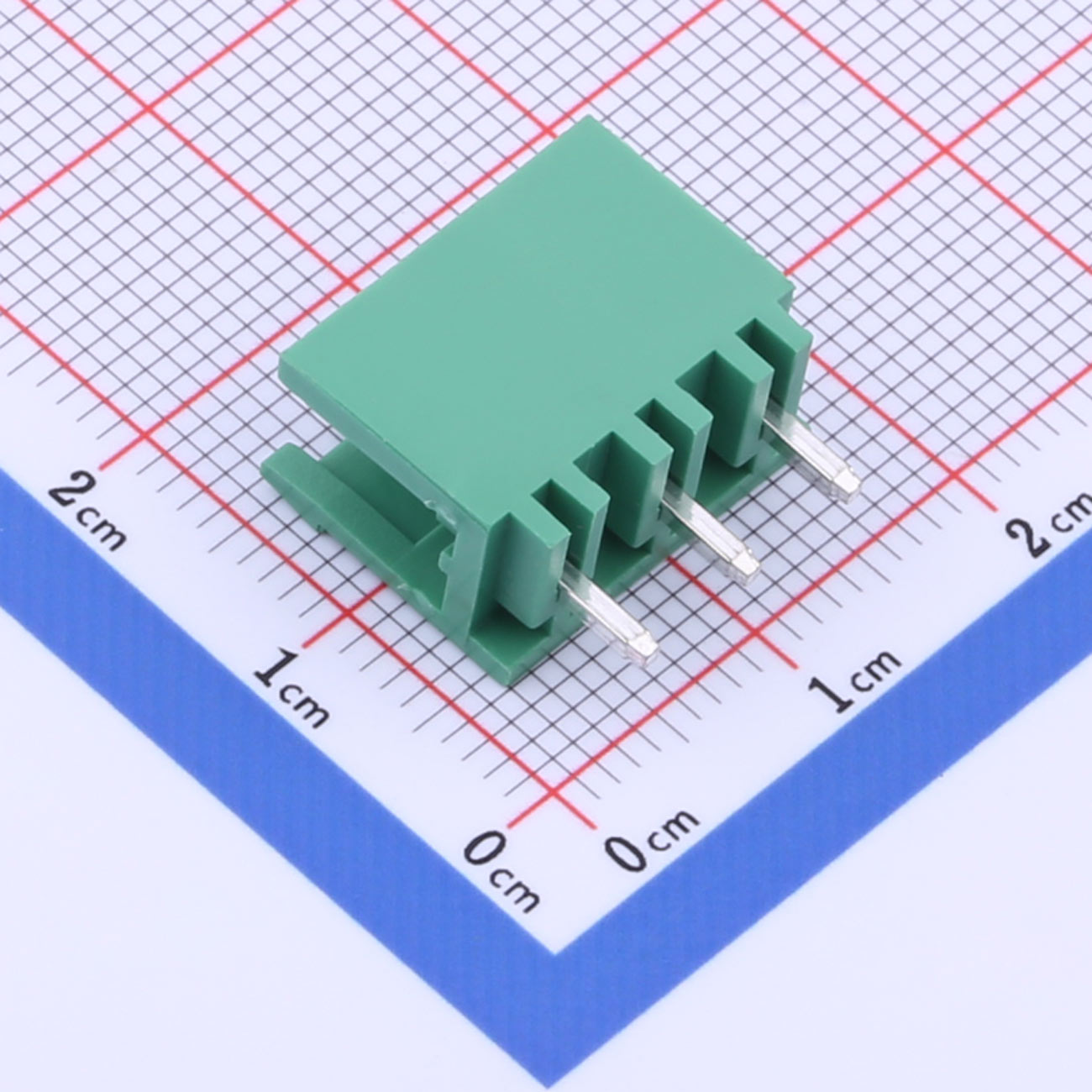

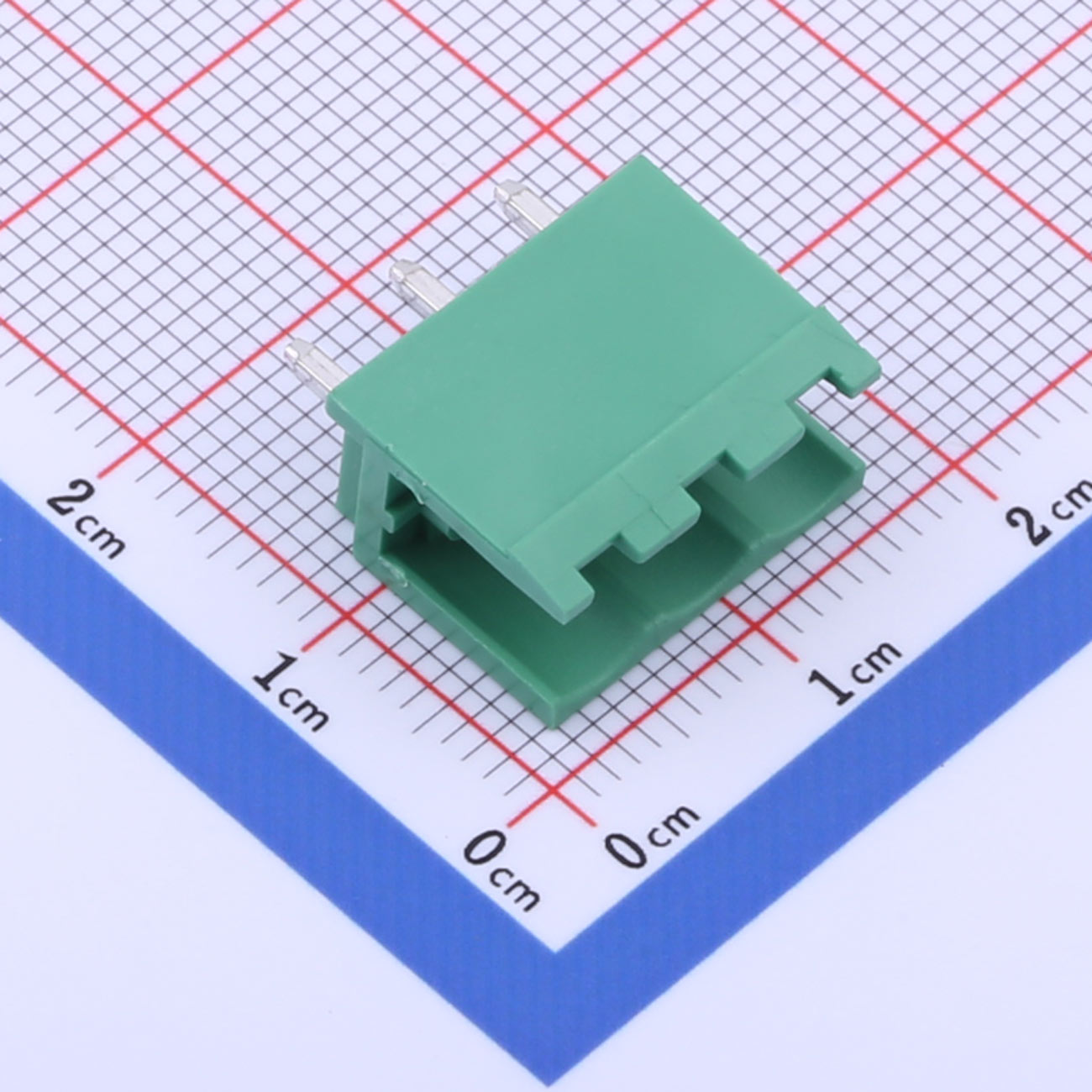

Pluggable Terminal Block, 5.08mm pitch, 3 pin, 15A 300V, KH-F400V-3P-5.08G
Rating: 300V, 15A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant
Product Features
● Pluggable terminal block
● 5.08 mm pitch
● Green color
● Straight pin mounting
● 3P pin count
Product Benefits
● Easy installation
● 15A current rating
● 300V voltage rating
● -40℃ to +105℃ temperature range
● Compact design
Product Application
● Low-power control systems
● Small power distribution panels
● Automation wiring
● Telecom equipment
● Compact HVAC systems
