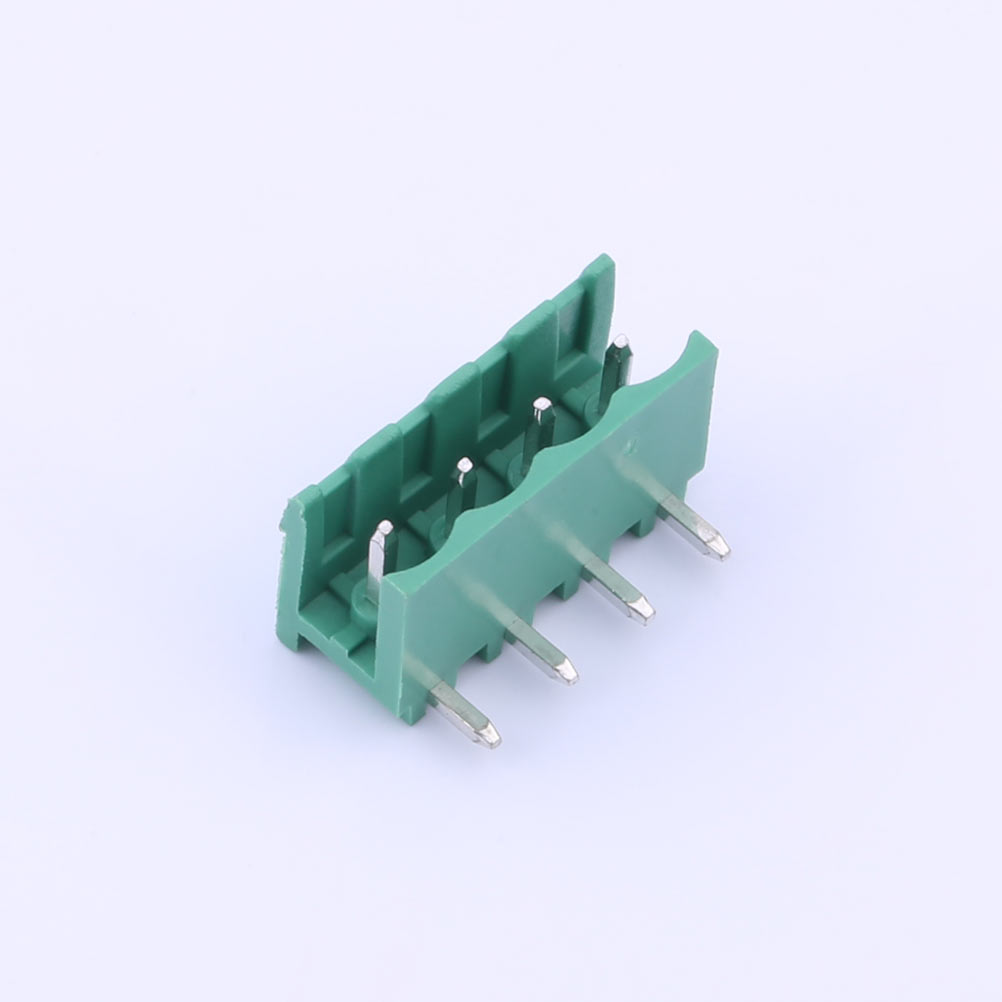

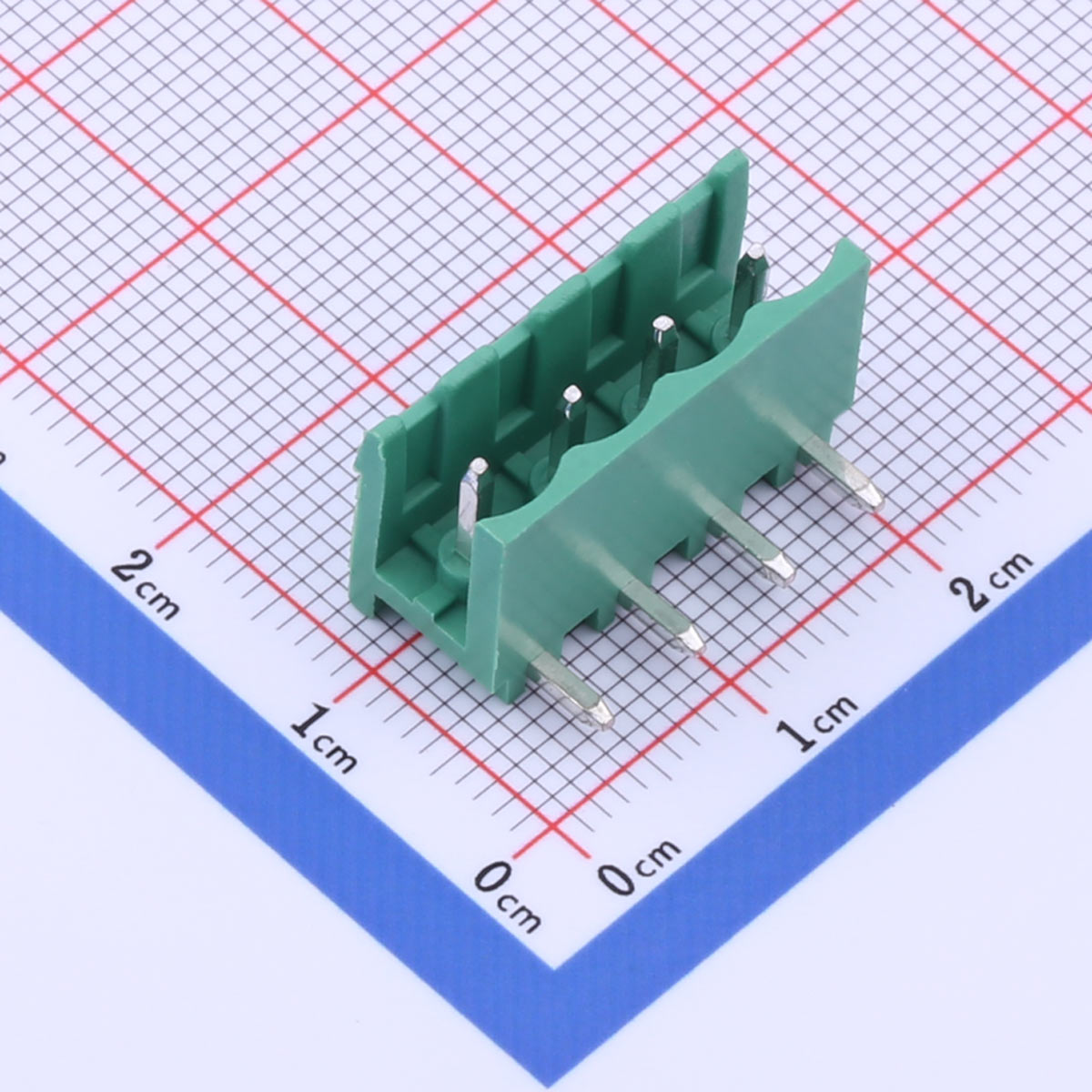

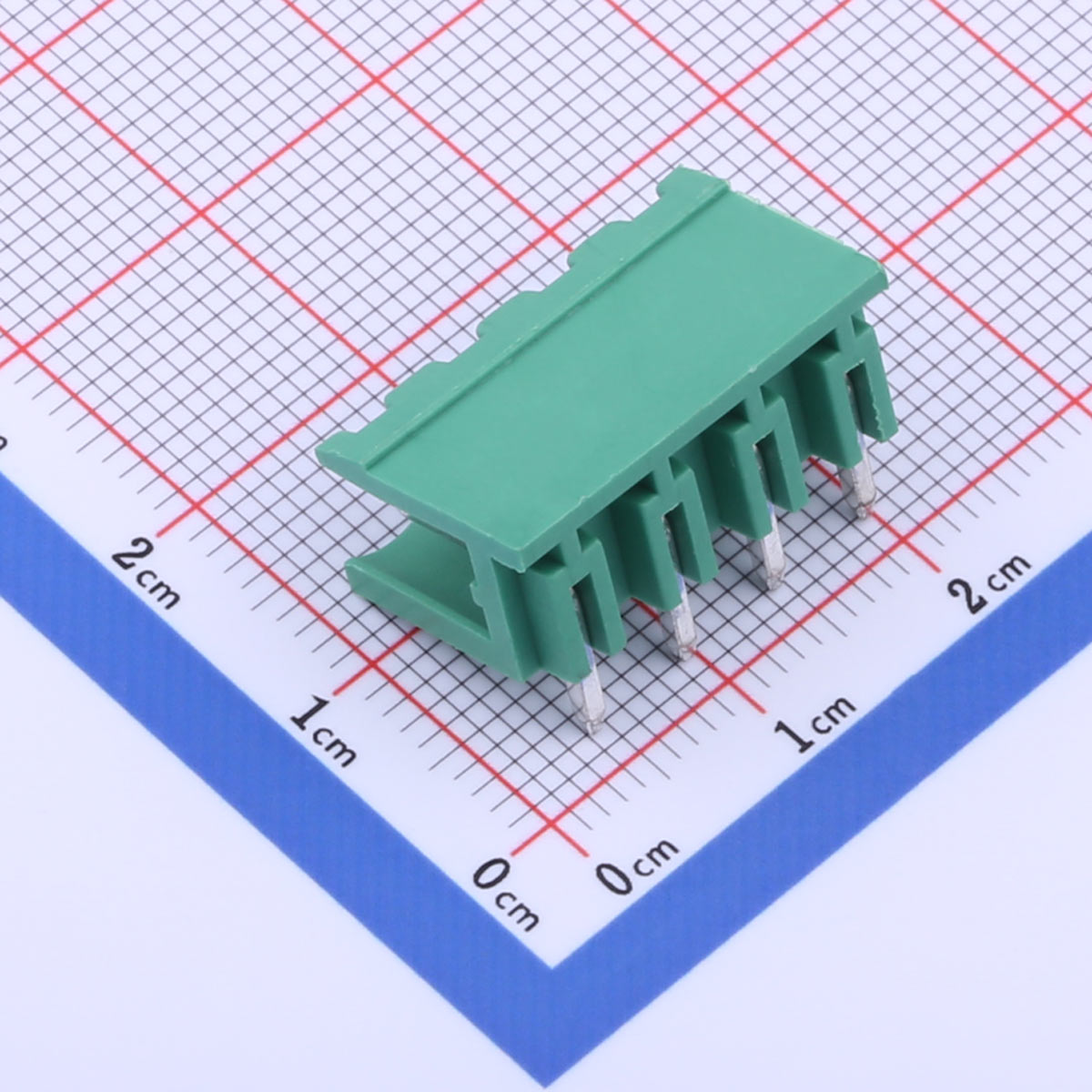

Pluggable Terminal Block, 5.08mm pitch, 4 pin, 12A 300V, KH-ZBF4000R-4P-5.08G

Pluggable Terminal Block, 5.08mm pitch, 4 pin, 12A 300V, KH-ZBF4000R-4P-5.08G

Rated Voltage & Current: 300V, 12A (CE)
Insulation Strength: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C

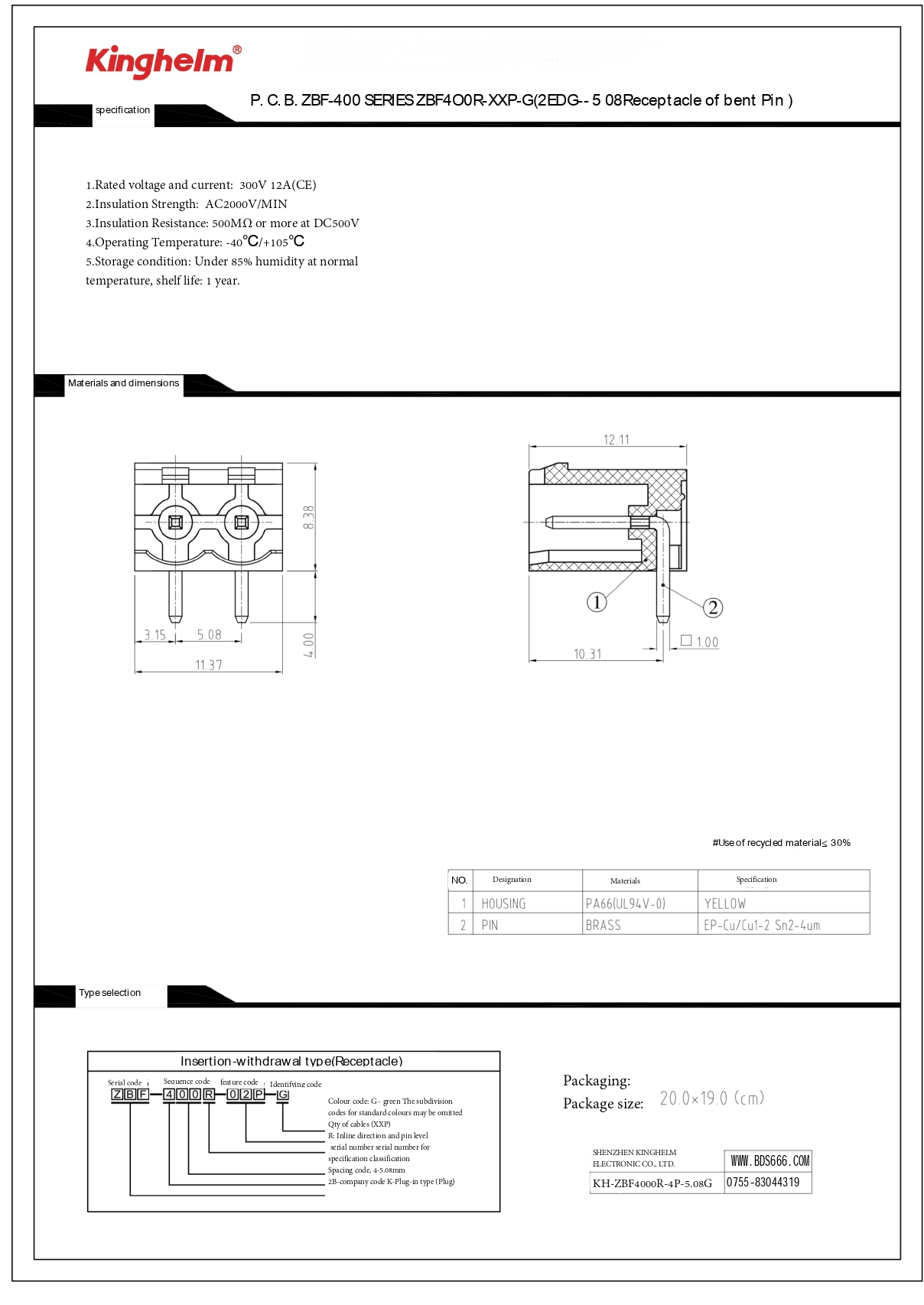

Inquiry Datasheet

Product Details

Product Features
● Right-angle pin mounting
● 5.08 mm pitch spacing
● 4-pin single row configuration
● Board mount socket open end
● Compact green thermoplastic housing
● 12A rated current per pin
● 300V rated voltage
● Operating temperature -40℃ to +105℃

Product Benefits
● Space-saving design for compact PCBs
● Ideal for low to medium current applications
● Quick and secure wire-to-board connection
● Simplifies basic circuit wiring
● Enhanced reliability in limited-space enclosures
● Easy integration into modular systems

Product Applications
● Consumer electronics power interface
● Smart home control panels
● Compact sensor modules
● Small motor controllers
● LED display units
● Portable industrial devices
