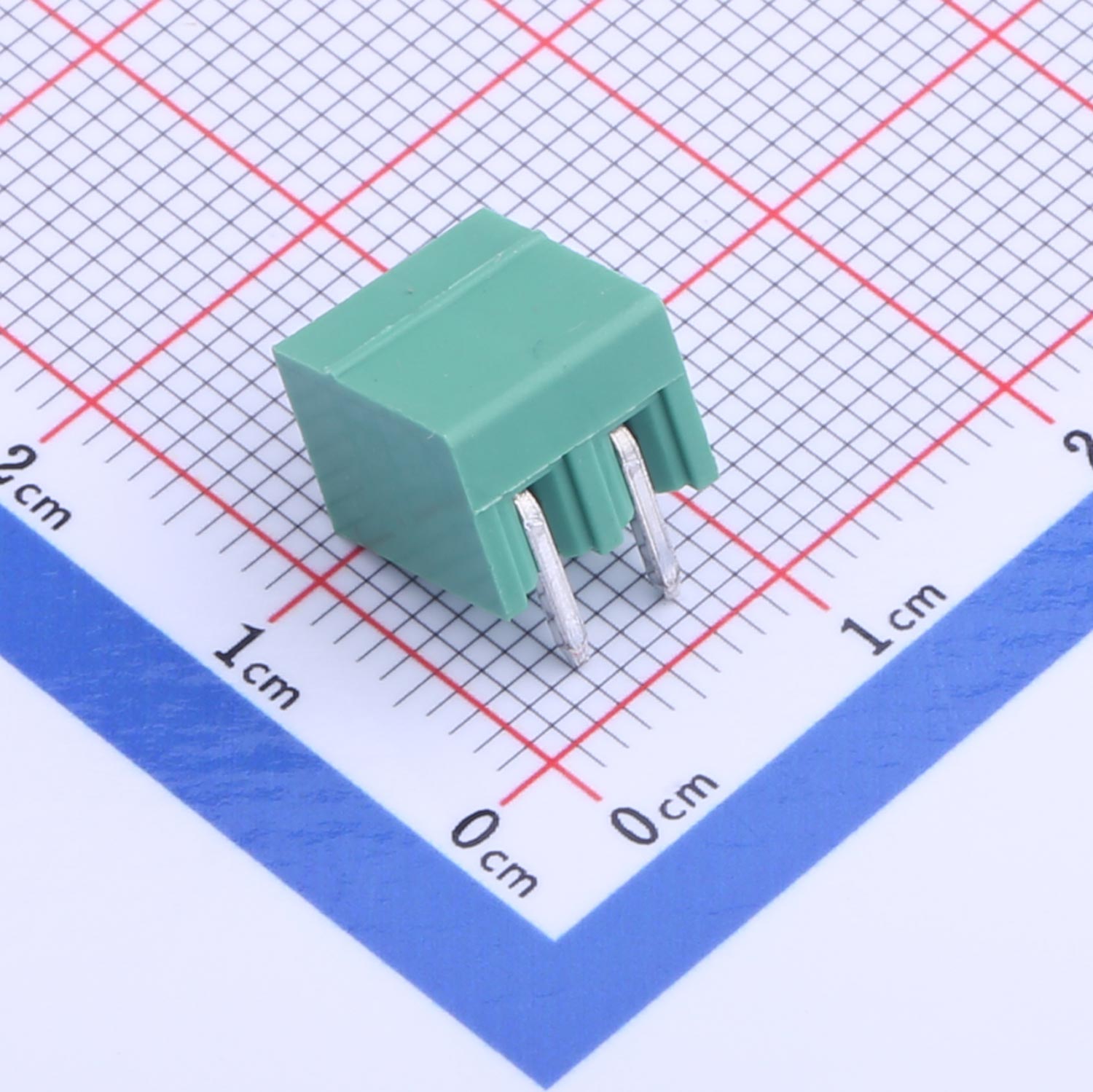

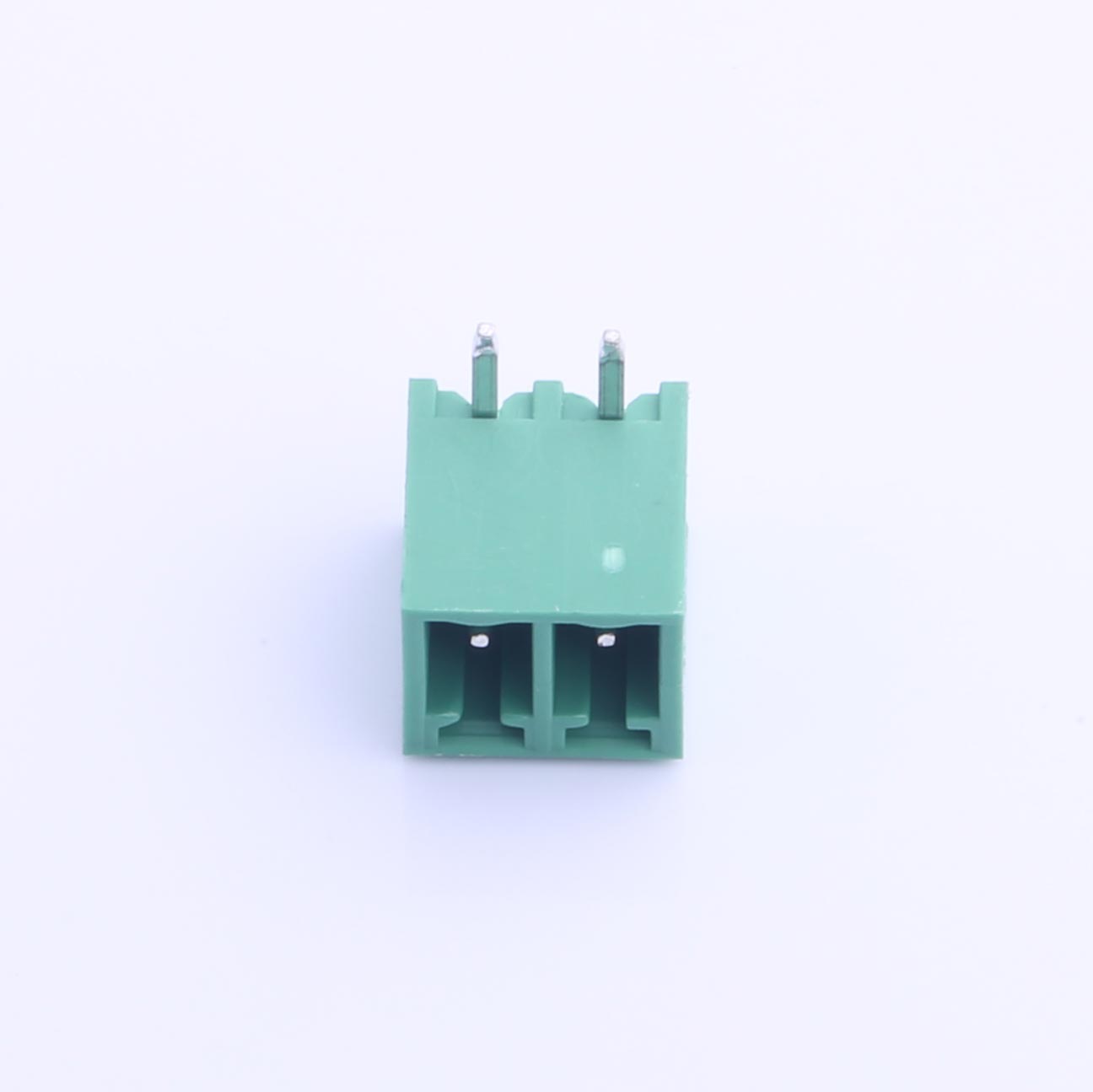

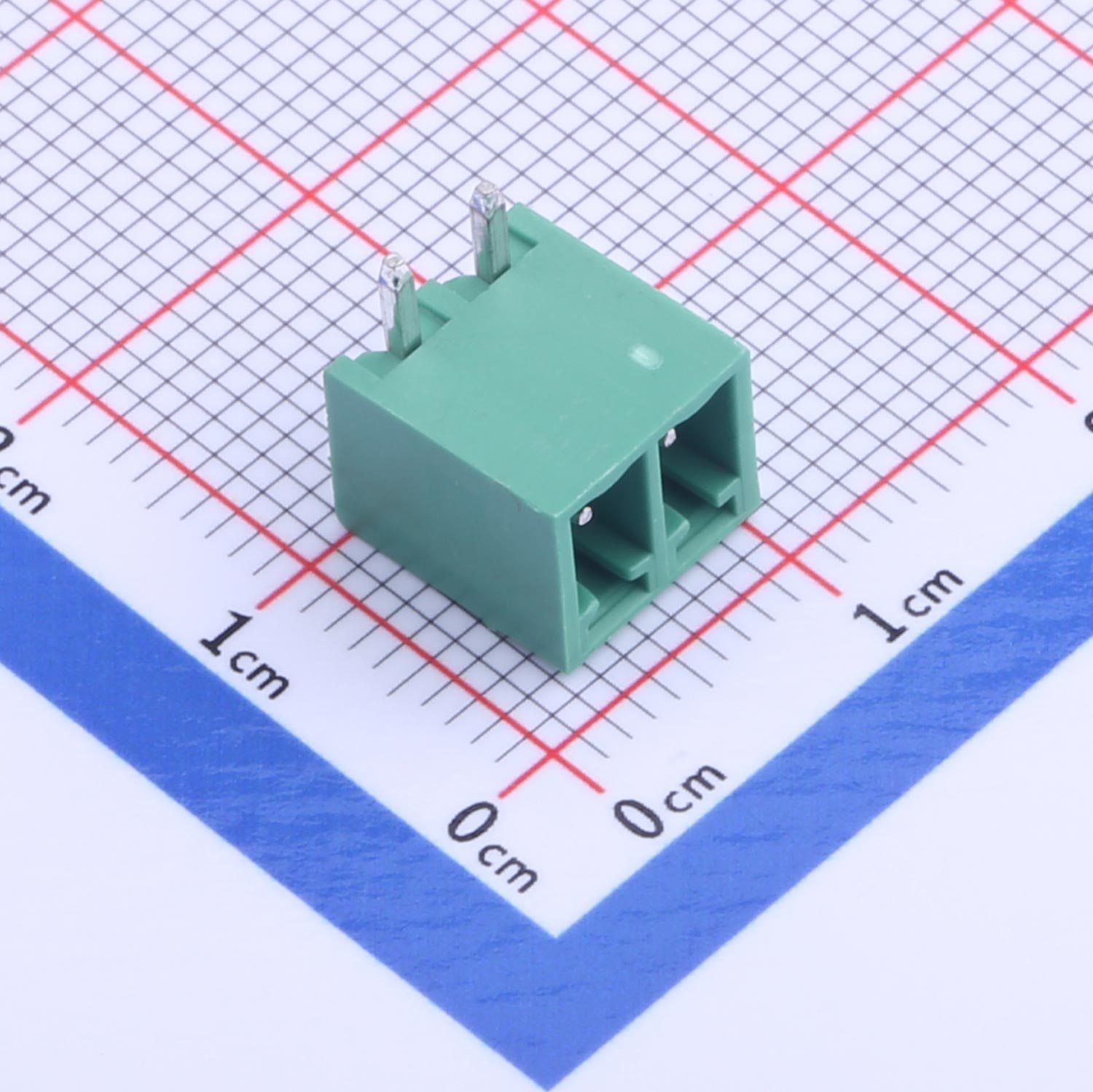

Pluggable Terminal Block, 3.81mm pitch, 2 pin, 8A 300V, KH-15EDGRC-3.81-2PG

Pluggable Terminal Block, 3.81mm pitch, 2 pin, 8A 300V, KH-15EDGRC-3.81-2PG

Rated Voltage & Current: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant

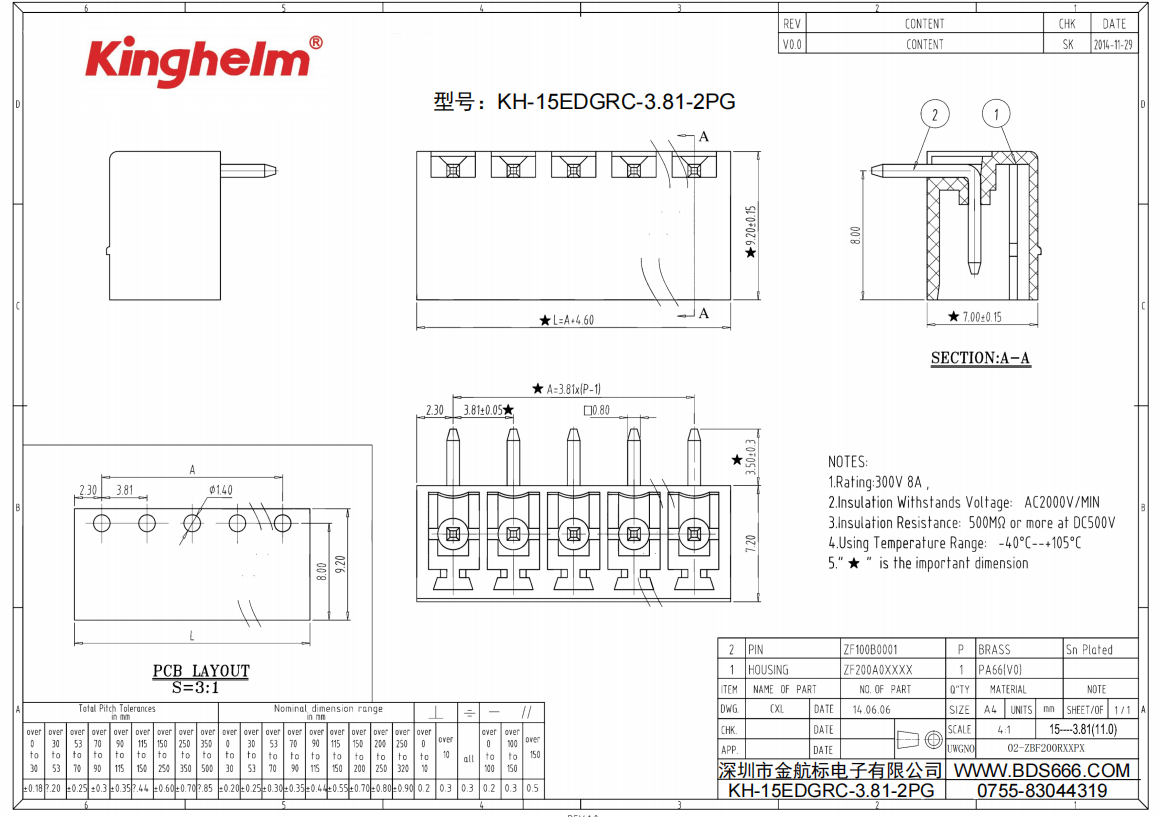

Inquiry Datasheet

Product Details

Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 2 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃

Product Benefits
● Ultra-compact design for minimal space requirements
● Secure and stable electrical connection
● Easy installation and removal for maintenance
● Reliable in a wide operating temperature range
● Clear identification with green housing

Product Application
● Small control modules
● Low-power signal connections
● Compact automation systems
● Test equipment
● Consumer electronics
