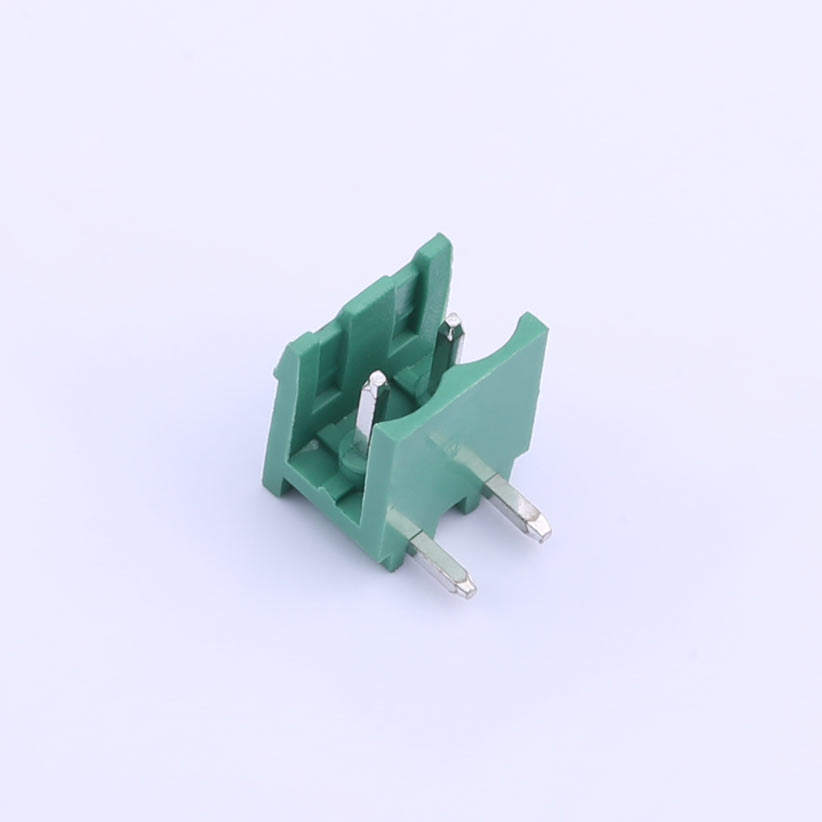

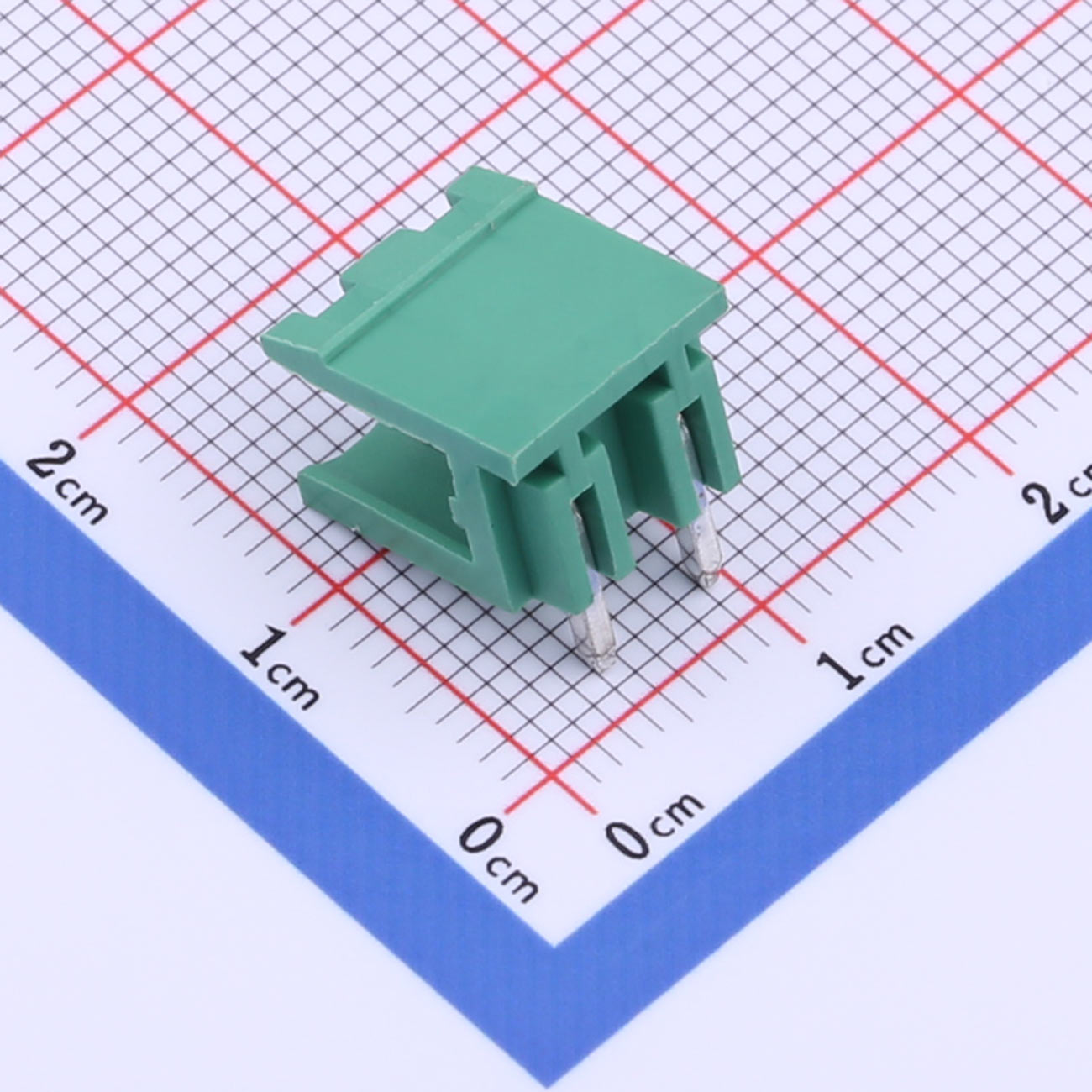

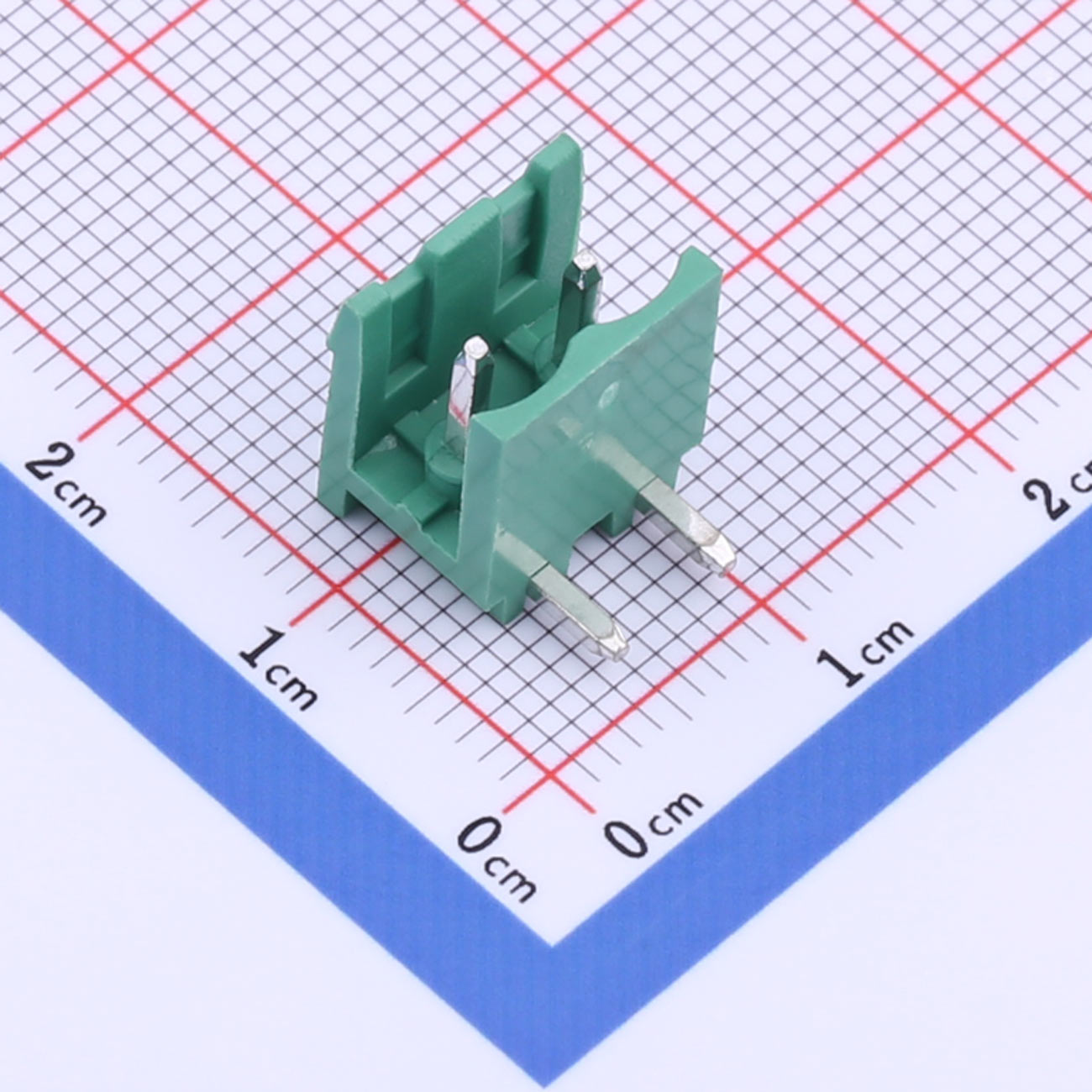

Pluggable Terminal Block, 5.08mm pitch, 2 pin, 12A 300V, KH-ZBF4000R-2P-5.08G

Pluggable Terminal Block, 5.08mm pitch, 2 pin, 12A 300V, KH-ZBF4000R-2P-5.08G

Rated Voltage & Current: 300V, 12A (CE)
Insulation Strength: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C

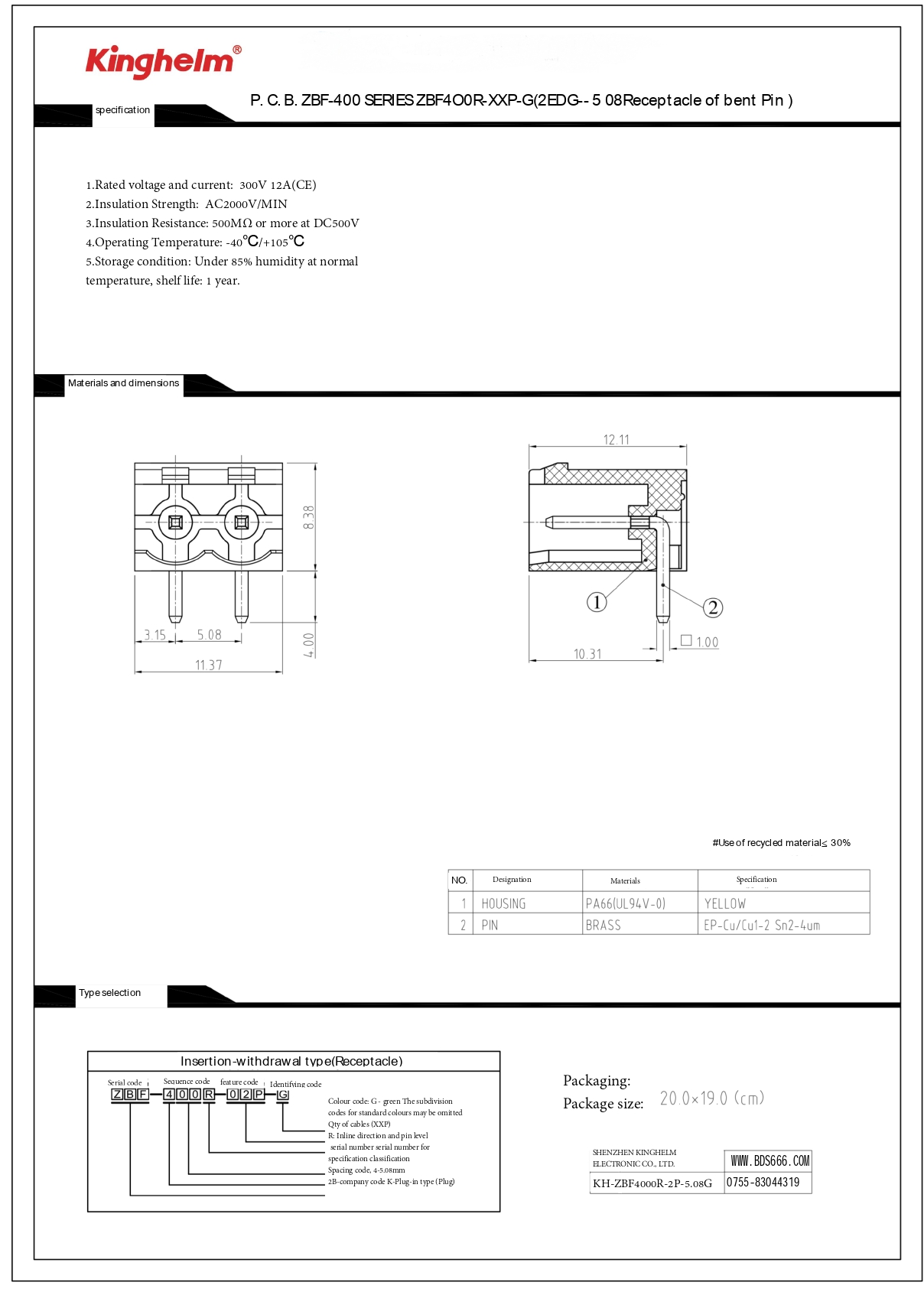

Inquiry Datasheet

Product Details

Product Features
● Right-angle pin mounting
● 5.08 mm pitch spacing
● 2-pin single row configuration
● Board mount socket open end
● Compact green thermoplastic housing
● Rated current 12A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃

Product Benefits
● Ideal for simple power or signal links
● Saves PCB space in minimal setups
● Quick installation and secure fit
● Cost-effective solution for basic circuits
● High reliability for essential connections
● Supports modular design flexibility

Product Applications
● Power input terminals
● LED drivers and control boards
● Small appliances and tools
● Home automation sensors
● DIY electronics and prototyping
● Entry-level control units
