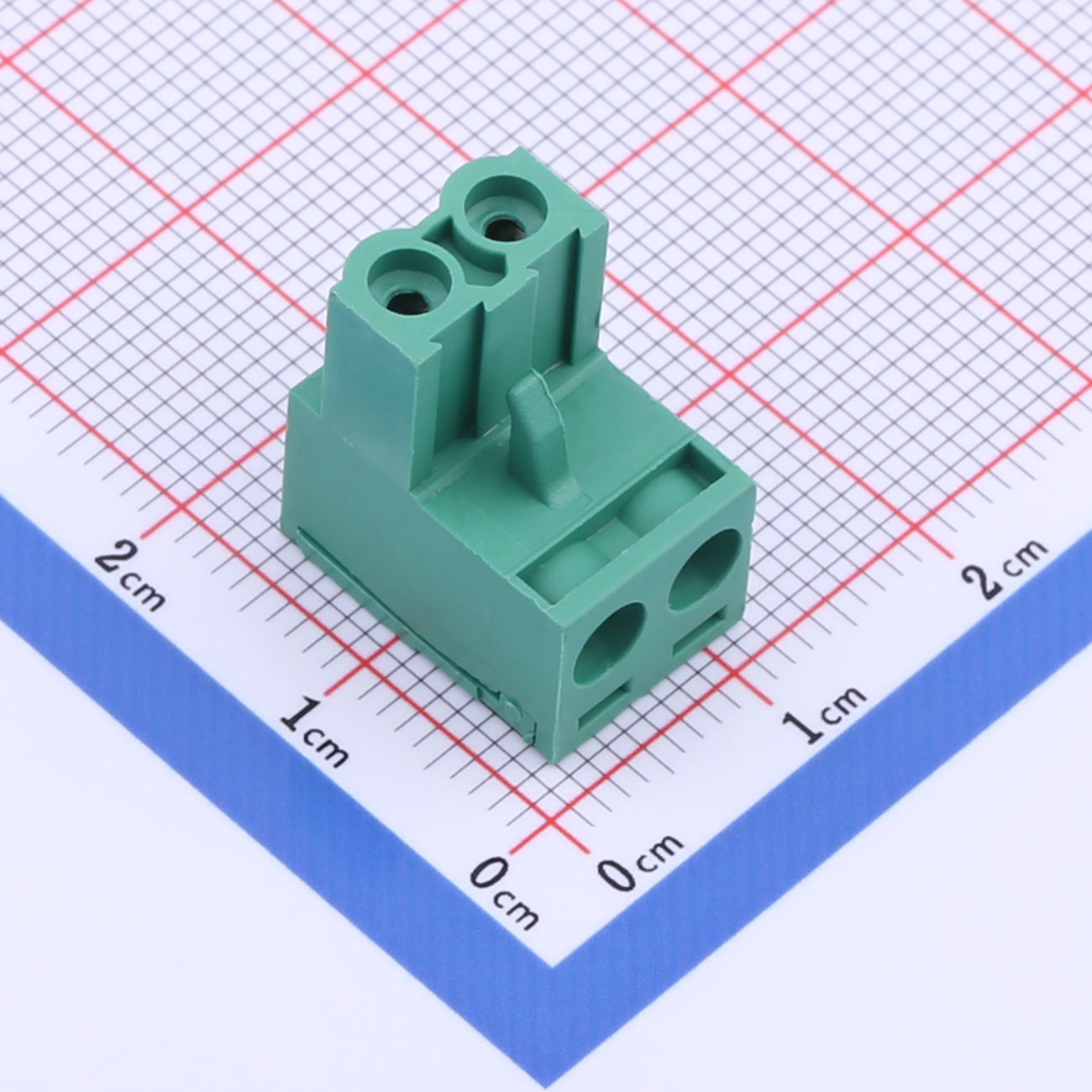

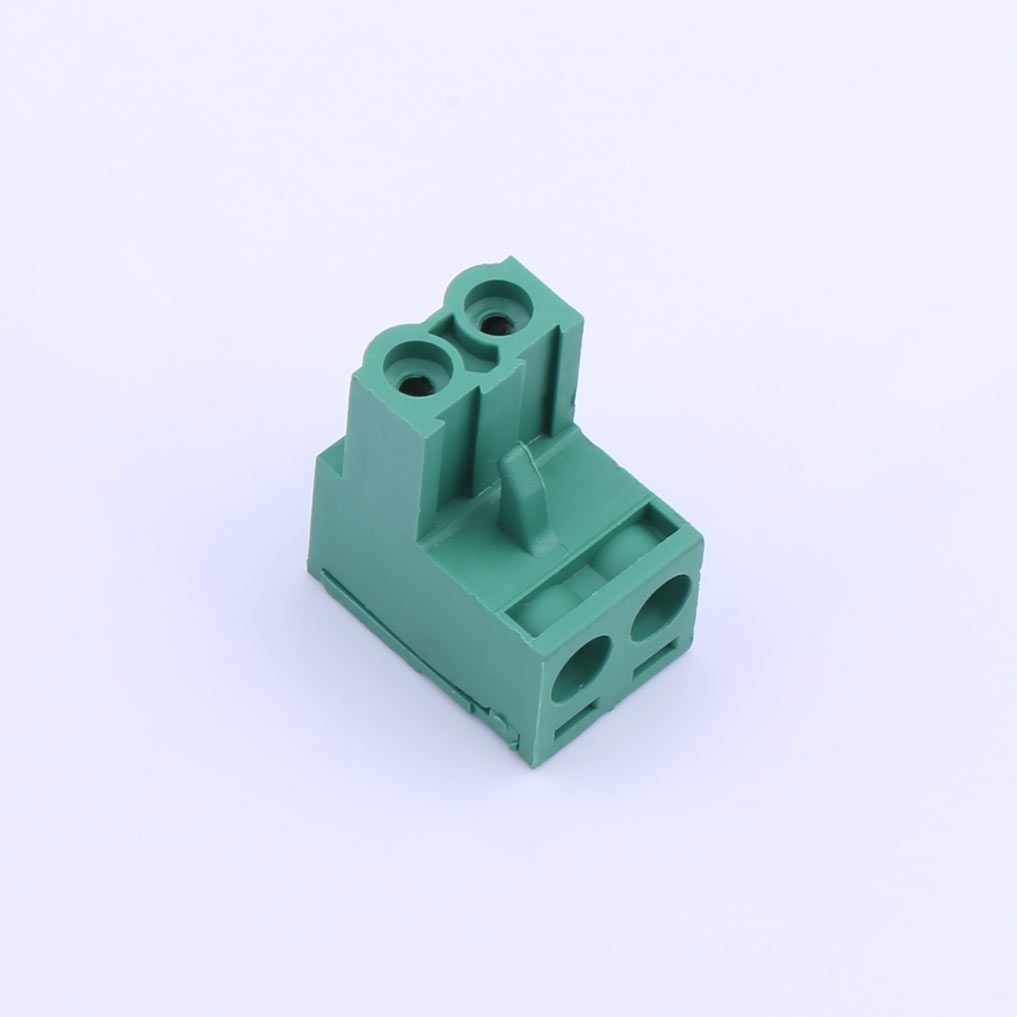

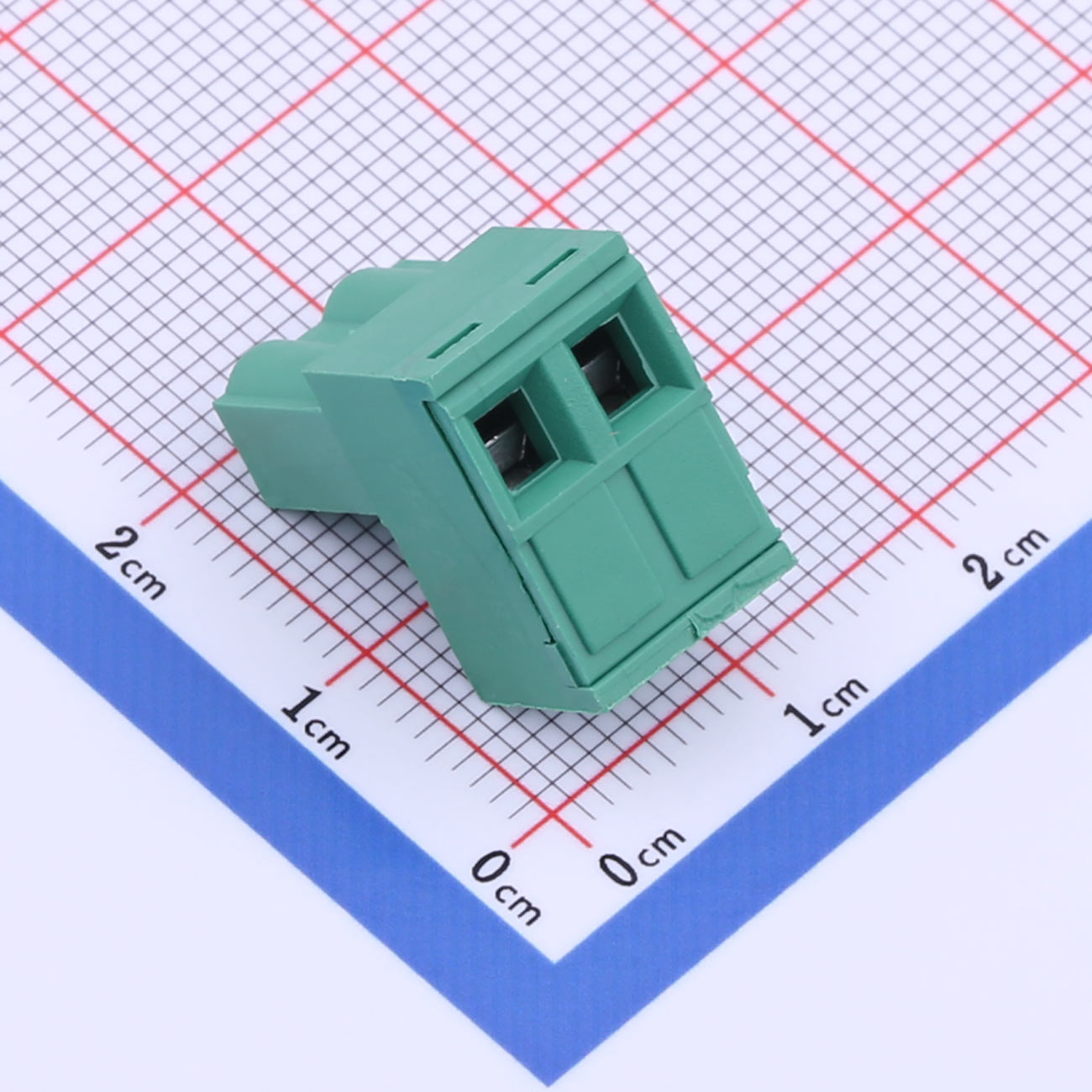

Pluggable Terminal Block, 5.08mm pitch, 2 pin, 15A 300V, KH-ZBK400R-2P-5.08GS

Pluggable Terminal Block, 5.08mm pitch, 2 pin, 15A 300V, KH-ZBK400R-2P-5.08GS

Rated Voltage & Current: 300V, 15A (CE)
Insulation Strength: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Screw Torque Vlaue: 0.4N.m

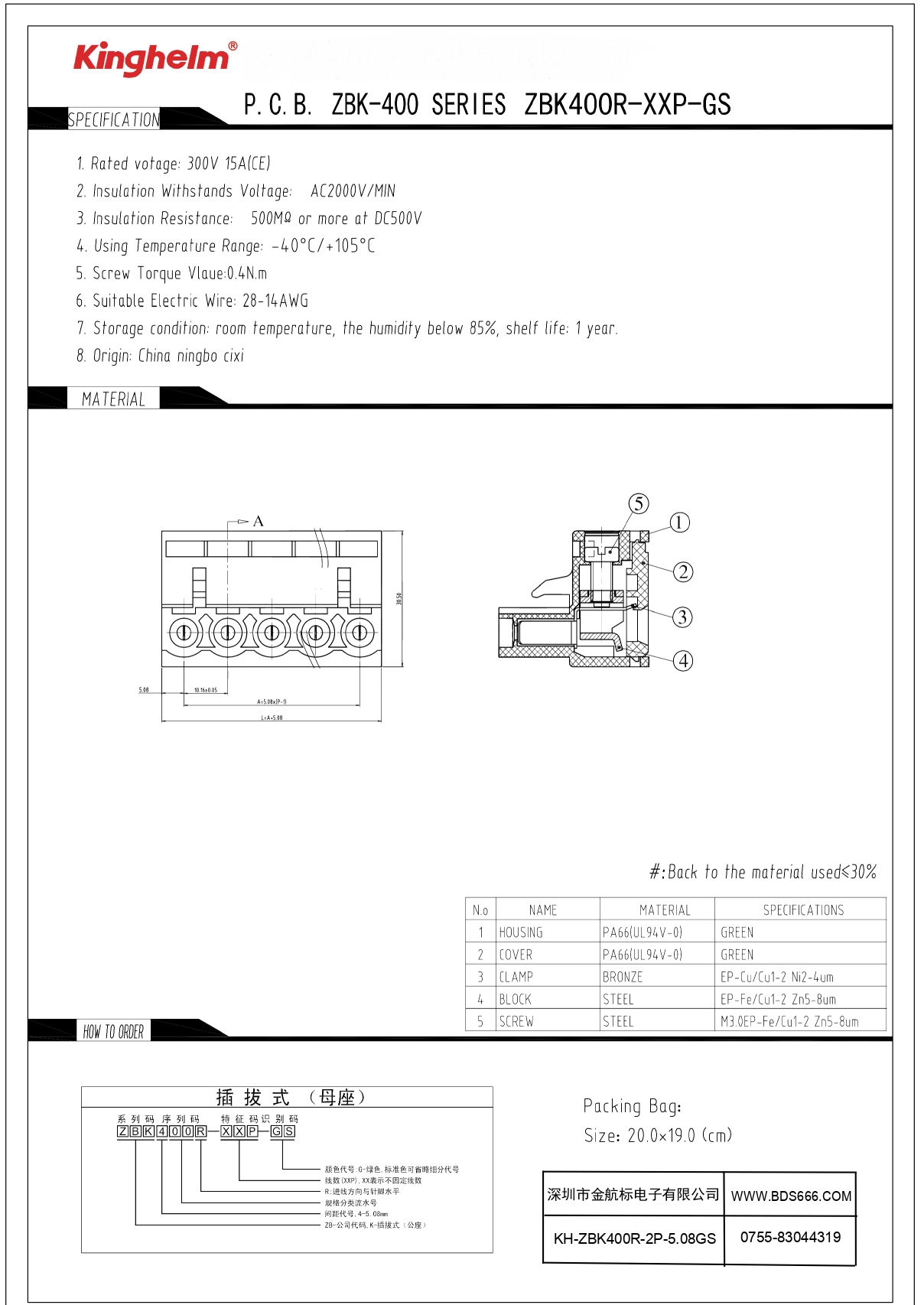

Inquiry Datasheet

Product Details

Product Features
● 2-pin single-row terminal block
● 5.08mm pitch for reliable connections
● Rated for 15A and 300V
● Compatible with 14–28 AWG wires
● Temperature range from -40°C to +105°C
● Flame-retardant and durable plastic housing

Product Benefits
● Compact and space-saving design
● Ideal for low-power applications
● Easy to install and replace
● Robust and long-lasting connection

Product Application
● Small control circuits
● Power supply connections
● Sensor interfaces
● Low-power industrial systems
