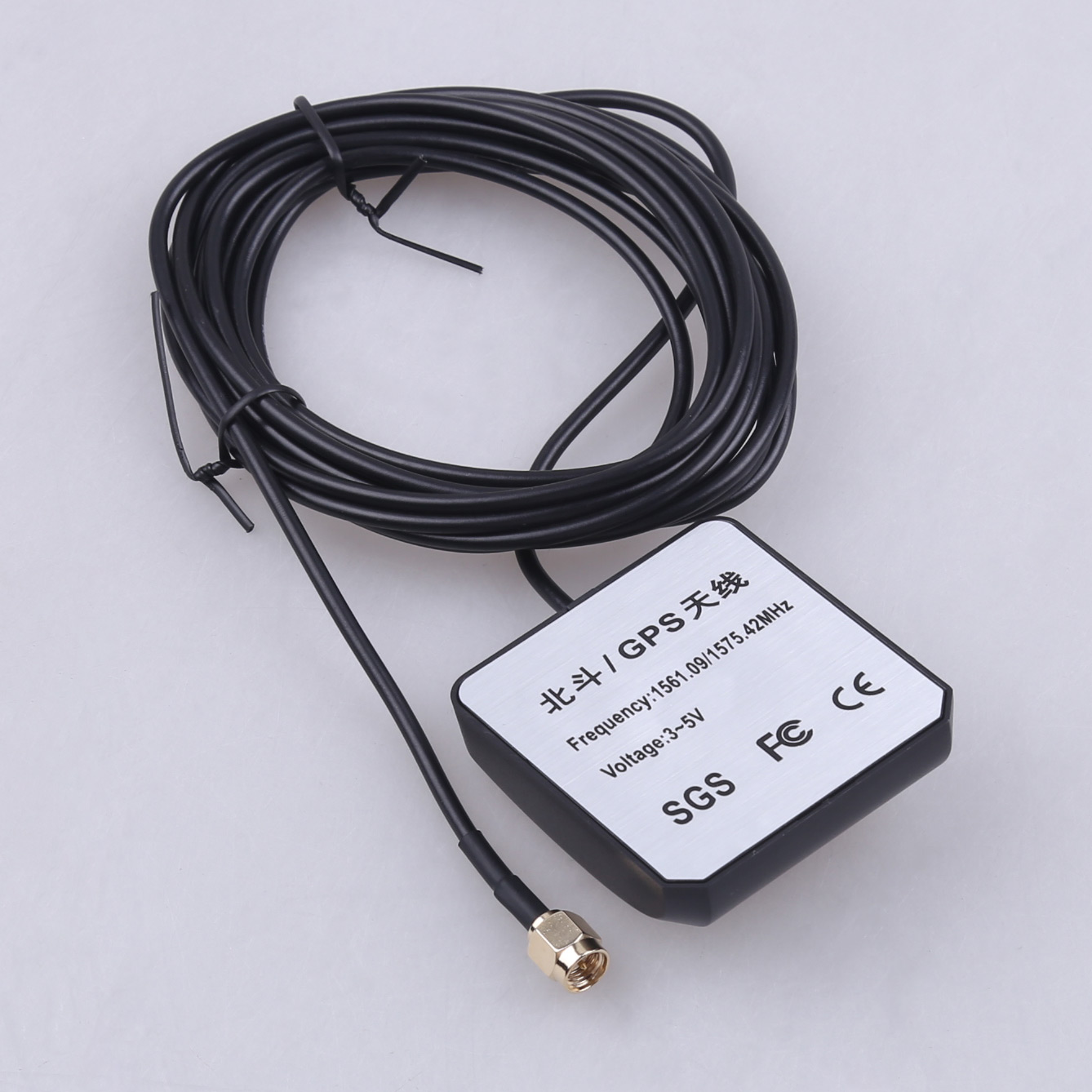

Positioning Antenna, GPS1575.42 MHz, BD1561.098+2.046 MHz, KH-GPSBD5056SMA-3M

Frequency Range: GPS1575.42 MHz, BD1561.098+2.046 MHz
V.S.W.R: <1.8
Gain: Dielectric 4DB; LNA 25DB
Impedance: 50 Ohm
Cable: RG174-3000MM
Connector: SMA-J
Dimension: 50MM*56MM*18MM

Product Details

Product Features

●High-quality GNSS antenna

●External antenna design

●Excellent performance in challenging environments

●Customizable antenna frequency

●Easy to install and use

Application Areas

●GPS navigation systems

●Vehicle tracking systems

●Marine navigation systems

●Surveying and mapping applications

●Precision agriculture
