Common antenna connectors

Release date:2021-12-29Author source:KinghelmViews:177

 The basic structure of coaxial connector includes: central conductor (male or female central contact); Dielectric materials, or insulators, inside and outside the body; The outermost part is the outer contact, which plays the same role as the outer shielding layer of the shaft cable, that is, transmitting signals, acting as a shielding or grounding element of the circuit. Coaxial connectors are mainly divided into SMA, SMB, BNC, TNC, SMC, n-type, BMA, etc.

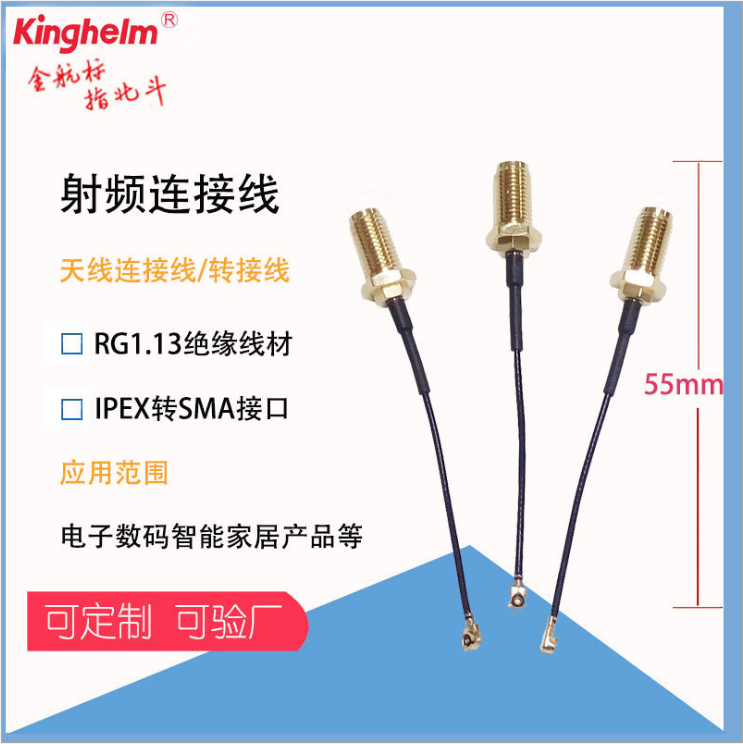

     Kinghelm products      Antenna RF connection line




1、 Common sense of RF coaxial connector

       Male: male connector, thread inside, needle inside, sometimes called "J" port. E.g. TNC (m)

       Female: female joint. The thread is outside and there is a hole inside. Sometimes it is also called "K" port. Such as SMA (f)

       RP: reverse polarity means that the head is opposite to the needle inside.

       Bulkhead: it refers to the joint with lockable screws on the board, including Huawei, screw cover and retaining wall (such as SMA female bulkhead), which is generally used for board cards

       PCB: it is a joint with feet that can be welded on the board. (e.g. SMA femal PCN).

       Panel: it is a connector with screw holes that can be locked on the board with screws. (such as SMA panel mount) usually has 4 holes and 2 holes.



2、 Describe the common elements of RF connectors

       1. Joint type: SMA, SMB, BNC, TNC, SMC, type N, BMA, etc
       2. Characteristic impedance: 50 ohm standard 50 or 50 non standard, 75 ohm standard 75
       3. Contact key mode: male and female
       4. Shell form: straight type: not standard; Bent: W
       5. Installation form: flange: F nut: y welding: H
       6. Wiring type: applicable cable model, requirements for inner diameter and outer diameter, etc
       7. Attenuation: attenuation of signal strength caused by RF signals corresponding to different frequency bands
       8. Thread type: external thread, internal thread
       Note: generally, the joints on the equipment side are female external threads, and most of the joints on the cable side are male internal threads.

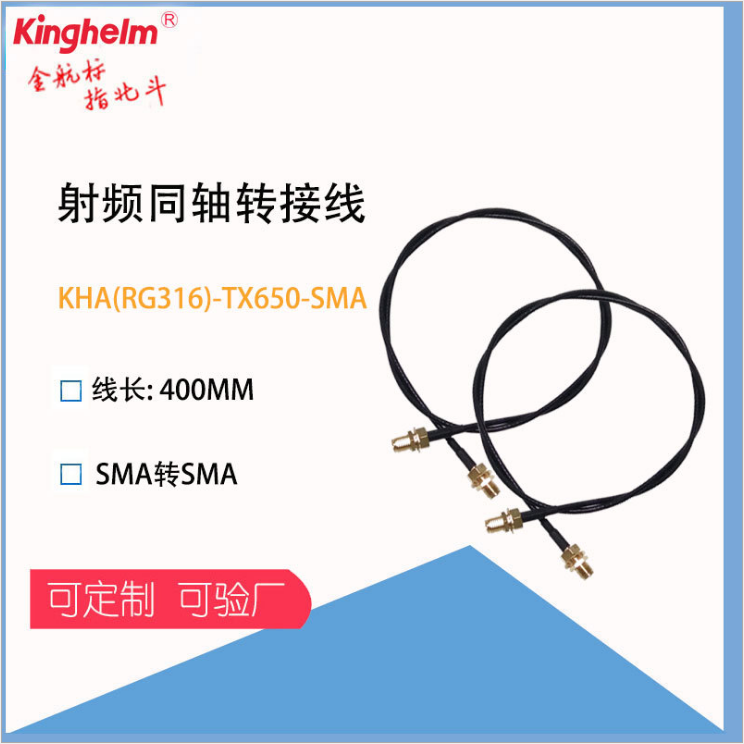

     Jinhangbiao kinghelm product RF coaxial adapter



3、 Common transmission cable connectors

       Considering the effect of feeder, of course, the thicker the better. However, the coarser it is, the more expensive it must be, and the price of connectors is not cheap, so it is difficult to handle it  To make it more troublesome. Therefore, select the feeder, "appropriate" is OK.

       3.1、SMA
       SMA series connector is a widely used small threaded coaxial connector with long service life, superior performance and high reliability. It is widely used in RF loop, RF coaxial cable or microstrip of microwave equipment and digital communication equipment.
 In wireless equipment, it is commonly used for GPS clock interface on single board and test port of base station RF module. At this stage, the most common interface of handheld walkie talkie has been very common.

       3.2、SMB
       SMB coaxial connector is a small push locking RF coaxial connector, which has the characteristics of small volume, light weight, convenient use and excellent electrical performance. It is suitable for connecting coaxial cables in the high-frequency circuit of radio equipment and electronic instruments. On wireless devices, it is often used to connect E1 transmission cable at the base station side to DDF small transmission box at the base station.

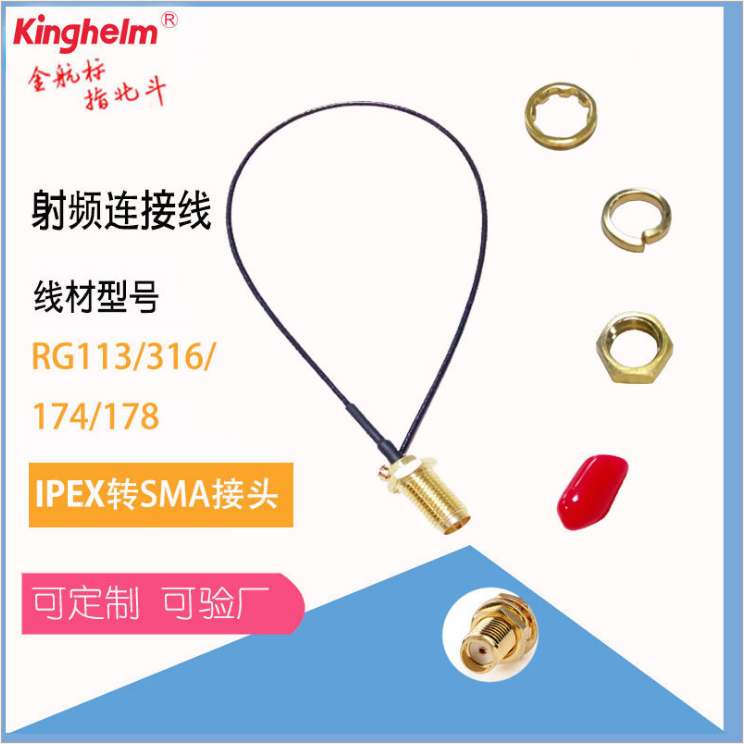

     Antenna adapter of kinghelm products

       3.3、BNC
       Bnc coaxial connector is a bayonet RF coaxial connector, which has the characteristics of rapid connection and reliable contact. It is widely used to connect RF coaxial cables in the field of radio equipment and electronic instruments. Nowadays, it is used for monitoring, radio, detector and other equipment that often needs to be replaced at any time.

       3.4、TNC
       TNC coaxial connector is a threaded RF coaxial connector, which has the characteristics of wide working frequency band, reliable connection and good seismic performance. It is used to connect RF coaxial cables in radio equipment and instruments, especially in mobile communication equipment under vibration conditions.

       3.5 type n
       N-series coaxial connector is a medium and high-power connector with threaded connector structure. It has the characteristics of strong seismic resistance, high reliability and excellent mechanical and electrical performance. It is widely used to connect RF coaxial cables in radio equipment and instruments under vibration and harsh environmental conditions.

       It is commonly used in GPS antenna feeder, RF connection of RF module, lightning arrester, power divider, combiner and other connectors.

       3.6、DIN
       Din type (also known as 7 / 16 or L29) series coaxial connector is a larger threaded connector, which has the characteristics of firmness and stability, low loss, high working voltage, and most of it has waterproof structure. It can be used outdoors as a connector for medium and high energy transmission, and is widely used in microwave transmission and mobile communication systems.

       It is commonly used in base station antenna feeder connector, antenna connector, etc.

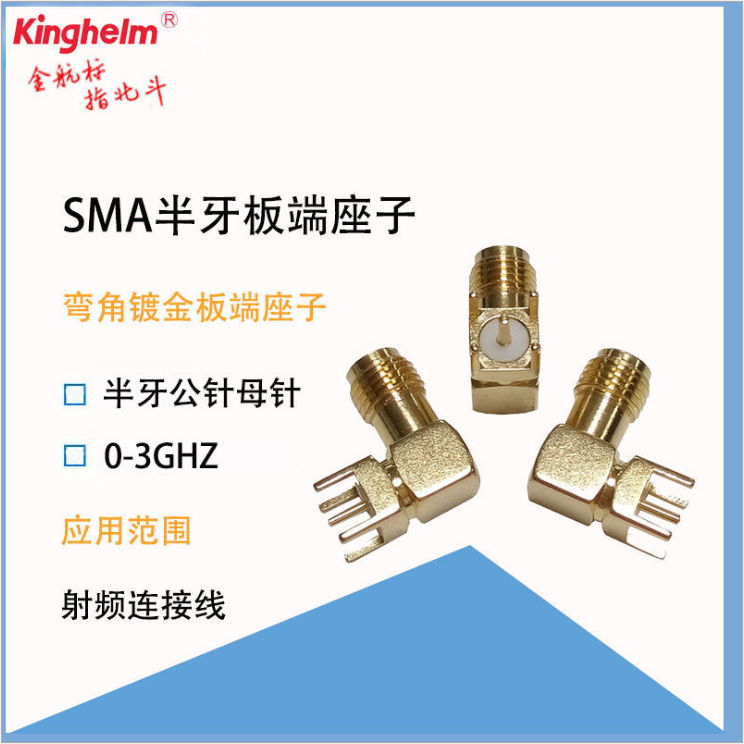

     Kinghelm product SMA      Half die end seat



4、 Some basic knowledge of antenna

       It is said that the transmission line has 50 or 75 Ω, so why?

       Hugo: for coaxial lines, we are mainly concerned about power transmission and energy attenuation in the transmission process. In order to maximize the power transmitted by the coaxial line, there should be a ratio between the inner and outer conductors of the coaxial line. For the coaxial line with air as the medium, when the outer radius / inner radius = the square of constant e, the transmitted power is the maximum, and the characteristic impedance is 30 Ω. When the outer radius / inner radius = 3.59, the attenuation is the minimum, and the characteristic impedance is 77 Ω. In order to have both, the compromise value is 50 Ω. Of course, 75 Ω coaxial lines in some equipment are also in use, such as cable TV system.

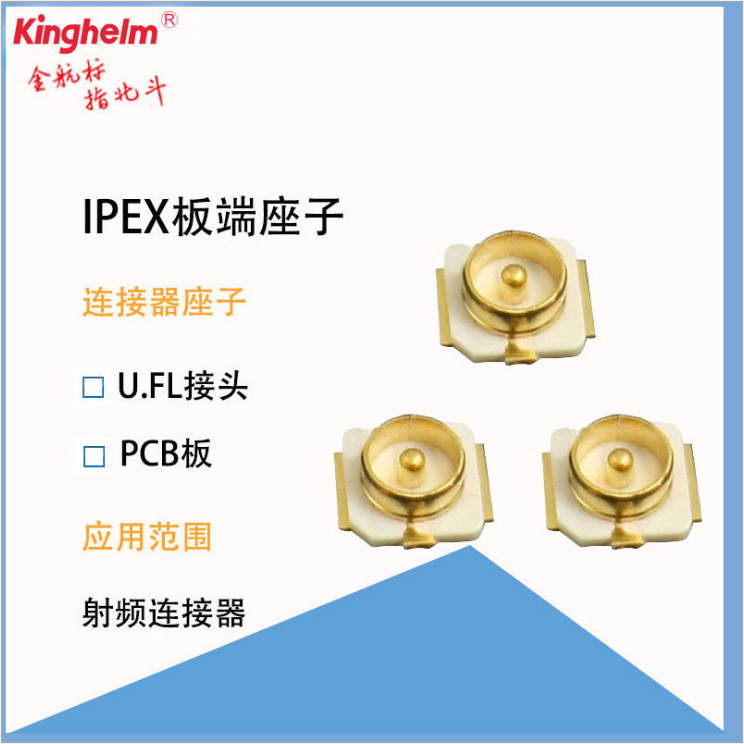

      Kinghelm products                       IPEX plate end seat
