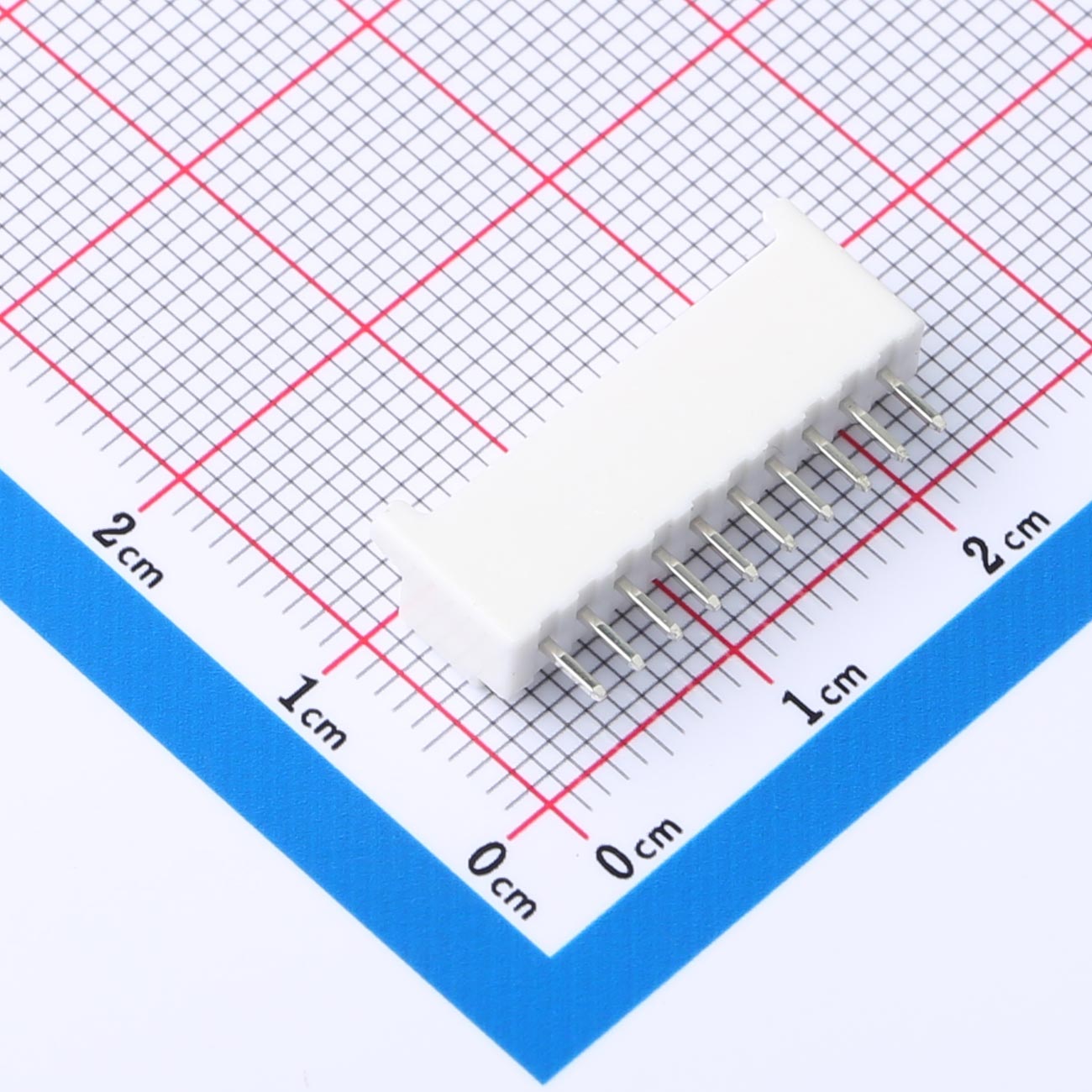

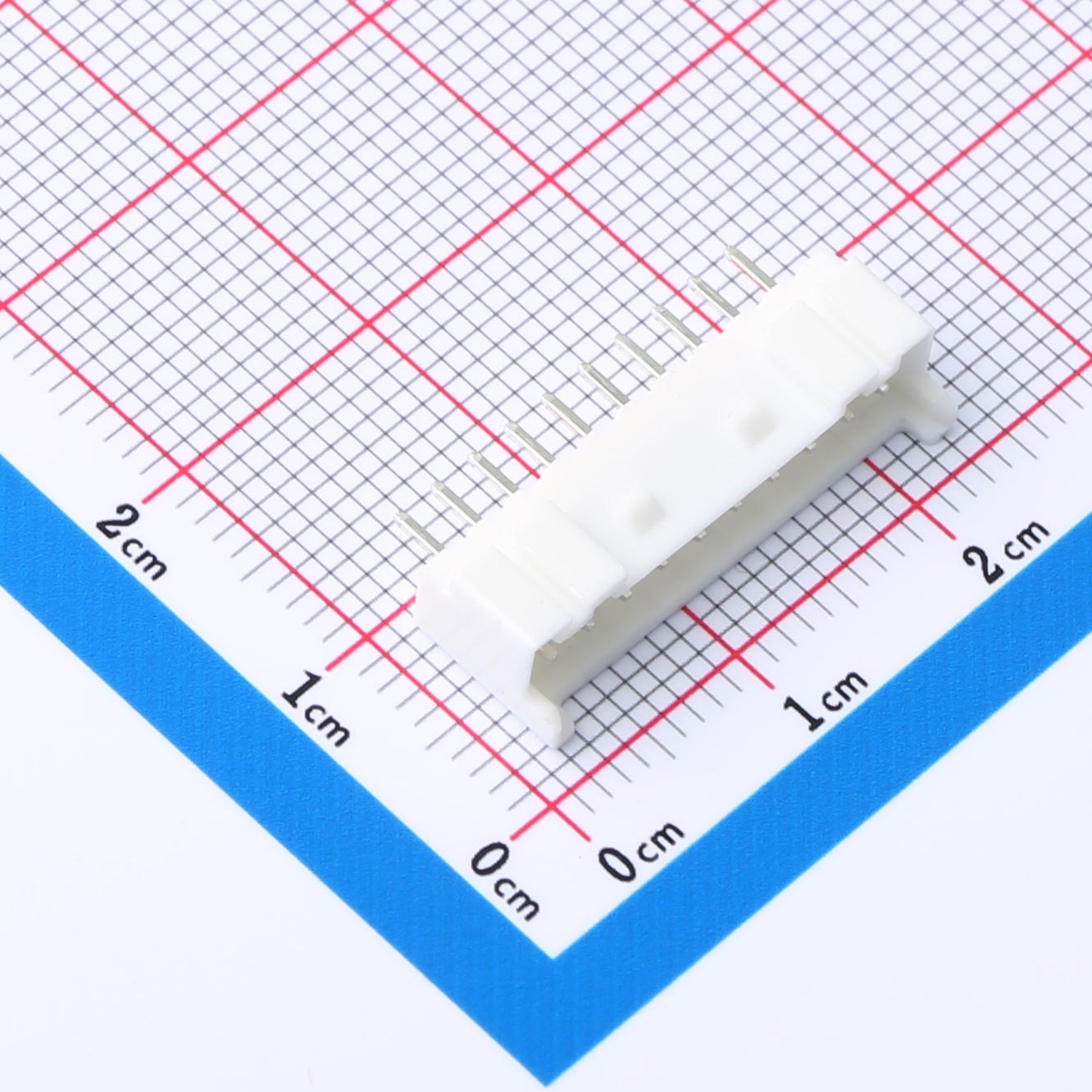

Conector de fio para placa de passo de 2 mm, 1x10P, pino reto, KH-A2026-10A
Classificação de corrente: 3A AC/DC
Classificação de tensão: 100V AC/DC
Faixa de temperatura: -25°C a +85°C
Resistência de contato: 20mΩ máx.
Resistência de isolamento: 1000MΩ mínimo
características do produto
● Passo de 2.00 mm, 1x10P fileira única
● Montagem vertical através de furo passante
● Design de pino reto para inserção de PCB
● Contatos de latão estanhado
● Compatível com o invólucro do conector PA
Benefícios do produto
● Garante conexões verticais limpas
● Estrutura compacta para layouts de PCB apertados
● Alinhamento confiável dos pinos durante a montagem
● Ideal para transferência de sinal e energia
● Forte retenção de solda
Aplicações do produto
● Cabeçalhos de interface de dispositivo do consumidor
● Linhas de transmissão de sinal vertical
● Módulos de E/S compactos
● Placas de desenvolvimento e teste
● Circuito de controle digital
