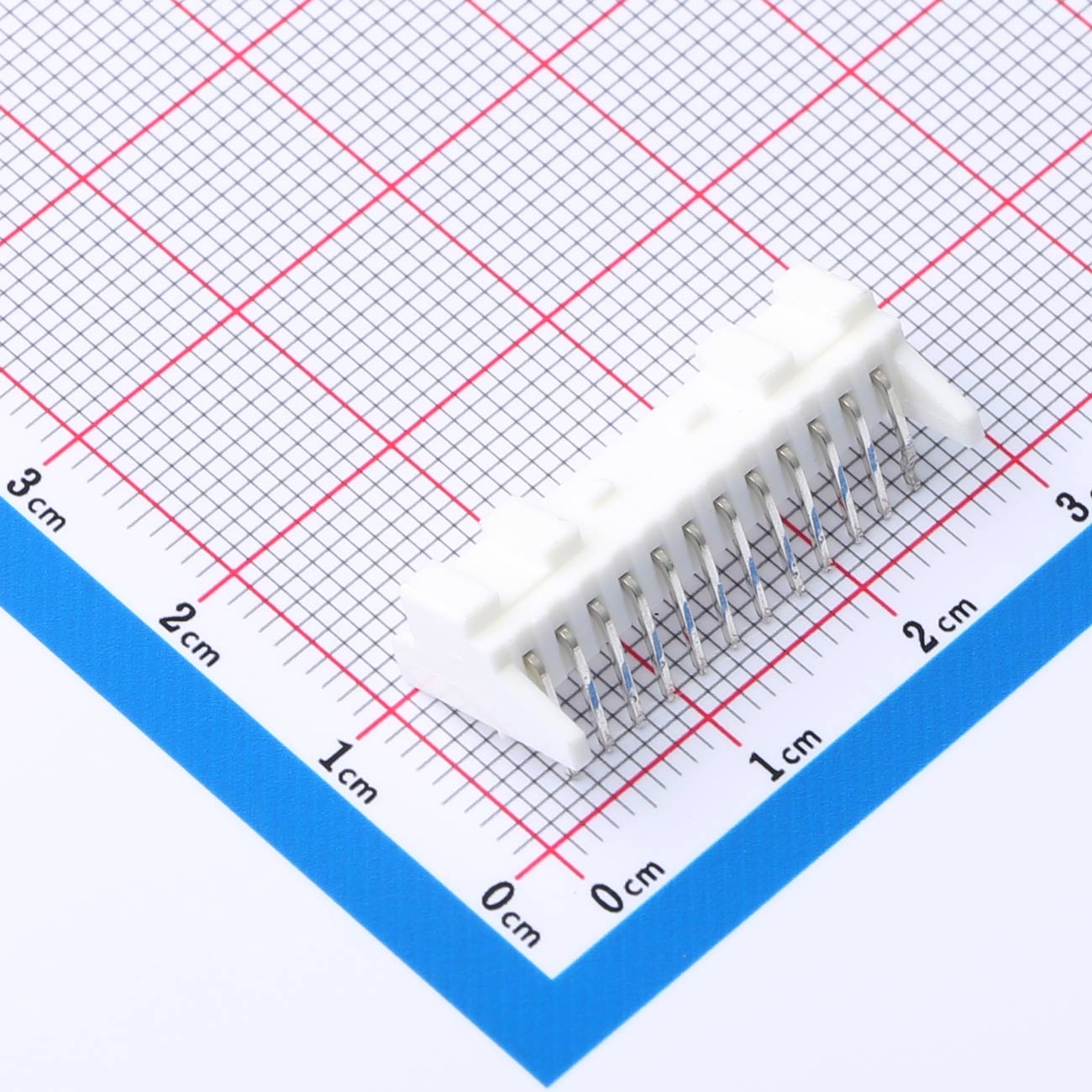

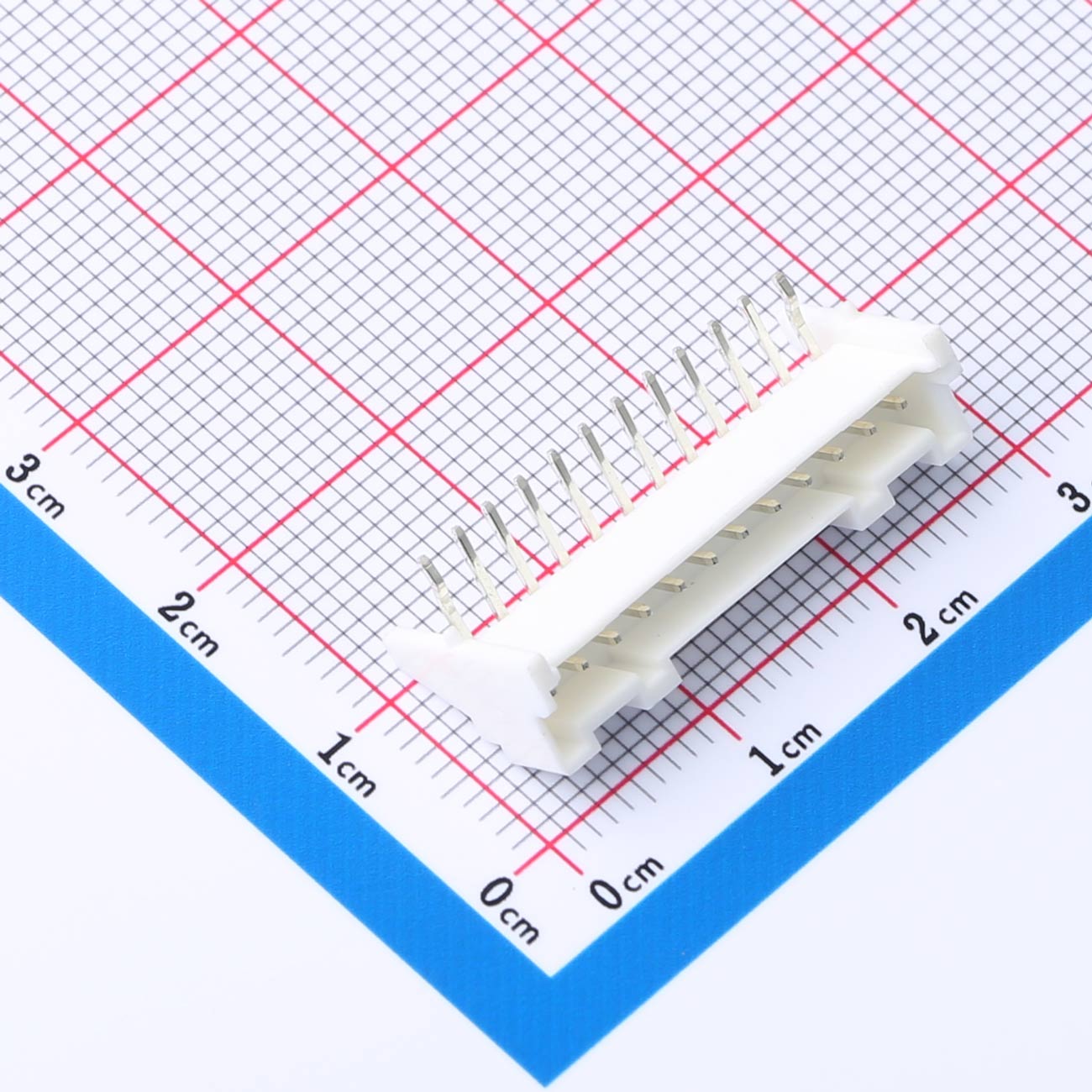

Conector de fio para placa de passo de 2 mm, 1x12P, pino angular de localização, KH-A2026-12AWD
Classificação de corrente: 3A AC/DC
Classificação de tensão: 250V AC/DC
Faixa de temperatura: -25°C a +85°C
Resistência de contato: 20mΩ máx.
Resistência de isolamento: 1000MΩ mínimo
características do produto
● Passo de 2.00 mm, layout de fileira única 1x12P
● Estrutura de pino em ângulo reto (curvado) para montagem horizontal
● Tipo plug-in através de furo
● Pinos de latão estanhado garantem forte condutividade
● Carcaça retardante de chamas, compatível com a série PA
Benefícios do produto
● Design de ângulo reto com economia de espaço para PCBs montados na borda
● Simplifica a fiação em gabinetes compactos
● Fácil processo de inserção e soldagem
● Mantém a conexão estável sob estresse mecânico
● Leve, apenas 0.8856g por peça
Aplicações do produto
● Placas de interface de sinal horizontal
● Unidades controladoras de aparelhos inteligentes
● Terminais de sensores industriais
● Módulos de comunicação compactos
● Sistemas de conectores PCB montados na borda
