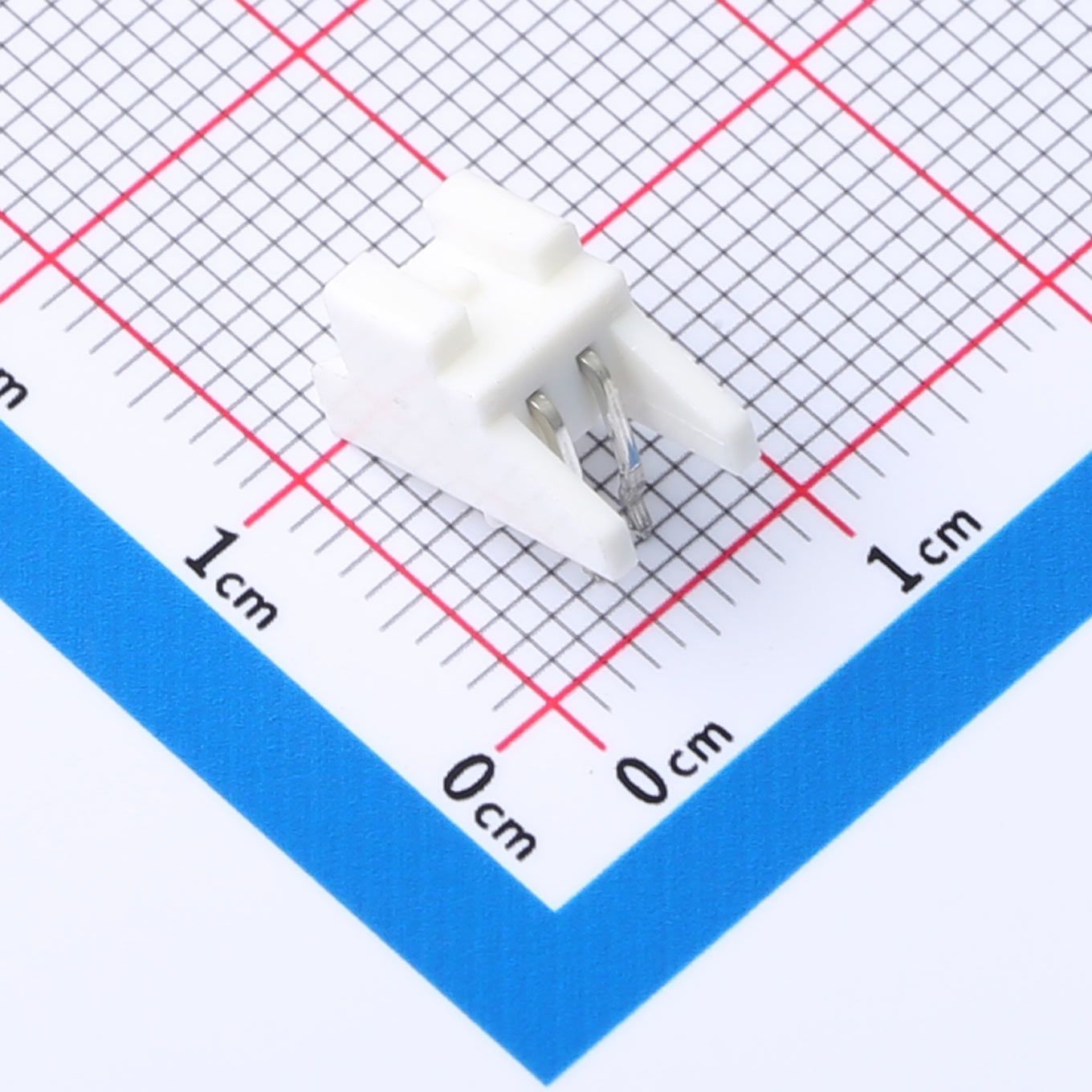

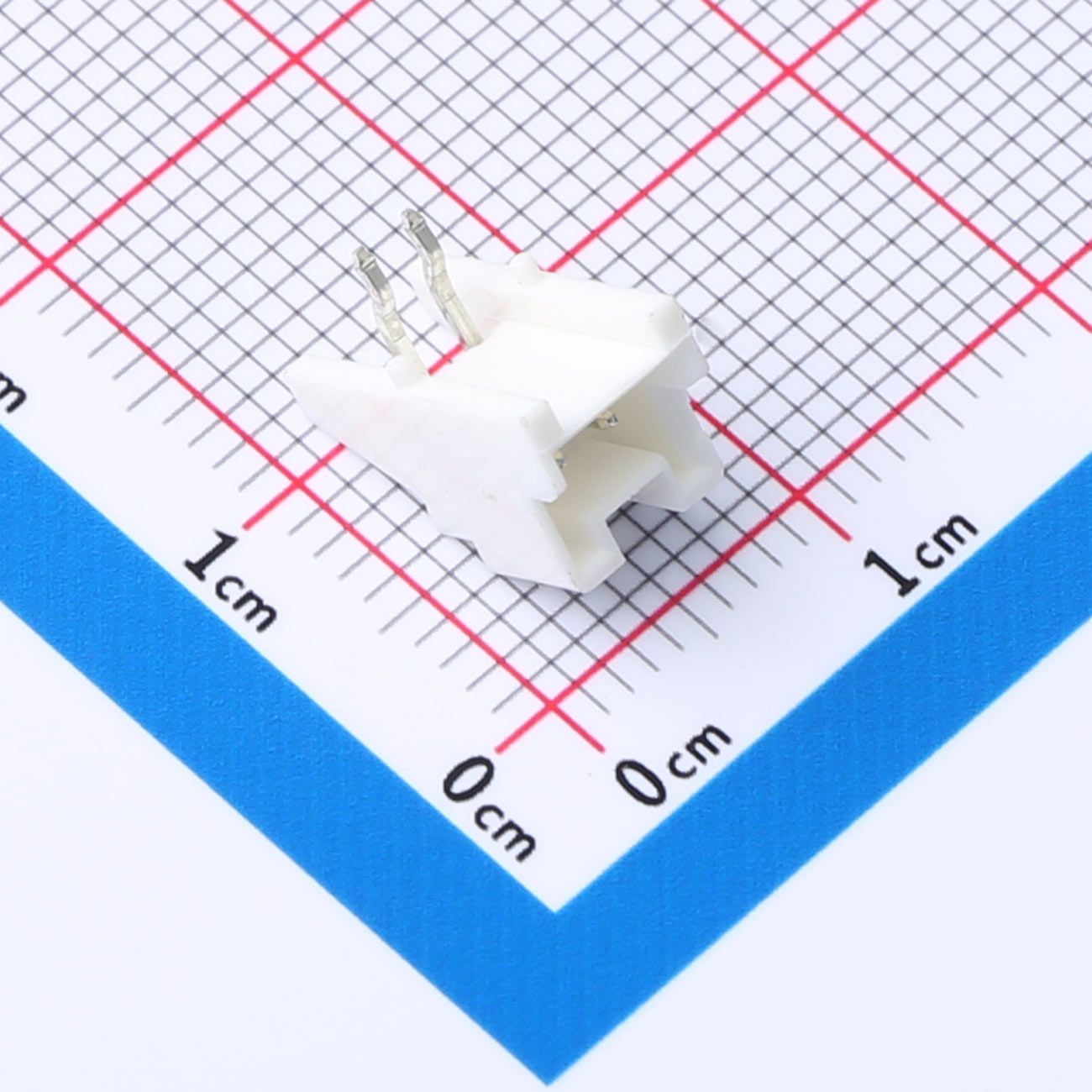

Conector de fio para placa de passo de 2 mm, 1x2P, pino angular de localização, KH-A2026-02AWD
Classificação de corrente: 3A AC/DC
Classificação de tensão: 250V AC/DC
Faixa de temperatura: -25°C a +85°C
Resistência de contato: 20mΩ máx.
Resistência de isolamento: 1000MΩ mínimo
características do produto
● Passo de 2.00 mm, cabeçalho de ângulo reto 1x2P
● Estrutura de pino curvo com furo passante
● Terminais de contato estanhados
● Contagem mínima de pinos para sinalização básica
● Compatível com soquetes da série PA
Benefícios do produto
● Ideal para funções ON/OFF ou reset
● Fiação mais simples para circuitos binários
● Uso mínimo de espaço na borda do PCB
● Soldagem manual fácil
● Conexão estável para dispositivos pequenos
Aplicações do produto
● Cabeçalhos do interruptor de reinicialização
● Pinos de sinal de nível lógico
● Pequenas placas de interface
● Aplicações DIY de baixa corrente
● Configurações de jumper de 2 pinos
