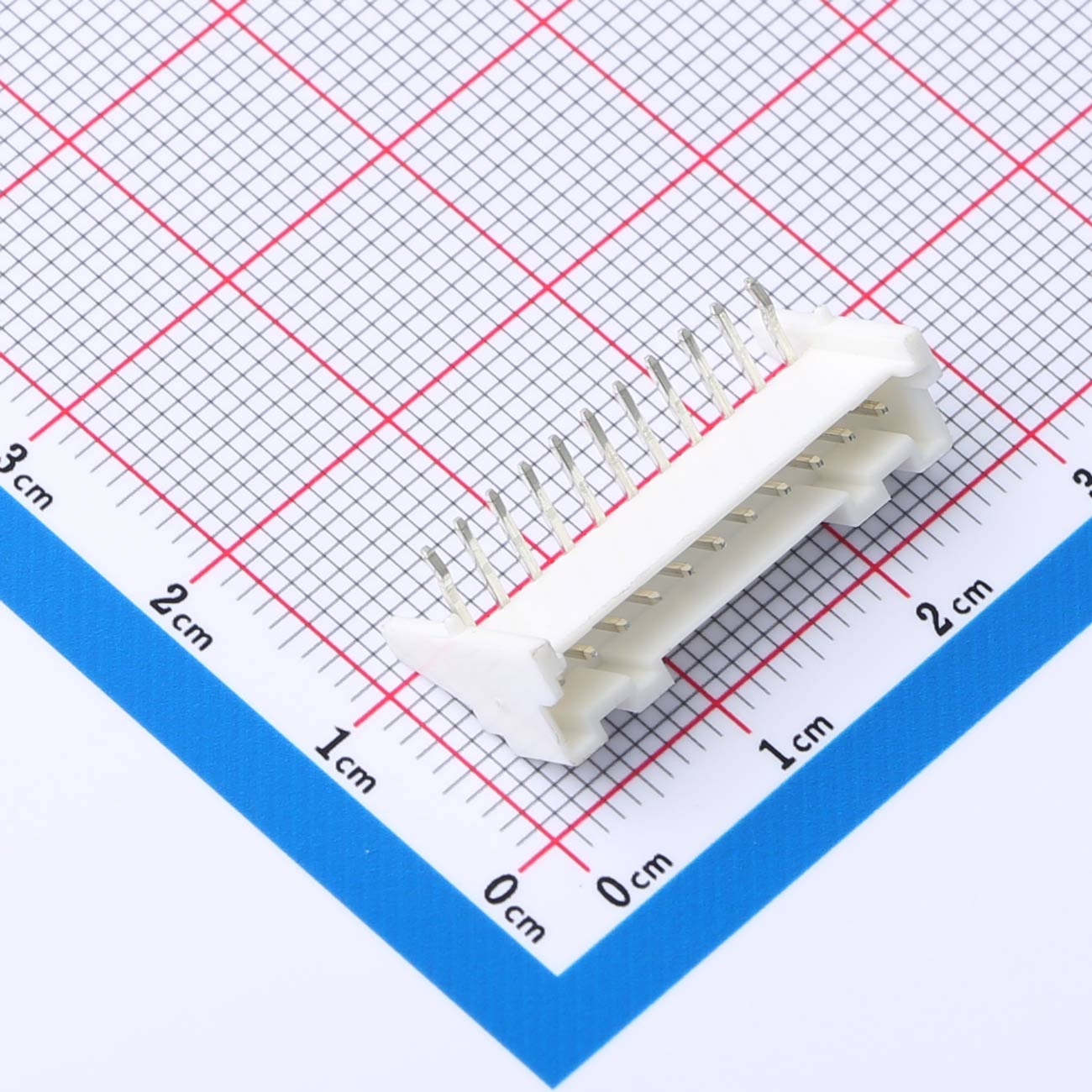

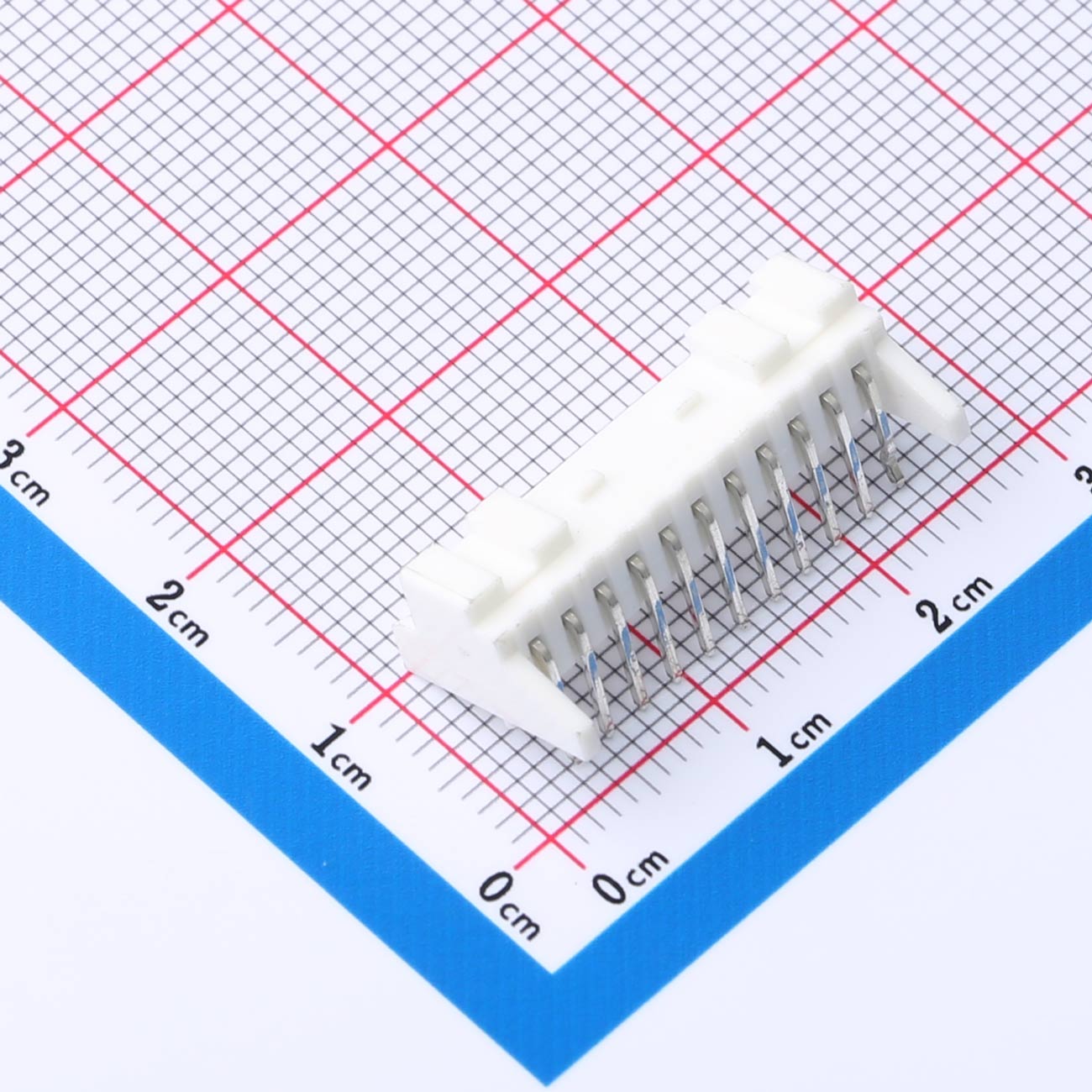

Conector de fio para placa de passo de 2 mm, 1x11P, pino angular de localização, KH-A2026-11AWD
Classificação de corrente: 3A AC/DC
Classificação de tensão: 250V AC/DC
Faixa de temperatura: -25°C a +85°C
Resistência de contato: 20mΩ máx.
Resistência de isolamento: 1000MΩ mínimo
características do produto
● Passo de 2.00 mm, cabeçalho de fileira única 1x11P
● Estrutura de pino dobrado (ângulo reto) para instalação horizontal de PCB
● Design de encaixe através do orifício para montagem segura
● Contatos de latão com revestimento de estanho anticorrosivo
● Compatível com conectores da série PA
Benefícios do produto
● Layout compacto otimizado para designs de baixo perfil
● Melhora o roteamento do sinal em espaços estreitos
● Juntas de solda robustas melhoram a resistência à vibração
● Estrutura leve para montagens de precisão
● Simplifica o alinhamento horizontal dos cabos
Aplicações do produto
● Placas de driver de vídeo
● Painéis de controle com conector de borda
● Módulos de automação residencial
● Cabeçalhos de sistema incorporados
● Placas de controle industriais compactas
