Kinghelm RF connector KH-2FK1-B-SM-101 features a 180° male plug design, allowing for convenient installation and connection, thereby improving work efficiency. It is designed with a 50Ω impedance, in accordance with industry standards, ensuring accurate and consistent signal transmission. In its rated operating state, the KH-2FK1-B-SM-101 exhibits excellent frequency response characteristics, with a working frequency range covering DC to 6 GHz, meeting the requirements of most communication systems.
|
Electrical data
|
|
1)Impedance
|
50Ω,Nominal
|
|
2) Frequency range
|
DC-6 GHz
|
|
3)VSWR(Return loss)
|
DC-2 GHz≤1.4(15.56 dB)
|
|
2-3 GHz≤1.5(13.98 dB)
|
|
3-6 GHz≤1.6(12.74 dB)
|
|
4) Dielectric withstanding voltage
|
800 V rms,Min.
|
|
5)Insulation resistance
|
≥100MΩ
|
|
6)Contact resistance
|
|
|
Original state
|
≤10mΩ
|
|
After endurance or environmental tests
|
≤40mΩ
|
|
Mechanical data
|
|
1)Outline dimensions
|
Per Drawing
|
|
2)Durability
|
25 Cycles Min.
|
Overall, with its outstanding electrical performance, stable mechanical characteristics, and excellent environmental adaptability, the FAKRA board-end RF white board-end antenna socket KH-2FK1-B-SM-101 has become the ideal choice in the field of wireless communication. Whether in automotive communication, satellite communication, or aerospace applications, the KH-2FK1-B-SM-101 can play an excellent role in providing a strong guarantee for stable signal transmission.

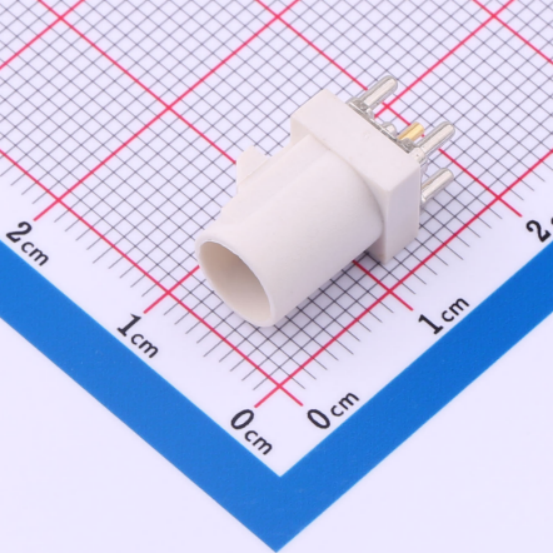

Kinghelm KH-2FK1-B-SM-101 Product Image

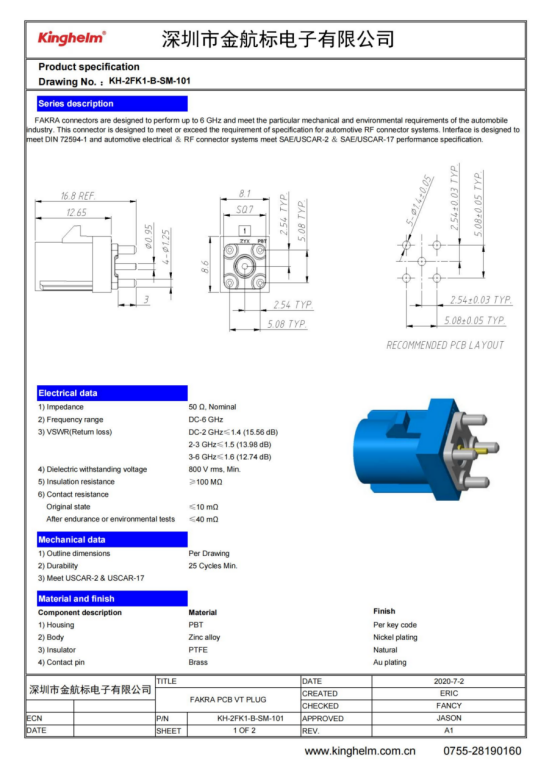

Kinghelm KH-2FK1-B-SM-101 Specification
