In the rapidly developing communication industry, RF connectors play an indispensable role. Today, we are going to introduce an excellent RF connection product - the FAKRA board-end RF white socket KH-2FK1-B-RM-101. This socket has gained wide applications in the communication field due to its outstanding performance and stable quality.
|
Electrical
|
|
Impedance
|
50 Ω, Nominal
|
|
Frequency range
|
DC-6 GHz
|
|
VSWR(Return loss)
|
DC-2 GHz≤1.4(15.56 dB)
|
|
2-3 GHz≤1.5(13.98 dB)
|
|
3-6 GHz≤1.6(12.74 dB)
|
|
Dielectric withstanding voltage
|
800 VRMS,Min.
|
|
Insulation resistance
|
≥100 MΩ
|
|
Contact resistance
|
|
Original state
|
≤10mQ
|
|
After endurance or environmental tests
|
≤40mQ Mechanical
|
|
Mechanical
|
|
Durability
|
25 Cycles Min.
|
|
Temperature range
|
-40℃ To 105℃
|
|
Environmental
|
|
Temperature range
|
40℃ To 105℃
|
|
Thermal shock
|
USCAR-17,Paragraph 4.5.1
|
|
Vibration& Mechanical shock
|
USCAR-2,Paragraph 5.4.6
|
|
Temper ature/Humidity cycling
|
USCAR-2,Paragraph 5.6.2
|
In conclusion, the socket KH-2FK1-B-RM-101 has become the preferred product in the communication industry due to its outstanding electrical performance, wide operating temperature range, and compact design. It not only meets the demands of various RF connections but also operates stably in harsh environments, providing strong support for the stable operation of communication systems.

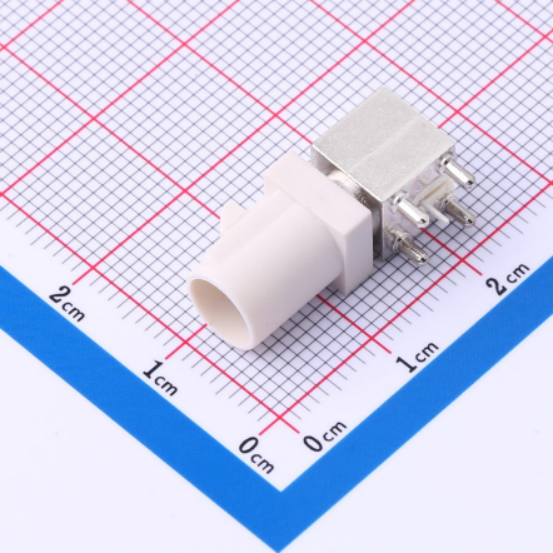

Kinghelm KH-2FK1-B-RM-101 Product Image
Kinghelm KH-2FK1-B-RM-101 Specification
About Kinghelm
Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
