In today’s fast-evolving smart device market, the USB Type-C interface has become the universal standard across mobile phones, laptops, tablets, power banks, docking stations, and more. To meet the rising demand for high-performance connections, Kinghelm proudly presents the KH-TYPE-C-4L10-14P — a robust, high-current, 14-pin USB Type-C connector engineered for next-generation applications.

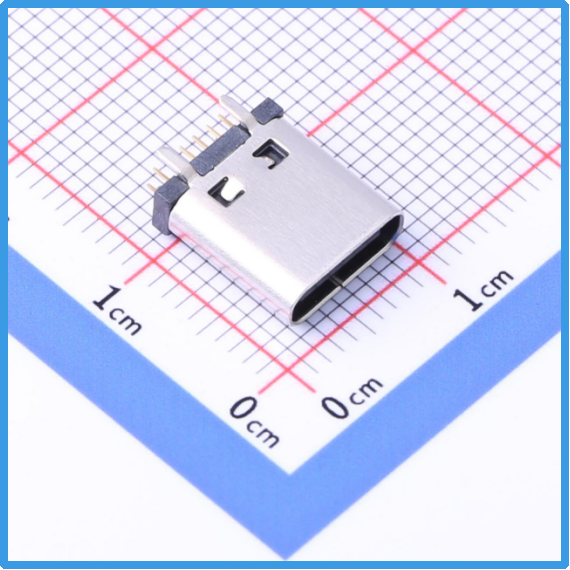

Kinghelm KH-TYPE-C-4L10-14P Product Image

Key Features

l14-Pin Direct-Insertion Design: Supports multi-functional interfaces and high-speed data channels for complex applications.

lRated Current: 5A: Delivers stable power for high-performance devices and rapid charging needs.

lLow Contact Resistance: Initial ≤40mΩ, tested ≤50mΩ — ensures efficient signal transmission and power delivery.

lHigh Insulation & Safety: Insulation resistance ≥100MΩ and withstand voltage of 100V AC RMS safeguard devices against electrical interference.

lSpace-Saving Structure: Weighing only 1.09g, ideal for lightweight, compact electronic devices.

Optimized for Automated Manufacturing

The Kinghelm KH-TYPE-C-4L10-14P USB Type-C connector uses a plug-in (through-hole) mounting method for secure mechanical connection, paired with tape-and-reel packaging to support high-speed automated SMT assembly lines. This significantly enhances assembly efficiency and reduces labor costs — a major advantage for large-scale production environments.

Applications Across Industries

Engineered to perform in both consumer electronics and industrial-grade devices, this connector is widely used in:

lSmartphones & tablets (high-speed USB-C ports)

lLaptops & charging ports

lDocking stations and USB-C hubs

lIndustrial control systems

lMedical equipment

lSmart home appliances

Its reliable 14-pin interface enables not only stable power supply but also multiple data functions, making it a preferred choice for high-performance systems requiring both versatility and durability.

Why Choose Kinghelm KH-TYPE-C-4L10-14P?

üBrand Reliability – From Kinghelm, a trusted name in connector solutions

üHigh Current & High Speed – Supports power-hungry and data-intensive devices

üSecure Direct-Insertion – Easy to install, highly durable

üAutomation-Friendly Packaging – Tape-and-reel design for streamlined assembly

üVersatile Integration – Suitable for a wide range of consumer and industrial devices

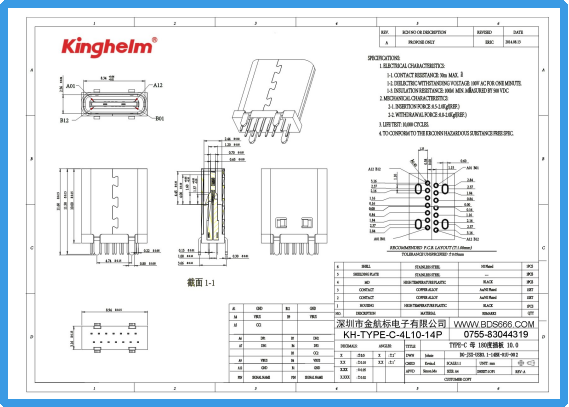

Kinghelm KH-TYPE-C-4L10-14P Specification

Power Up Your Product With Confidence

The Kinghelm KH-TYPE-C-4L10-14P USB Type-C Connector is more than just a component — it’s a performance booster for your entire product line. Built with premium materials and meticulous engineering, it ensures long-term reliability, fast data flow, and efficient power delivery.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
