Kinghelm proudly presents the KH-TYPE-C-CB1.6-6P, a 6-pin mid-mount Type-C connector specifically designed for 1.6mm-thick PCBs. Featuring SMD mounting and tape-and-reel packaging, this Type-C connector is optimized for automated production processes. It meets the stringent demands of modern electronic devices for miniaturization, thin profiles, and high efficiency. With exceptional stability and compatibility, this connector is widely used in smart terminals, wearables, industrial control systems, and communication modules.

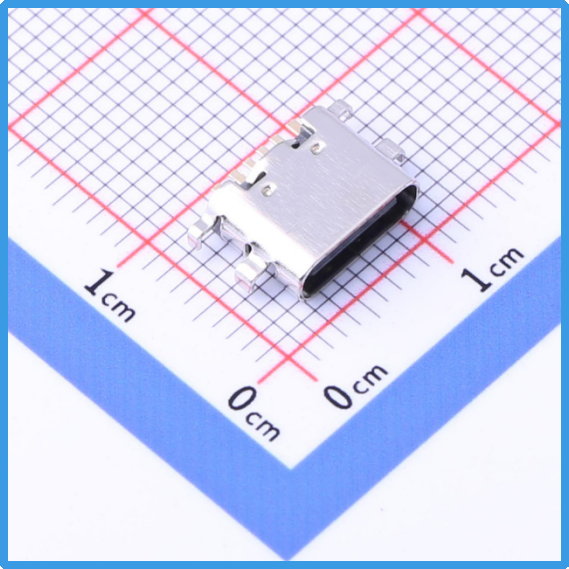

Kinghelm KH-TYPE-C-CB1.6-6P Product Image

Structurally, the Kinghelm KH-TYPE-C-CB1.6-6P Type-C connector adopts a spring-less design, which significantly improves contact stability and avoids performance degradation due to elastic fatigue—extending the product’s service life. Its mid-mount configuration allows the interface to sit within the PCB, reducing the overall profile height. This enhances integration and aesthetics, especially valuable in products with strict design requirements. The 6-pin layout ensures reliable and efficient data transmission and power delivery.

Kinghelm maintains high standards in material selection. The contact terminals are treated with premium gold plating to enhance conductivity and oxidation resistance, ensuring stable performance during frequent mating cycles and in complex electrical environments. The plastic housing uses high-temperature resistant, flame-retardant materials, maintaining integrity during reflow soldering and complying with RoHS and other environmental standards—ideal for high-end manufacturing and export requirements.

Compliant with the full USB Type-C standard, this connector features reversible insertion, improving the user experience and ease of integration into end products. The SMD design enables high-speed automated soldering and placement, reducing labor costs, boosting efficiency, and lowering defect and rework rates.

The KH-TYPE-C-CB1.6-6P Type-C connector performs exceptionally in diverse real-world applications. It is suitable for portable medical devices, Bluetooth headsets, smart wearables, industrial control boards, and compact new-energy terminals. Its compact footprint not only saves space but also enhances mechanical strength and durability, maintaining superior connectivity even in harsh environments. For industries where signal integrity and long-term reliability are critical, this 6P Type-C connector is a key component to improve product competitiveness.

Backed by Kinghelm’s years of experience in connector development, the KH-TYPE-C-CB1.6-6P reflects a deep understanding of both functionality and quality. More than just a component, it is an essential part of high-performance, high-reliability, and high-compatibility electronic systems. Its value extends beyond individual products, contributing to overall system optimization.

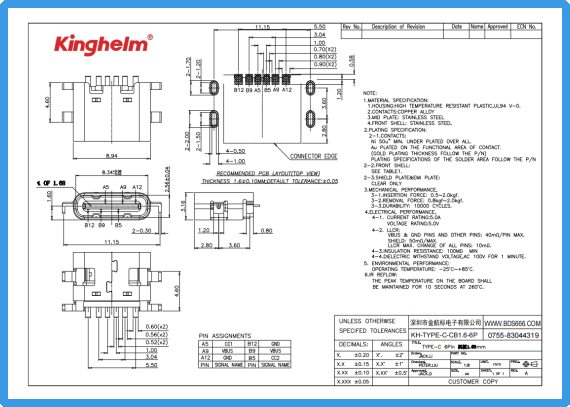

Kinghelm KH-TYPE-C-CB1.6-6P Specification

In conclusion, the KH-TYPE-C-CB1.6-6P by Kinghelm is a highly adaptable Type-C mid-mount connector, combining optimized structure, electrical stability, environmental compliance, and seamless integration—making it an ideal choice for engineers developing high-end electronic devices.
