In the rapidly evolving electronics manufacturing industry, Type-C connectors have become the preferred connectivity solution for both smart devices and industrial systems due to their efficiency, stability, and universal compatibility. Kinghelm proudly introduces the KH-TYPE-C-CB0.8-6P-T, a Type-C connector featuring a mid-mount design and internal spring contacts. Designed with SMD mounting and excellent electrical and mechanical performance, this model is ideal for a wide range of modern devices.

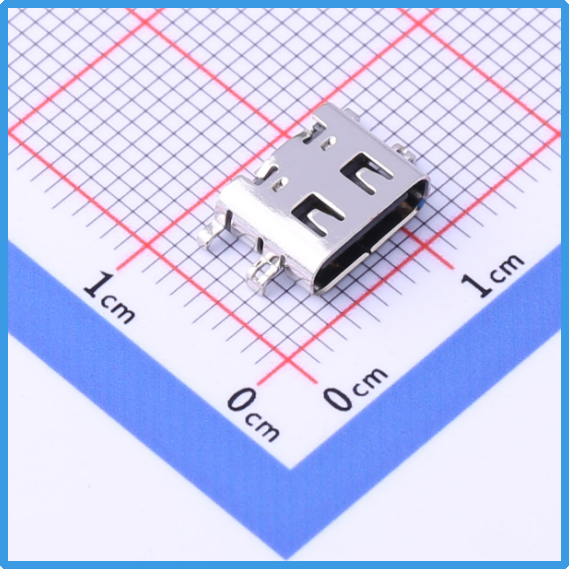

Kinghelm KH-TYPE-C-CB0.8-6P-T Product Image

The Kinghelm KH-TYPE-C-CB0.8-6P-T Type-C connector employs a mid-mount structure that allows closer integration with the PCB, effectively reducing the overall connector height. This makes it especially suitable for space-constrained products such as smartphones, portable audio/video devices, wearables, and ultra-thin laptops. Its low-profile design not only enhances aesthetic appeal but also improves structural integrity, ensuring reliable connections even after repeated insertions—thus extending the connector’s service life.

With a 0.8mm mid-mount height, this connector is tailored for ultra-thin electronics, reducing vertical space usage in compact designs. The 6-pin contact configuration supports essential communication and power delivery functions, meeting the needs of most low-power devices for both charging and data transmission. It offers an excellent balance of functionality and cost, making it a cost-effective and reliable connectivity choice.

A key highlight of the KH-TYPE-C-CB0.8-6P-T is its spring contact structure, which provides consistent rebound and contact pressure during insertion and removal. This enhances connection reliability and helps prevent issues caused by vibration or prolonged usage, making it particularly suitable for industrial control systems, medical electronics, and automotive electronics. The spring mechanism also increases resistance to mechanical fatigue, contributing to a longer product lifespan and greater system reliability.

Manufactured using SMD technology, the connector is compatible with mainstream SMT processes and supports automated assembly, improving production efficiency and reducing labor costs. Delivered in tape-and-reel packaging, it is well-suited for bulk deployment in high-volume manufacturing environments, catering to the needs of both ODM and OEM clients.

This Type-C connector is widely applicable across consumer electronics, including Bluetooth headsets, power banks, portable speakers, action cameras, and e-readers. It is also highly effective in industrial devices, automotive electronics, and medical instruments—where connection stability is critical. With its simple design, robust structure, and stable performance, the KH-TYPE-C-CB0.8-6P-T has become a preferred component among engineers working on compact interface designs.

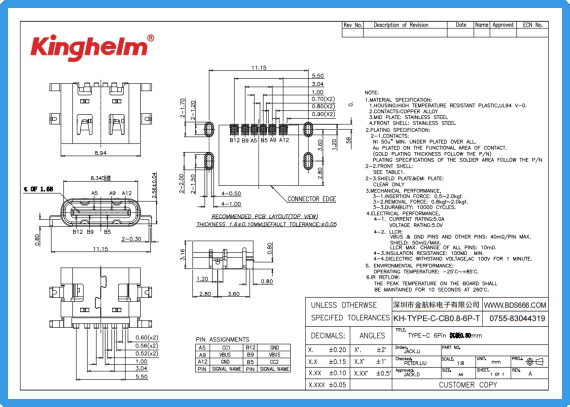

Kinghelm KH-TYPE-C-CB0.8-6P-T Specification

In summary, the KH-TYPE-C-CB0.8-6P-T from Kinghelm stands out for its space efficiency, structural reliability, electrical performance, and versatile adaptability. Whether in consumer electronics, industrial systems, or automotive applications, this mid-mount Type-C connector delivers outstanding performance and is the ideal solution for achieving compact, high-reliability USB-C integration.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.

KH-TYPE-C-CB0.8-6P-TTo Product Page
