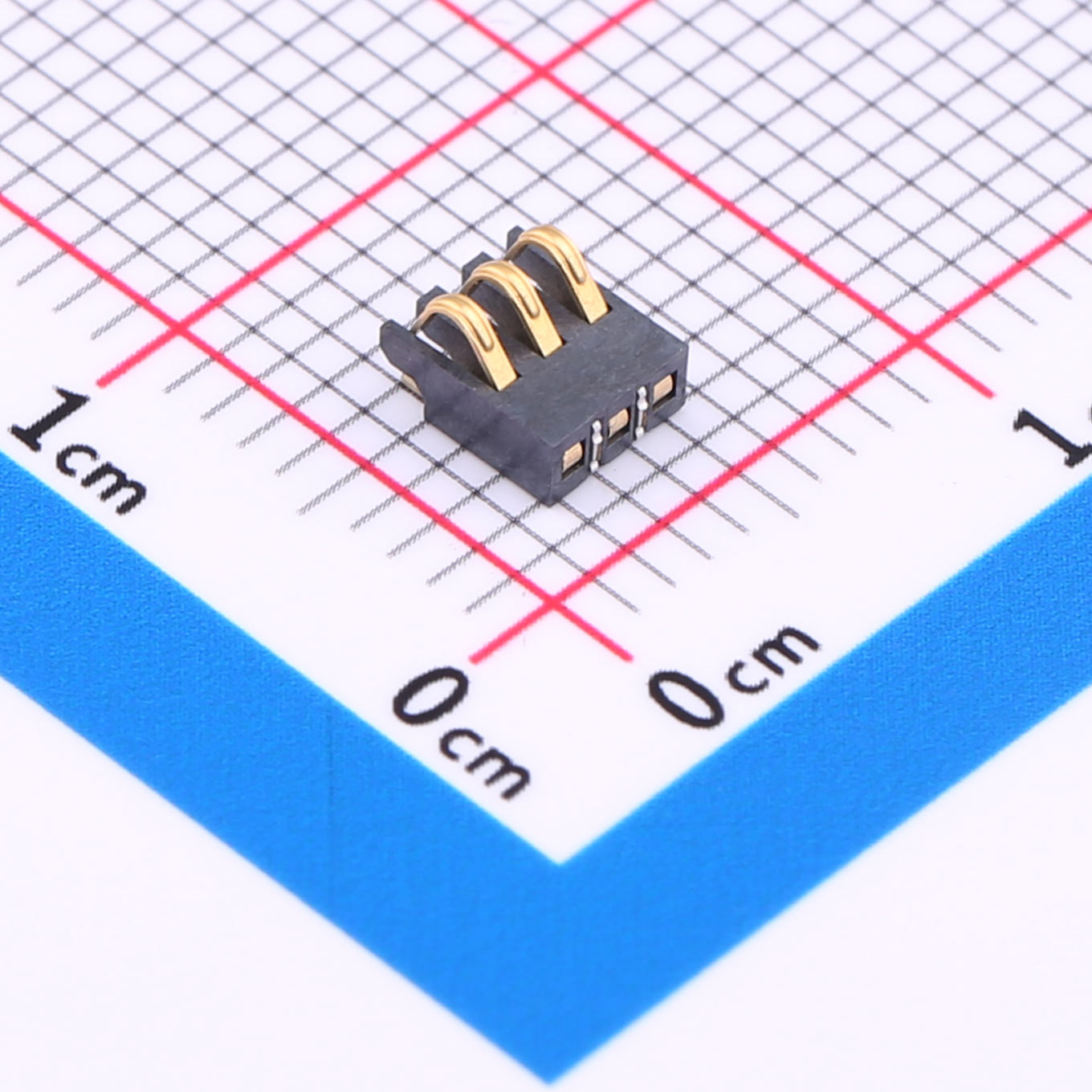

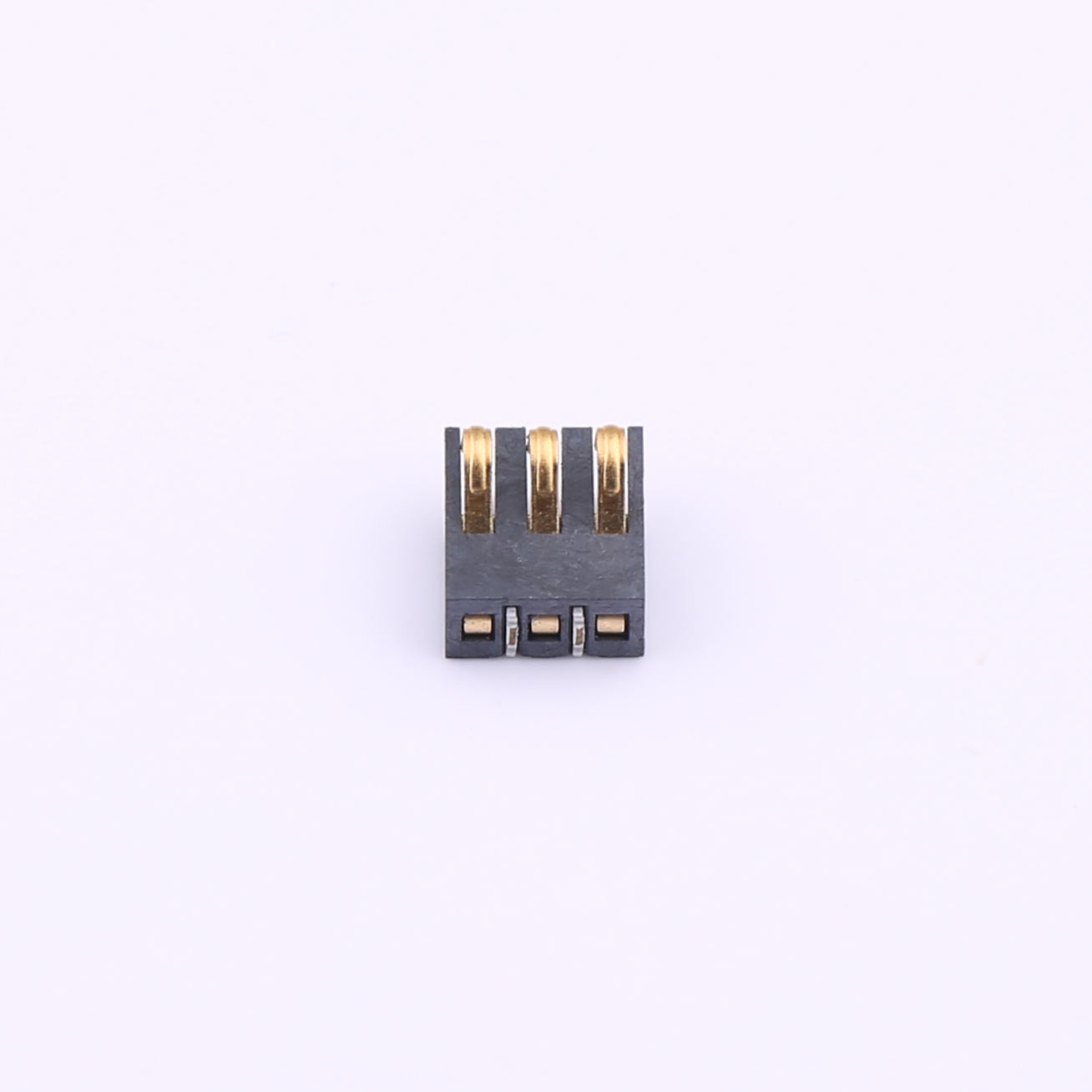

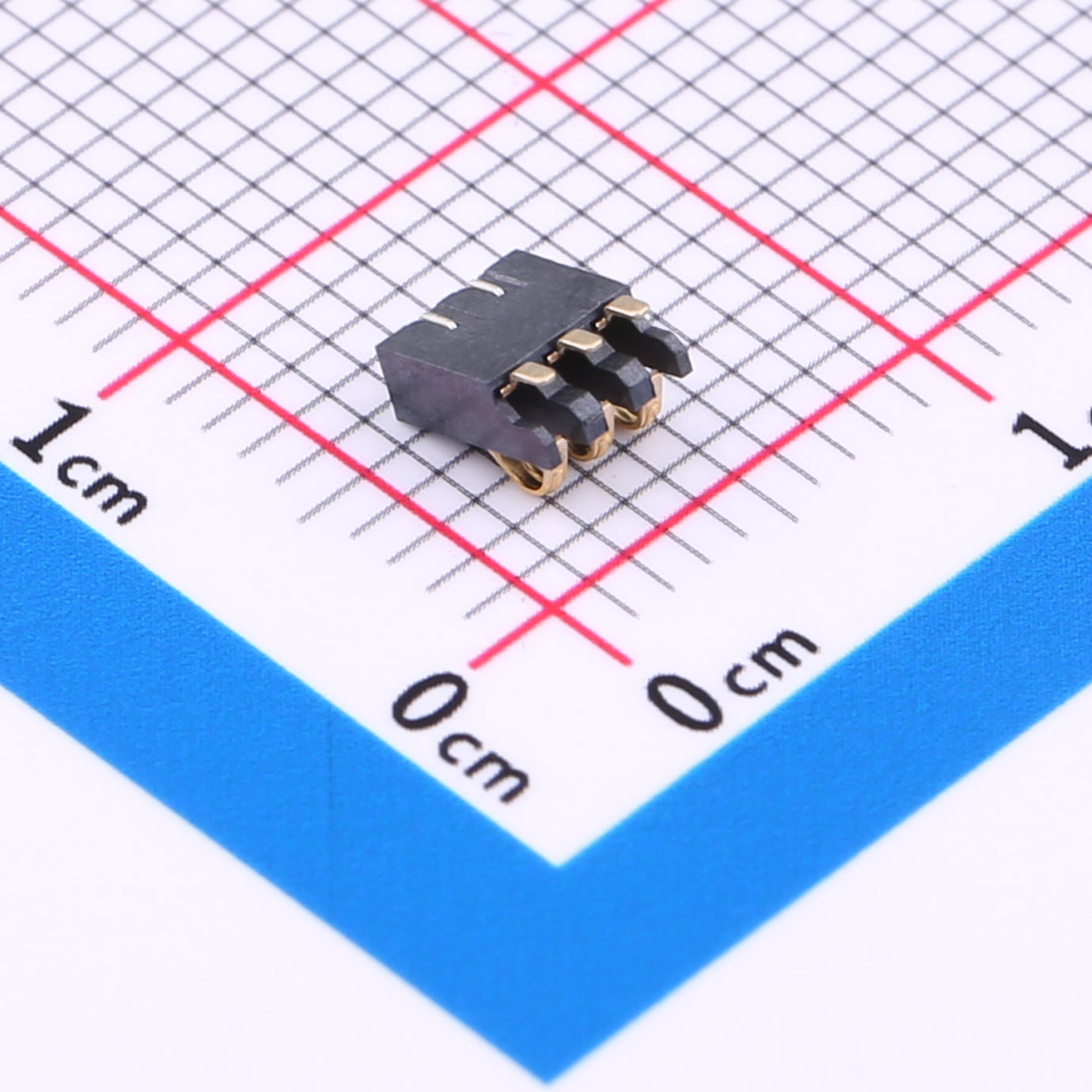

Button And Strip Battery Connector, SMD, KH-12701-3P170

Button And Strip Battery Connector, SMD, KH-12701-3P170

Rated current: 1.0 A
Rated voltage: 12 V
Withstand voltage: 500 V
Contact resistance: 30 mΩ MAX
Insulation resistance: 500 MΩ
Operating temperature: -40°C to +85°C

Inquiry Datasheet

Product Details

Product Benefits
● Compact design
● Reliable performance
● Wide temperature range
● High insulation resistance

Product Application
● Electronics
● Home appliances
● Industrial equipment
● Communication devices

Prev：Button And Strip Battery Connector, SMD, KH-12701-3P225
Next：Button And Strip Battery Connector, SMD, KH-12701-2P225
