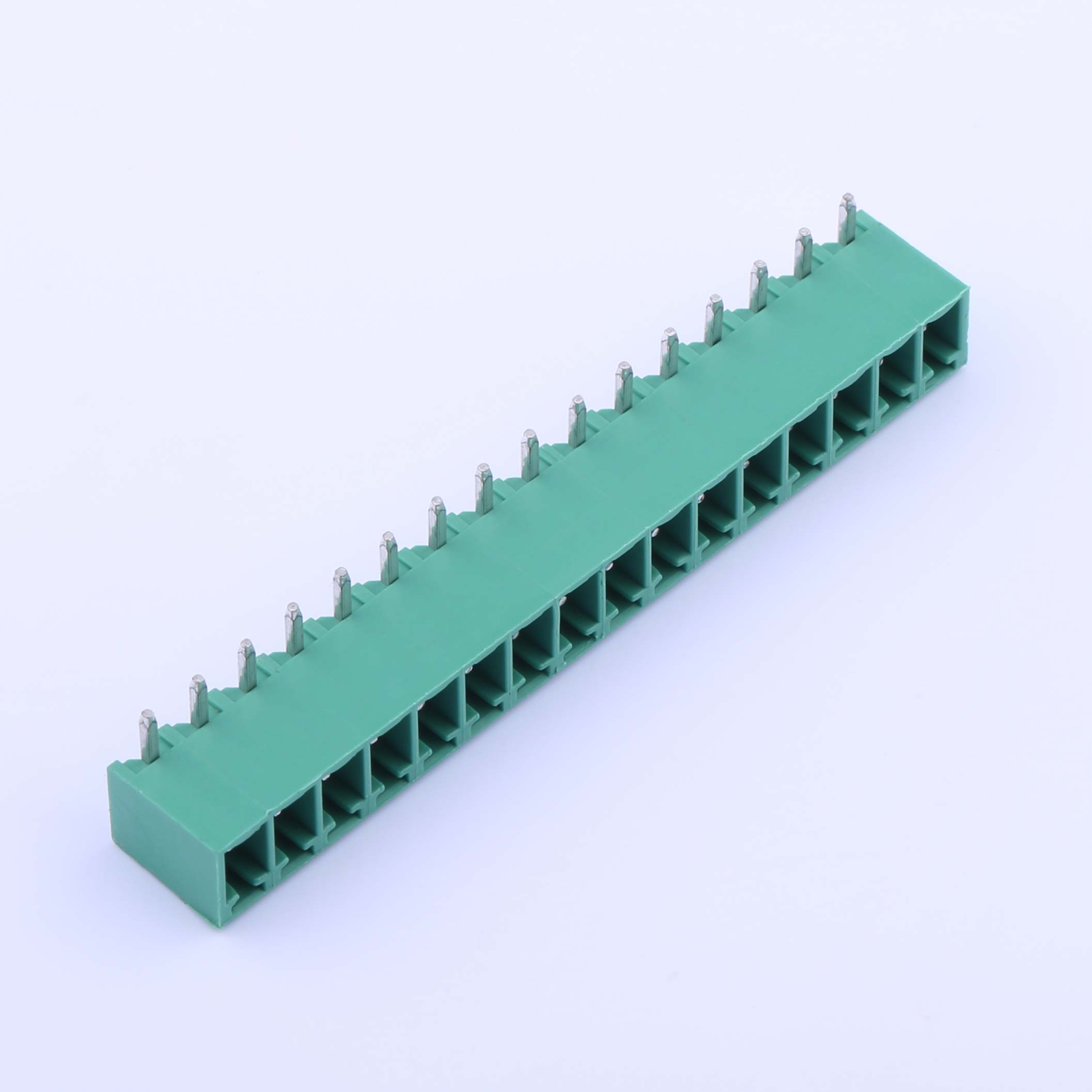

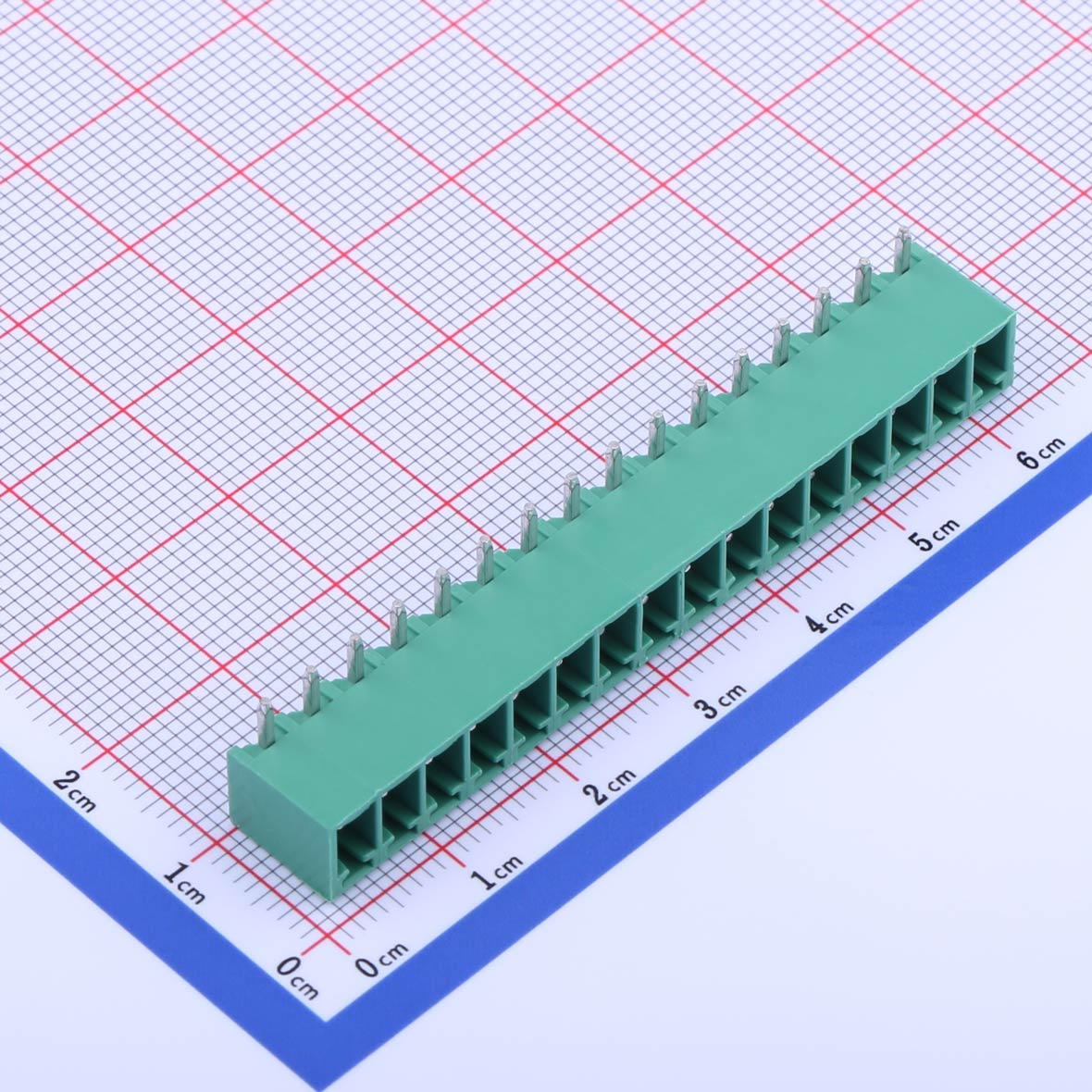

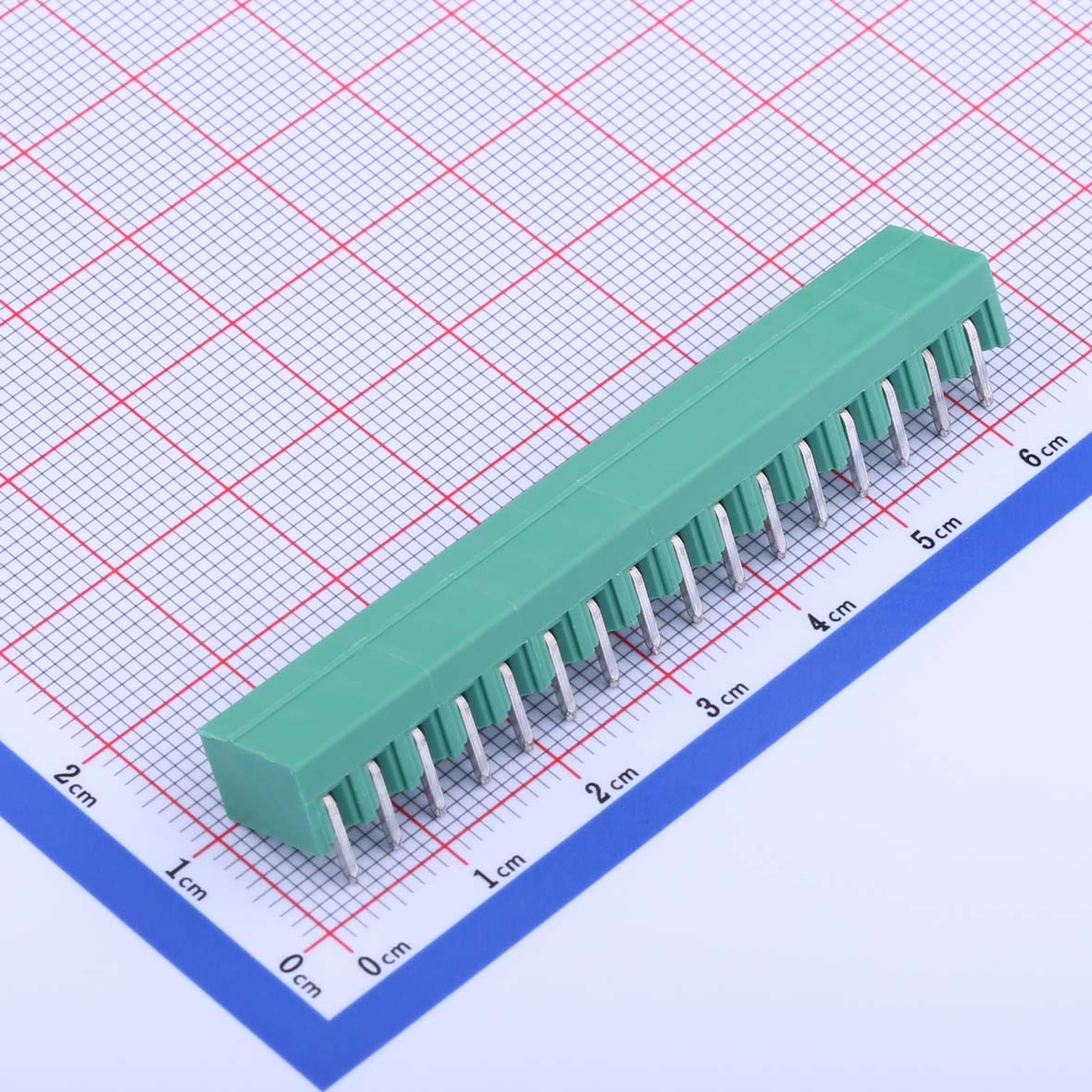

Pluggable Terminal Block, 3.81mm pitch, 16pin, 8A 300V, KH-15EDGRC-3.81-16PG

Pluggable Terminal Block, 3.81mm pitch, 16pin, 8A 300V, KH-15EDGRC-3.81-16PG

Rating: 300V, 8A
Insulation Withstand Voltage: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Standards: RoHS compliant

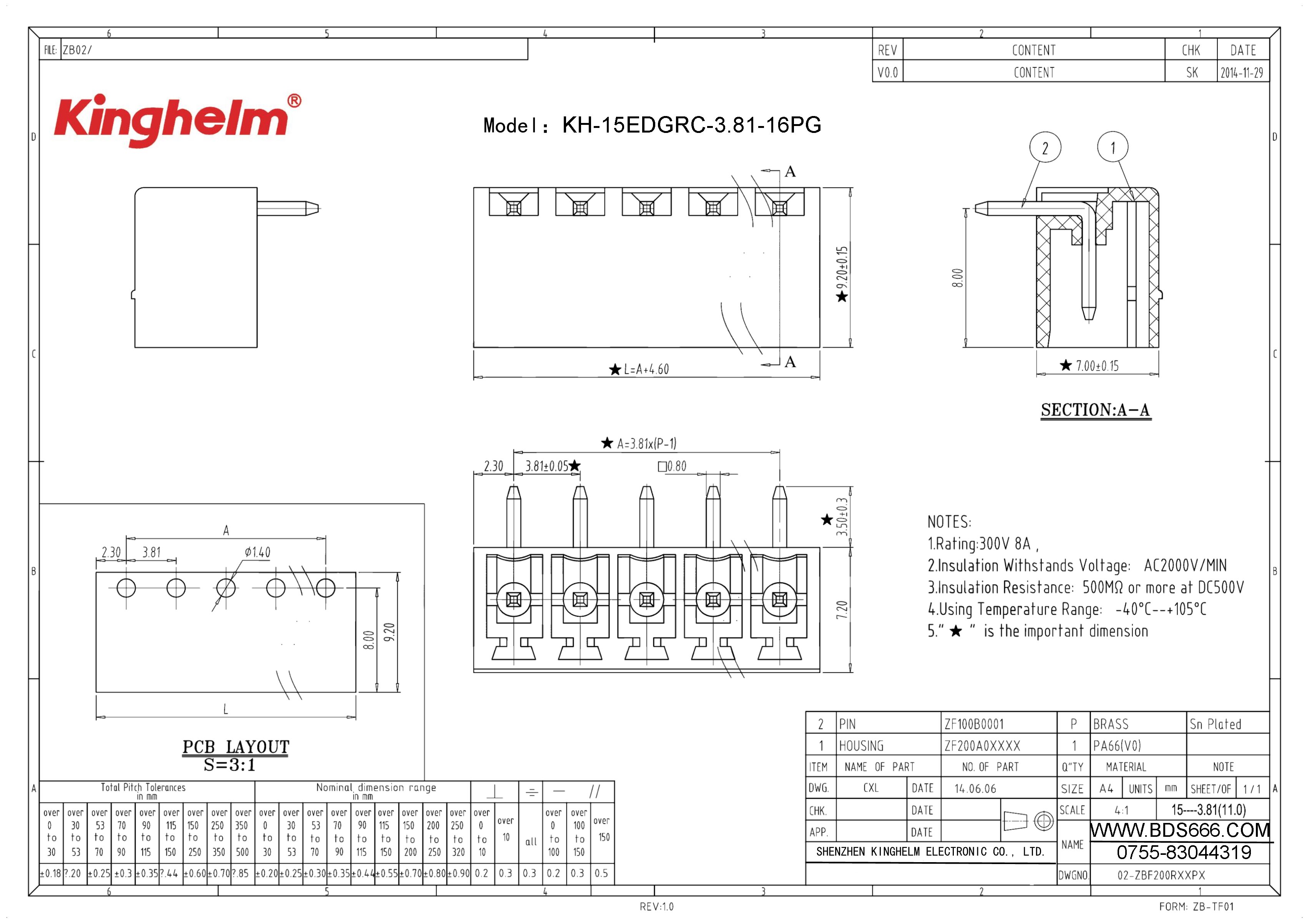

Inquiry Datasheet

Product Details

Product Features
● Board mount socket closed end design
● 3.81 mm pitch spacing
● Right angle pin mounting type
● 16 pins single row configuration
● Green color housing
● Rated current 8A
● Rated voltage 300V
● Operating temperature -40℃ to +105℃

Product Benefits
● High-density terminal configuration for more connections
● Secure and reliable wire-to-board connections
● Quick and easy disconnection for maintenance
● Operates effectively in a wide range of temperatures
● Clear and easy circuit identification with green housing

Product Application
● Large industrial control systems
● High-power distribution units
● Automation and control panels
● Complex signal and communication systems
● Advanced monitoring and control devices
