Pluggable Terminal Block, 3.81mm pitch, 4 pin, 8A 300V, KH-ZBK200R-4P-GS

Pluggable Terminal Block, 3.81mm pitch, 4 pin, 8A 300V, KH-ZBK200R-4P-GS

Rated Voltage & Current: 300V, 8A (CE)
Insulation Strength: AC 1500V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Twisting Force: 0.2 N·m/M

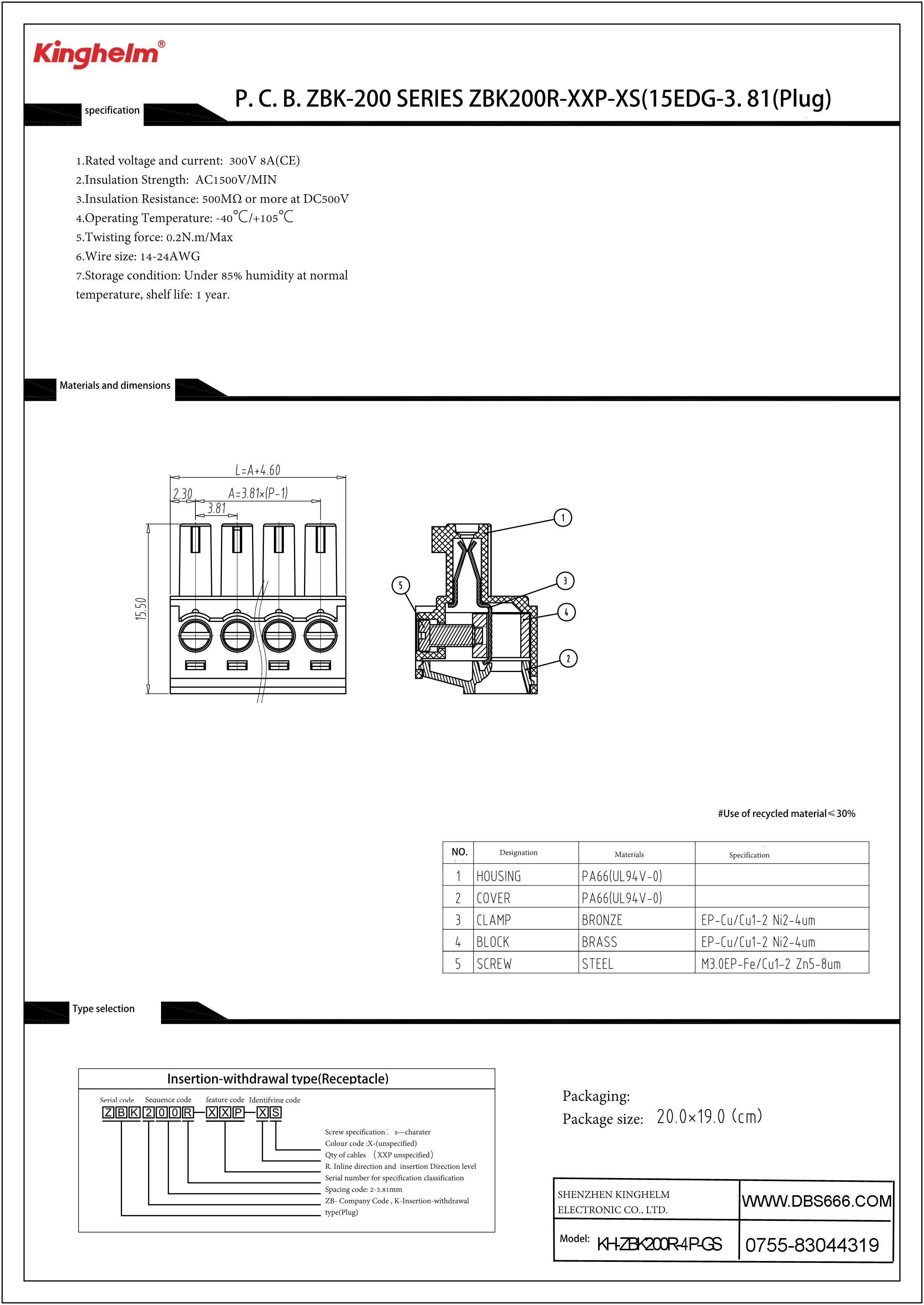

Inquiry Datasheet

Product Details

Product Features

● 4-pin pluggable terminal block connector
● 3.81mm pitch for easy connection
● Green color for clear identification
● 8A current rating
● 300V voltage rating

Product Benefits

● Compact and efficient for smaller applications
● Simple and secure electrical connections
● High current handling capability
● Quick and reliable installation
● Performs well in various temperature environments

Product Application

● Small electrical control panels
● Automation systems
● Power distribution connections
● Automotive electrical wiring
● Lighting and communication circuits
