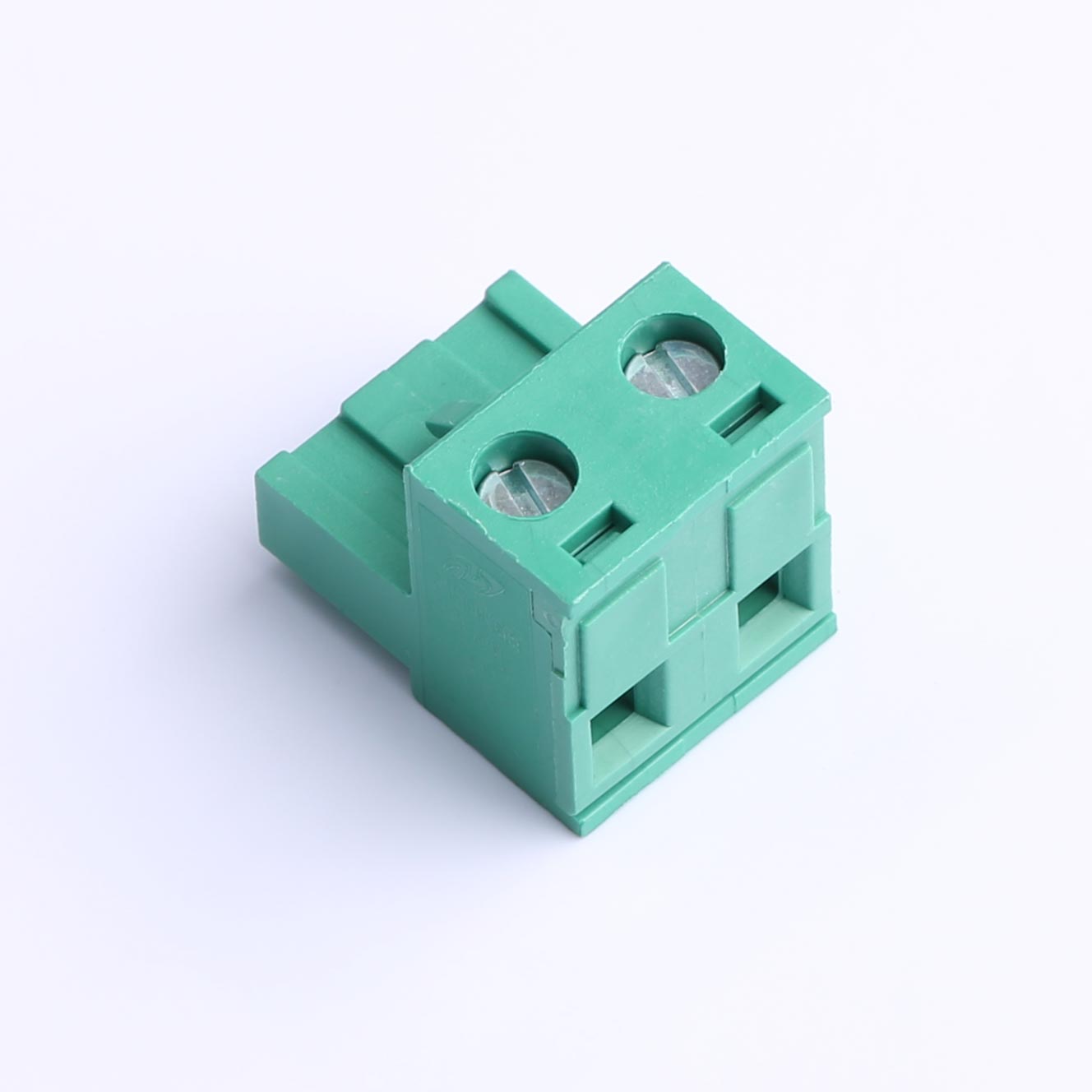

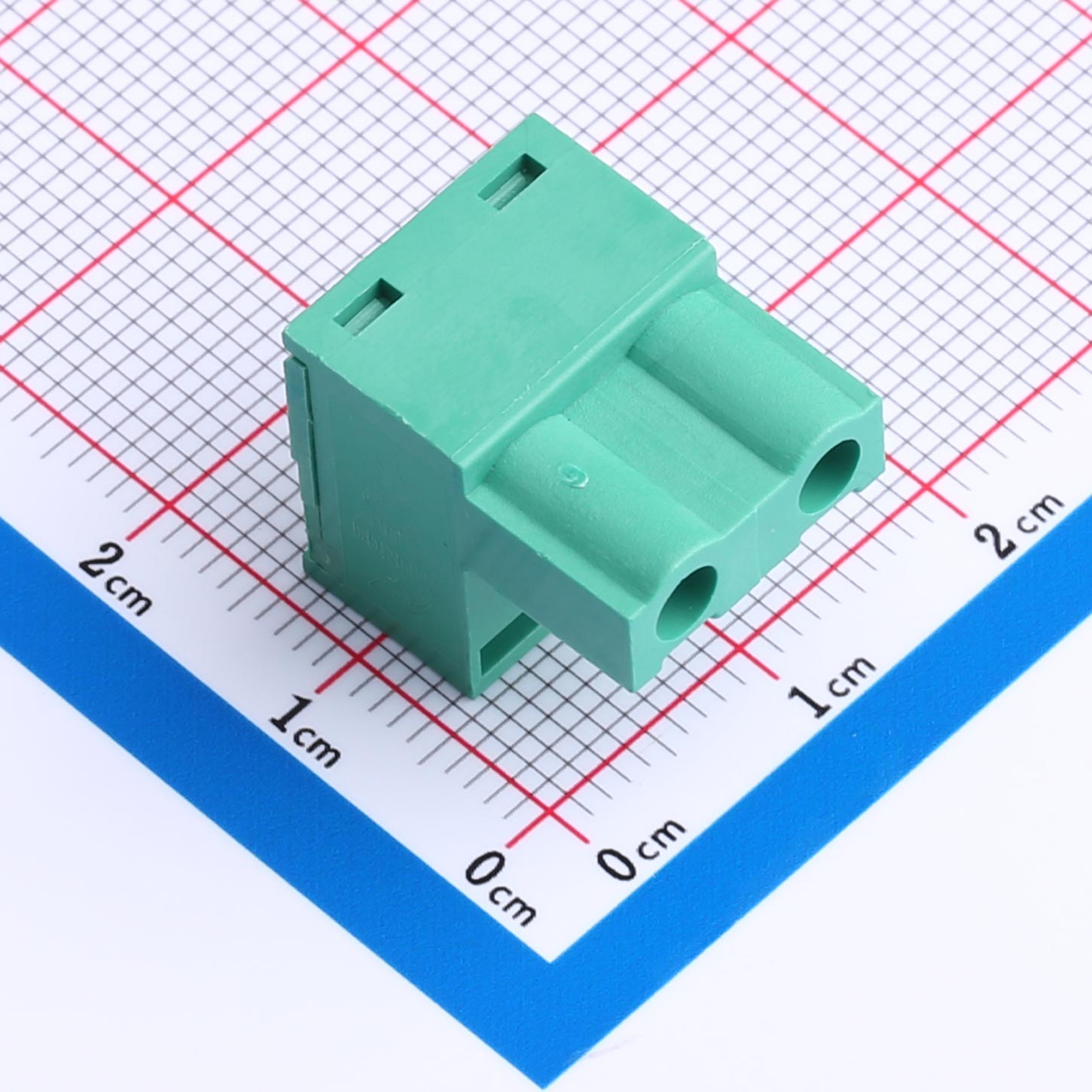

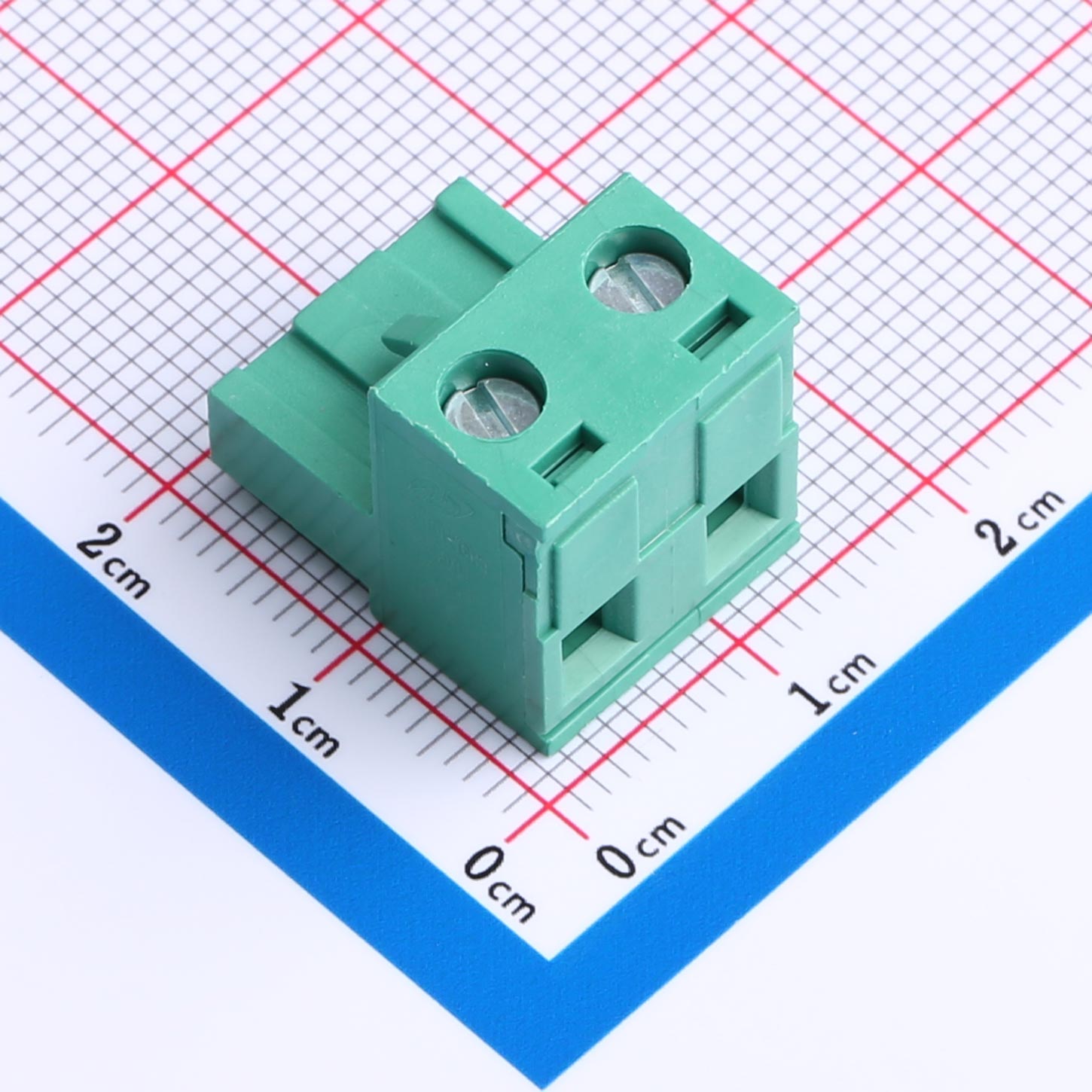

Pluggable Terminal Block, 7.62mm pitch, 2 pin, 15A 300V, KH-ZBK300R-2P-7.62G

Pluggable Terminal Block, 7.62mm pitch, 2 pin, 15A 300V, KH-ZBK300R-2P-7.62G

Rated Voltage & Current: 300V, 15A
Insulation Strength: AC 2000V/min
Insulation Resistance: ≥500MΩ at DC 500V
Operating Temperature Range: -40°C to +105°C
Screw Torque Vlaue: 0.4N.m

Inquiry Datasheet

Product Details

Product Features
● Pitch 7.62mm
● 2 positions 1 row configuration
● Rated voltage 300V and current 15A
● Insulation strength AC 2000V/min
● Insulation resistance ≥500MΩ at DC 500V
● Operating temperature range -40°C to +105°C
● Green color for easy identification

Product Benefits
● Reliable electrical connection
● High insulation for safety
● Operates in extreme temperatures
● Compact and efficient design
● Long-lasting durability
● Simple and fast installation

Product Application
● Electrical control panels
● Industrial circuits
● Automation systems
● Power distribution networks
● Consumer electronics
● Home appliances
