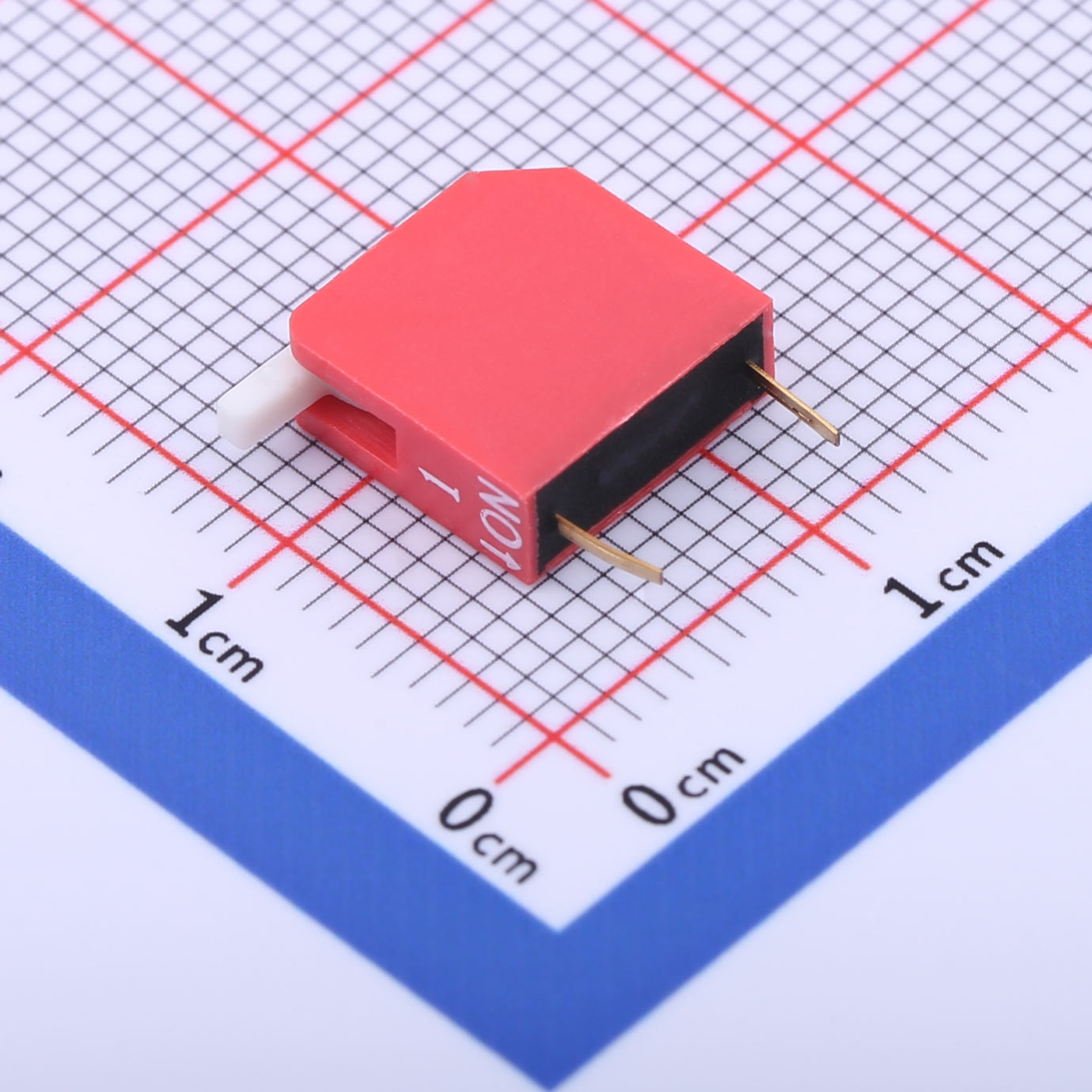

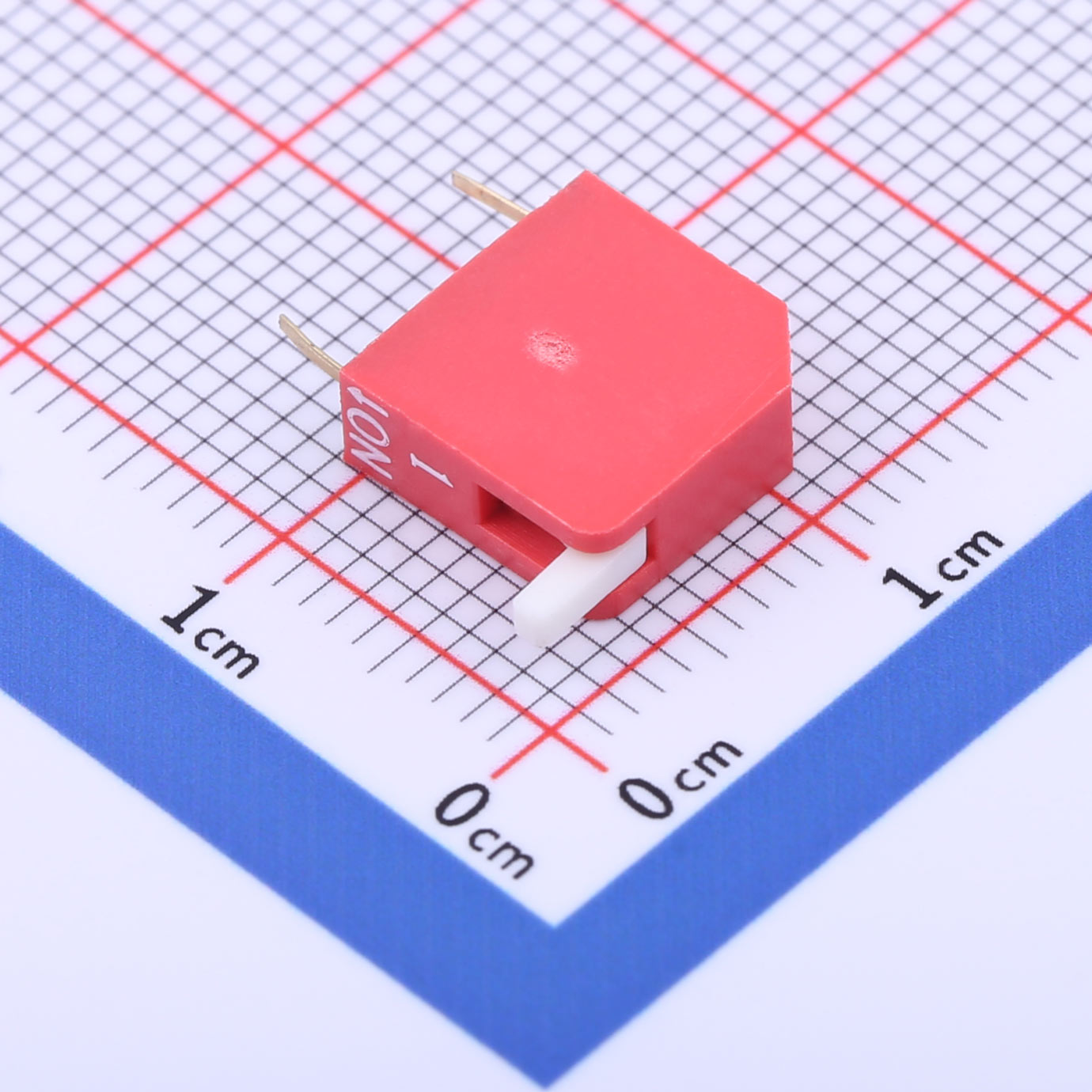

KH-1002-CB2.54-1P, 2.54mm Dip switch, 1P
Contact Resistance: 50mΩ (Initial) Max
Insulation Resistance: 100MΩ at 500VDC Min
Dielectric Strength: 500VAC for 1 minute
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Product Features
● 1P key-type design for easy use
● High-quality materials for stability
● -20℃-+70℃ wide temp range
● 2000 times lifespan for long use
Product Benefits
● Stable and reliable for efficiency
● Key-type design for easy operation
Product Application
● Applied in calculators
● Used in remote controls
● Suitable for small appliances
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
