MCX PCB Connector Kinghelm MCX PCB Connectors are designed for high-frequency RF signal transmission, offering excellent electrical performance and mechanical durability. Compact and reliable, they are ideal for wireless communication, satellite navigation, test equipment, IoT devices, 5G networks, GPS modules, and in-vehicle communication systems.

Products Documents Data

Datasheet 3D Model

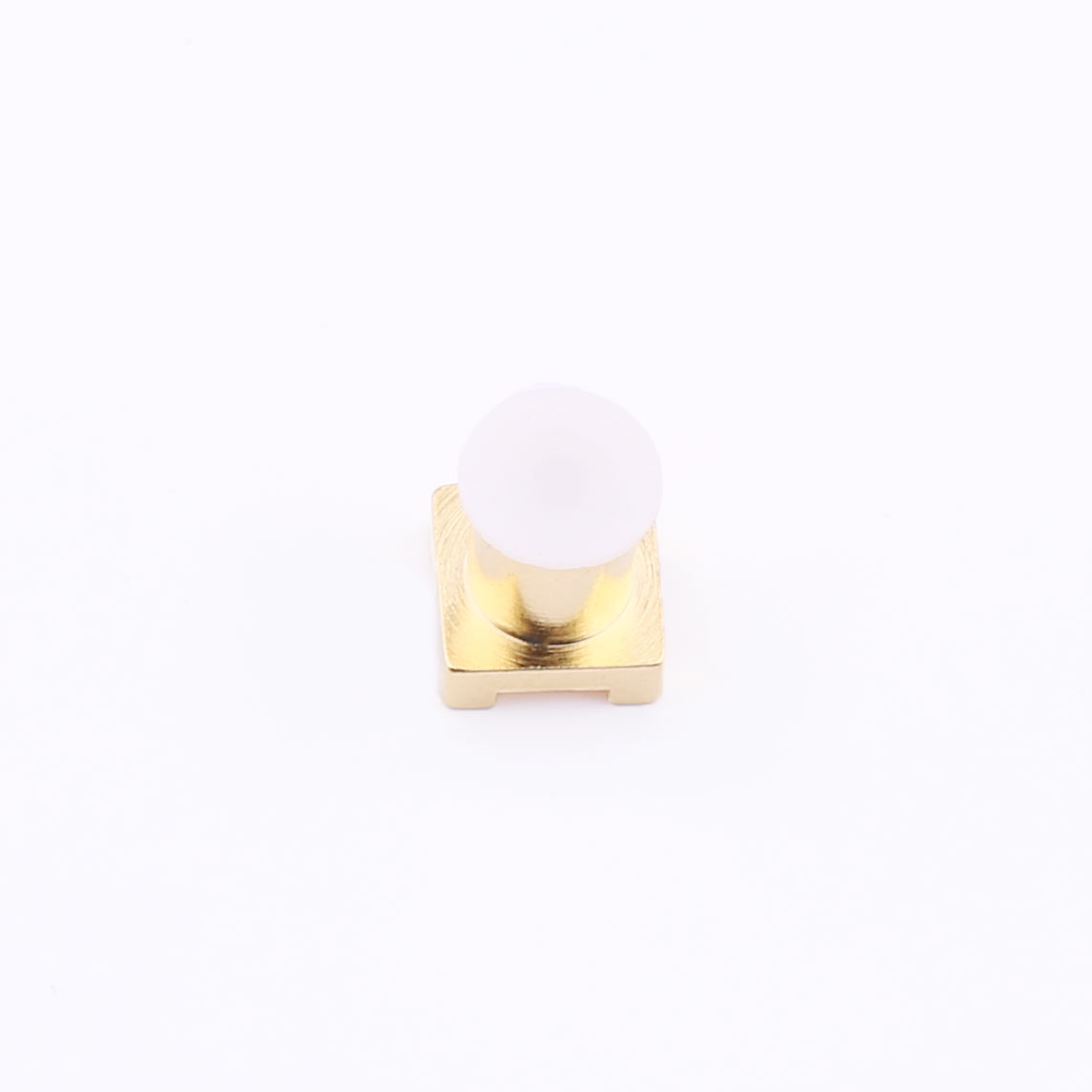

KH-MCX-JE, MCX Male Connector, Through-Hole Type Frequency：DC~6GHz Impedance：50Ω VSWR：≤1.3 Contact Resistance：Center ≤ 5.0 mΩ,Outer ≤ 2.5 mΩ Insulation Resistance： ≥1000MΩ

Datasheet 3D Model

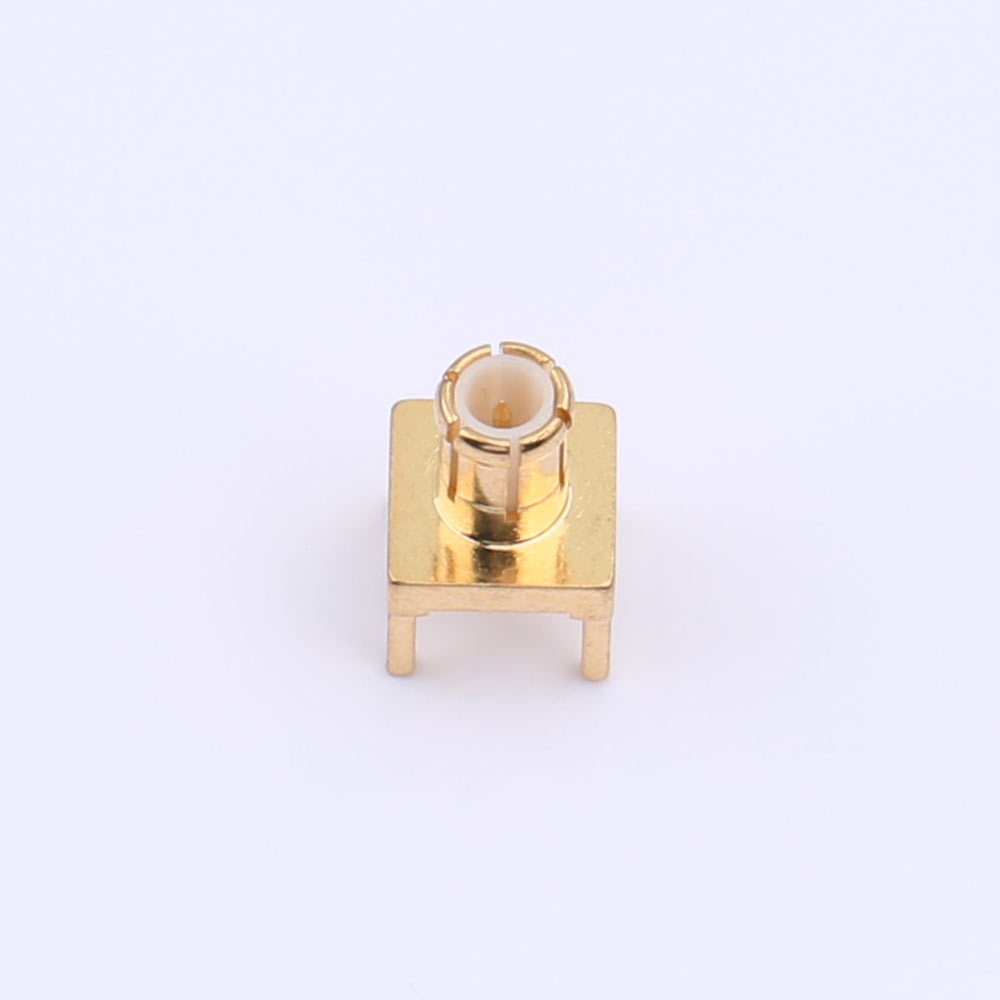

KH-MCX-KE-STM, MCX Connector, Board-End, SMD Frequency：DC~6GHz Impedance：50Ω VSWR：≤1.2 Contact Resistance：Center ≤ 5.0 mΩ,Outer ≤ 2.5 mΩ Insulation Resistance： ≥1000MΩ

Datasheet 3D Model

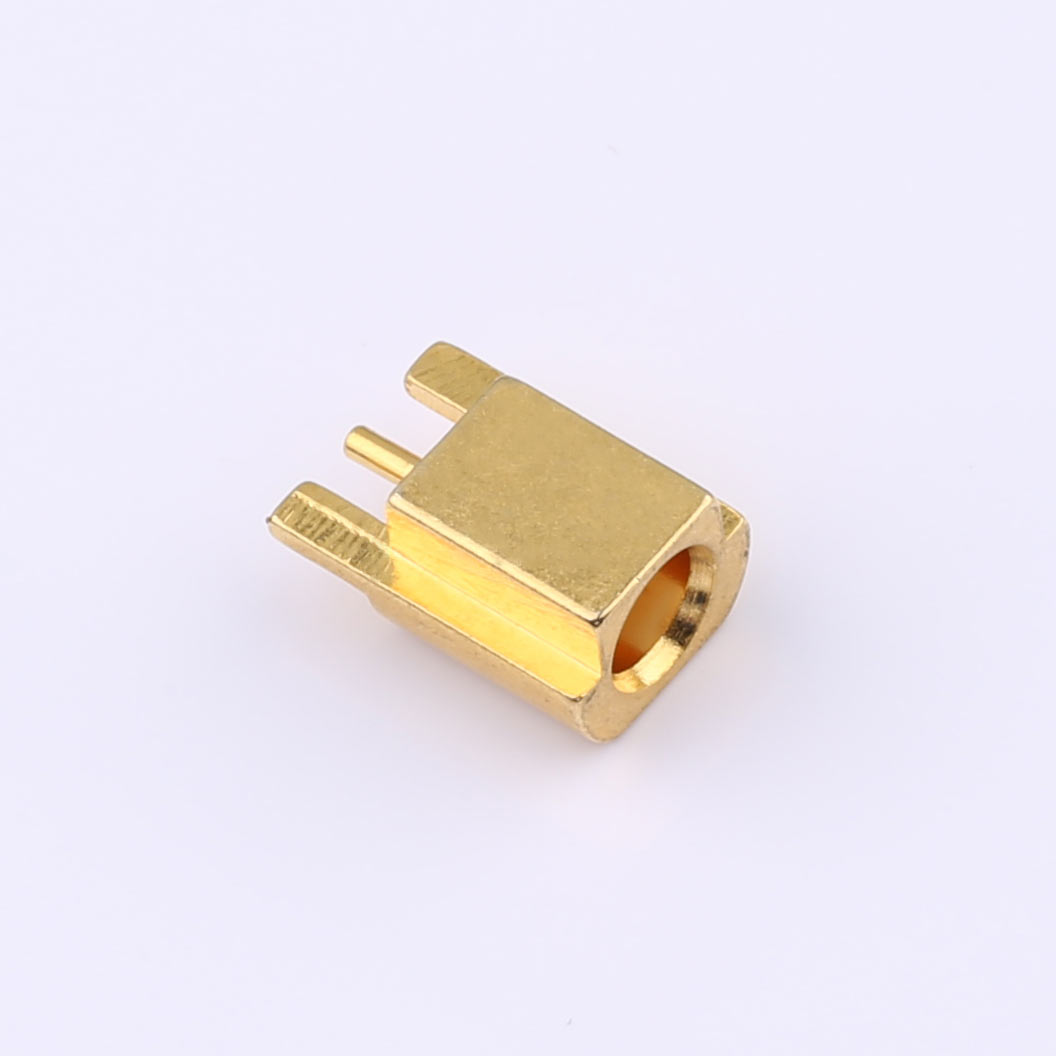

KH-MCX-KE-Z, Kinghelm MCX/MMCX Connector Interface Diameter：4.8mm

Datasheet 3D Model

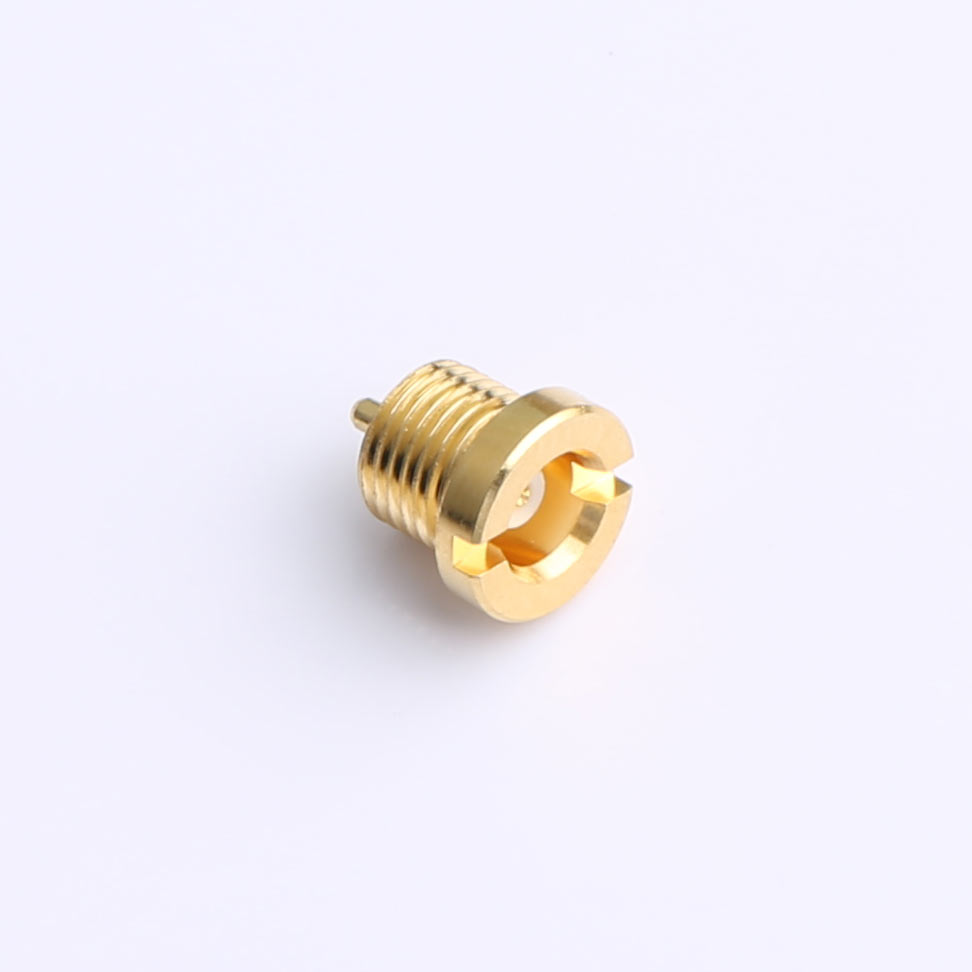

KH-MCX-KWE-W, MCX/MMCX Connector, MCX Jack Edge Mount PCB Receptacle Interface Diameter：4.5mm

Datasheet 3D Model

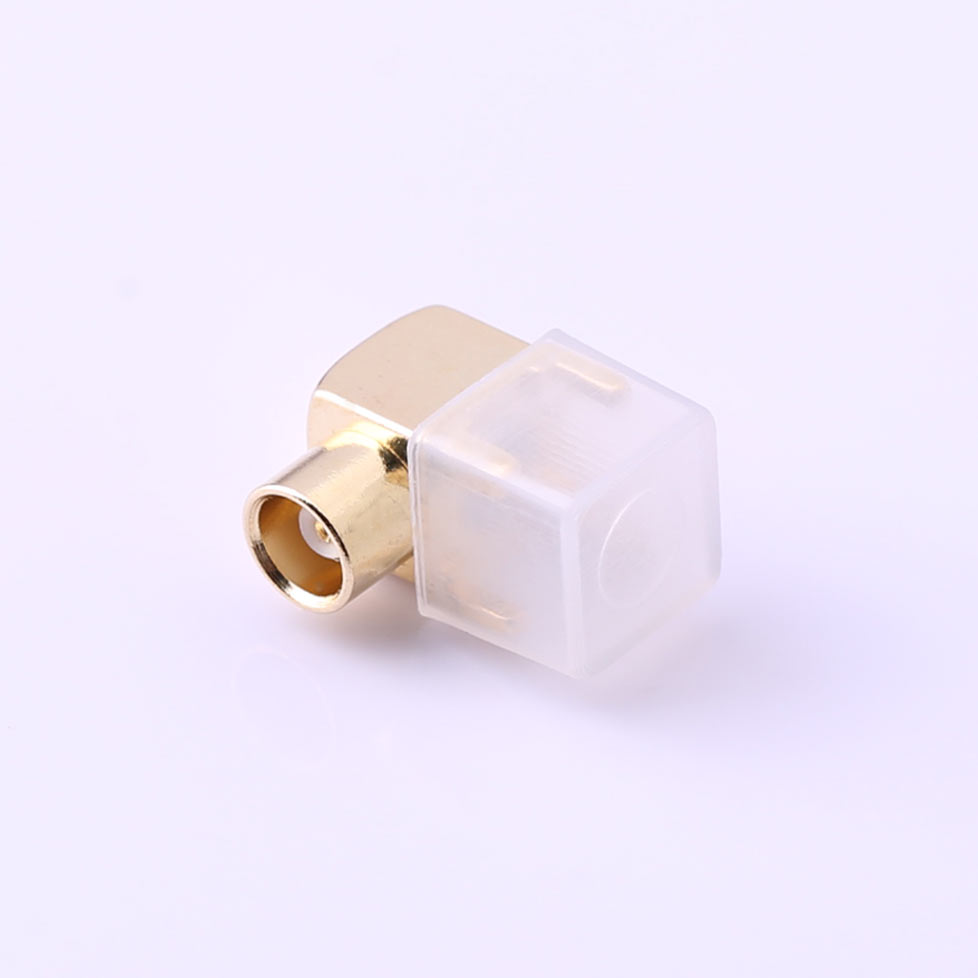

KH-MCX-KYD40, MCX Connector, PCB Mount, 2mm Solder Pin, 7.5mm Length Frequency：DC~6GHz Impedance：50Ω VSWR：Straight<= 1.3 Right Angle<= 1.5 Contact Resistance：Center ≤ 25 mΩ, Outer ≤ 15 mΩ Insulation Resistance： ≥1000MΩ

Datasheet 3D Model

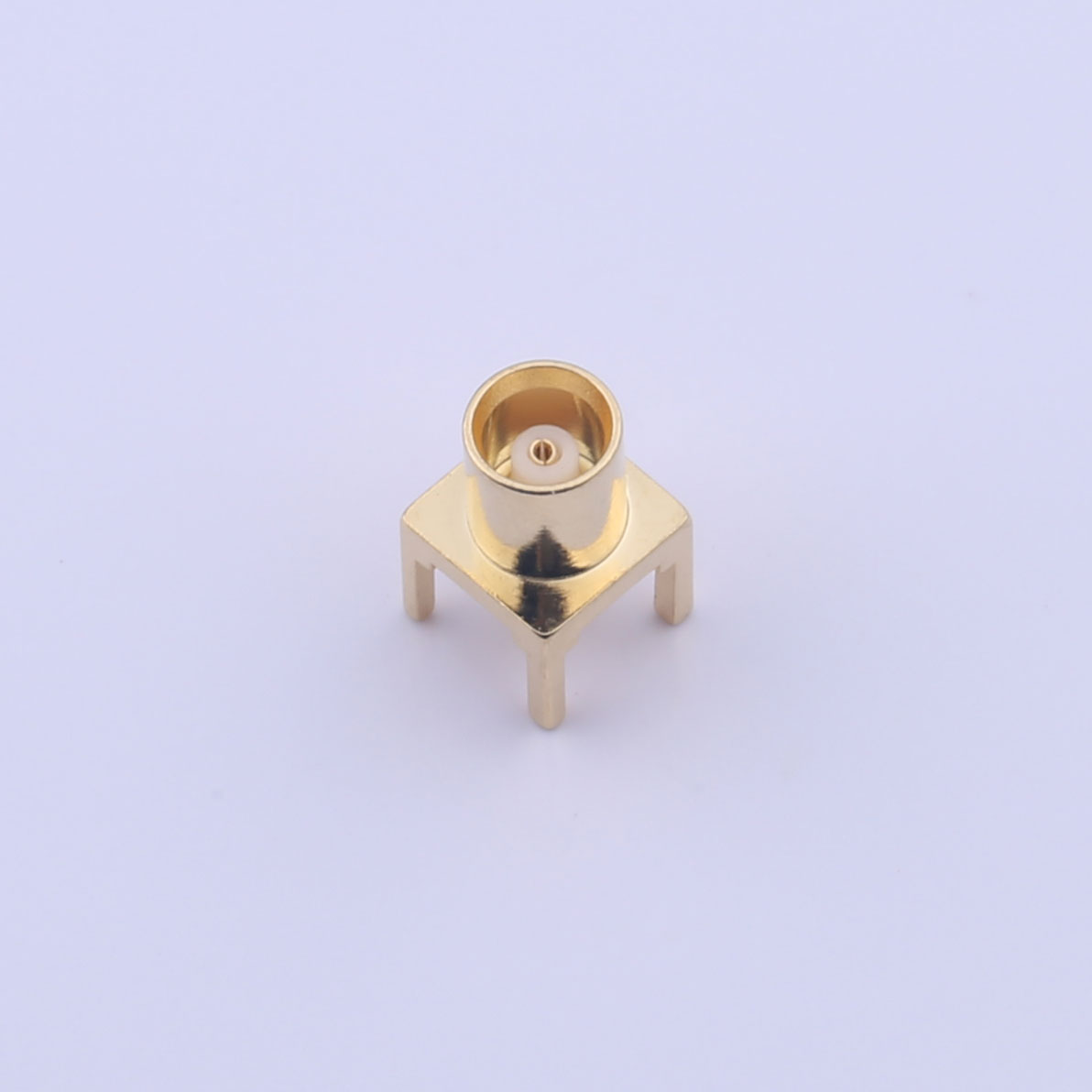

KH-MCX-PBS, MCX Female Connector, PCB Mount, Breakaway Type, DC~3GHz Frequency：DC~3GHz Impedance：50Ω VSWR：<1.45 Contact Resistance：Center ≤ 5.0 mΩ,Outer ≤ 2.5 mΩ Insulation Resistance： ≥1000MΩ
