FAKRA PCB Connector Kinghelm FAKRA PCB Connectors are designed for automotive electronics and high-frequency communication, offering excellent signal transmission and durable mechanical structure. Fully compliant with FAKRA standards, they are ideal for in-vehicle navigation, infotainment, multimedia communication, and ADAS applications, with modular design and robust vibration-, dust-, and water-resistant performance.

Products Documents Data

Datasheet 3D Model

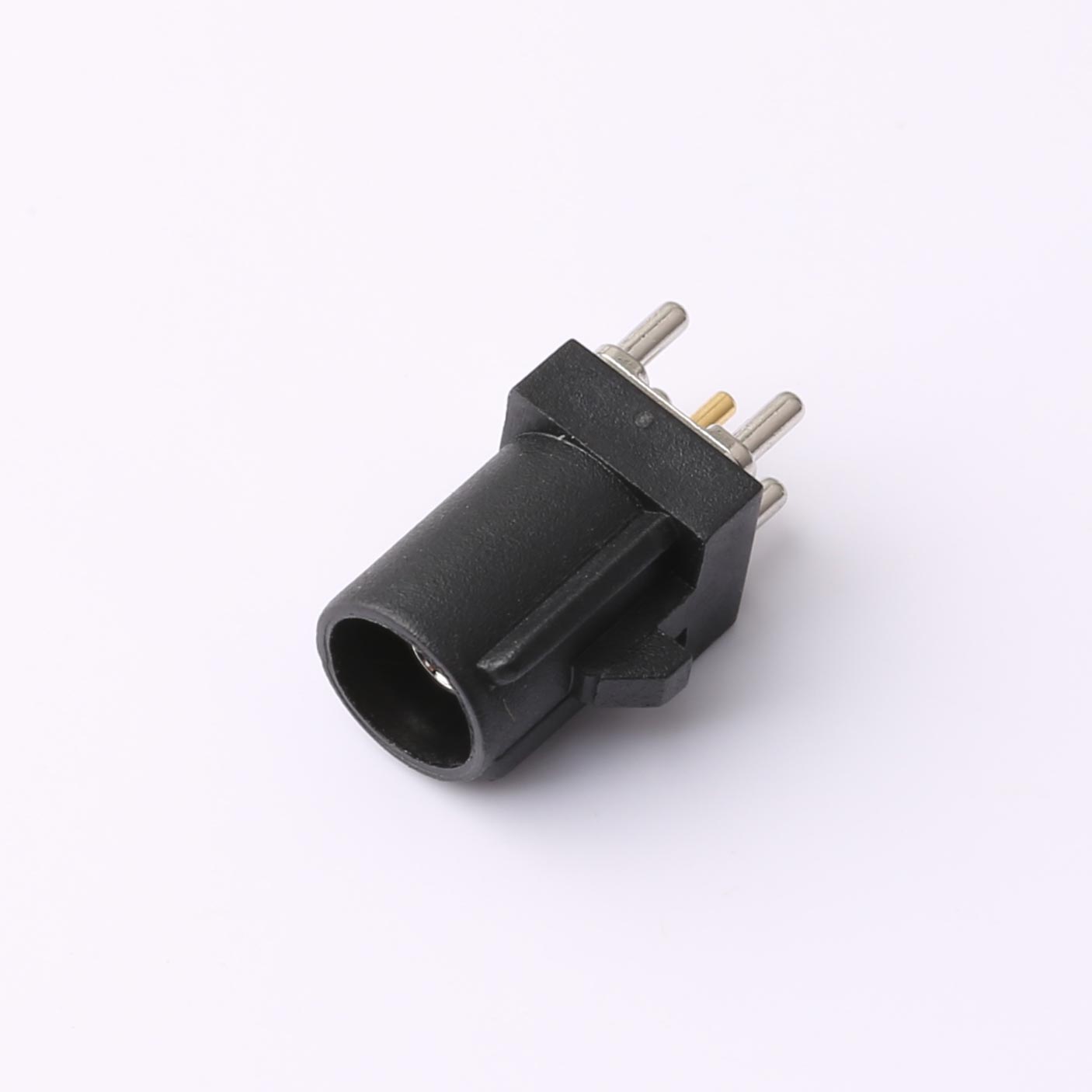

KH-2FK1-A-SM-101, FAKRA RF Black Board-end Antenna Socket, 180° Male Connector Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

KH-2FK1-B-RM-101, Fakra Connector, DC-6 GHz 800V rms Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

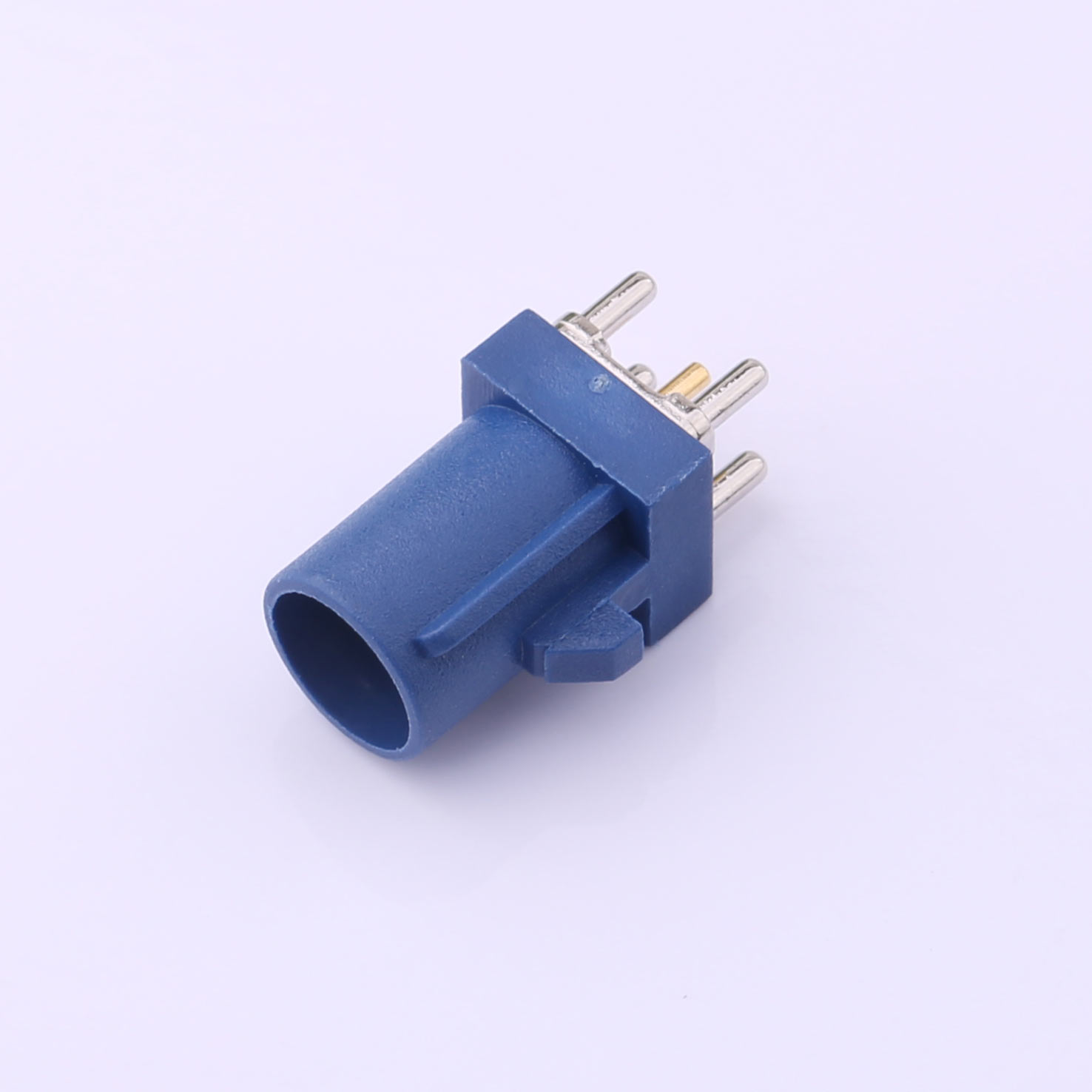

KH-2FK1-B-SM-101, Fakra Connector, DC-6 GHz 800V rms Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

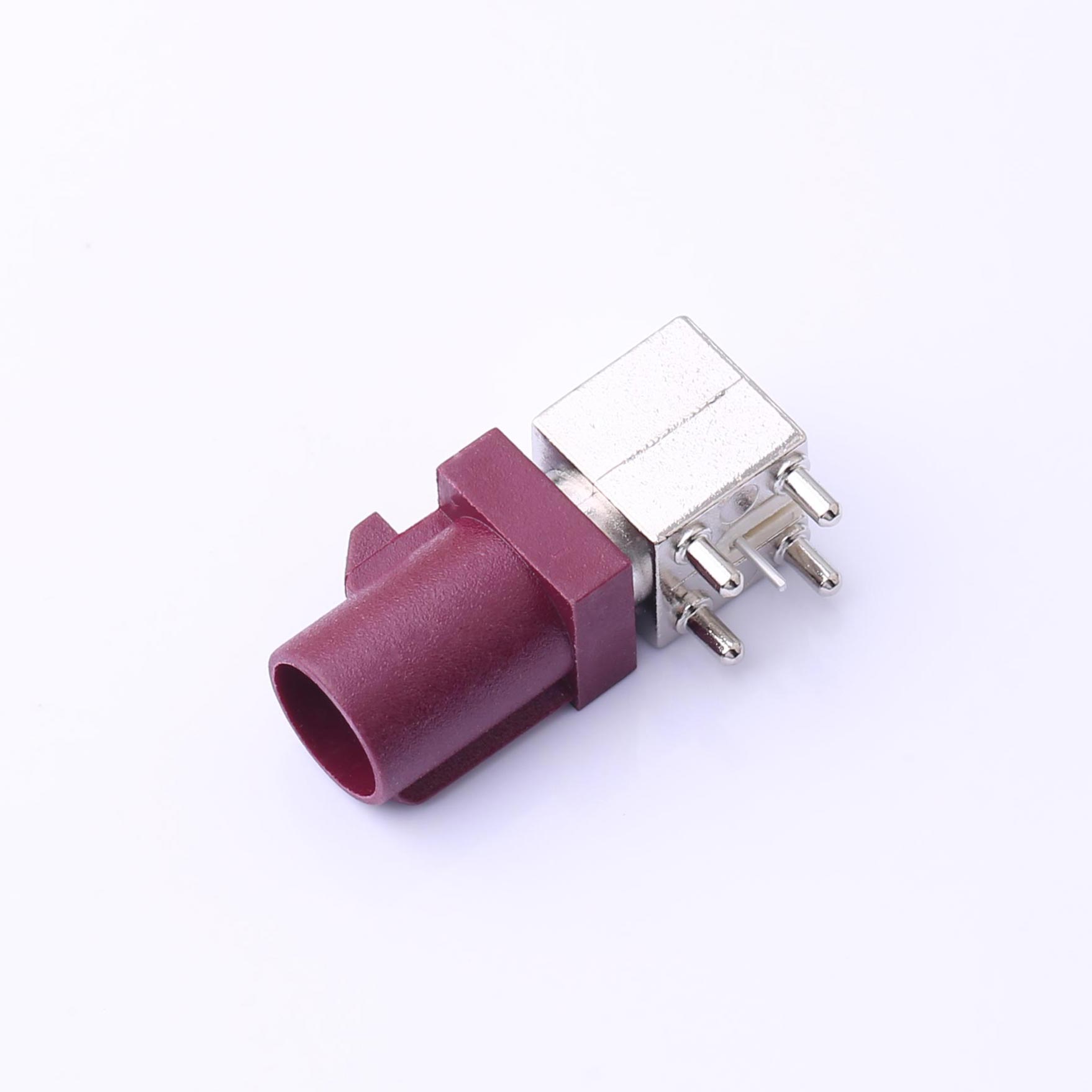

KH-2FK1-C-RM-101, Fakra Connector, DC-6 GHz 800V rms Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

KH-2FK1-C-SM-101, Fakra Connector, DC-6 GHz 800V rm Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

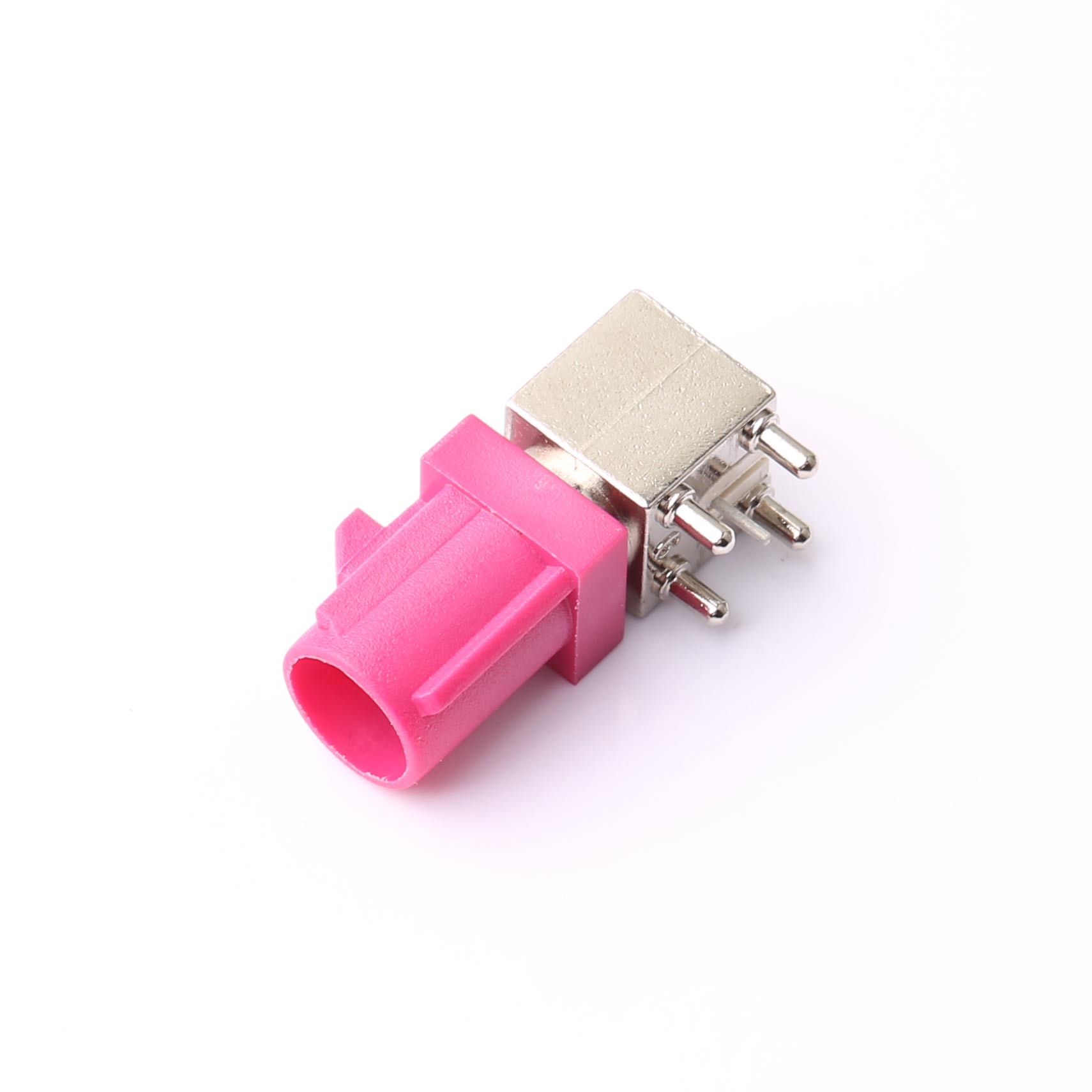

KH-2FK1-D-RM-101, Fakra Connector, DC-6 GHz 800V rms Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

KH-2FK1-D-SM-101, Fakra Connector, DC-6 GHz 800V rms Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

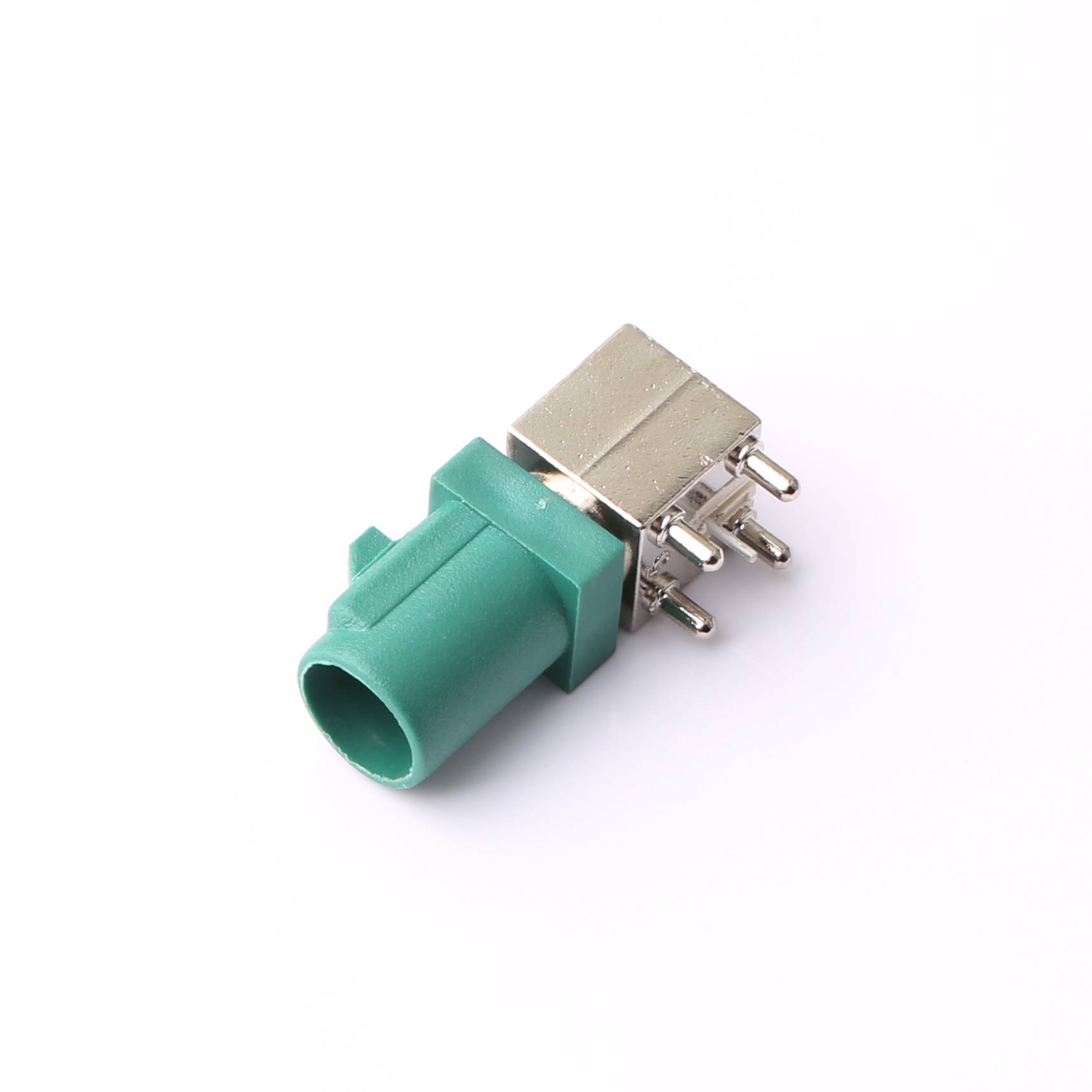

KH-2FK1-E-RM-101, Kinghelm RF Green FAKRA Board End Antenna Socket 90° Male Connector Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

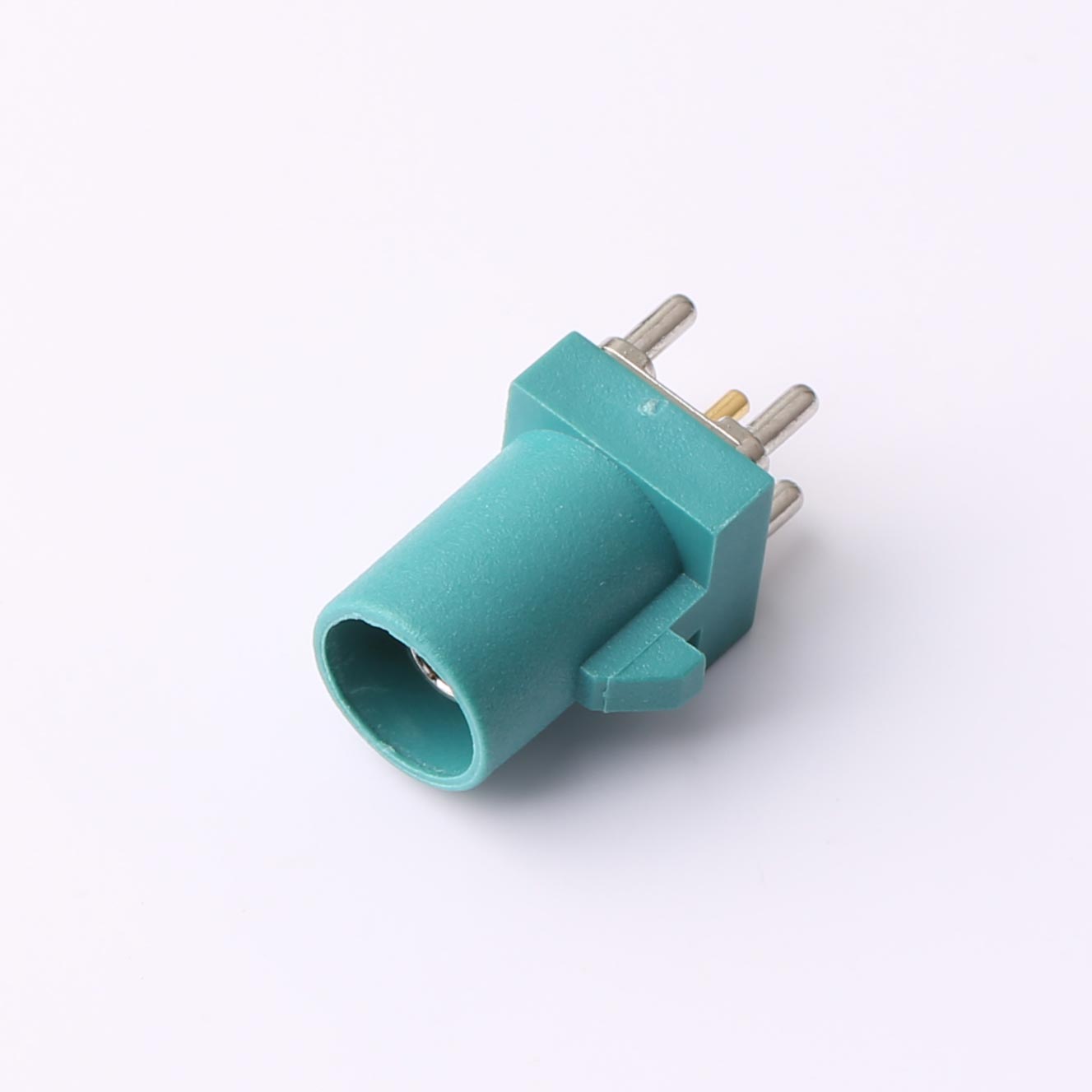

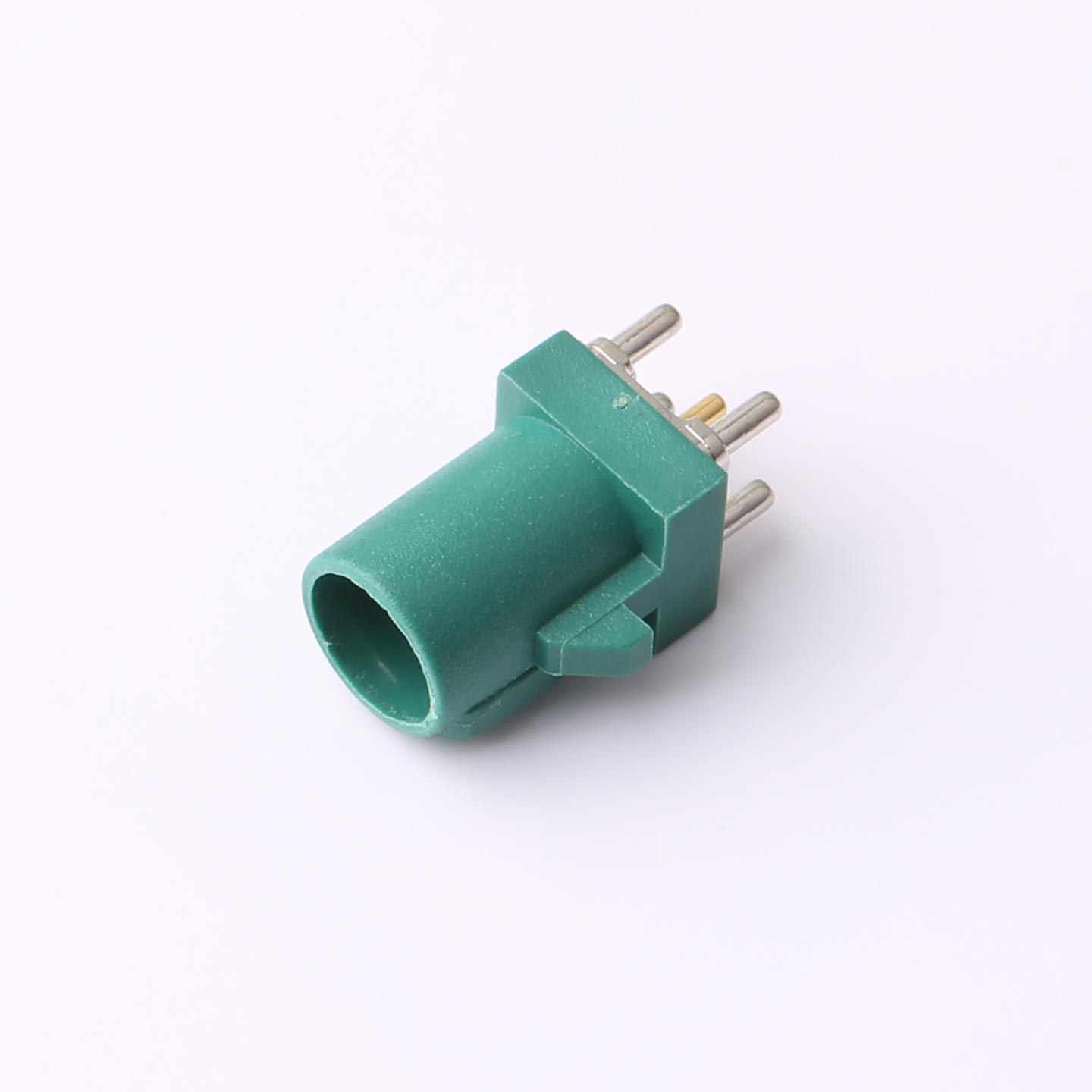

KH-2FK1-E-SM-101, FAKRA RF Green Board-End Antenna Socket, 180° Male Connector Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

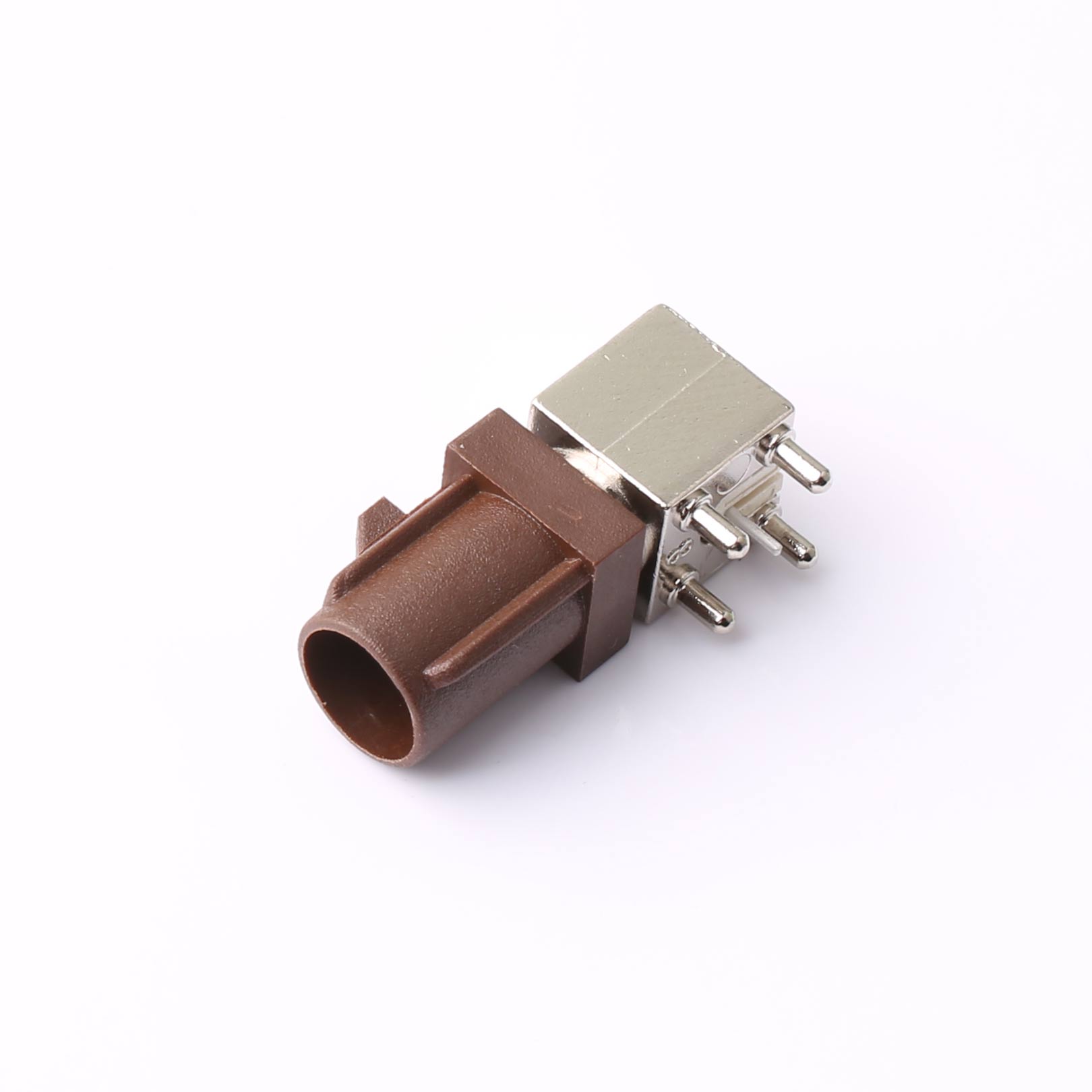

KH-2FK1-F-RM-101, Kinghelm RF Brown FAKRA Board End Antenna Socket 90° Male Connector Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

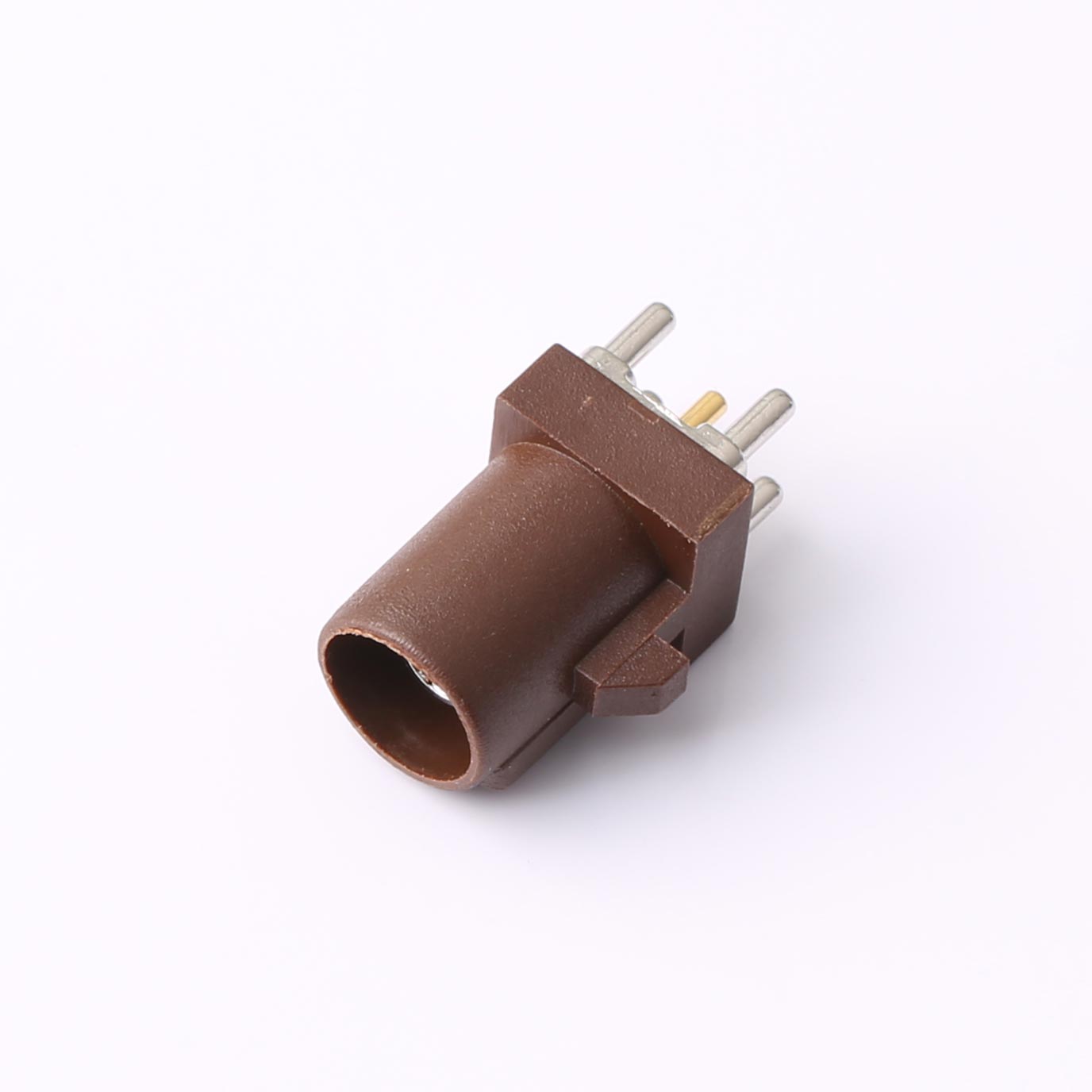

KH-2FK1-F-SM-101, FAKRA RF Brown Board-End Antenna Socket, 180° Male Connector Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

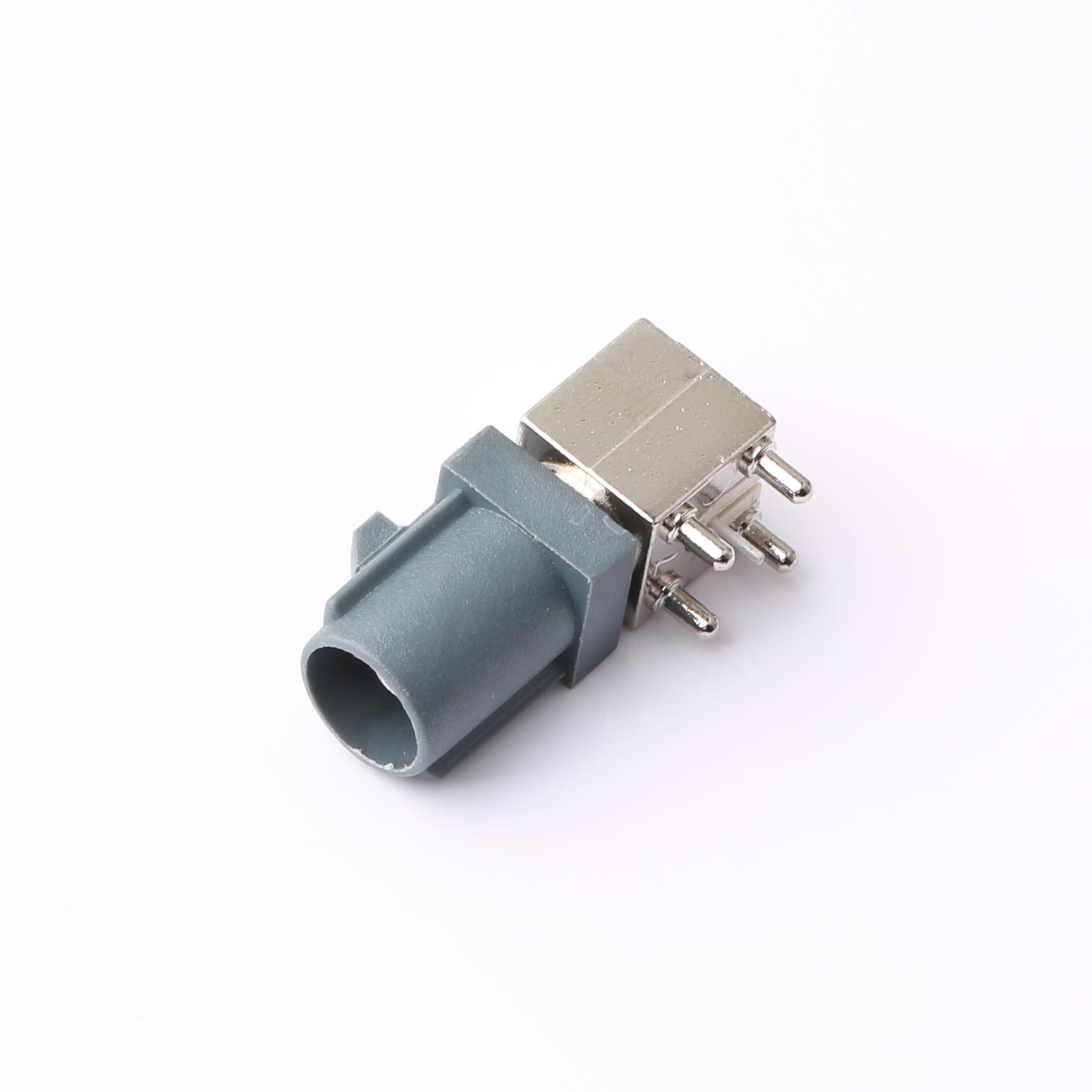

KH-2FK1-G-RM-101, Kinghelm RF Grey FAKRA Board End Antenna Socket 90° Male Connector Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

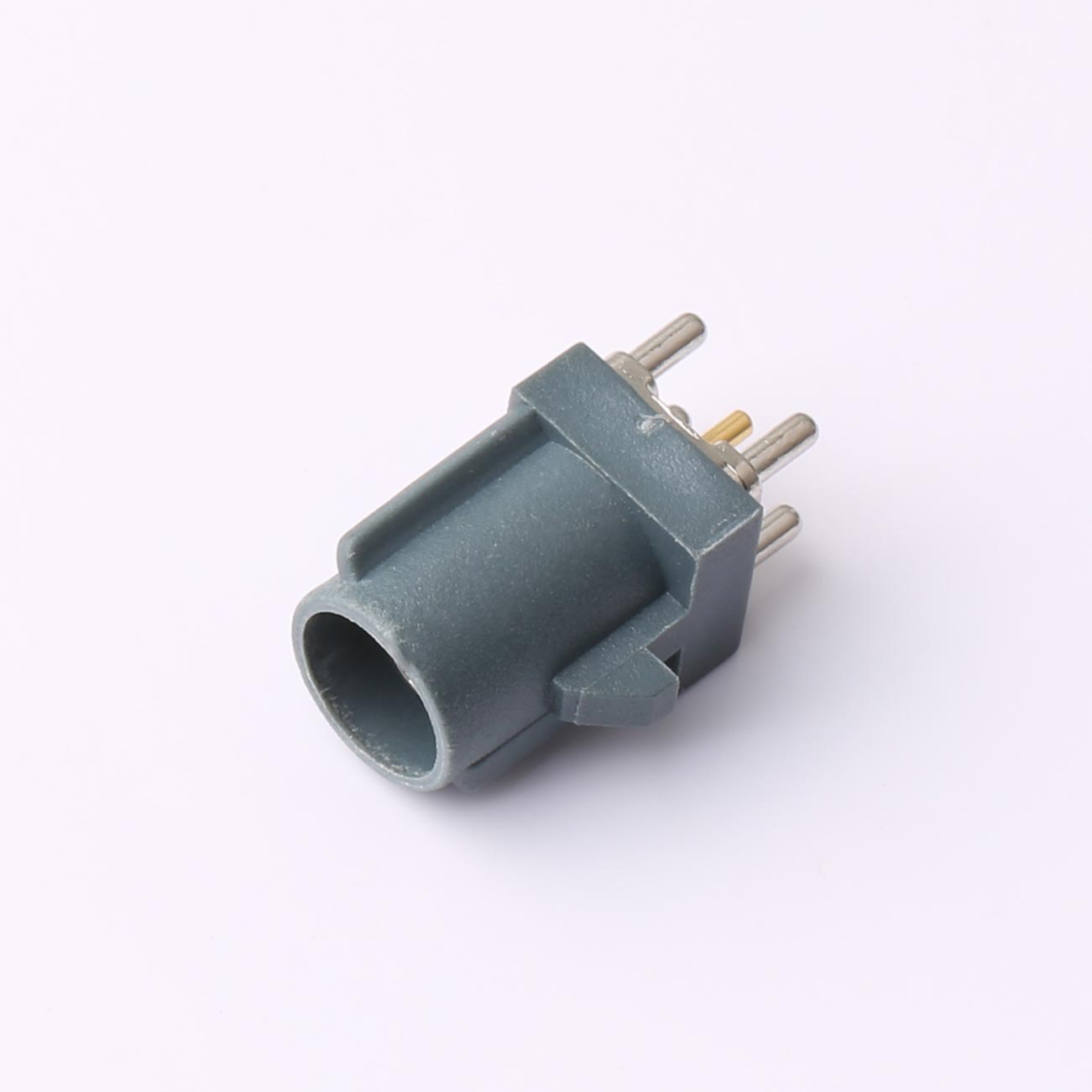

KH-2FK1-G-SM-101, FAKRA RF Gray Board-End Antenna Socket, 180° Male Connector Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

KH-2FK1-H-RM-101, Kinghelm RF Violet FAKRA Board End Antenna Socket 90° Male Connector Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

KH-2FK1-H-SM-101, FAKRA RF Violet Board-End Antenna Socket, 180° Male Connector Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

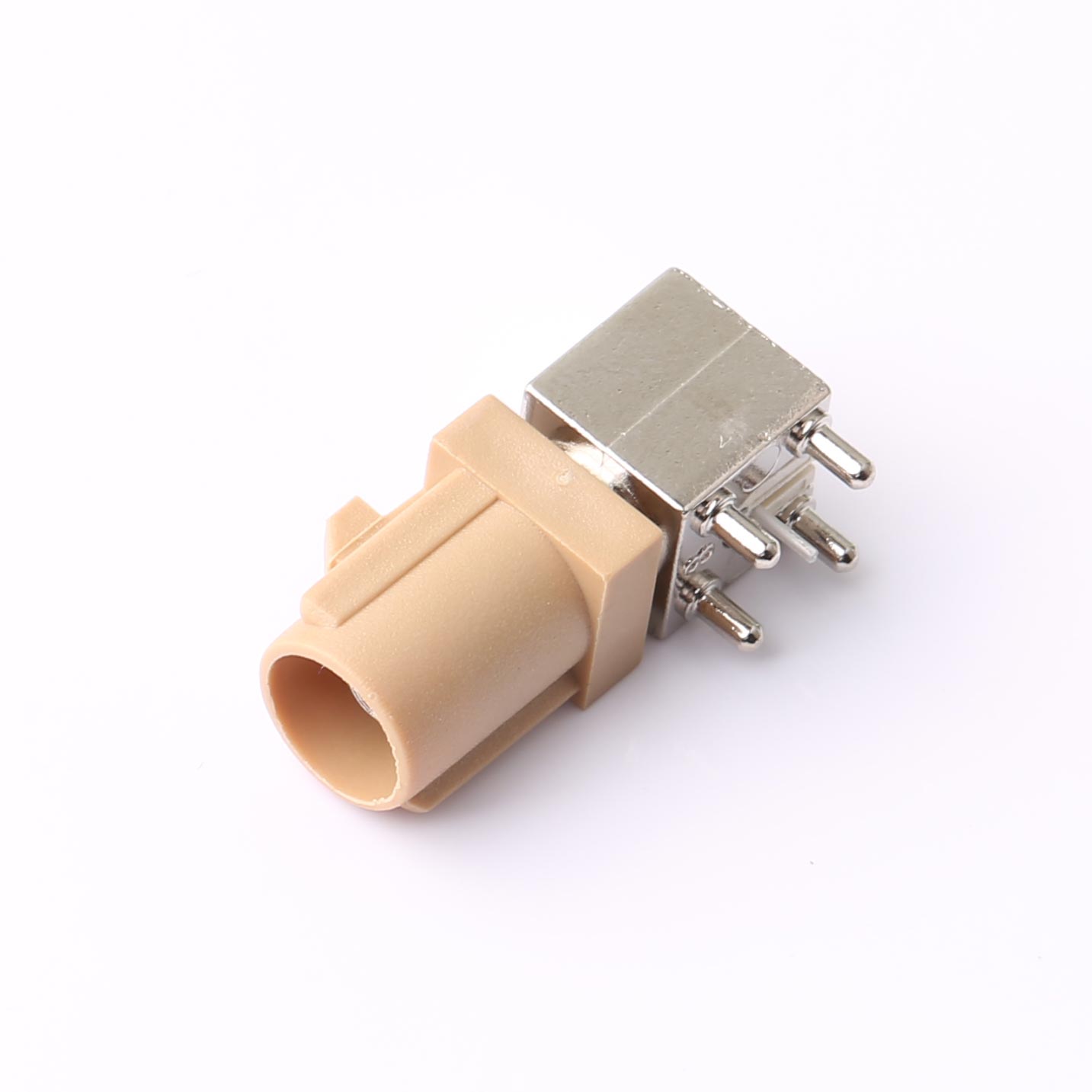

KH-2FK1-I-RM-101, FAKRA RF Beige Board End Antenna Socket 90° Male Connector Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

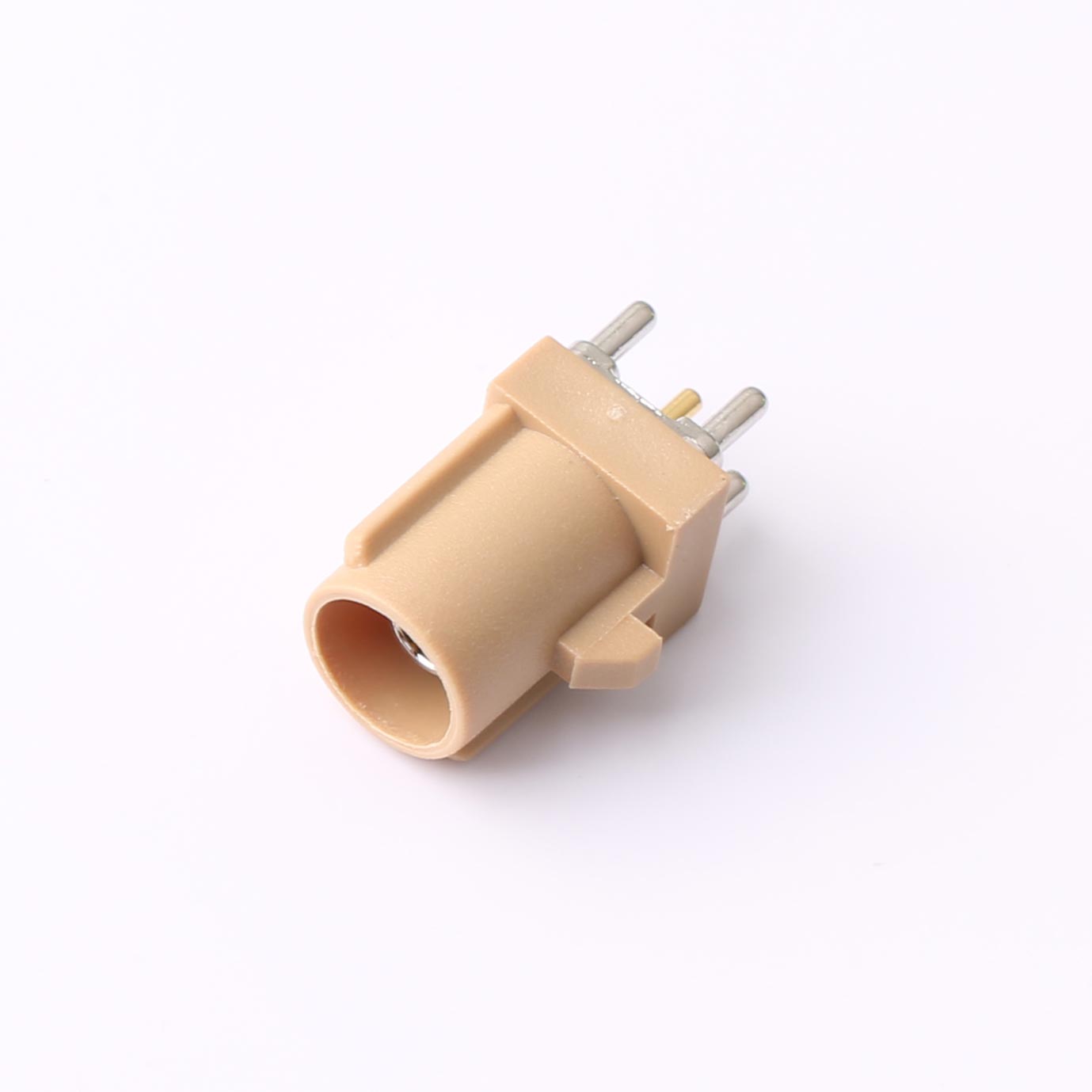

KH-2FK1-I-SM-101, FAKRA RF Beige Board-End Antenna Socket, 180° Male Connector Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

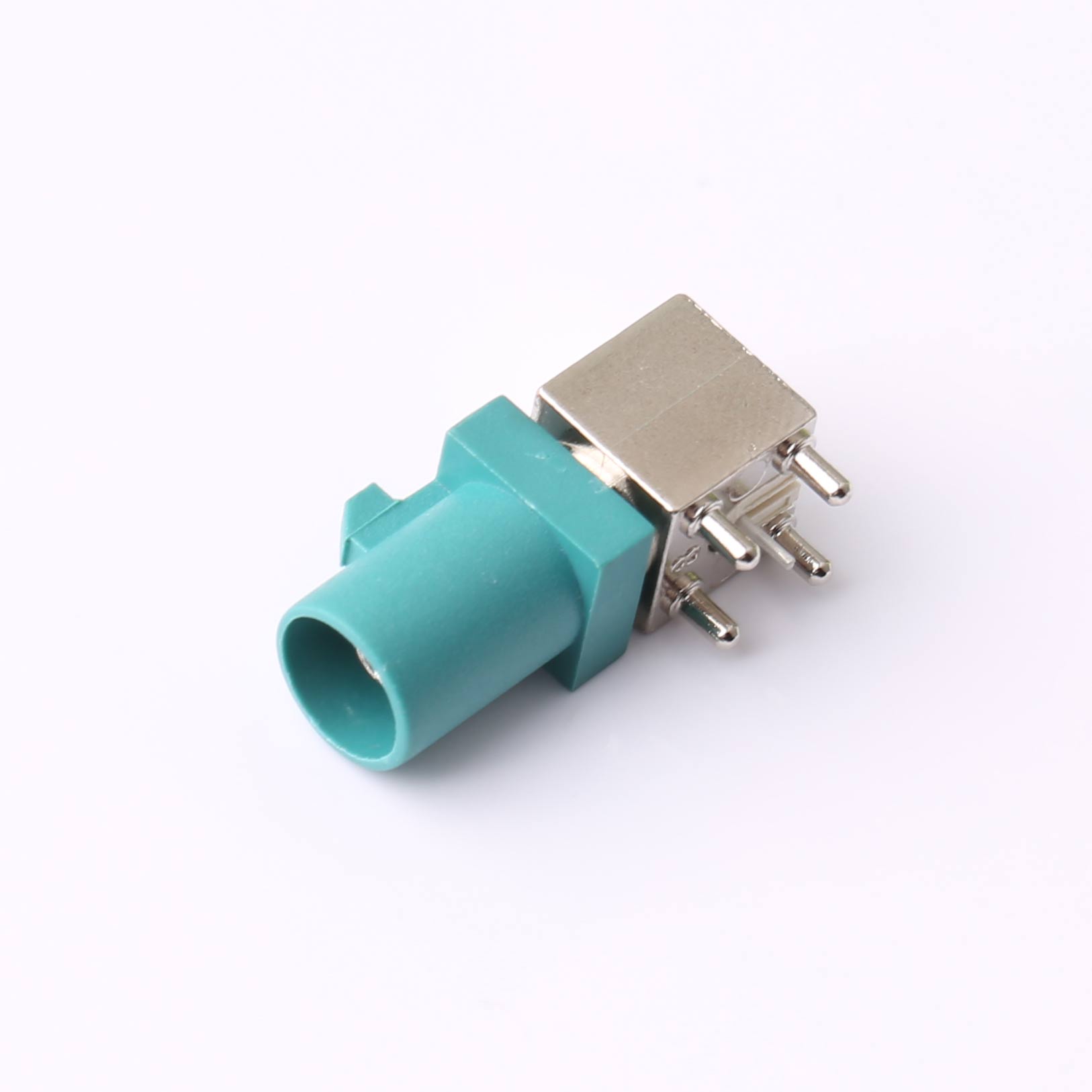

KH-2FK1-Z-RM-101, FAKRA RF Sky Blue Board End Antenna Socket, 90° Male Connector Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

KH-2FK1-Z-SM-101, FAKRA RF Water Blue Board-End Antenna Socket, 180° Male Connector Angle：180° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥100MΩ Operating Temperature：-40℃~+105℃

Datasheet 3D Model

KH-FAK-K508-P, Kinghelm Fakra Connector, 3.0*3.0*1.75mm Angle：90° Male Connector Frequency range：DC – 6GHz Impedance：50Ω Insulation Resistance：≥1000MΩ Operating Temperature：-40℃~+105℃
