Home Product Categories RF Antenna SMT Antenna(Chip Antenna)
SMT Antenna(Chip Antenna) Kinghelm SMT chip antennas offer miniaturized wireless connectivity solutions for Bluetooth, WiFi, GPS, and IoT electronic products.
Bluetooth Patch Antenna
Datasheet 3D Model
KH-1608-H08, Bluetooth Antenna, Omni-Antenna, 2450 MHz Dimensions：1.7*0.93*0.75mm Center Frequency：2450MHz Bandwidth：120MHz Gain：2.28 dBi Impedance：50Ω
Datasheet 3D Model
KH-2012-C04, Bluetooth Antenna,Omni Antenna, 2450MHz Dimensions：2.05*1.23mm Center Frequency：2450MHz Bandwidth：85MHz Gain：1.72 dBi Impedance：50Ω
Datasheet 3D Model

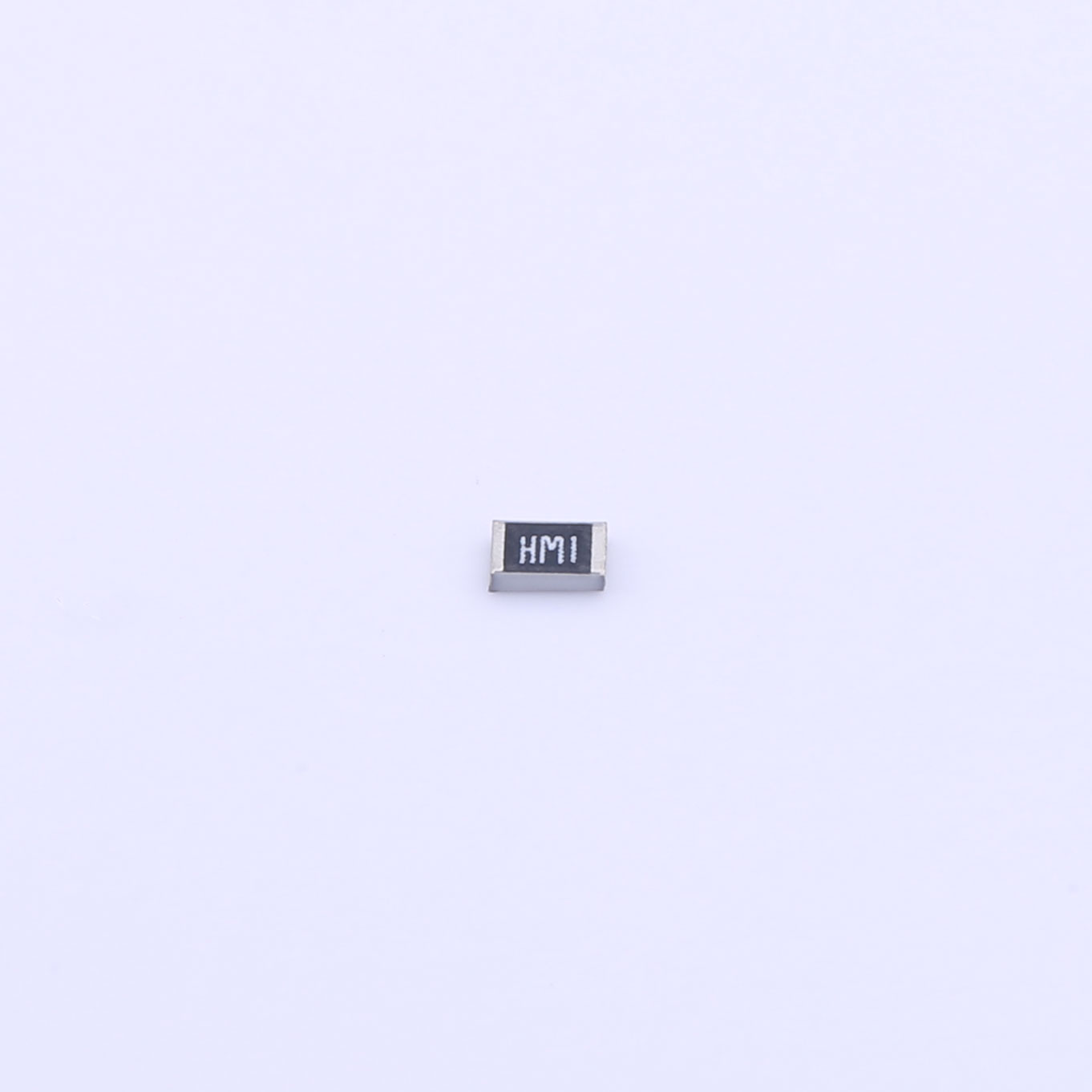

KH-2012-HM1, Bluetooth Antenna, Omni-Antenna, 2450 MHz Dimensions：2*1.2*0.5mm Center Frequency：2450MHz Bandwidth：100MHz Gain：3.12 dBi Impedance：50Ω
Datasheet 3D Model
KH-3216-A27, Bluetooth Chip Antenna, Omni-Antenna, 3.2x1.6mm Dimensions：3.2*1.6mm Center Frequency：2450MHz Bandwidth：100MHz Gain：5.54 dBi Impedance：50Ω
Datasheet 3D Model
KH-3216-A35, Chip Ceramic Antenna Dimensions：3.2*1.6mm Center Frequency：2875MHz Bandwidth：100MHz Gain：5.19 dBi Impedance：50Ω
Datasheet 3D Model
KH-3216-H0209, Bluetooth Antenna, Omni-Antenna, 2450MHz Dimensions：3.23*1.66*0.45mm Center Frequency：2450MHz Bandwidth：120MHz Gain：1.71 dBi Impedance：50Ω
Datasheet 3D Model
KH-3216F245C04, Bluetooth Patch Antenna, Omni-Antenna, 2450 MHz Dimensions：3.23*1.66*0.45mm Center Frequency：2450MHz Bandwidth：120MHz Gain：1.75 dBi Impedance：50Ω
Datasheet 3D Model
KH-3216F245W36, Bluetooth Patch Antenna, Omni-Antenna, 2450 MHz, 3.2 x 1.6 mm Dimensions：3.23*1.66*1.23mm Center Frequency：2450MHz Bandwidth：100MHz Gain：2.71 dBi Impedance：50Ω
Datasheet 3D Model
KH-351519-TP, Bluetooth Antenna, 3.5*1.5*1.9 mm Dimensions：3.5*1.5*1.9mm
Datasheet 3D Model
KH-351525-TP, Bluetooth Antenna, RF Antenna Spring SMTL, 3.5m x 1.5m x 2.5mm Dimensions：3.5*1.5*2.5mm
Datasheet 3D Model
KH-5020D245M0X, Bluetooth Antenna, Omni-Antenna, 2450 MHz Center Frequency：2450MHz Bandwidth：100MHz Impedance：50Ω
Datasheet 3D Model
KH-5020D245M0X, Bluetooth Antenna, Omni-Antenna, 2450 MHz Dimensions：5×2mm Center Frequency：2450MHz Bandwidth：100MHz Gain：3.19 dBi Impedance：50Ω
Datasheet 3D Model
KH-5220-A56, Bluetooth Chip Antenna,4.91 dBi, 2450 MHz, 5.2x2.0mm, Linear Polarization Dimensions：5.2*2.0*0.6mm Center Frequency：2450MHz Bandwidth：100MHz Gain：4.91 dBi Impedance：50Ω
Datasheet 3D Model
KH-RFECA3216060A1T_V09, Kinghelm Bluetooth Antenna Dimensions：3.2*1.6*0.6mm Center Frequency：2450MHz Bandwidth：83.5MHz Gain： 2 dBi Impedance：50Ω
Datasheet 3D Model
KH2012-D002CS, Bluetooth Antenna, Omni-Antenna, 2670 MHz Dimensions：2.3*1.55mm Center Frequency：2450MHz Bandwidth：100MHz Gain：2.48 dBi Impedance：50Ω
Datasheet 3D Model
KH3216-G8, Bluetooth Antenna, Omni-Antenna, 2545 MHz Dimensions：3.2*1.6*0.5mm Center Frequency：2450MHz Bandwidth：100MHz Gain：5.54 dBi Impedance：50Ω
Datasheet 3D Model
KH5220-A36, Bluetooth Antenna, Omni-Directional, 4.97 dBi Gain, Linear Polarization Dimensions：5.2*2*1.2mm Center Frequency：2450MHz Bandwidth：100MHz Gain：4.97 dBi Impedance：50Ω
