PCB Antenna
Kinghelm PCB antennas use high-precision circuit board design to integrate seamlessly with host devices, offering compact size with excellent radiation performance and stable gain. Flexible designs support Wi-Fi, Bluetooth, Zigbee, NB-IoT, and other wireless modules, providing reliable, low-power connectivity for smart home, wearable, and IoT applications.
KH-(2400)-K504-JB, PCB Antenna,3 dBi,2400-2500MHZ
Classfication：PCB Antenna
Frequency Range：2400-2500MHZ
Band Width：100MHz
Gain：3 dBi
Impedance：50Ω

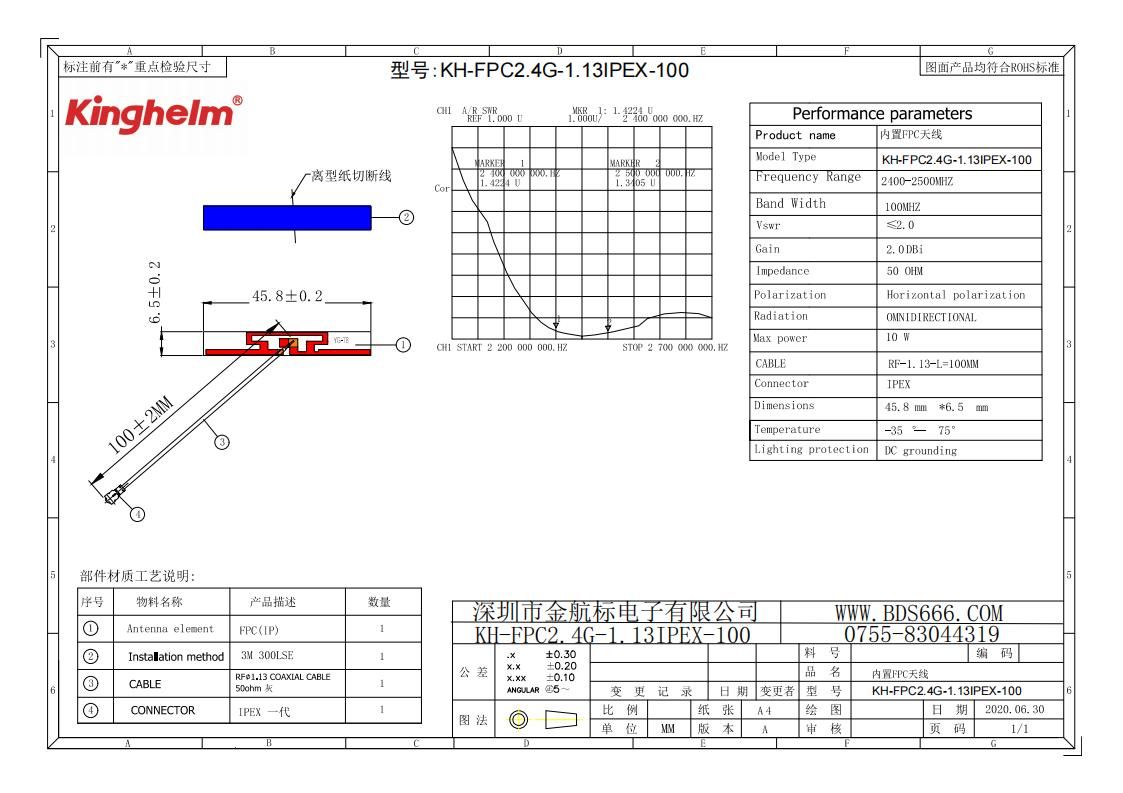

KH-FPC2.4G-1.13IPEX-100, PCB Antenna,2 dBi,2400-2500MHZ,45.8mm*6.5mm
Classfication：PCB Antenna
Frequency Range：2400-2500MHZ
Band Width：100MHz
Gain：2.0 dBi
Impedance：50Ω
KH-FPC2.4G-1.13IPEX-100-3239, PCB Antenna,5 dBi,2400-2500MHZ,32mm*49mm
Classfication：PCB Antenna
Frequency Range：2400-2500MHZ
Band Width：100MHz
Gain：5 dBi
Impedance：50Ω
KH-FPC2.4G-1.13IPEX-240, FPC Antenna,Built-in FPC Antenna,2 dBi,45.8mm*6.5mm
Classfication：FPC Antenna
Frequency Range：2400-2500MHZ
Band Width：100MHz
Gain：2.0 dBi
Impedance：50Ω

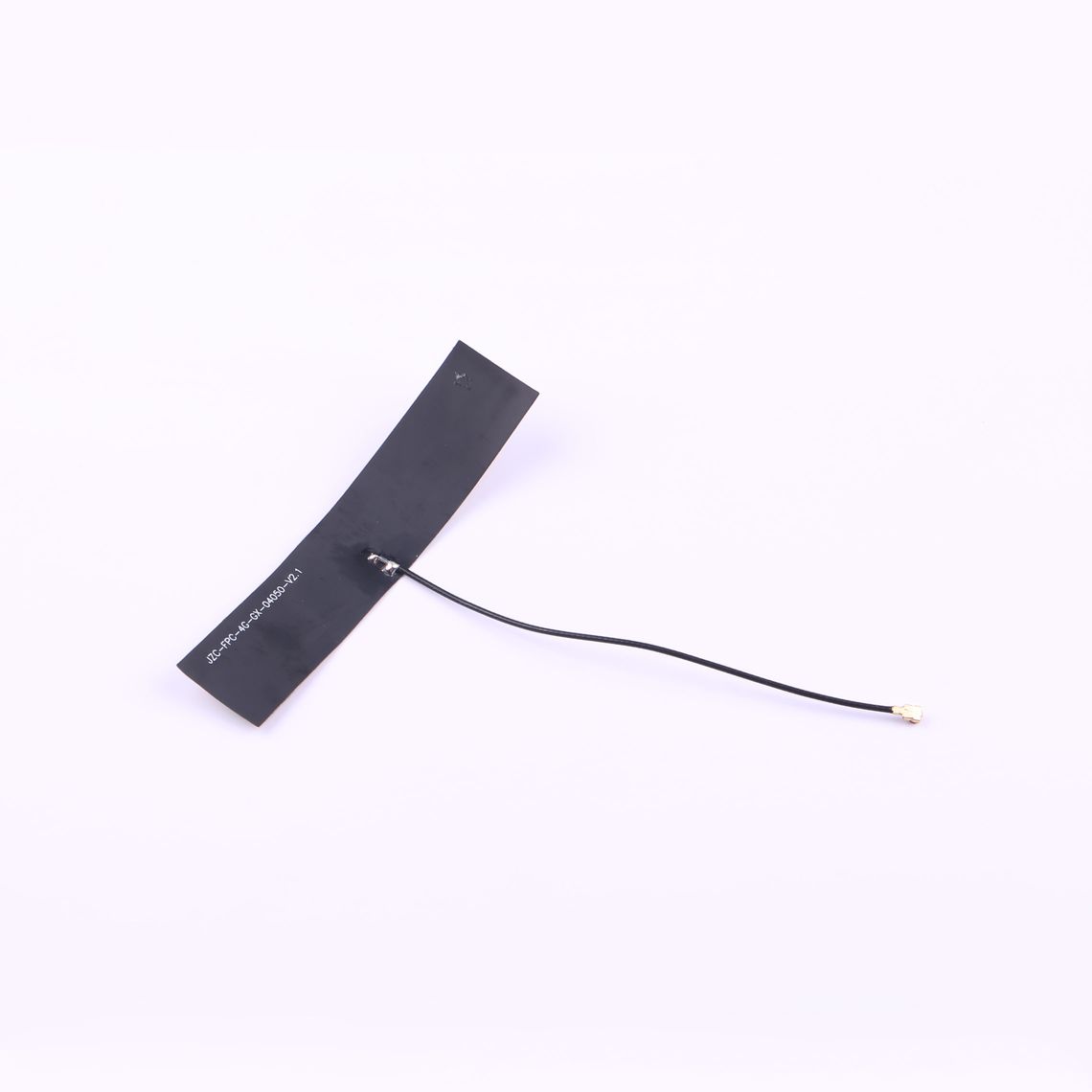

KH-FPC4G-1.13IPEX-100, FPC Antenna,Built-in 4G FPC Antenna,2.5 dBi,89mm*18.8mm
Classfication：FPC Antenna
Frequency Range：700MHz~960MHz,1.71GHz~2.7GHz
Band Width：260/990
Gain：2.5 dBi
Impedance：50Ω

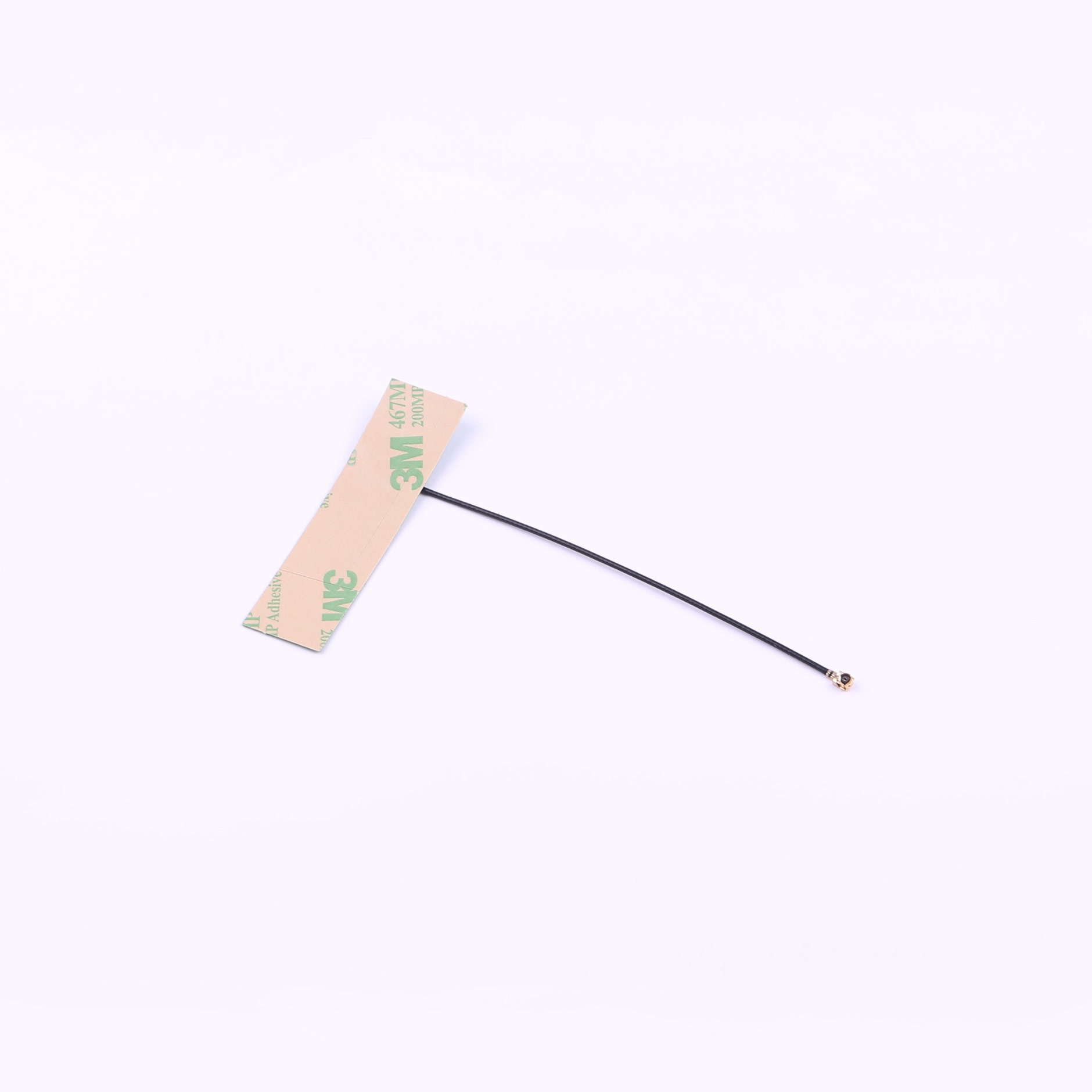

KH-FPC4G-1.13IPEX-100-6417, FPC Antenna,Built-in FPC Antenna,2 dBi,64mm*17mm
Classfication：FPC Antenna
Frequency Range：700MHz~960MHz,1.71GHz~2.7GHz
Band Width：260/990
Gain：2 dBi
Impedance：50Ω
