Home Product Categories Data Signal Connectors Connector Series IDC Connector
IDC Connector Kinghelm IDC connectors offer reliable cable termination and efficient signal transmission for electronic and industrial applications.
Datasheet 3D Model

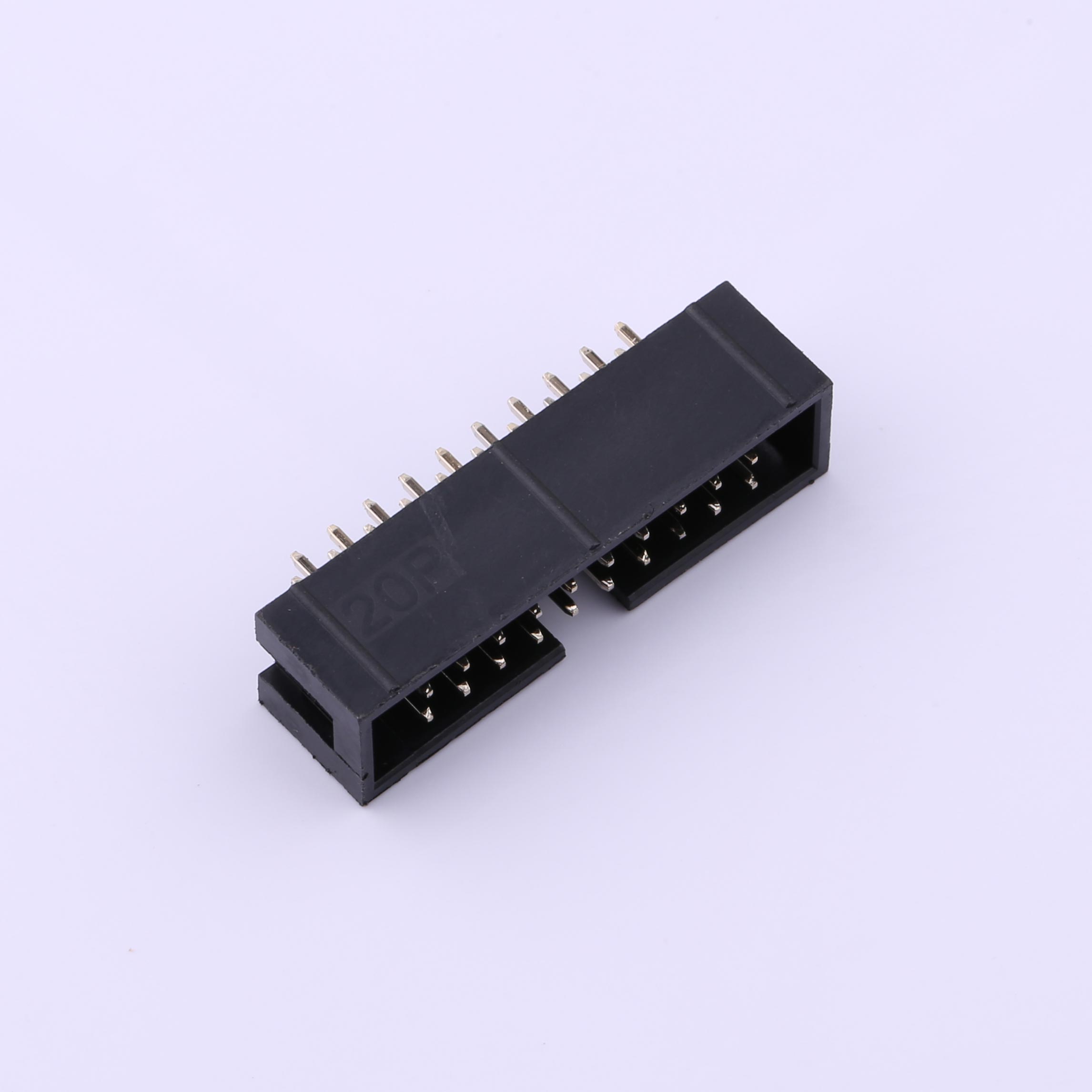

IDC Connector, 2.54mm Pitch, 10-Pin, 2-Row, KH-DC3-2.54-2X10P Pitch：2.54mm Pin Rows：2 Structure：2x10P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 11-Pin, 2-Row, KH-2.54PH180-2X11P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x11P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 12-Pin, 2-Row, KH-2.54PH180-2X12P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x12P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model

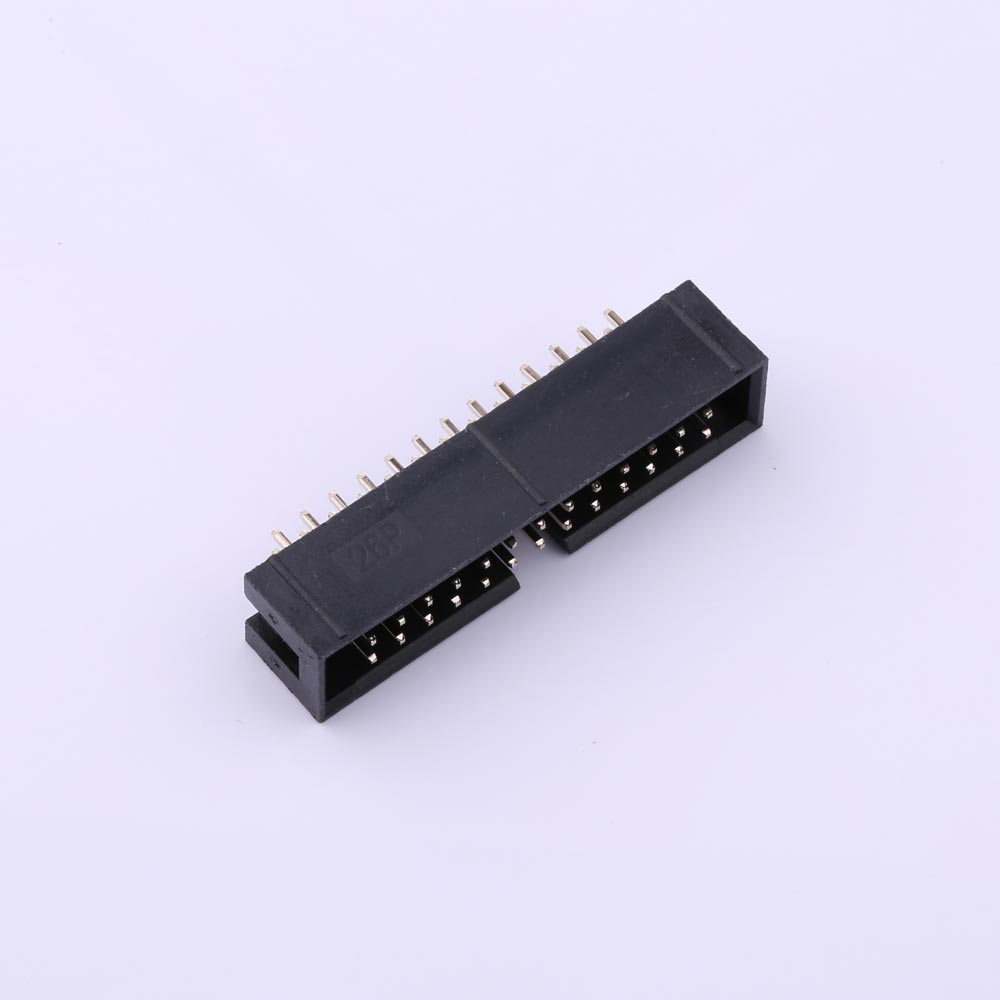

IDC Connector, 2.54mm Pitch, 13-Pin, 2-Row, KH-2.54PH180-2X13P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x13P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 14-Pin, 2-Row, KH-2.54PH180-2X14P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x14P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 15-Pin, 2-Row, KH-2.54PH180-2X15P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x15P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 16-Pin, 2-Row, KH-2.54PH180-2X16P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x16P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model

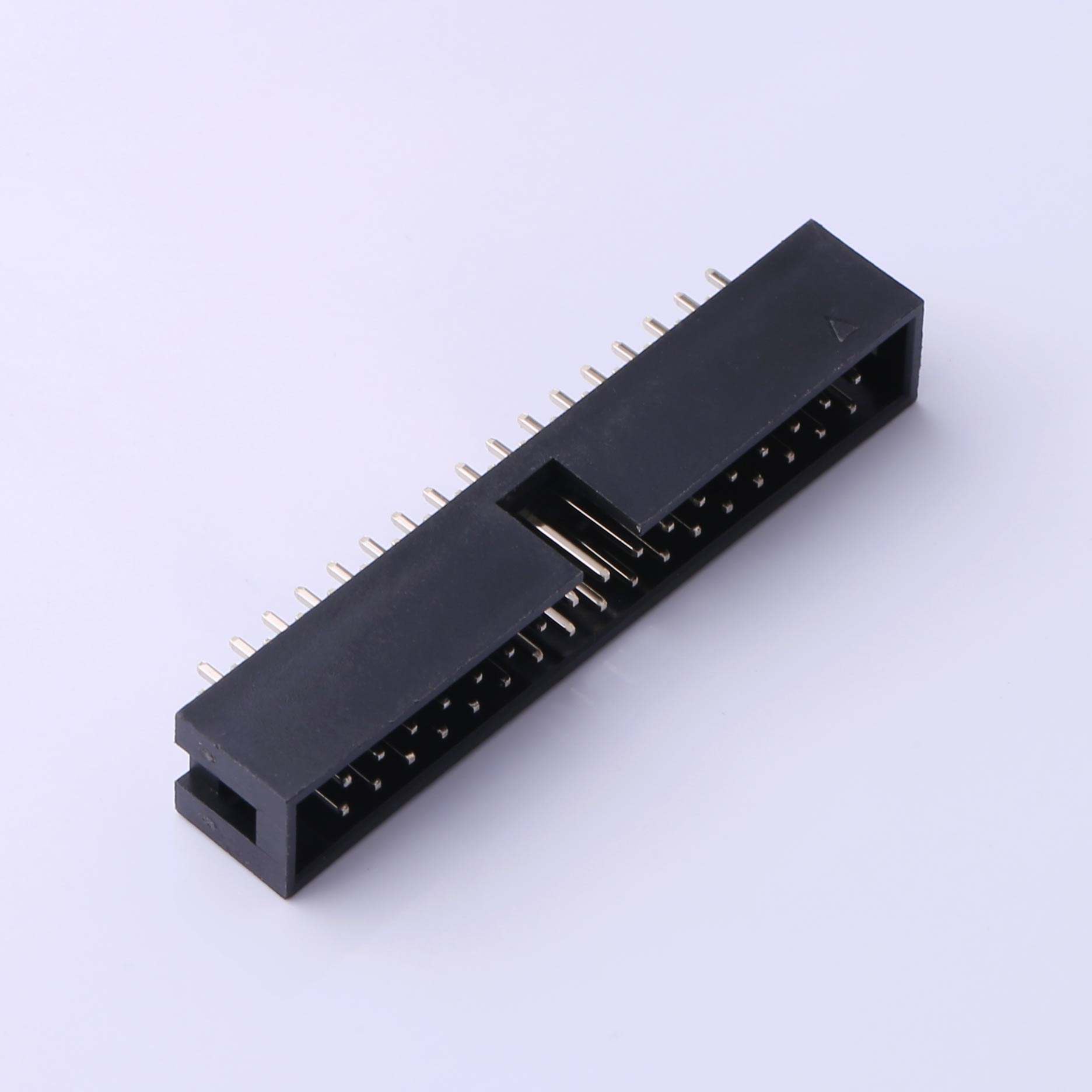

IDC Connector, 2.54mm Pitch, 17-Pin, 2-Row, KH-2.54PH180-2X17P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x17P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 18-Pin, 2-Row, KH-2.54PH180-2X18P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x18P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 19-Pin, 2-Row, KH-2.54PH180-2X19P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x19P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model

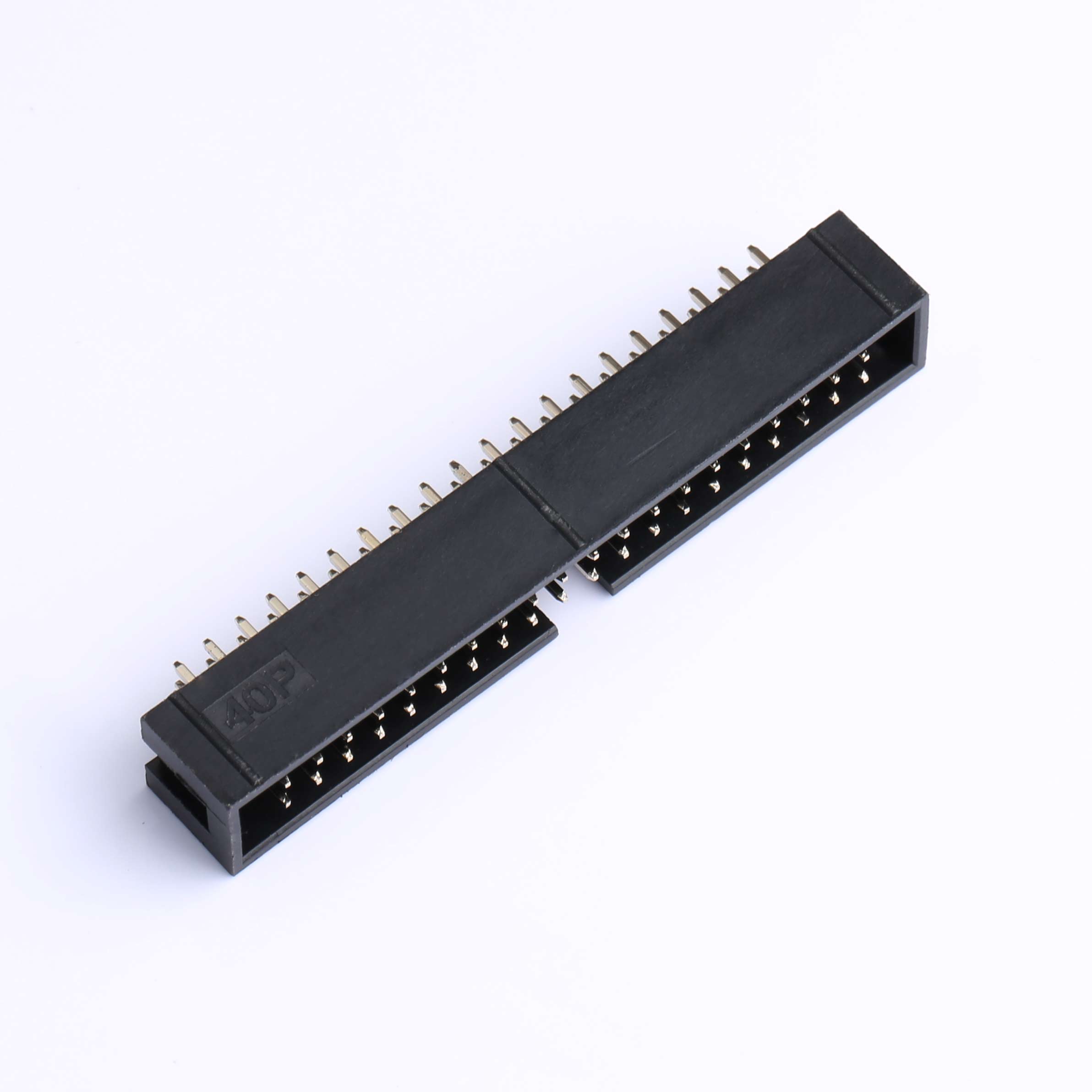

IDC Connector, 2.54mm Pitch, 20-Pin, 2-Row, KH-2.54PH180-2X20P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x20P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model

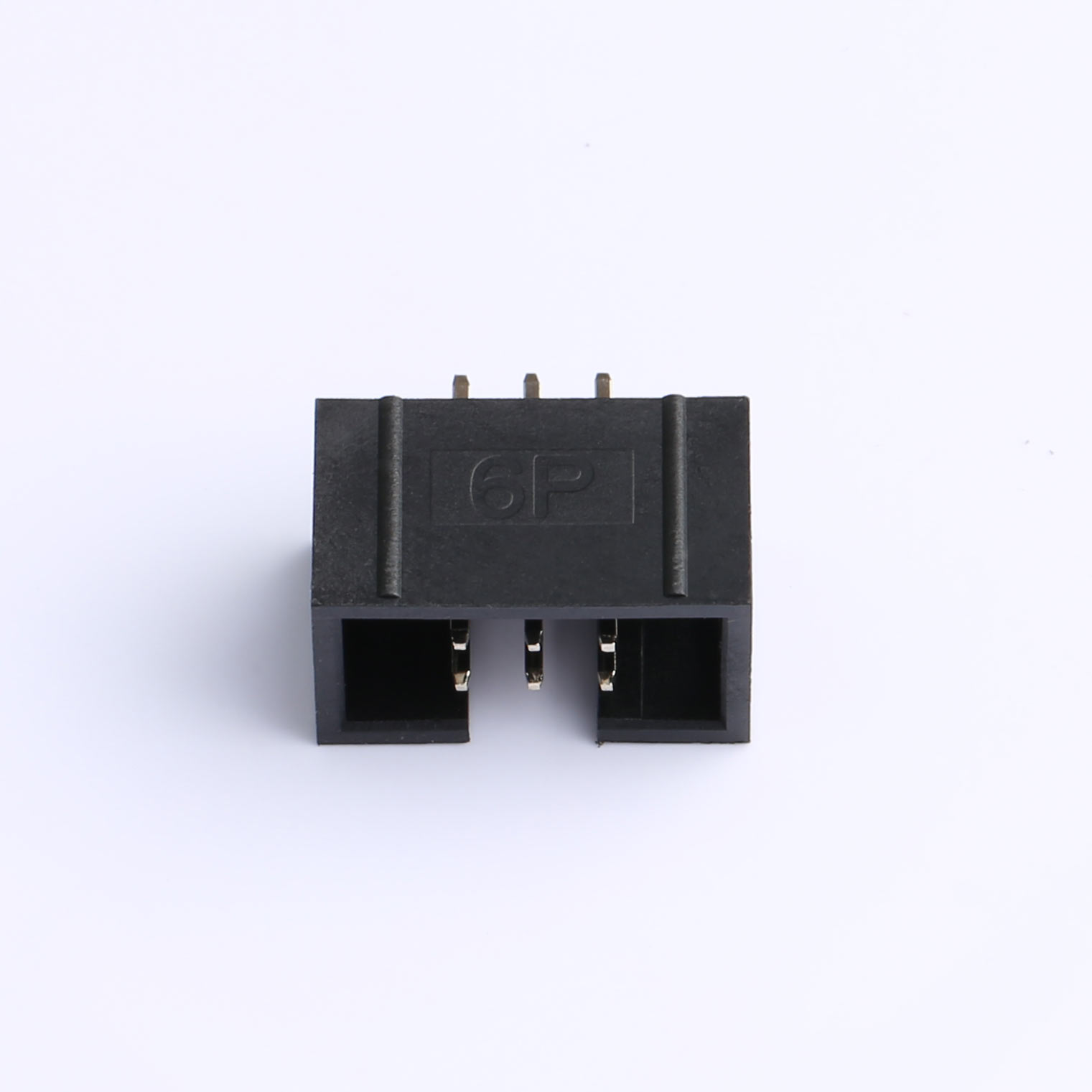

IDC Connector, 2.54mm Pitch, 3-Pin, 2-Row, KH-2.54PH180-2X3P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x3P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 4-Pin, 2-Row, KH-2.54PH180-2X4P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x4P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model

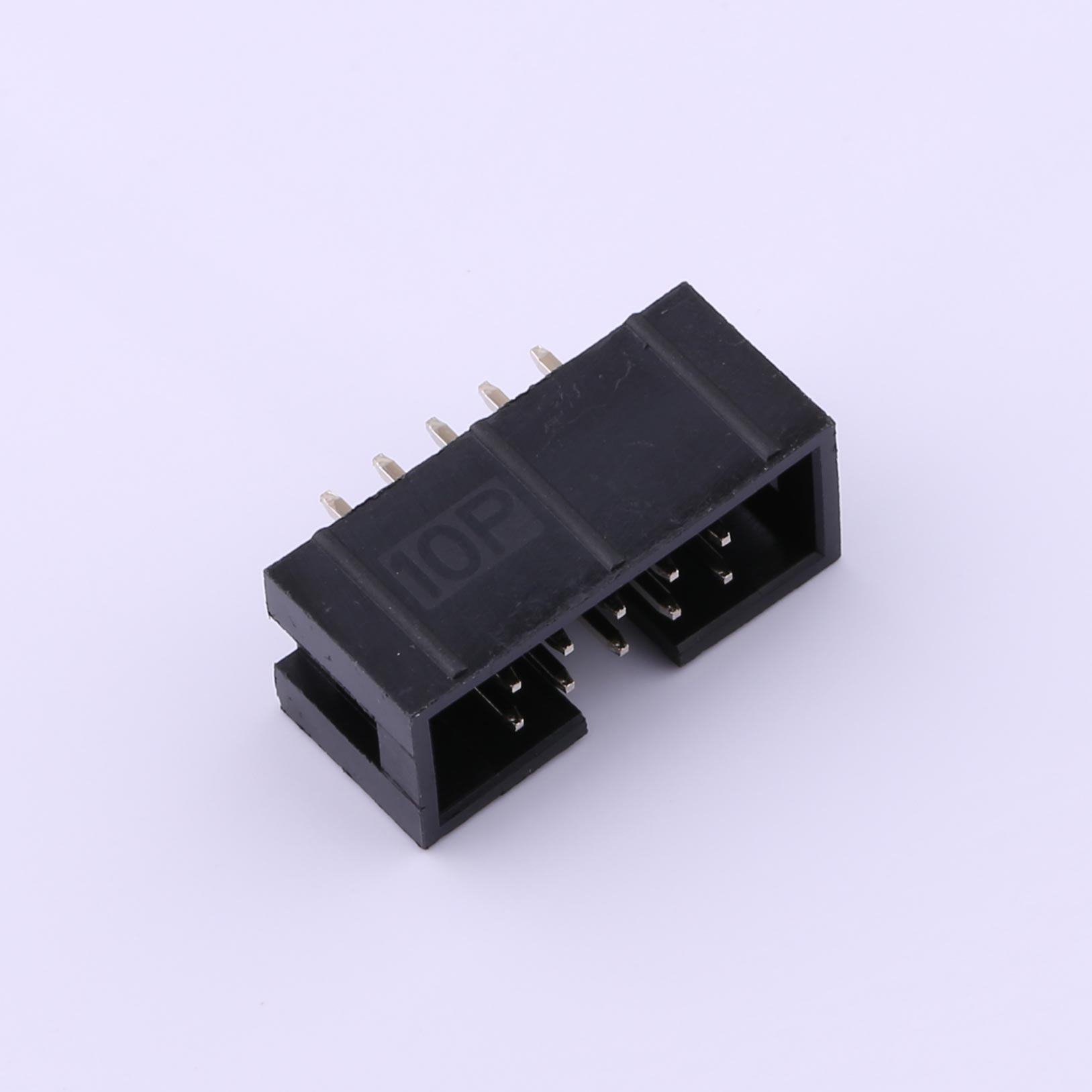

IDC Connector, 2.54mm Pitch, 5-Pin, 2-Row, KH-2.54PH180-2X5P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x5P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model

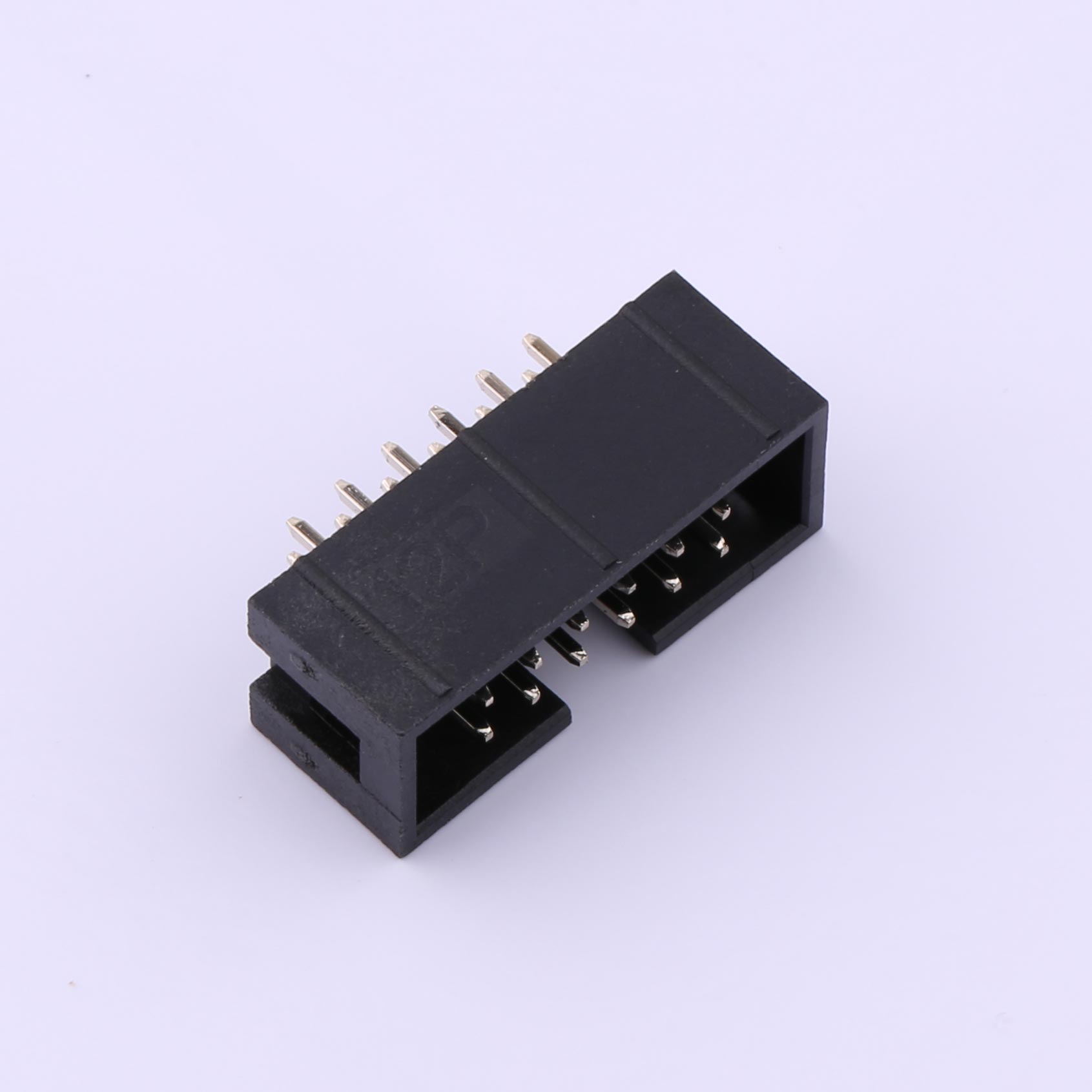

IDC Connector, 2.54mm Pitch, 6-Pin, 2-Row, KH-2.54PH180-2X6P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x6P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model

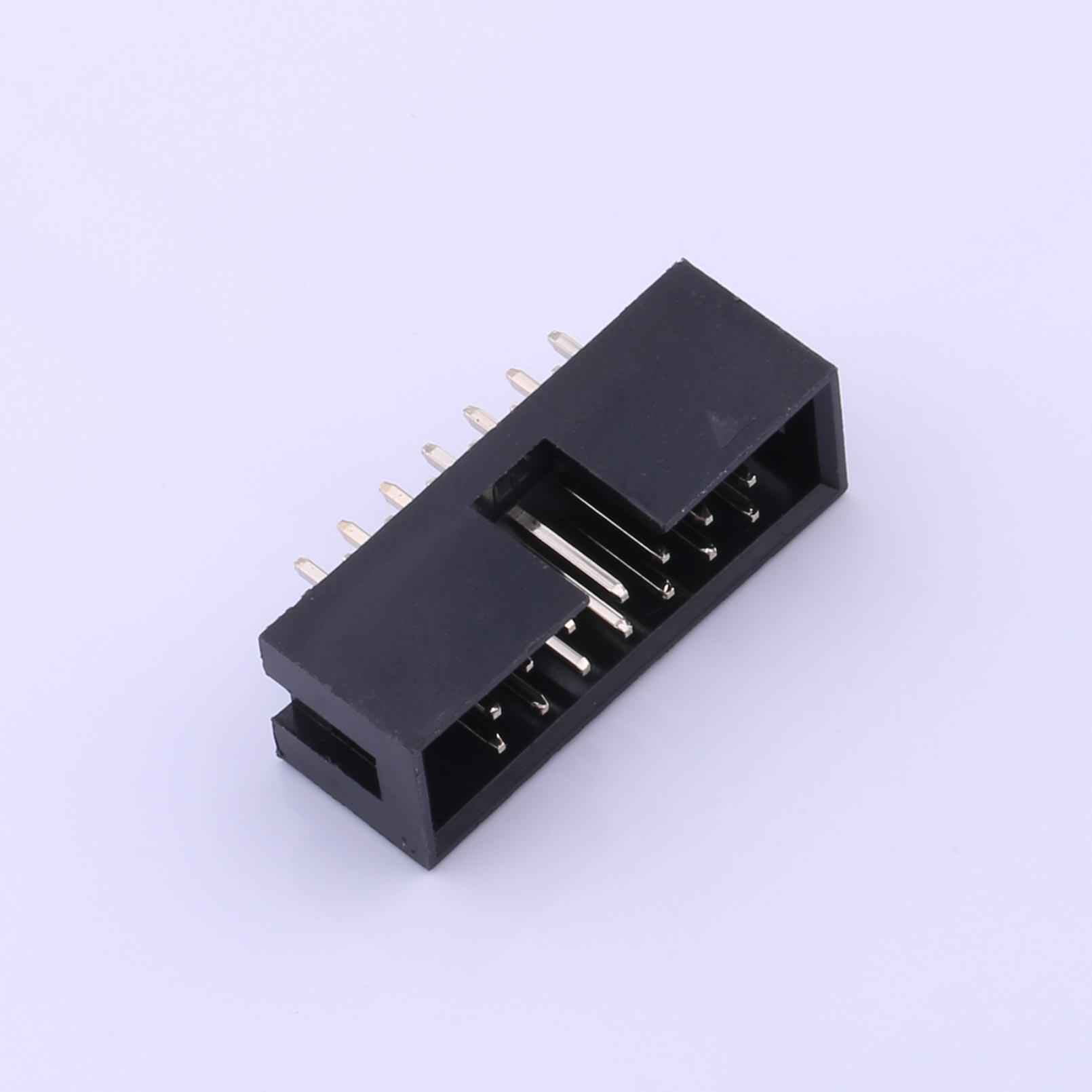

IDC Connector, 2.54mm Pitch, 7-Pin, 2-Row, KH-2.54PH180-2X7P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x7P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model

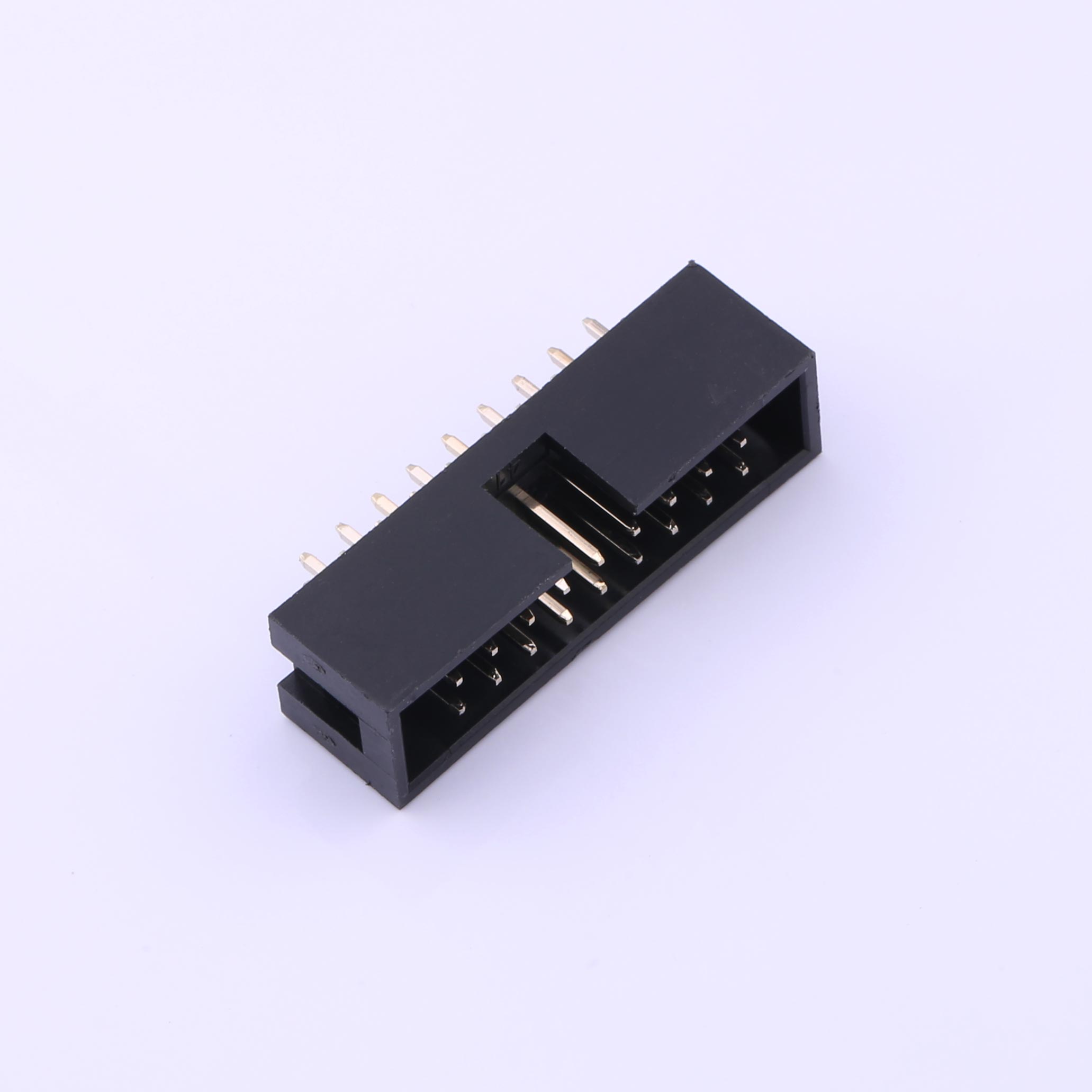

IDC Connector, 2.54mm Pitch, 8-Pin, 2-Row, KH-2.54PH180-2X8P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x8P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
IDC Connector, 2.54mm Pitch, 9-Pin, 2-Row, KH-2.54PH180-2X9P-L8.9 Pitch：2.54mm Pin Rows：2 Structure：2x9P Rated Current：3A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
KH-2.0DC3-2X10P-H5.7 Pitch：2mm Pin Rows：2 Structure：2x10P Rated Current：1.5A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
Datasheet 3D Model
KH-2.0DC3-2X11P-H5.7 Pitch：2mm Pin Rows：2 Structure：2x11P Rated Current：1.5A Mounting Type：Through-hole Operating Temperature：-40℃~+105℃
