GNSS
Kinghelm GNSS antennas are designed for reliable satellite signal reception across GPS, GLONASS, Galileo, and BeiDou systems. Featuring high sensitivity, precise performance, and strong anti-interference capability, they ensure stable and accurate positioning for automotive, marine, UAV, and smart device applications. Available in both internal and external designs to meet diverse integration needs.
KH-858, Built-in Integrated Beidou Short Message Antenna
Impedance：50Ω
Operating Temperature：-45 ~ +75°C
KH-DW-K580-WZ, High-Gain BD+GPS Antenna, 28 dBi, SMA Male, 3M RG174, 1575.42/1561 MHz
Gain：28 dBi
Impedance：50Ω

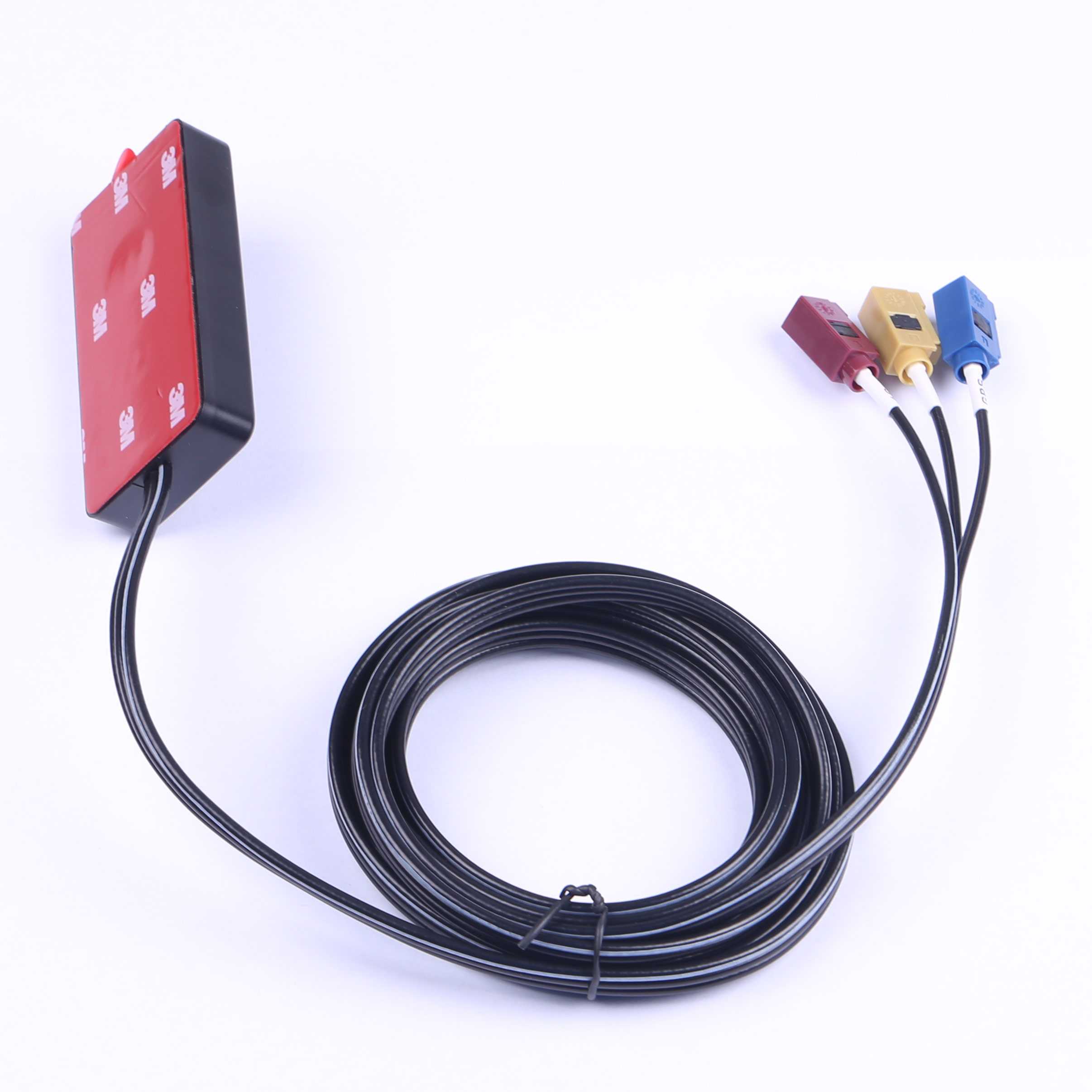

KH-GNSS.WLAN-FAKRA-L3M, Triple-function GPS/BD+4G+WIFI External Antenna, FAKRA Connector
Center Frequency：1568MHz
Gain：6.0 dBi
Impedance：50Ω
Operating Temperature：-40 ~ +80°C
KH-GPS/BD-SS02, GPS+BeiDou Antenna, GNSS Timing Antenna, ARSS02 Timing Antenna
Gain：≥4.5 dBi
Impedance：50Ω
Polarization：RHCP
Operating Temperature：-40 ~ +80°C
KH-GPS/BD-SS04, Beidou/GPS Antenna, SMA-J, 8M RG174
Gain：≥4.0 dBi
Impedance：50Ω
Polarization：RHCP
Operating Temperature：-40 ~ +80°C
KH-GPS/BD5056SMA-3M, Auto Positioning Antenna,Vehicle Navigation Antenna
Frequency：GPS1575.42mhz, BD1561.098±2.046Mhz
Bandwidth：10 MHz
VSWR：≤1.8
Impedance：50Ω
Polarization：RHCP
KH-GPS080804-WY, GPS Antenna, 1575.42 MHz, 16mm x 6mm x 4mm
Dimensions： 8*8*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS10104-WY, GPS Passive Ceramic Antenna, 10x10x4mm, 1575.42MHz, 3.5 dBi Gain
Dimensions：10*10*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS121204-WY, Passive Ceramic GNSS GPS Antenna, 12x12x4mm, 1575.42MHz, 3.5 dBi Gain
Dimensions：12*12*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS121204-WYCX, GPS Antenna, 12x12x4mm, 1575.42MHz, IPEX Connector, RG1.13 Cable
Dimensions：12*12*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS160604-WY, Compact GPS Passive Ceramic Antenna, 16x6x4mm, 1575.42MHz, 3.5dBi Gain
Dimensions： 8*8*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS181804-WY, Compact GPS Passive Ceramic Antenna, 18mm x 18mm x 4mm, 1575.42 MHz
Dimensions：18*18*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS252504-WY, High-Gain GPS Passive Ceramic Antenna | 25mm x 25mm x 4mm | 1575.42 MHz
Dimensions：25*25*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPSBD5056SMA-3M, Positioning Antenna, GPS1575.42 MHz, BD1561.098+2.046 MHz
Gain：25 dBi
Impedance：50Ω
Operating Temperature：-40 ~ +80°C
KH1(G4)C100-B02, Dual-function 4G GPS Antenna, 50Ω, 2 dBi
Impedance：50Ω
Operating Temperature：-40 ~ +85°C
KH1GBC-01, High-Gain GPS/BD Antenna, 2dBi Antenna with 29dB LNA, RG174 3M SMA Connector
Center Frequency：1575.42±10 MHz
Gain：2 dBi
Impedance：50Ω
Operating Temperature：-40 ~ +85°C

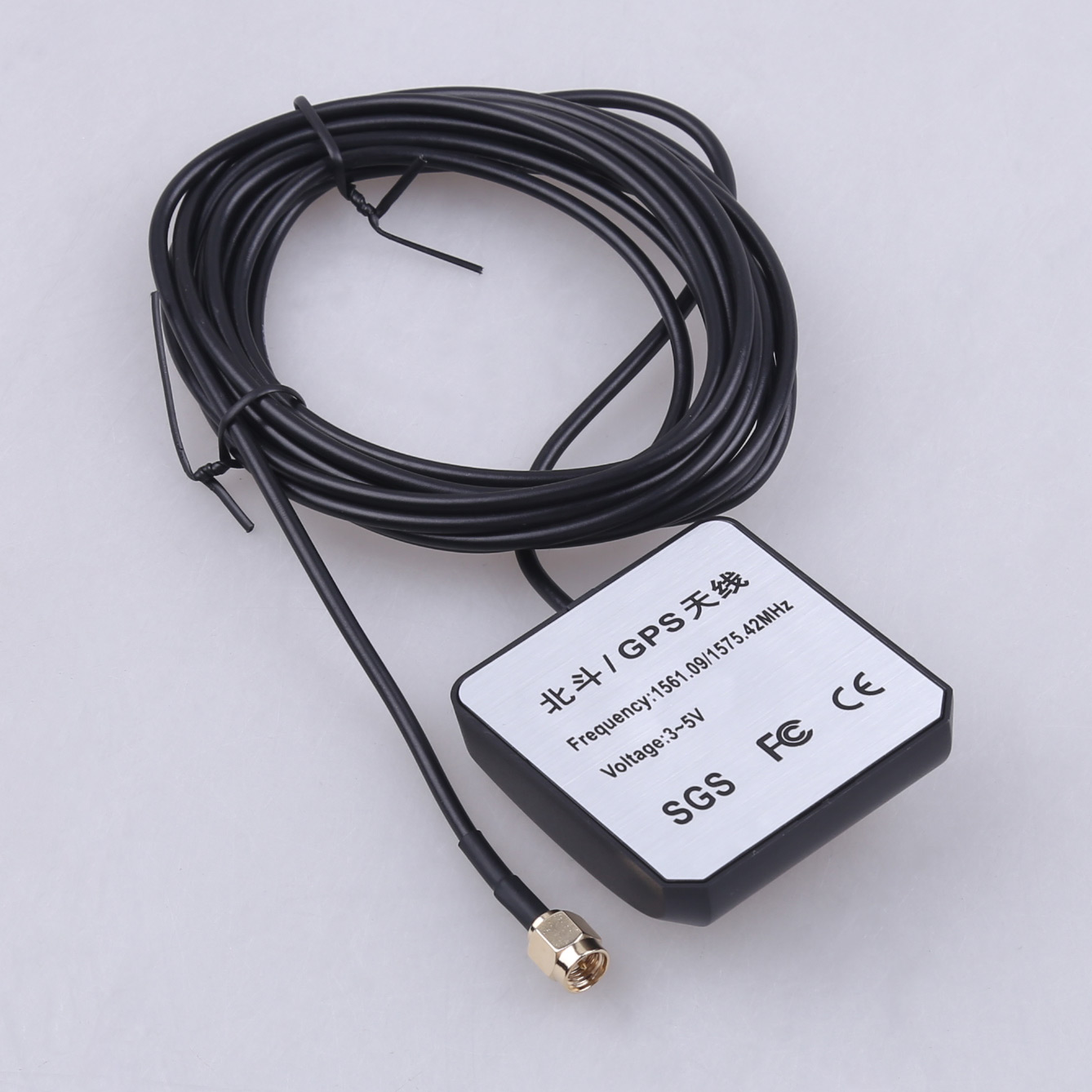

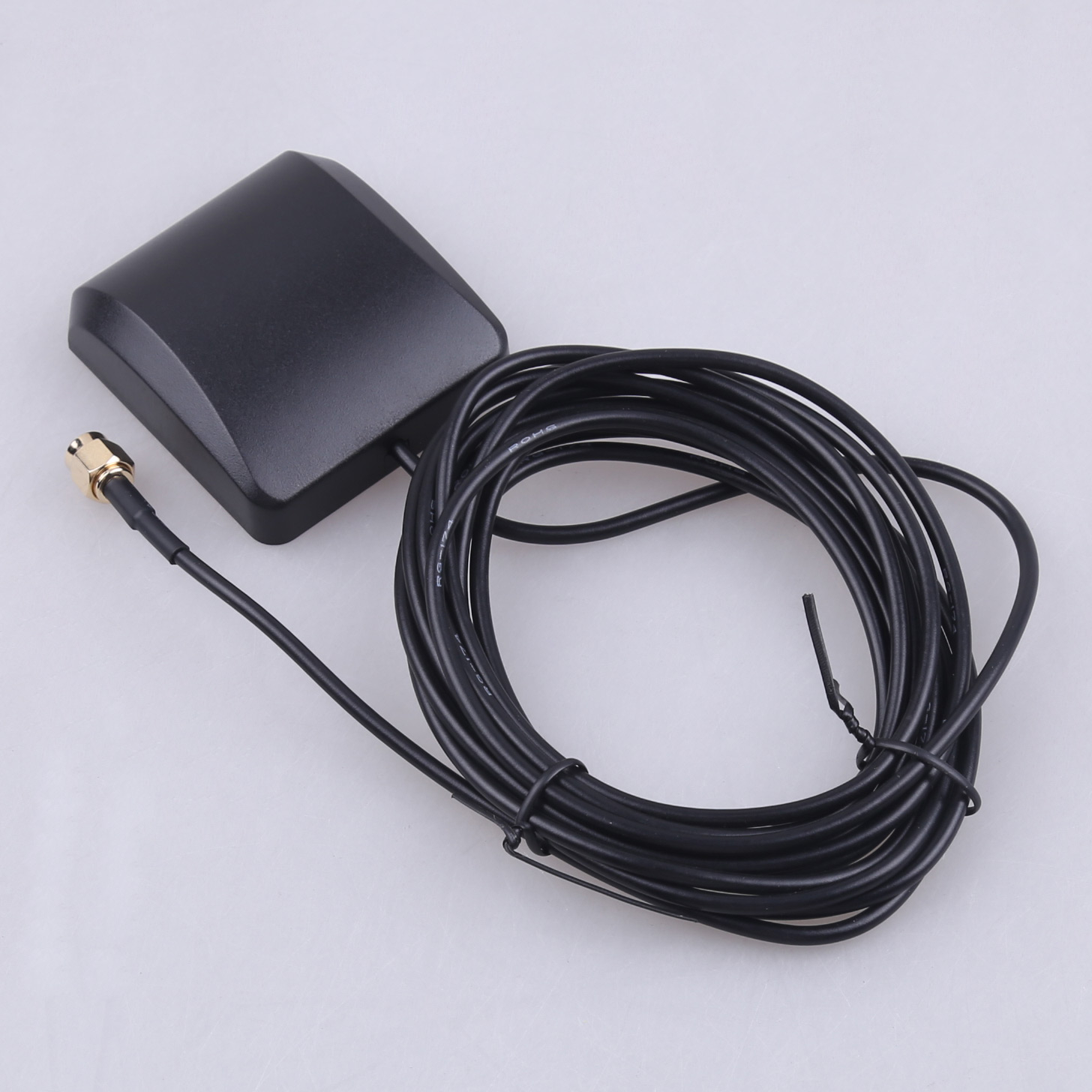

KH1GBC-45, Beidou/GPS External Antenna,Cable RG174,L=3M
Center Frequency：1561.09~1575.42MHz
Gain：27±2 dB
Impedance：50Ω
Polarization：RHCP
Operating Temperature：-40 ~ +85°C
KH1GPC-01, Beidou/GPS/GNSS Antenna
Center Frequency：1575.42±10 MHz
Gain：2 dBi
Impedance：50Ω
Operating Temperature：-40 ~ +85°C
KH658 L/S/B3, BeiDou external antenna all-in-one module
Operating Temperature：-40 ~ +70°C

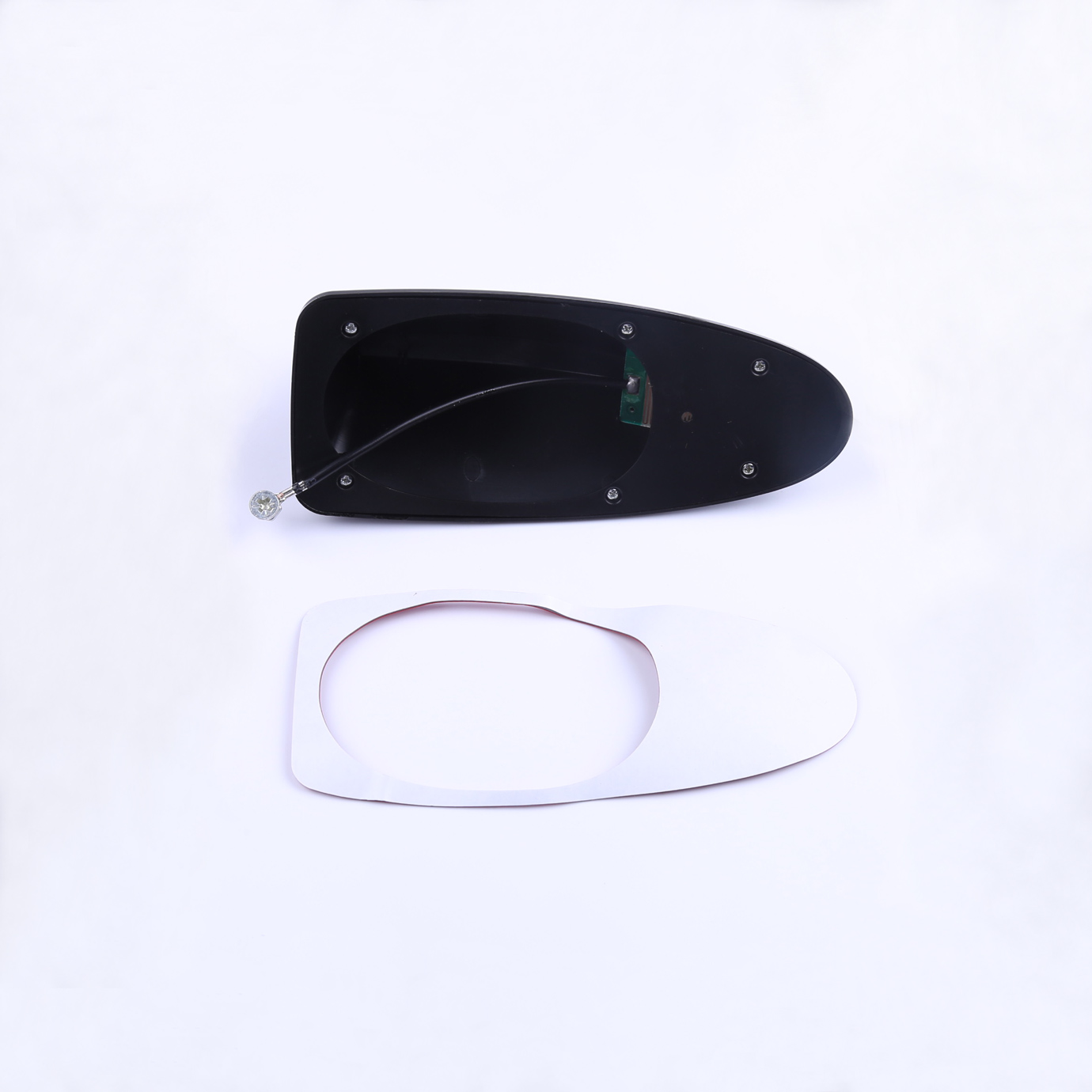

KHM-FM/AM-100-B1, Shark Fin Antenna,Vehicle Antenna,AM/FM Radio Antenna,Black
Brand: Kinghelm
Gross Weight: 86g
Material:High-quality ABS
Length:17cm
Width:7cm
