GPS Antenna
Kinghelm GPS antennas are engineered for high-precision global positioning, delivering excellent signal reception and strong anti-interference performance. Compact, waterproof, and dustproof, they ensure reliable operation in diverse outdoor environments. Ideal for in-vehicle navigation, drones, smart transportation, and IoT applications.
KH-GPS080804-WY, GPS Antenna, 1575.42 MHz, 16mm x 6mm x 4mm
Dimensions： 8*8*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS10104-WY, GPS Passive Ceramic Antenna, 10x10x4mm, 1575.42MHz, 3.5 dBi Gain
Dimensions：10*10*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS121204-WY, Passive Ceramic GNSS GPS Antenna, 12x12x4mm, 1575.42MHz, 3.5 dBi Gain
Dimensions：12*12*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω

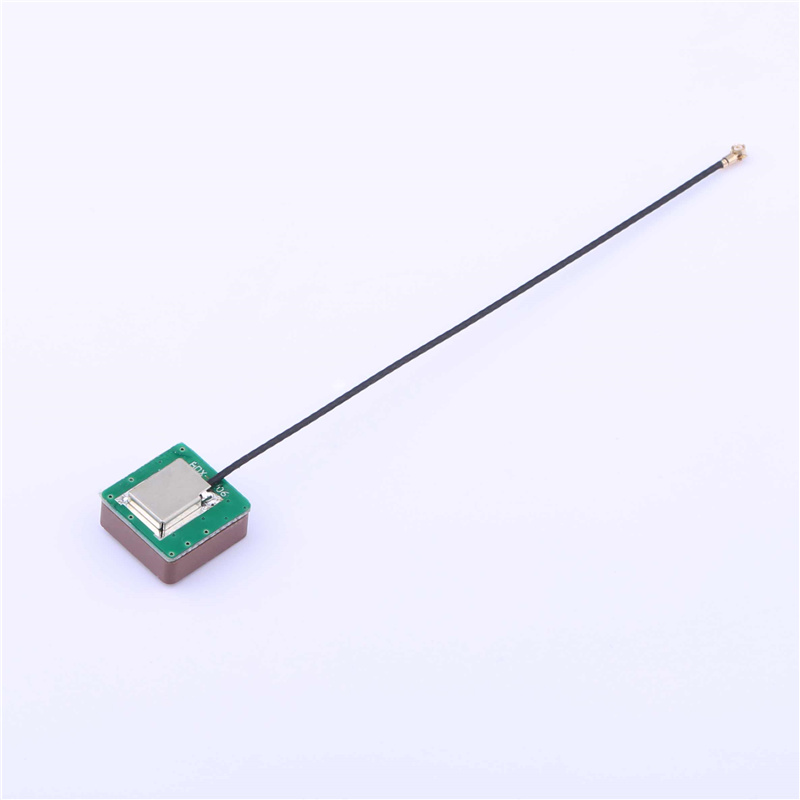

KH-GPS121204-WYCX, GPS Antenna, 12x12x4mm, 1575.42MHz, IPEX Connector, RG1.13 Cable
Dimensions：12*12*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω

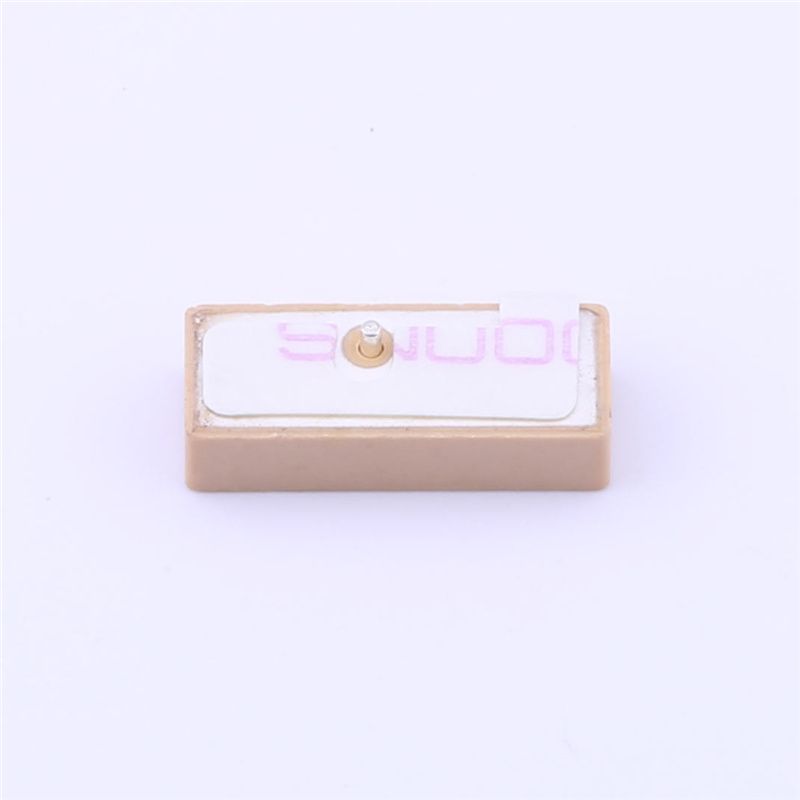

KH-GPS160604-WY, Compact GPS Passive Ceramic Antenna, 16x6x4mm, 1575.42MHz, 3.5dBi Gain
Dimensions： 8*8*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS181804-WY, Compact GPS Passive Ceramic Antenna, 18mm x 18mm x 4mm, 1575.42 MHz
Dimensions：18*18*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
KH-GPS252504-WY, High-Gain GPS Passive Ceramic Antenna | 25mm x 25mm x 4mm | 1575.42 MHz
Dimensions：25*25*4mm
Frequency：1.57542 GHz
Bandwidth：10 MHz
Gain：3.5 dBi
Impedance：50 Ω
