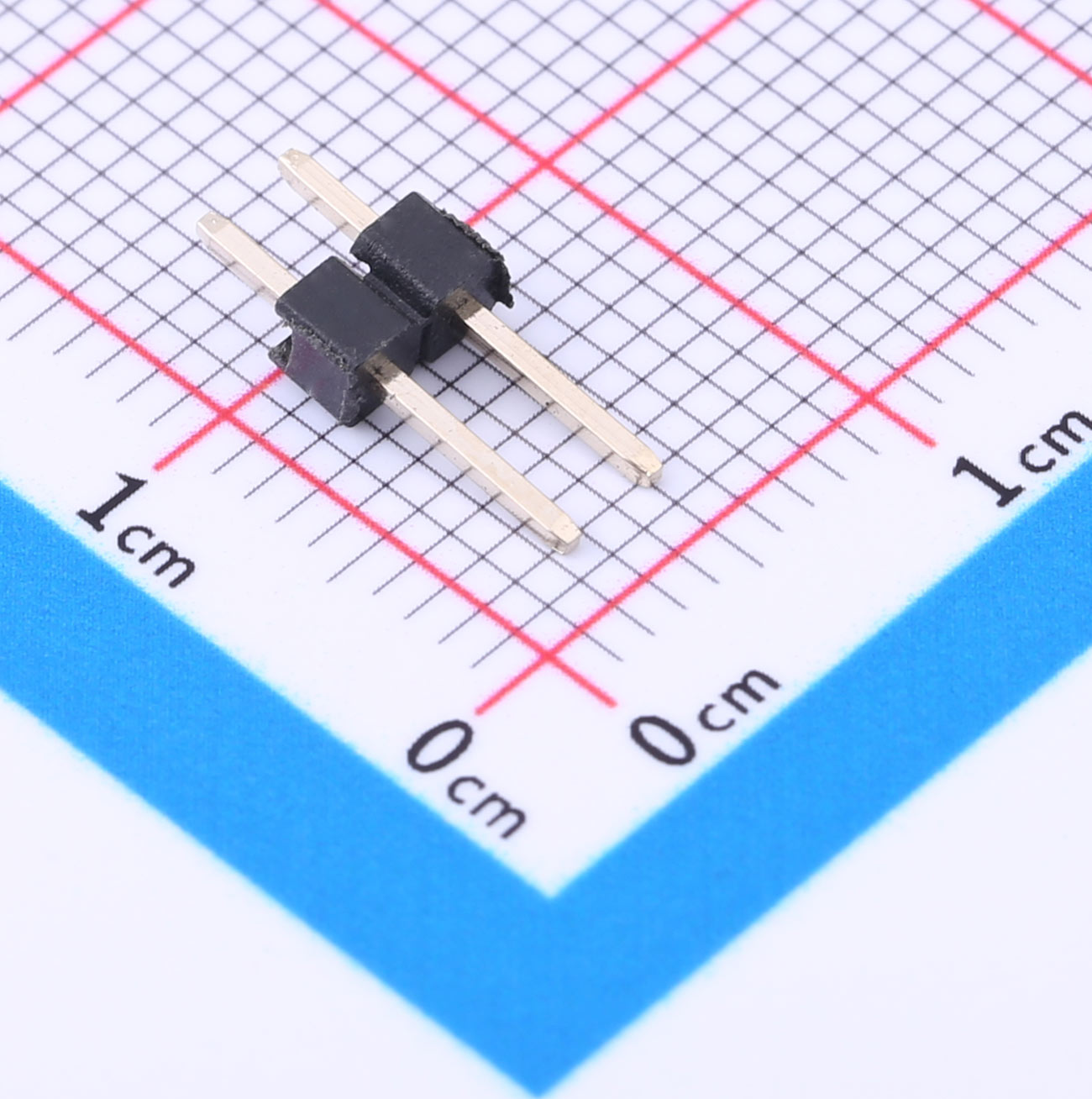

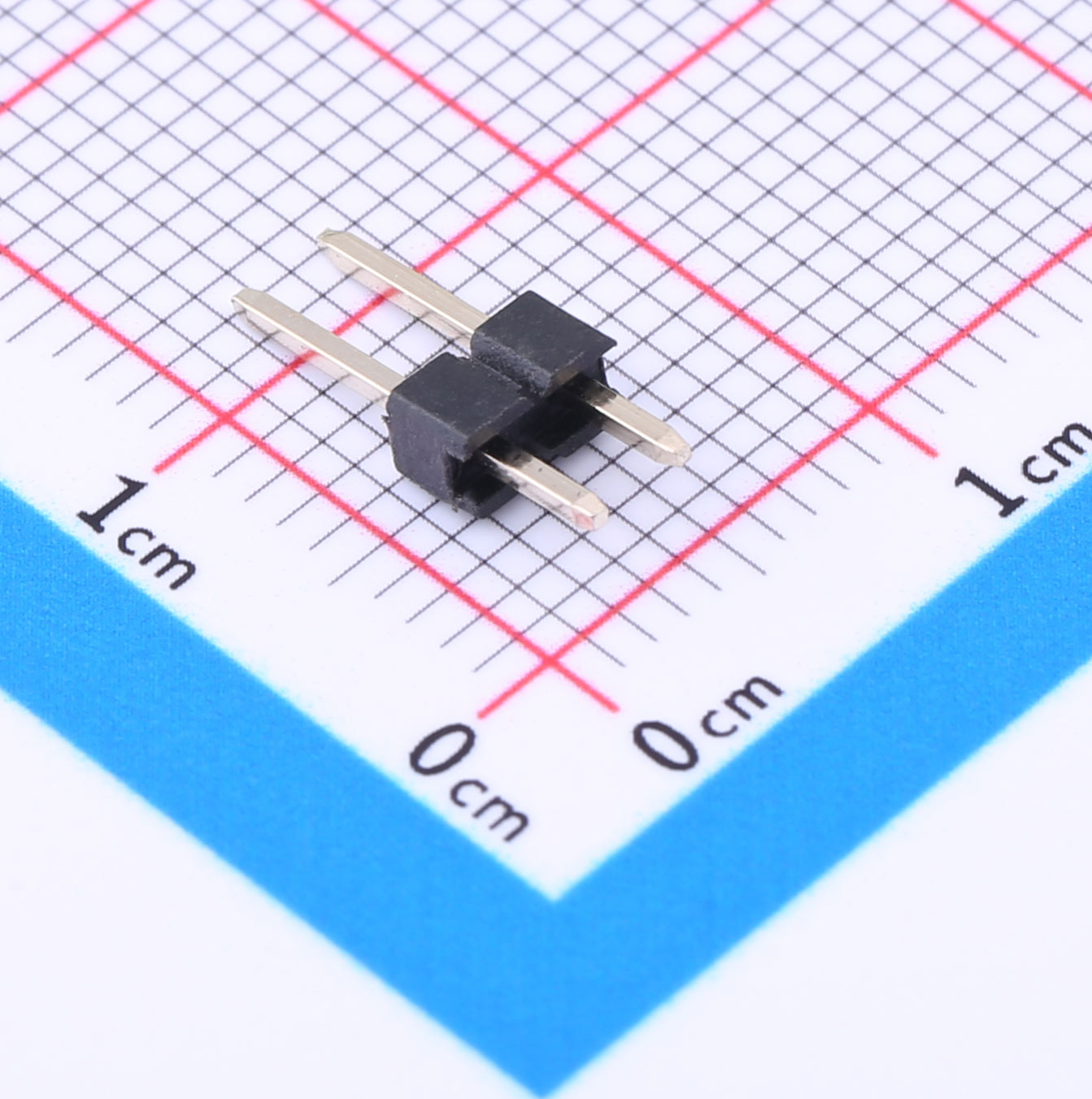

KH-2.54PH180-1X2P-L11.5
Current Rating:3 Amps
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Withstanding Voltage: AC 1000V
Operation Temperature:-40℃to +105℃
Product Features
●2.54mm pitch, 180-degree header
●1 row, 2 pins configuration
●11.5mm body length
●PCB mount, through-hole
●Durable contacts
Product Benefits
●Compact and space-saving
●Secure and reliable connections
●Cost-effective solution
●High-quality contacts
●Easy to install
Product Application
●Industrial automation
●PCB assemblies
●Compact electronics
●Data interfaces
●Control systems
