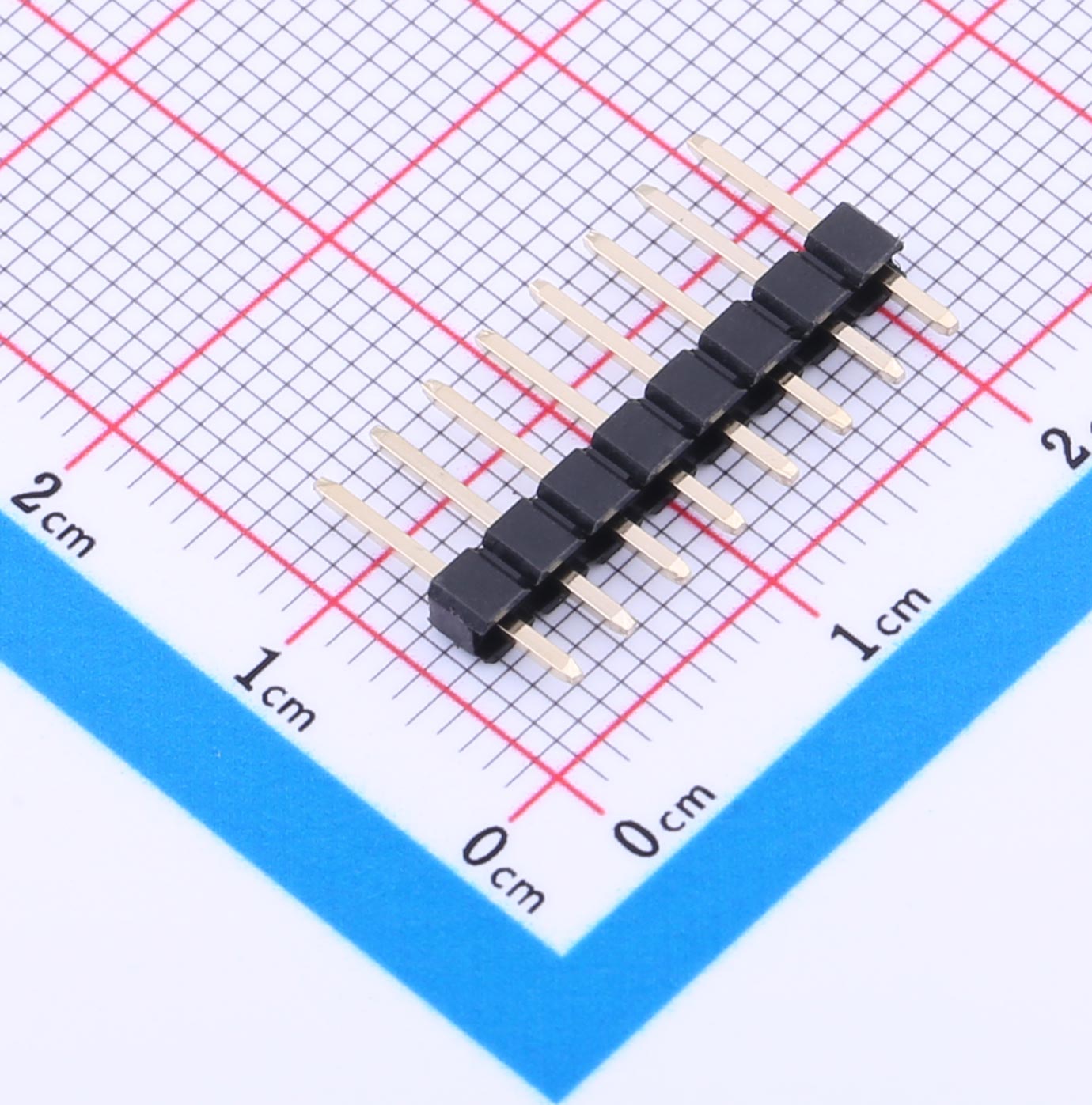

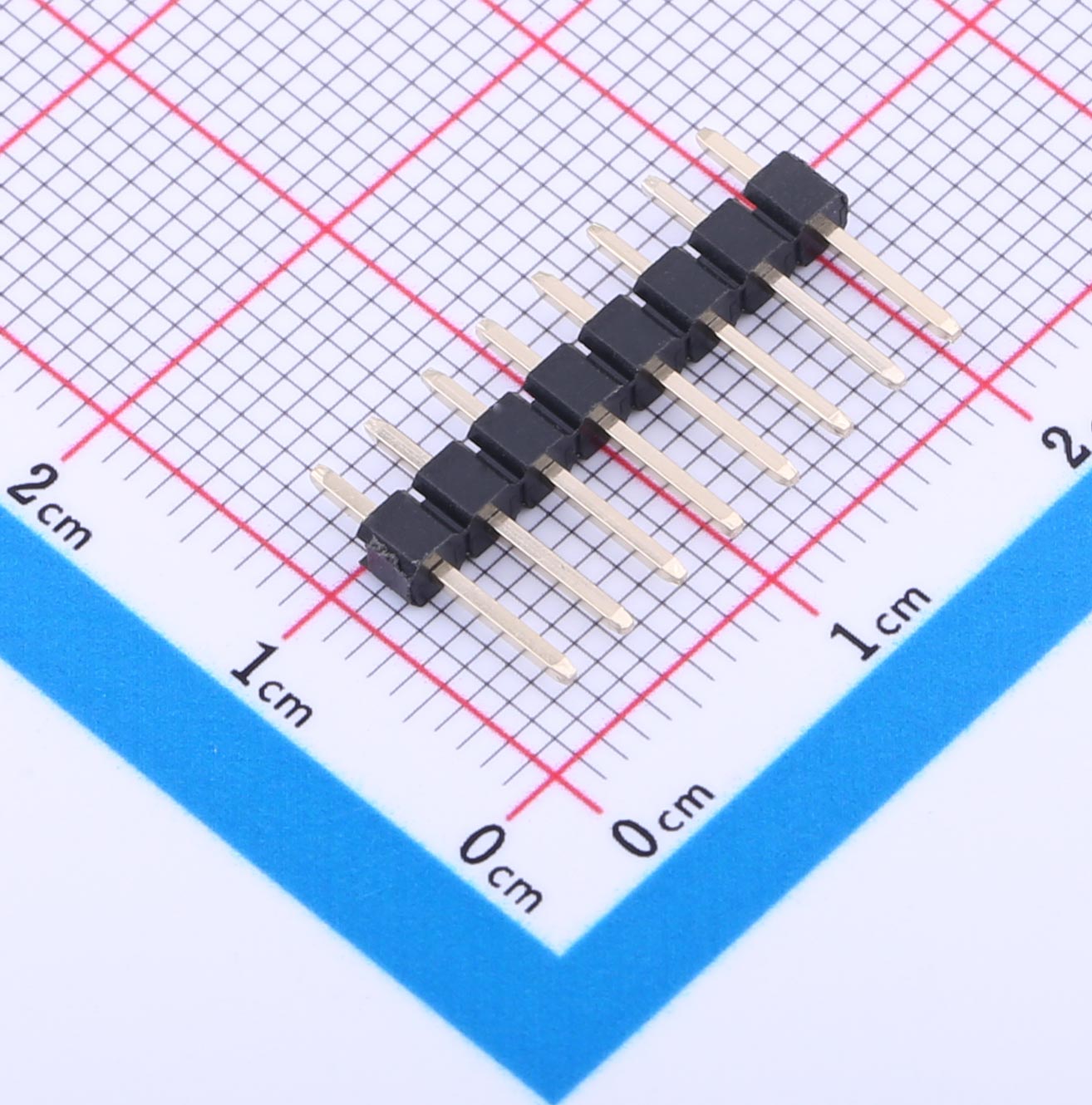

KH-2.54PH180-1X8P-L11.5
Current Rating:3 Amps
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Withstanding Voltage: AC 1000V
Operation Temperature:-40℃to +105℃
Product Features
●2.54mm pitch, 180-degree header
●1 row, 8 pins configuration
●11.5mm body length
●PCB mount, through-hole type
●Robust and reliable contacts
Product Benefits
●Space-saving design for dense PCBs
●Secure and stable electrical connections
●High-density pin layout for efficiency
●Cost-effective solution
●Long-lasting performance in harsh environments
Product Application
●Industrial control systems
●High-density PCB assemblies
●Compact electronic devices
●Automation interfaces
●Data processing units
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
