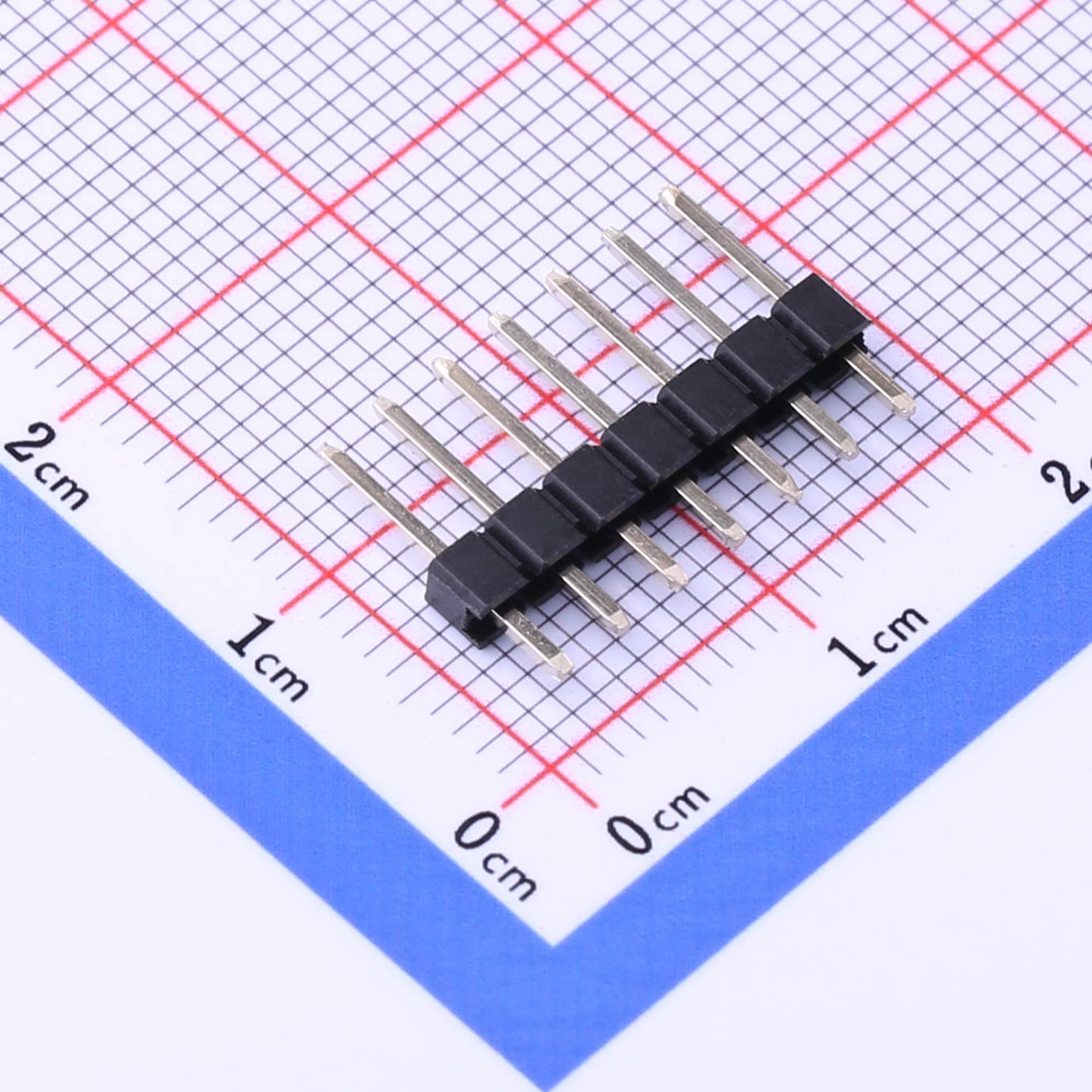

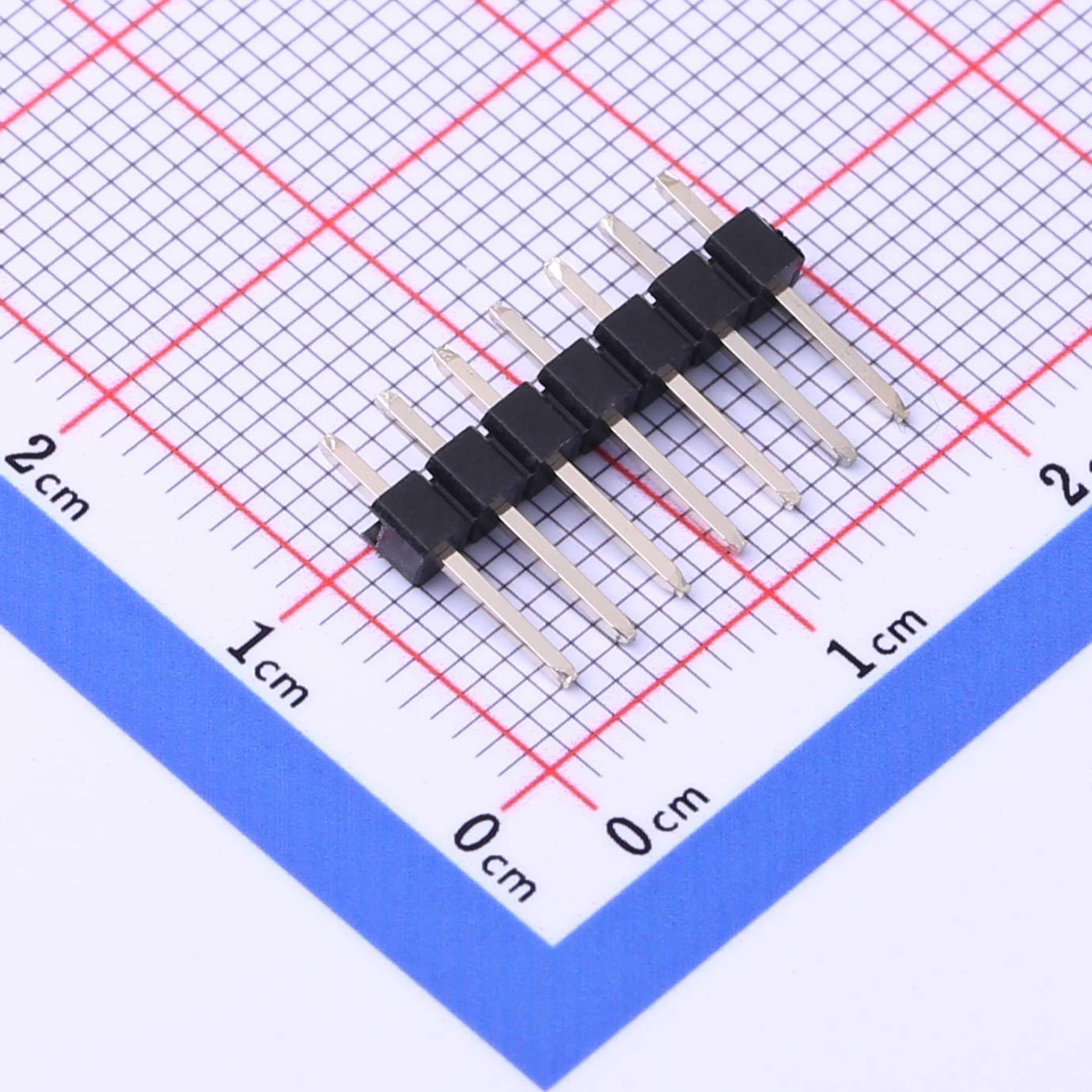

KH-2.54PH180-1X7P-L11.5
Current Rating:3 Amps
Insulation Resistance:1000MΩ Min
Contact Resistance:20mΩ Max
Withstanding Voltage: AC 1000V
Operation Temperature:-40℃to +105℃
Product Features
●2.54mm pitch, 180-degree header
●1 row, 7 pins configuration
●11.5mm body length
●PCB mount, through-hole type
●Robust contacts for reliability
Product Benefits
●Space-saving design for dense PCBs
●Secure and stable electrical connections
●High-density pin layout for efficiency
●Cost-effective without compromising quality
●Long-lasting performance in harsh environments
Product Application
●Industrial automation systems
●Electronics PCB assemblies
●Compact control panels
●High-density interface boards
●Telecommunication devices
