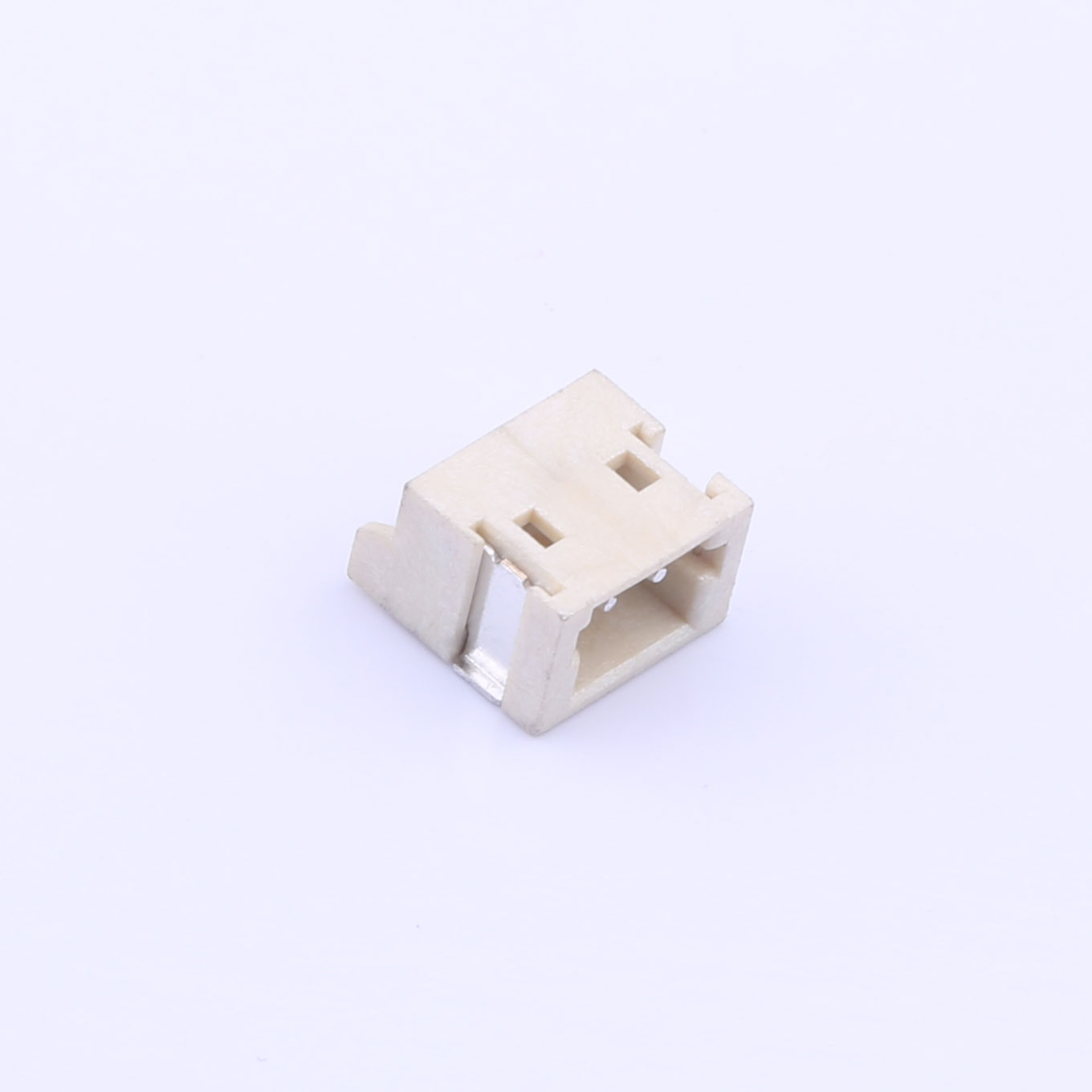

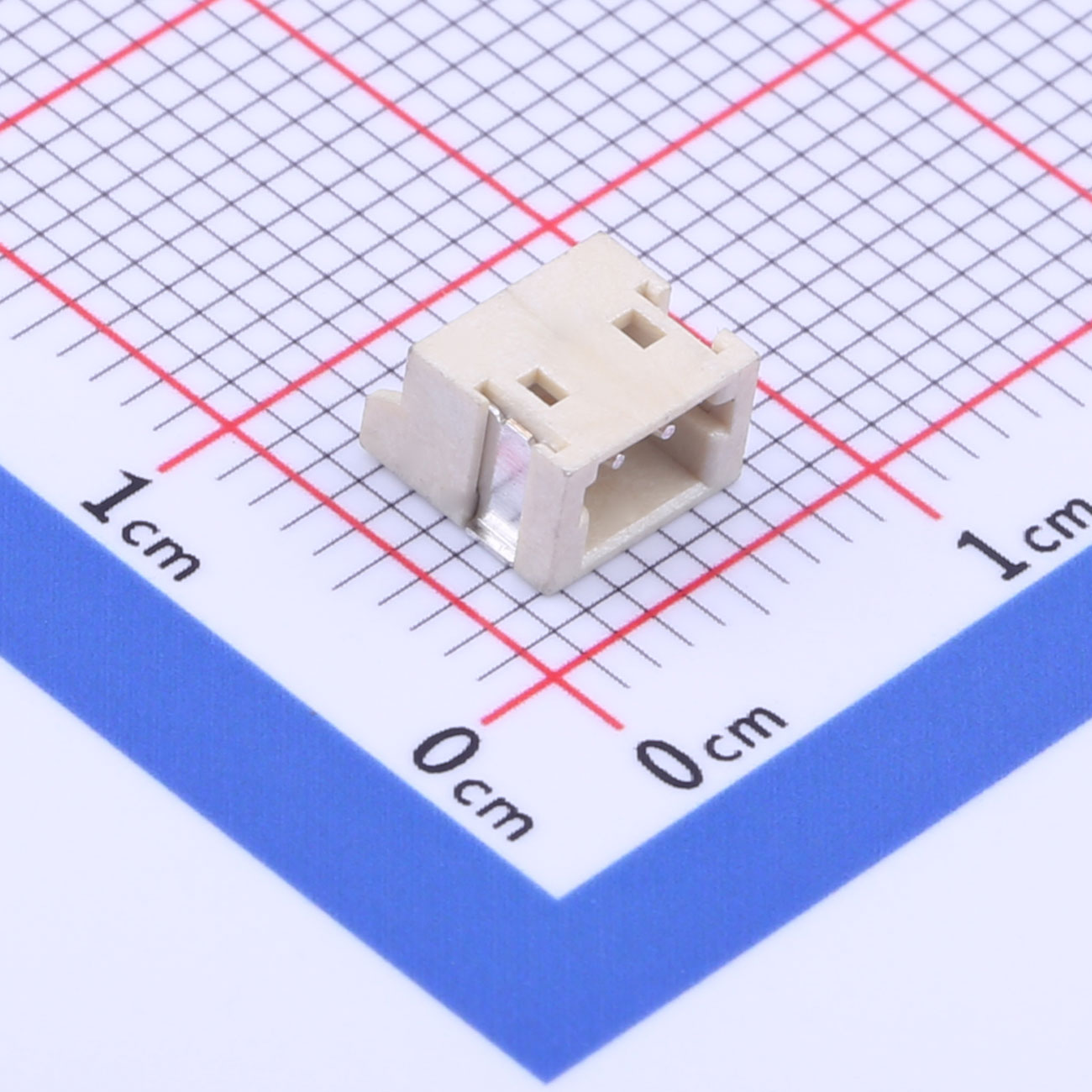

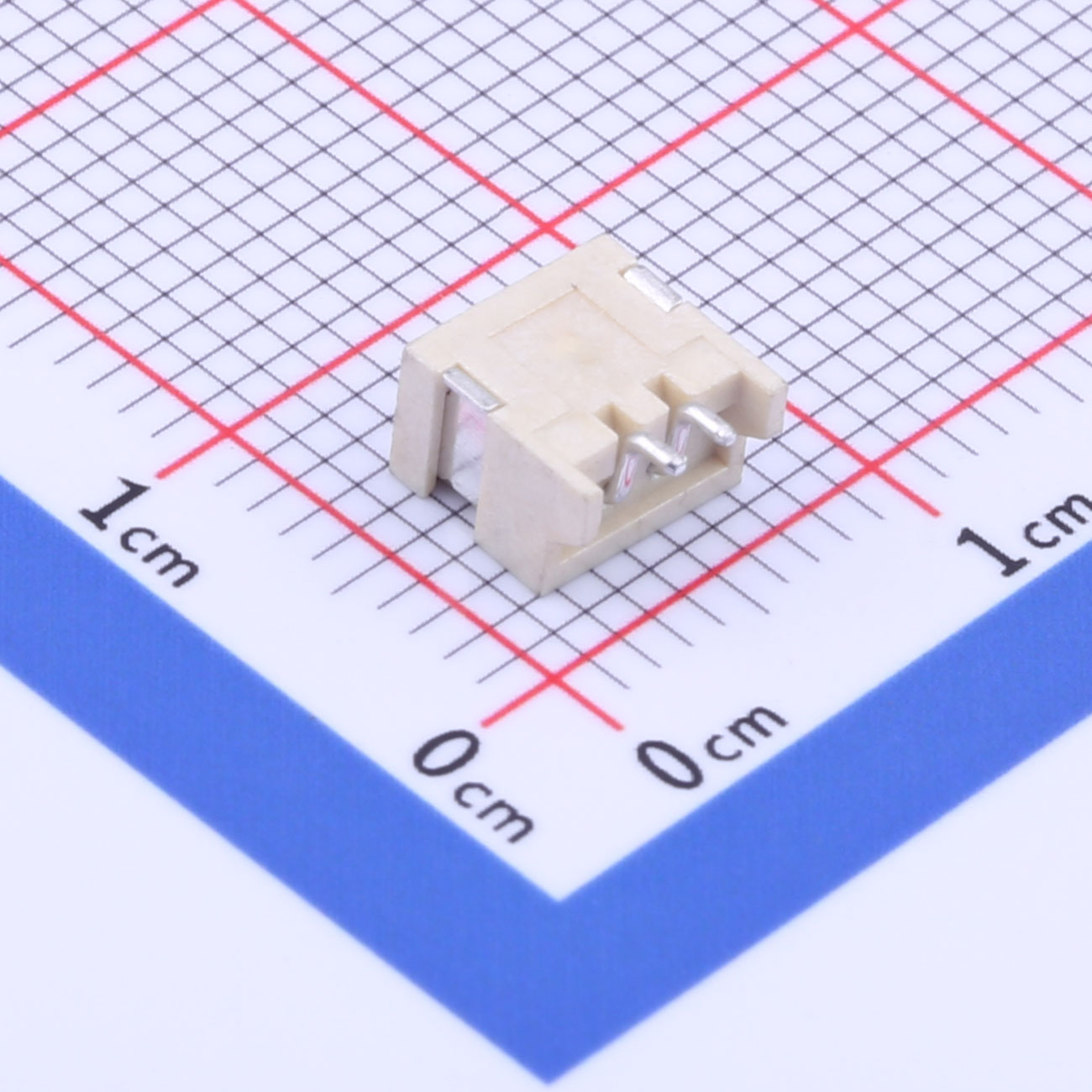

Wire to Board Connector, 1.5mm Pitch, 1x2P, SMD, KH-ZH1.5WF-02A
Temperature Range: -25℃ ~ +85℃
Rated Voltage: 50V AC/DC
Rated Current: 0.5A AC/DC
Contact Resistance: 0.042Ω
Insulation Resistance: 800MΩ
Product Features
● 1.5mm pitch, single-row 2-pin structure
● Surface mount design (SMD)
● Rated current: 0.5A AC/DC
● Rated voltage: 50V AC/DC
● Contact resistance: 0.042Ω max
● Insulation resistance: 800MΩ min
● Operating temperature: -25℃ to +85℃
● Compact size for space-saving PCB layouts
Product Benefits
● Reliable electrical connection for low-power devices
● Low contact resistance ensures minimal signal loss
● High insulation resistance enhances safety
● Suitable for compact and lightweight electronics
● Easy surface mount installation saves assembly time
Product Applications
● Small consumer electronics
● Wearable devices
● Communication modules
● LED lighting
● Medical instruments
● Compact industrial equipment
