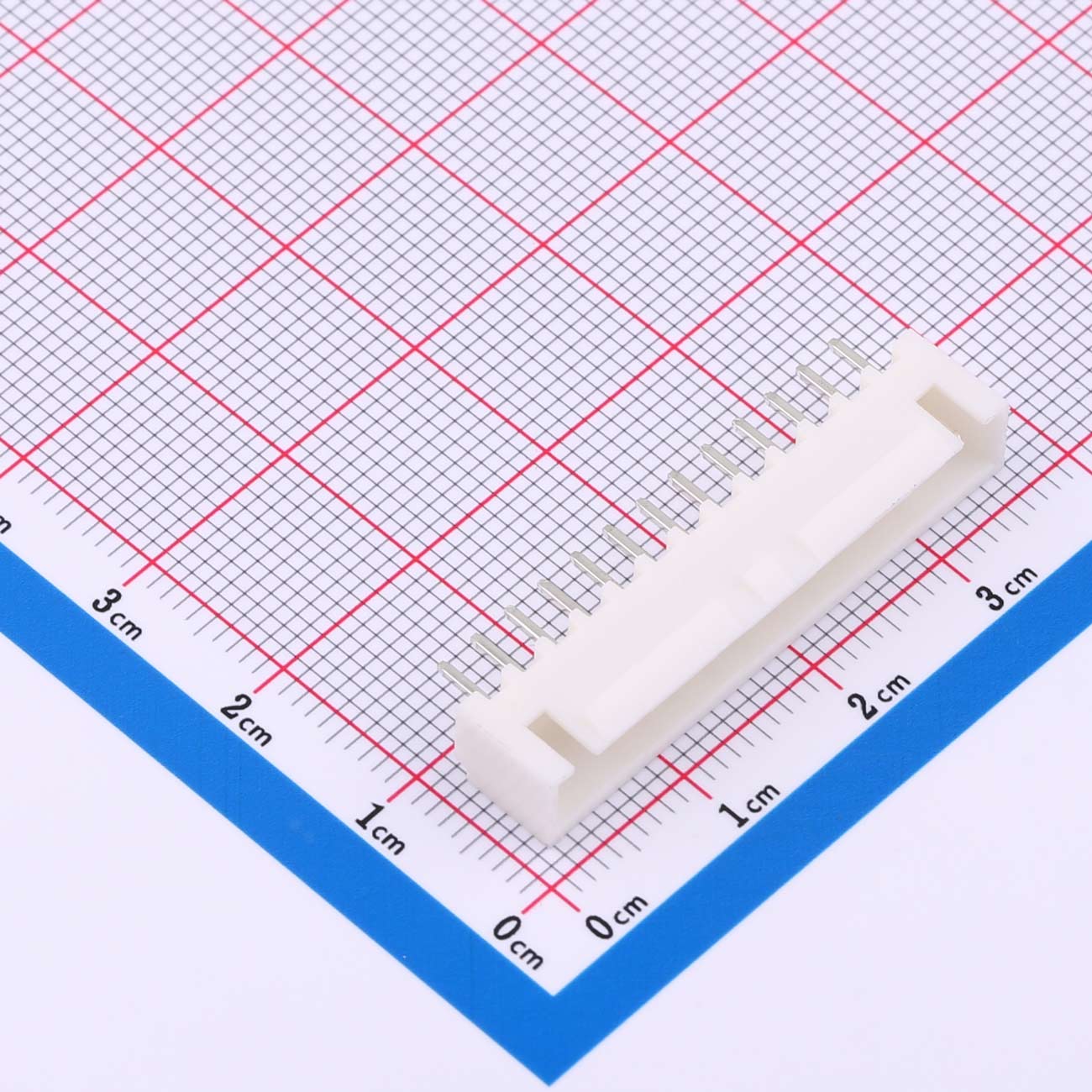

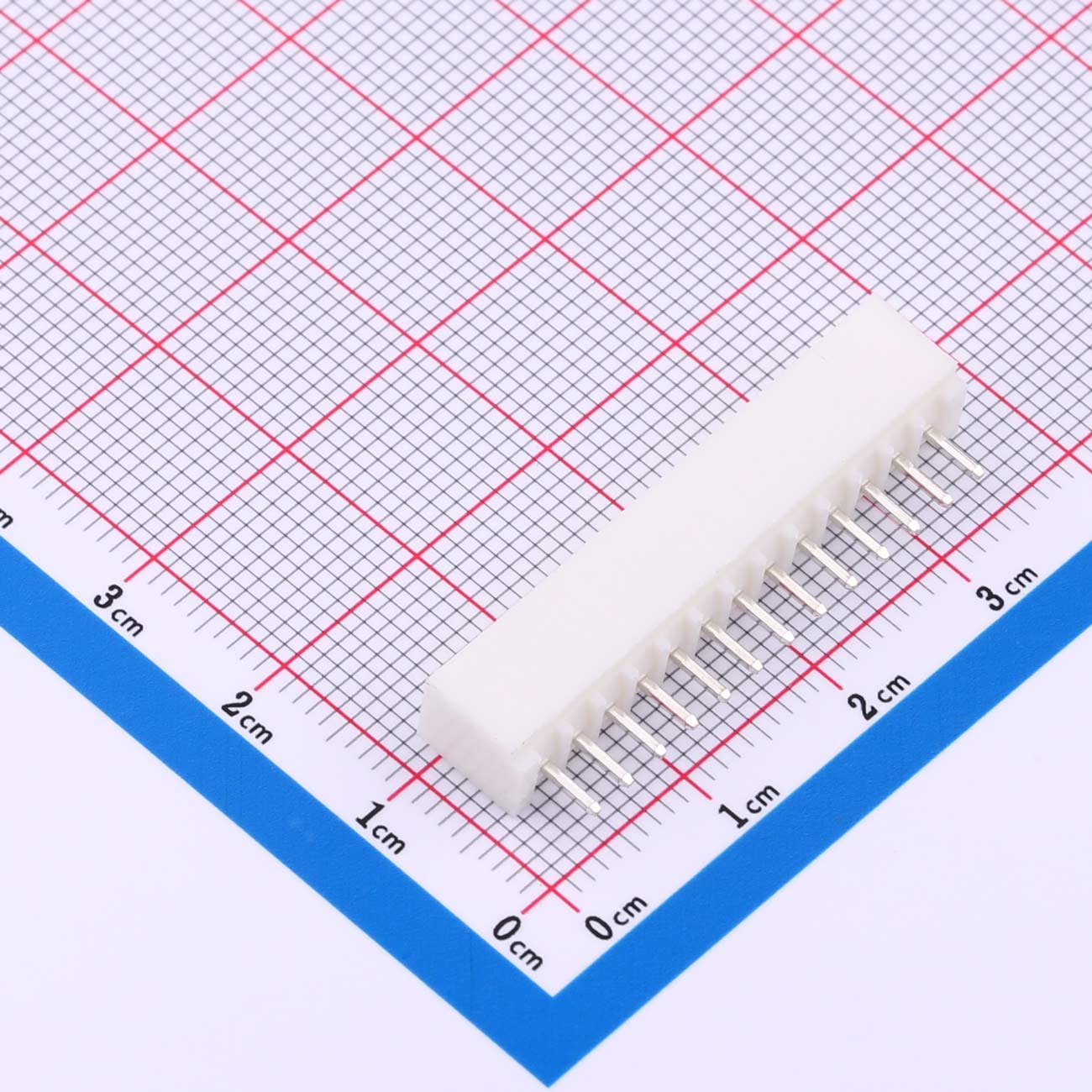

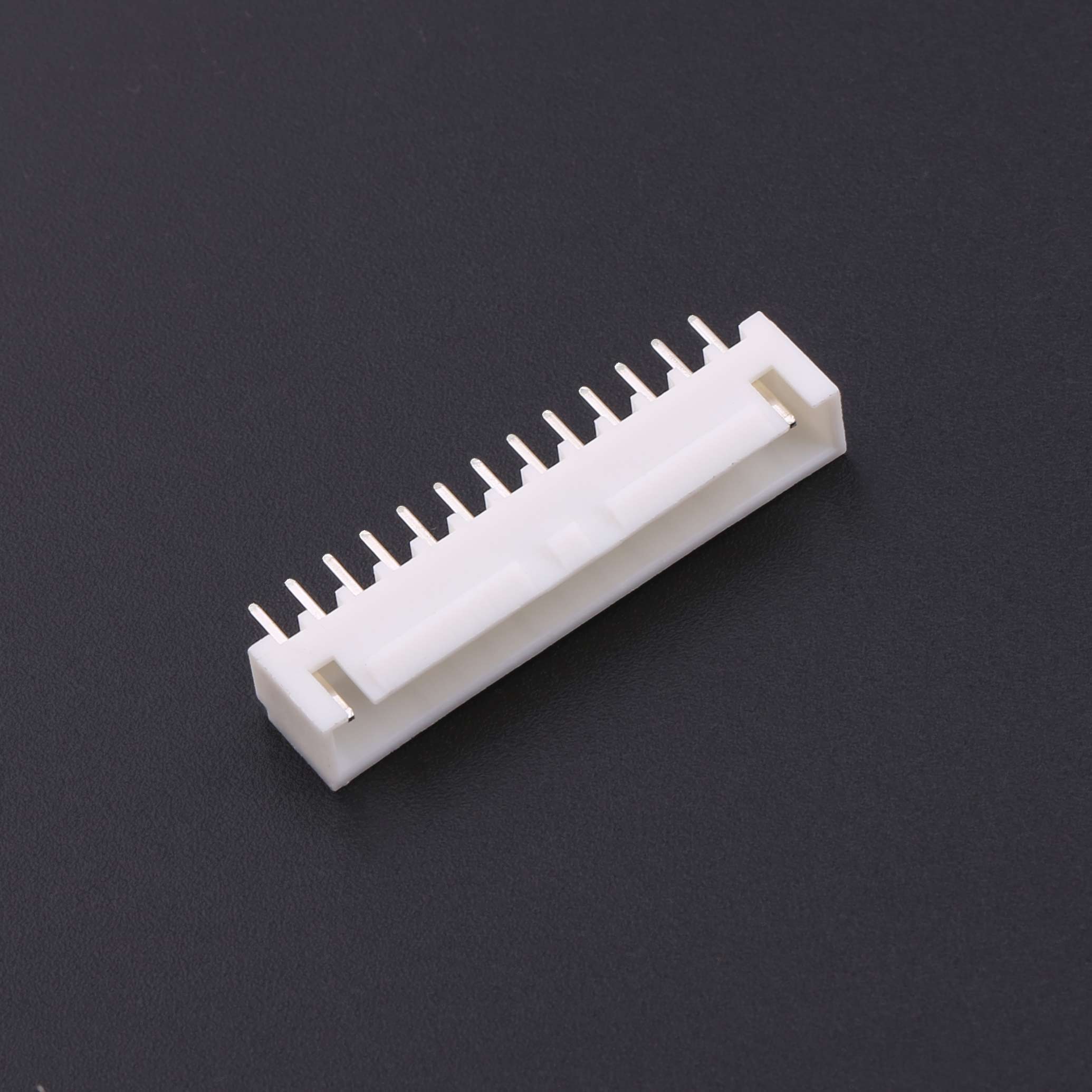

2.54mm Pitch Wire-to-Board Connector, 1x13P, KH-A2504-13A
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch single-row board-to-board connector
● 13 pins configuration for efficient space use
● Durable white housing for reliable protection
● Straight pins with locking mechanism for secure board connections
Product Benefits
● Provides stable and consistent electrical performance
● Compact design maximizes available PCB space
● Locking feature enhances connection reliability
● Ideal for applications where space and reliability are critical
Product Applications
● Widely used in communication and networking equipment
● Perfect for consumer electronics like wearables and home appliances
● Suitable for industrial electronics and control systems
● Common in automotive sensors and control interfaces
