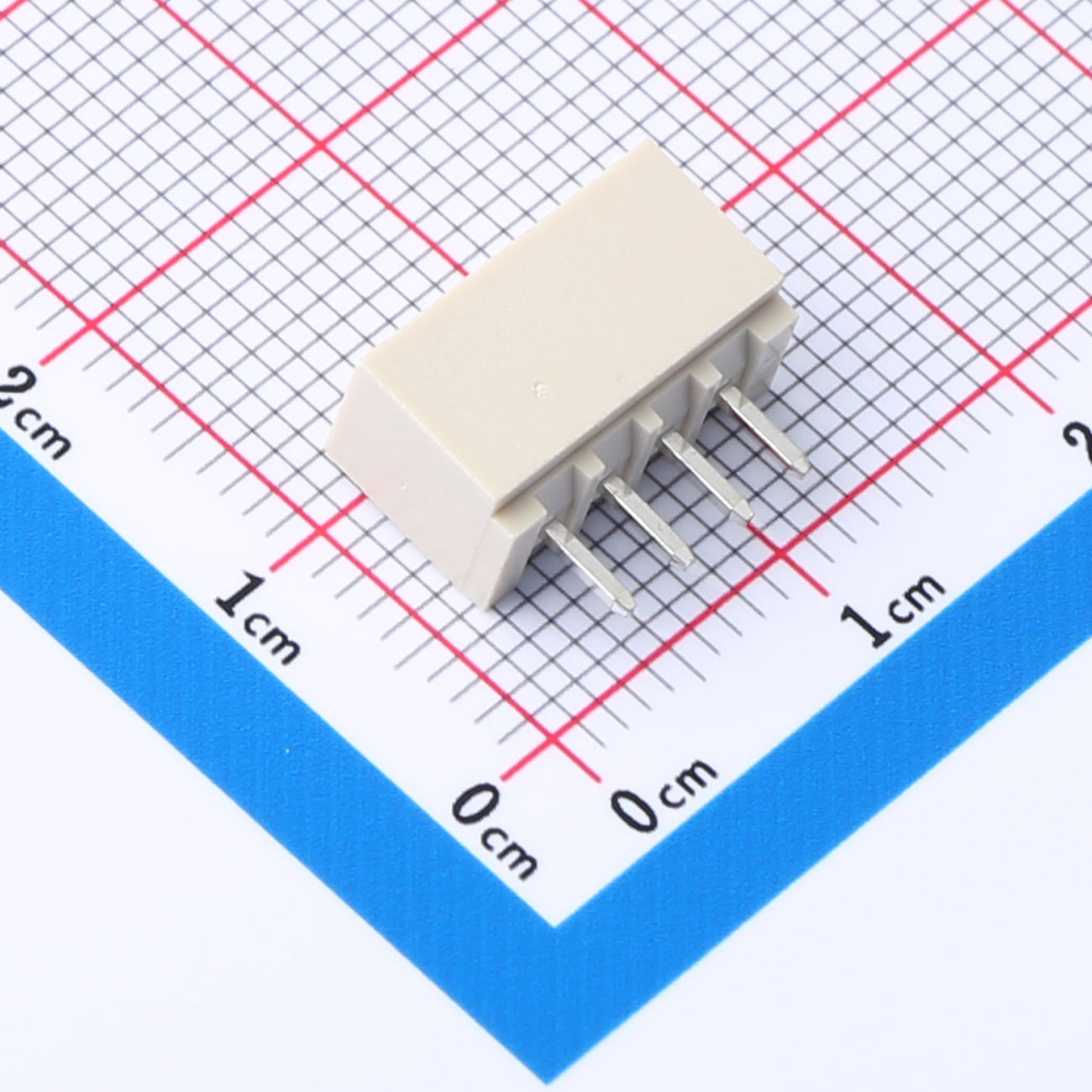

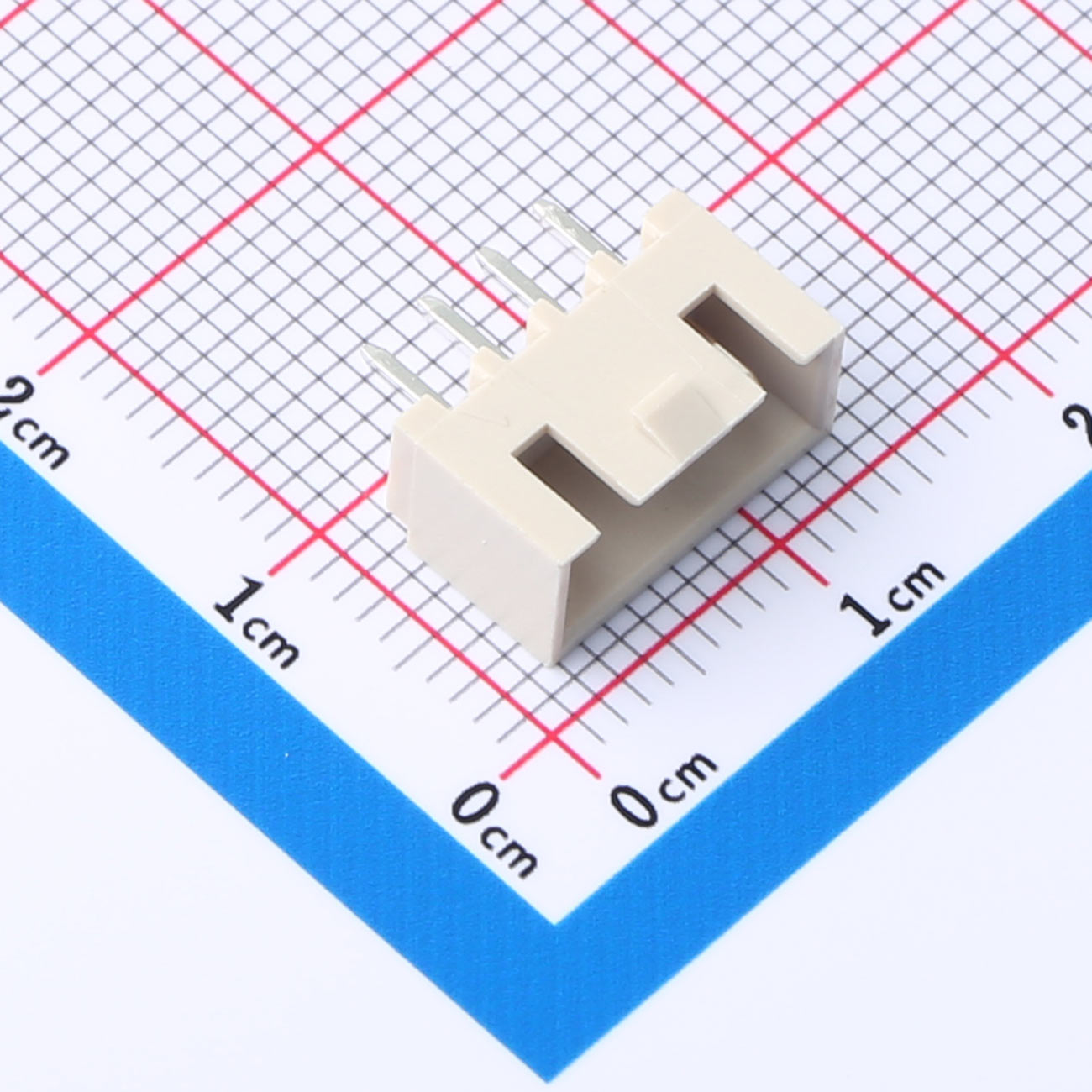

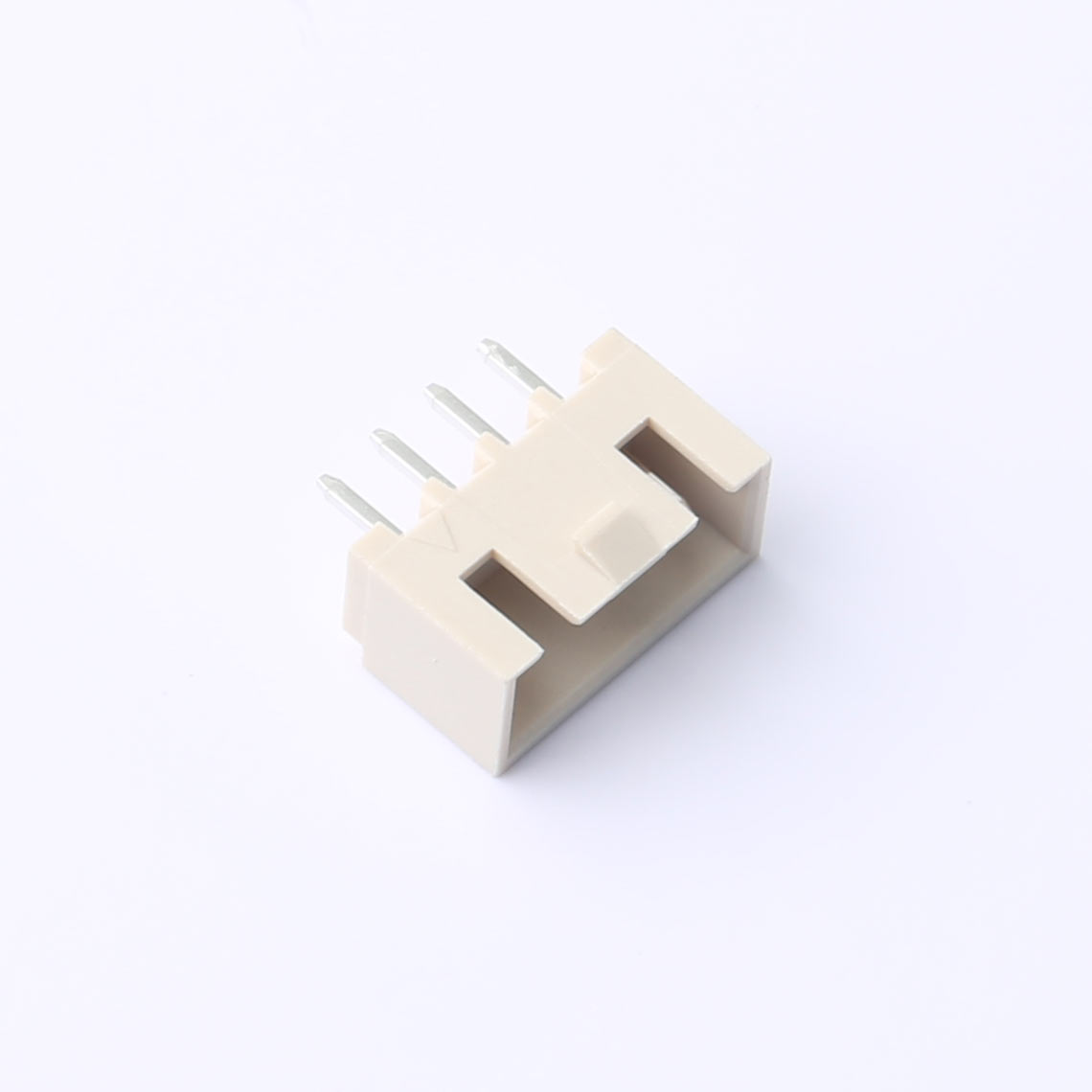

2.54mm Pitch Wire-to-Board Connector, 1x4P, KH-A2504-04A-M
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Brand: Kinghelm
● Model: KH-A2504-04A-M
● Wire-to-board connector, 1×4 pins
● Pitch: 2.54 mm
● Straight through-hole (HA straight pins with latch)
● Housing color: beige
● Material: Wafer Nylon66, UL94V-0; PIN: Brass, Tin-plated
● Package: bag
Product Benefits
● Reliable 4-pin connection for small, low-pin count circuits
● Flame-retardant housing (UL94V-0) ensures safety
● Tin-plated brass pins for excellent electrical conductivity
● Easy through-hole soldering for quick assembly
● Latch design secures the connection for stability
● Lightweight (0.5275 g), suitable for compact designs
Product Applications
● Small embedded systems
● Consumer electronics connections
● Signal and power routing in control boards
● DIY electronics projects and prototyping
● Robotics and sensor integration
● Test and measurement equipment
