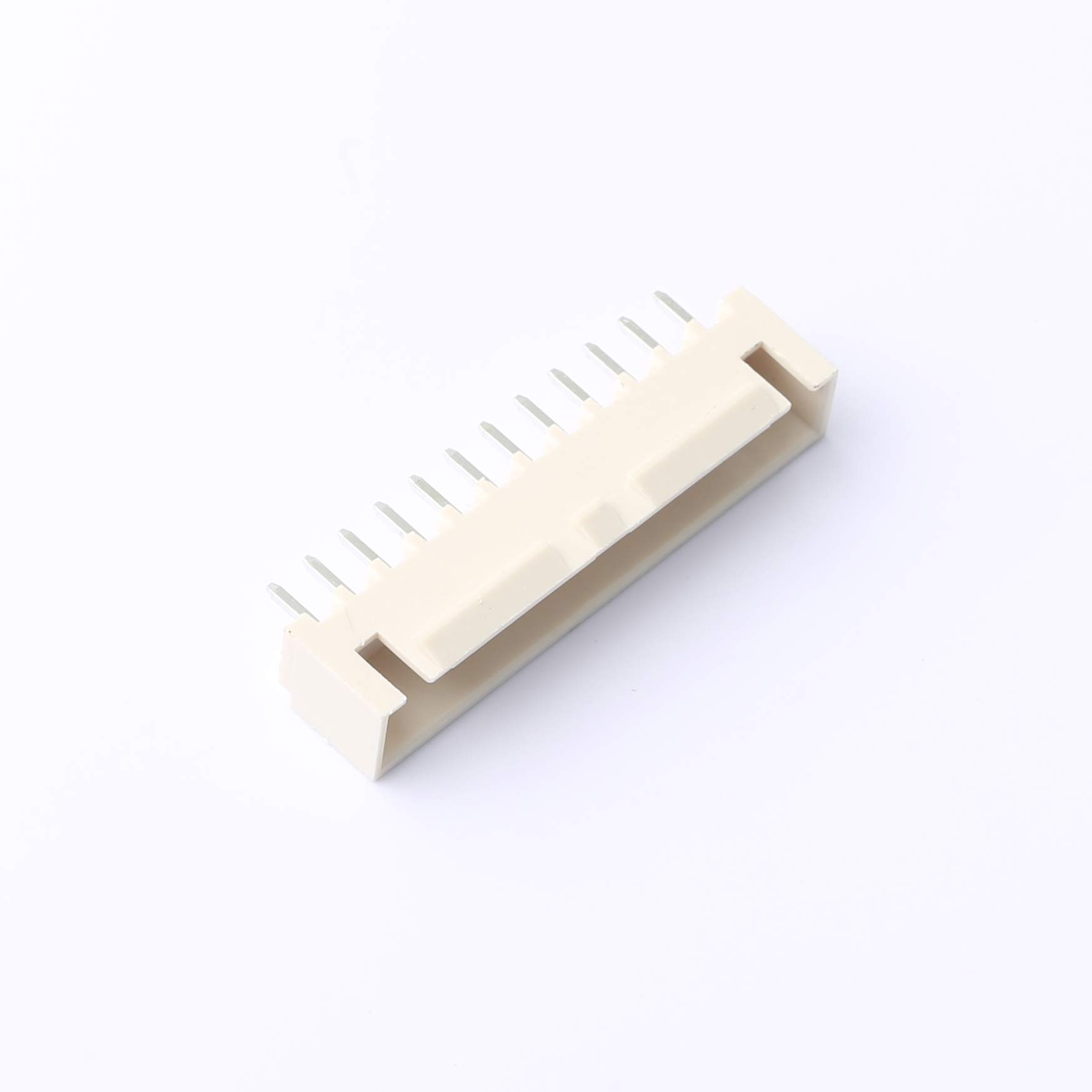

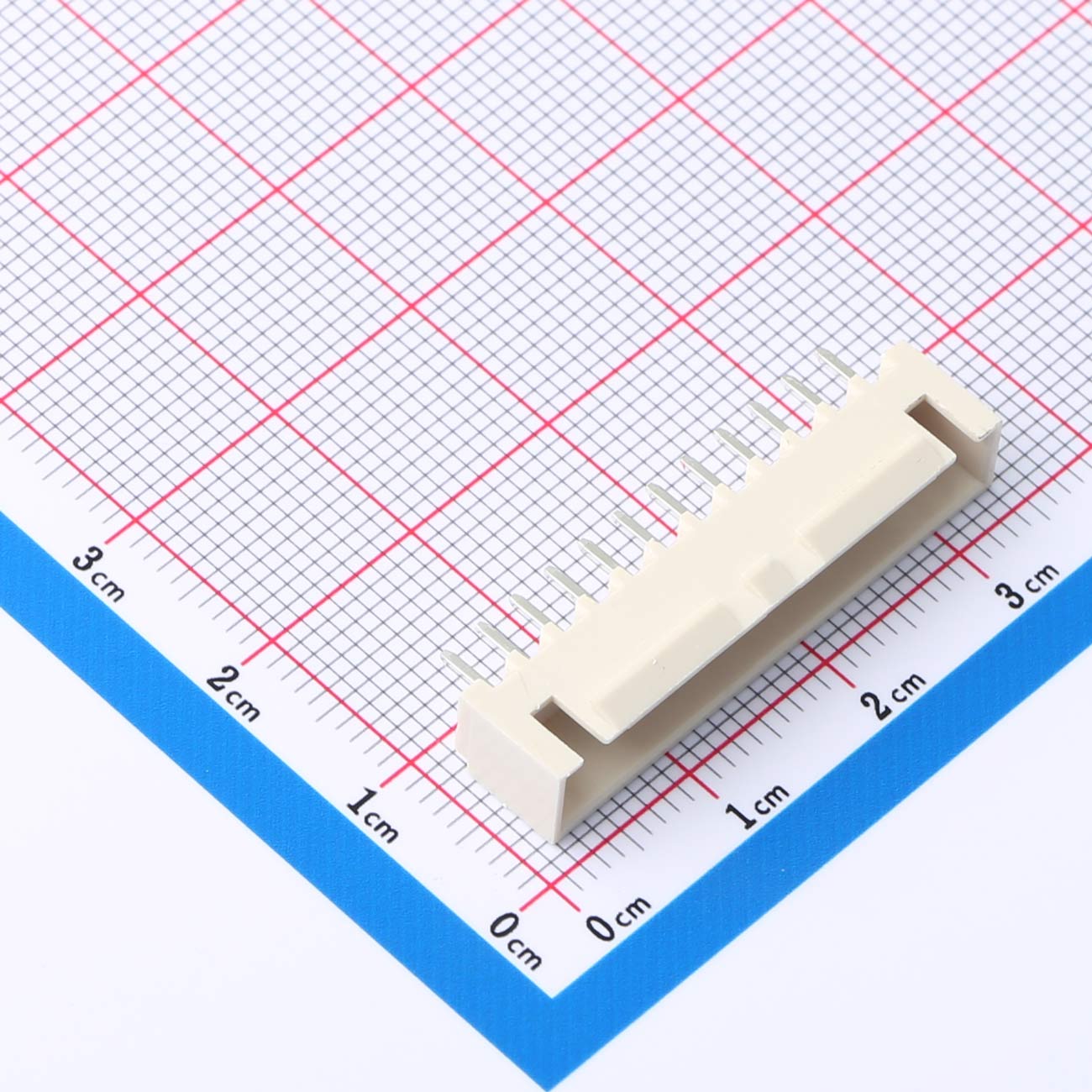

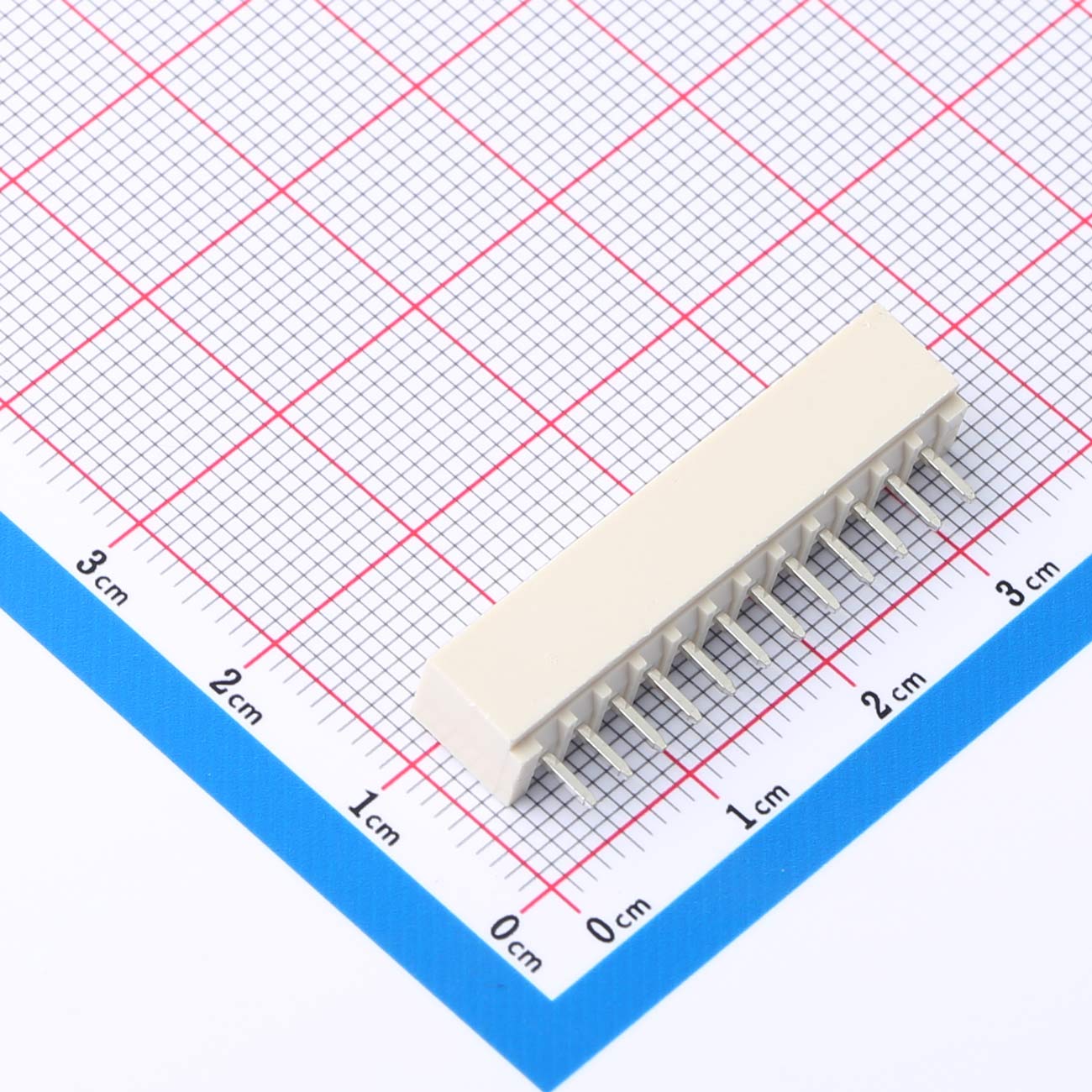

2.54mm Pitch Wire-to-Board Connector, 1x12P, KH-A2504-12A-M
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Brand: Kinghelm
● Model: KH-A2504-12A-M
● Wire-to-board header, 1×12 pins
● Pitch: 2.54 mm
● Straight through-hole (HA straight pins with latch)
● Housing color: beige
● Package: bag
Product Benefits
● Stable 12-pin signal or power connection
● High mechanical strength and contact reliability
● Quick and easy soldering to 2.54 mm PCBs
● Latch design ensures reliable mating and retention
● Space-efficient for moderate-density layouts
● Lightweight (1.3746 g), suitable for delicate boards
Product Applications
● Control boards and modules
● Signal distribution in embedded systems
● Consumer device connectors
● Smart home circuit interfaces
● Robotics and sensor integration
● Custom electronics and educational kits
